  • DESCRIPTION


Silicon Super Fast Recovery Diode TYPE:YZPST-MUR30040

Features

  • High Surge Capability
  • Types from 50 V to 400 V VRRM
  • Not ESD Sensitive

Symbol

Condition

Ratings

Unit

IF(AV)M

TC=140°C; 180° sine

300

A

IFRMS

maximum value for continuous operation

425

A

IFSM

Tj=25°C; t = 8.3 ms (50 Hz); sine

1500

A

I2t

Tj=25°C; t = 8.3 ms (50 Hz); sine

-

kA2S

Viso

A.C.1minute/1second

-

V

Tj


-55  ~  + 150

°C

Tstg


-55  ~  + 150

°C

M

mounting torque; ±15%

-

Nm

terminal torque; ±15%

-

Nm

W

approx.

-

g

IRRM

AtVRRM,Single phase,half wave,Tj=125°C

3

mA

VFM

On-State Current 300A,Tj=25°C

1.70

V

VF0

Tj=150°C

-

V

rF

Tj=150°C

-

trr

Tj=25°C; IF = 0.5A; -diF/dt = 15A/μs; VR = 30V; IRR = 0.25A

90

ns

Qrr

Tj=150°C; IF = 50A; -diF/dt = 100A/μs; VR = 100V

-

us

IRM

-

A

Rth(j-c)

Per Module

0.45

°C/W

Rth(c-h)

Per Module

-

°C/W

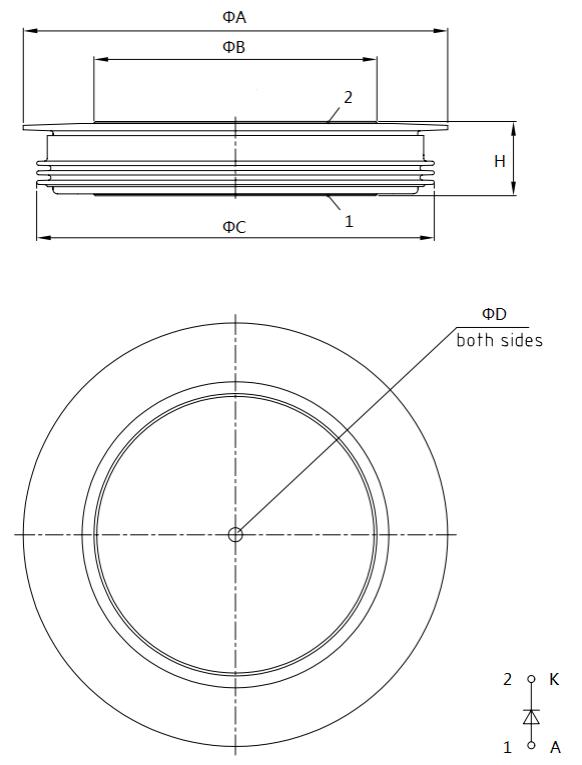

Outline Drawing
For more information about Fast Recovery Diode Module please download the PDF file above named " YANGZHOU POSITIONING TECH CO  Power  thyristor and diode parts "
