YZPST-ST280CH04
YZPST-ST280CH04
  • YZPST-ST280CH04.pdf YZPST-ST280CH04.pdf
  • YANGZHOU POSITIONING TECH CO  Power  thyristor and diode parts 20200518.pdf YANGZHOU POSITIONING TECH CO Power thyristor and diode parts 20200518.pdf
  • DESCRIPTION
  • SPECIFICATION
http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured


Features:


all diffused design
high current capabilities
high surge current capabilities
high rates voltages
high dv/dt
low gate current
dynamic gate
low thermal impedance
compact size and small weight


Application


High Power Drives
DC Motor Control
High Voltage Power Supplies
ELECTRICAL CHARACTERISTICS AND RATINGS
Blocking - Off State

VRRM (1)

VDRM (1)

VRSM (1)

400

400

500

VRRM = Repetitive peak reverse voltage
VDRM = Repetitive peak off state voltage
VRSM = Non repetitive peak reverse voltage (2)

Repetitive peak reverse leakage and off state leakage

IRRM / IDRM


8mA
75 mA (3)


Critical rate of voltage rise

dV/dt (4)

500 V/msec

Notes:
All ratings are specified for Tj=25 oC unless otherwise stated.
(1) All voltage ratings are specified for an applied 50Hz/60zHz sinusoidal waveform over the temperature range  -40 to +125 oC.
(2) 10 msec. max. pulse width
(3) Maximum value for Tj = 125 oC.
(4) Minimum value for linear and exponential waveshape to 80% rated VDRM. Gate open. Tj = 125 oC.
(5) Non-repetitive value.
(6) The value of di/dt is established in accordance with EIA/NIMA Standard RS-397, Section 5-2-2-6. The value defined would be in addition to that obtained from a ubber circuit,comprising a 0.2 F capacitor and 20 ohmsresistance in parallel with the thristor under test.

YZPST can provide Following List of  Thyristor

INDUCTOR FURNACE SPECIAL DEVICE FAMILY
C430PB C440L C451L C701L C781L C448PD
C458PD C712L C770L A696L A740L D860
R0910LS260 N280CH14 N490CH20 R0878LS21E R216CH16 R1275NS20
R2619ZC21 R2714ZC20J SM18CXC924 SW40CXC820 SW14PHN(R)380 R600CH21
SM16PHN(R)100 R395CH21 C648PB R200CH20 C702-42 CXC924
PHASE CONTROL THYRISTOR FAMILY
N200CHX N330CH N350CH N370CH N320CH N360CH
N490CHX N540CH N560CH N600CH N640CH N760CH
N880CHX N980CH N880CH N0910NC N0882 N630CH
5STP04D5200 5STP25L5200 5STP33L2800 5STP08G6500 5STP12K6500
AT603 AT604 AT804 AT803 AT807 AT480
AT1003 AT1004 AT1005 AT607 AT620 AT636
AT671 AT726 AT708 AT738 AT866 AT870
AT880 AT708LT AT720LT AT866LT AT720HT AT866HT
DCR504 DCR604 DCR804 DCR1004 DCR1278 DCR1476
DCR1474 DCR803 DCR1003 DCR840 C390 T720
T7SO T820 T9G0 TA20 TB20 TD20
H505CH H507CH H1450CH H1590CH H2000CH H3200CH
SHXXC450 SHXXC540 SHXXC760 SHXXC1850 SHXXC2230 SHXXC2770
BHtT72 BHtT78 BHtU66 BHt U67 BHtU77 BHtV72
SKT441 SKT551 SKT760 SKT1000 SKT1200 SKT1800
T233 T243 T253 N500CH N1661NC N1718NS
N1132NC N0734YS N0032 N1718 N1114 N1467
N500CH T458N T708N T1218N T1869N T2709N
ST230 ST280 ST380 ST780 ST1280 T4301N
TV989 BHTP45 T345 T625 TC233 TC143
INVERTER THYRISTOR FAMILY
R185CHX R216CHX R180CHX R190CHX R200CHX R219CHX
R220CHX R270CHX R305CHX R325CHX R350CHX R395CHX
R600CHX R800CHX R1200CHX R200CH R600CH R325CH
R0577YS R0633YS R0577YS R0878LS R0929LS R0990LS
R1178NS R1275NS R1279NS R1280NS R1446NS R1448NS
R2475ZD R2619ZC R2620ZC R2714ZD R3047TC
k ATF585 ATF587 ATF860 ATF857 ATF401 ATF413
ATF414 ATF827 ATF427 ATF828 ATF820 ATF420
ATF514 ATF527 ATF1040 ATF530 ATF543 ATF614
ATF615 ATF633 ATF743 DCR1259 T318F T340F
T72H T7S7 T7SH T82F T82F T9GH
R0633 R0830 R0946 R1007LS R400CH
T408F T599F T1052S TB333 TB553 TB273
DIODE FAMILY
AR371 AR912 AR1101 AR1104 AR1107 AR480
AR509LT AR2004LT AR2004 AR609LT AR3001 AR3004
AR670 AR680 AR649 AR690 AR709 AR770
AR771 AR772 AR747LT AR609 AR507LT R0577
R722 R7S2 R9G2 SM18CXC924 R7SS/R7SF R82S/R82F
R9GS/R9GF R9GS R9GF RA2F R822 R1446
BHdK28 BHdP60 BHdP62 BHdR60 BHdR62 BHdT60
XSDD303 A880/SDD217 A801/SDD211 A800/SDD208A A782/SDD119 A780/SDD108
A750/SDD113 A740/SDD105 A643/SDD64 A641/SDD51 W2624 W1748
M0859LC M1022LC M1494NC D233 D243 D253
R7S0 R820 R9G0 RA20 RB20 W2052
SD823 SD1053 SD1553 DS502 DS804 DS1104
DS1107 ARF422 DSF912 ARF526 AUS605
MODULE FAMICY
SKKT92 SKKT162 SKKT250 SKKT310 SKKT500 SKKT800
IRKT91 IRKT161 IRKT251 IRKT310 IRKT500 IRKT1000
MCC95 MCC130 MCC250 MCC310 MCC500 MCC800
HTT/HTD 90N HTT/HTD 132N HTT/HTD 162 HTT/HTD 250N HTT500 HTT800
HDD 55N HDD 90N HDD 105N HDD 132N HDD 170N HDD 250N
SKKD91 SKKD161 SKKD250 SKKD320 SKKD500 SKKT91
MTD91 MTD250 MTD500 MTD1000 ADD700 MEK300
MDD91 MDD250 MDD310 MDD800 SKKE600 SKET380
SXHN55 SXHBN200 SXHN 250 SXHFN400 SXHN550 SXHN860
MDS30 MDS75 MDS150 MDS300 DS250 DS400
DS500 SKBPC35 SKBPC25 KBPC25 KBPC35 SKET740
SKET400 DSA450 MEK300
STUD DEVICE FAMILY
C150 C180 C110 C147 P200 P214
ST110 ST180 ST330 ST303 ST173 P0311
SD150 SD300 25F R5C P0431 P270
SKN150 SKN240 SKN300 SKN400 T607 T707
40HF 70HF 85HF 45L16 45LR16 300U(R)120
300U(R)40 300U(R)60 25R1A 70R1A 110R1A 300R1A
D40 D70 D130 D240 D410 D860
R600 R601 R700 R701 A197 T210N 4
T70 T85 T100 T125 T250 T500
T700 T160N T221N T130N T86N R72S/R72F
R502/R503 R602/R603 R622 R702/R703 R50S/R50R R60S/R60
H65TB H125TB H250TB H300TB H400 TB H500 TB
BHdL38 BHdN12 BHtM45 BHtN46 BHtP46 BHtR68H
SKR45 SKR71 SKR100 SKR130 SKR240 SKR320
SKN45 SKN71 SKN100 SKN240 SKN320 SKT40
SKT55 SKT100 SKT130 SKT160 SKT250 SKT300
For more information about Phase Control Thyristor please download the PDF file above named " YANGZHOU POSITIONING TECH CO  Power  thyristor and diode parts "
http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured


Conducting - on state

Parameter

Symbol

Min.

Max.

Typ.

Units

Conditions

Max. average value of on-state current

IT(AV)


185


A

Sinewave,180o conduction,Tc=110oC

RMS value of on-state current

ITRMS


1130


A

Nominal value


Peak one cPSTCle surge
(non repetitive) current



ITSM



-
6



kA

kA


8.3 msec (60Hz), sinusoidal wave-
shape, 180o conduction, Tj = 125 oC
10.0 msec (50Hz), sinusoidal wave-
shape, 180o conduction, Tj = 125 oC


I square t

I2t


180x103


A2s

8.3 msec


Treshold voltage

VT(T0)


0.84


V


Slope resistance

rT


0.50




Latching current

IL


1000


mA

VD = 12 V; RL= 12 ohms

Holding current

IH


600


mA

VD = 12 V; I = 2.5 A

Peak on-state voltage

VTM


1.35


V

ITM = 1000 A; Tj = 150 oC


Critical rate of rise of on-state
current (5, 6)


di/dt


1000


A/ms


Switching from VDRM £ 1000 V,
non-repetitive



Critical rate of rise of on-state
current (6)


di/dt


-


A/ms

Switching from VDRM £ 1000 V

Gating

Parameter

Symbol

Min.

Max.

Typ.

Units

Conditions

Peak gate power dissipation

PGM


10


W


Average gate power dissipation

PG(AV)


2


W


Peak gate current

IGM


3


A


Gate current required to trigger all units

IGT


150


mA

VD = 10 V;IT=3A;Tj = +25 oC

Gate voltage required to trigger all units


VGT


3.


V

VD = 10 V;IT=3A;Tj = +25 oC

Peak negative voltage

VRGM


-


V


Dynamic

Parameter

Symbol

Min.

Max.

Typ.

Units

Delay time

tgd



-

ms

VD=67% VDRM, IT=2000A, di/dt=60A/us, IFG=2A, tr=0.5us, Tj=25C

Turn-on time

tgt


-

-


Turn-off time (with VR = -5 V)

tq

-

100

-

ms

ITM=300A, tp=500us, di/dt=20A/us, Vr=50V, Vdr=67%VDRM, dVdr/dt=20V/us

Reverse recovery current

Irm


-


A

ITM=4000A, tp=2000us, di/dt=60A/us


THERMAL AND MECHANICAL CHARACTERISTICS AND RATINGS

Parameter

Symbol

Min.

Max.

Typ.

Units

Conditions

Operating temperature

Tj

-40

+150


oC


Storage temperature

Tstg

-40

+150


oC


Thermal resistance - junction to case

RQ (j-c)



0.17
-



K/W


Double sided cooled
Single sided cooled


Thermal resistamce - case to sink

RQ (c-s)



0.033
-



K/W


Double sided cooled *
Single sided cooled *


Thermal resistance - junction to case

RQ (j-s)



-
-



oC/W


Double sided cooled
Single sided cooled


Mounting force

F

-

-

4.9

kN


Weight

W



50

g

about

* Mounting surfaces smooth, flat and greased

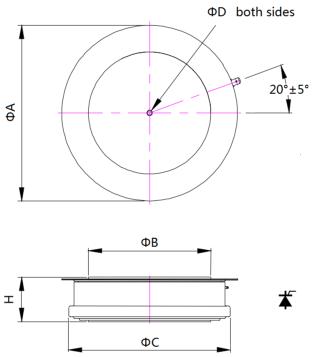

Note : for case outline and dimensions, see case outline drawing in page 3 of this Technical Data

Sym

A

B

C

D

H

mm

41

19

36

3.5×1.8

14±1

YZPST can provide Following Equivalent List of Phase Control Thyristors (Capsule Types)

Type

IT(AV)

VDRM/VRR M

ITSM @TVJM &10ms

IDRM/IR RM (max)

VTM(max)

Tvj

Rthjc

F±10%

Tj=125°C

ITM

VTM

A

V

KA

mA

A

V

°C

K/W

KN

C380

250

400-1600

3.5

20

1500

2.8

125

0.11

5

C430

680

400-1600

8

20

3000

2.4

125

0.06

10

C431

600

1200-1800

5.9

30

3000

2.6

125

0.06

10

C440

900

400-1600

12

35

3000

1.65

125

0.04

15

C441

750

1400-2200

10

35

3000

2

125

0.04

15

C450

1640

400-1600

26

45

3000

1.4

125

0.02

25

C451

1500

1400-2200

20.8

45

3000

1.7

125

0.02

25

C701

1250

1200-2100

16.6

65

3000

1.7

125

0.02

25

C702

100

2400-3200

20.5

150

3000

1.85

125

0.02

25

SDT122

950

3500-4000

14.7

75

1000

1.6

125

0.02

25

C781

2500

1200-2100

41.5

150

2000

1.2

125

0.01

36

C782

2300

2200-2600

32

150

2000

1.35

125

0.01

36

C784

1650

3600-4500

24

200

2000

1.85

125

0.01

36

C789

1200

5500-6000

20

200

2000

2.3

115

0.01

36


For more information about Phase Control Thyristor please download the PDF file above named " YANGZHOU POSITIONING TECH CO  Power  thyristor and diode parts "
