YZPST-ZP8000A-1200V
YZPST-ZP8000A-1200V
  • YZPST-ZP8000A-1200V.pdf YZPST-ZP8000A-1200V.pdf
  • YANGZHOU POSITIONING TECH CO  Power  thyristor and diode parts 20200518.pdf YANGZHOU POSITIONING TECH CO Power thyristor and diode parts 20200518.pdf
  • DESCRIPTION
http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured
Absolute Maximum Ratings


VOLTAGE RATINGS


MAXIMUM
LIMITS


UNITS

VRRM

Repetitive peak reverse voltage, Tj=25℃

1200

V

VRSM

Non-repetitive peak reverse voltage, Tj=25℃

1300

V






OTHER RATINGS


MAXIMUM
LIMITS


UNITS

IF(AV)

Average forward current, Tj=150℃

8410

A

IF(RMS)

Nominal RMS forward current, Tj=25℃

15025

A

IFSM

Peak non-repetitive surge tp=10ms, Tj=25℃

72

kA

I2t

I2t capacity for fusing tp=10ms, Tj=25℃

25.92×106

A2s

Tjop

Operating temperature range

-40 to +150

Tstg

Storage temperature range

-40 to +150

Characteristics


PARAMETER

MIN.

TYP.

MAX.

TEST CONDITIONS

UNITS

VFM

Maximum peak forward, Tj=150℃

-

-

1.13

IFM=6800A

V

V(T0)

Threshold voltage

-

-

0.67


V

rT

Slope resistance

-

-

0.038


IRRM

Peak reverse current

-

-

100

Rated VRRM, Tj=150℃

mA




Rated VRRM, Tj=25℃

Qrr

Recovered charge

-

-

-


μC

Irm

Reverse recovery current

-

-

-

Vr=50V, 50% Chord.

A

trr

Reverse recovery time, 50% Chord

-

-

-


μs

RthJK

Thermal resistance, junction to heatsink

-

-

0.011

Double side cooled

K/W


-

0.022

Single side cooled

F

Mounting force

63

-

91


kN

Wt

Weight

-

-

-


g

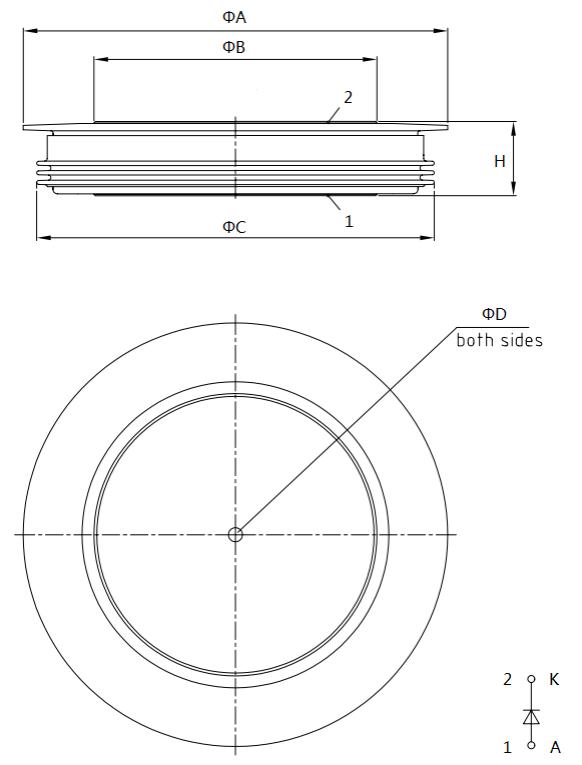

Outline Drawing

Type

Sym

A

B

C

D

H


mm

150

100

108

3.5×3

26±1

YZPST can provide Following Equivalent List of Standard Diodes With High Junction (Capsule Types)

Type IF(AV) IFSM @TVJM&10ms VRRM IRRM (max) Tj=125 °C VFM(max) Tvj Rthjc F±10 %
A KA V mA IFM (A) IFM (A) Tj(°C) °C K/W KN
A640 1500 16 1200-2200 35 1.09 1000 25 185 0.04 15
A641 1500 15 1800-2600 70 1.09 1000 25 185 0.04 15
A643 1000 10 3600-4600 50 1.40 1000 160 170 0.04 15
A740 2400 30 1400-2000 50 0.86 1000 160 185 0.02 25
A750 1800 22 2400-3200 50 0.96 1000 160 175 0.02 25
A780 1500 18 3500-4600 50 1.15 1000 160 170 0.02 25
A800 4400 63 1800-2600 100 0.865 2000 160 185 0.01 36
A801 3900 57 2800-3200 100 1.05 2000 150 175 0.01 36
A880 2900 36 3600-4500 100 1.15 2000 160 170 0.01 36


For more information about Standard diode please download the PDF file above named " YANGZHOU POSITIONING TECH CO  Power  thyristor and diode parts "
