YZPST-40TPS12
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files

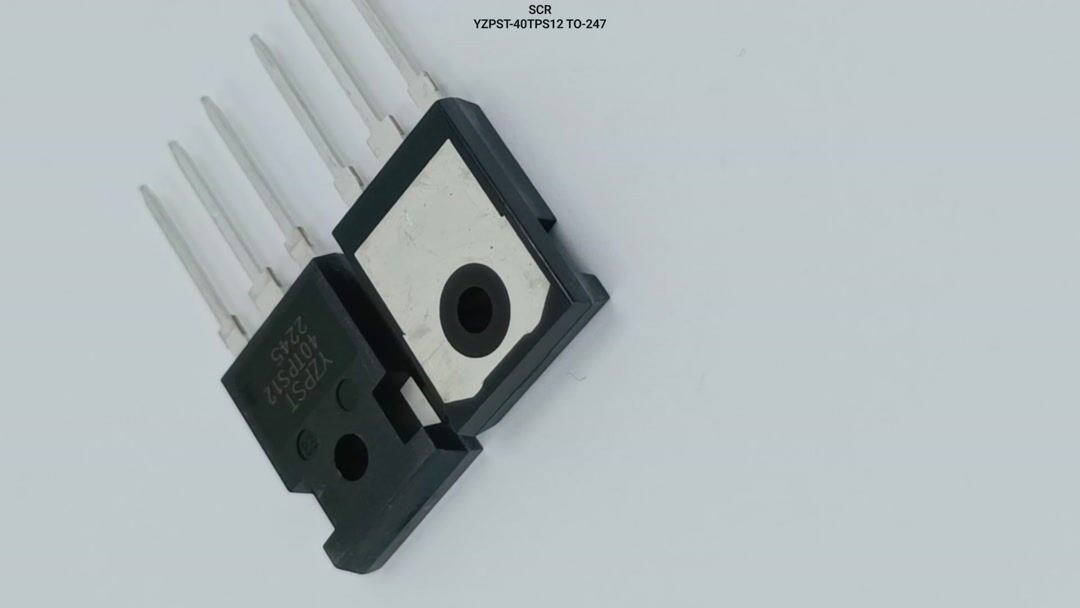

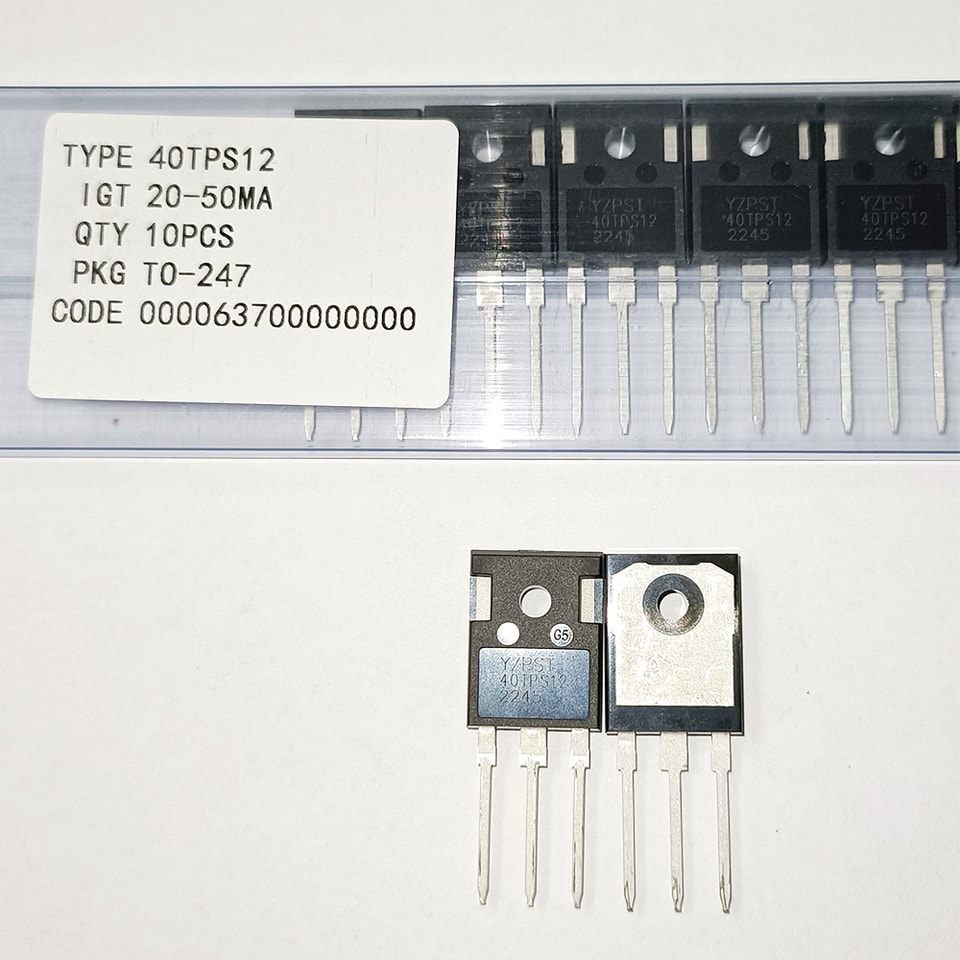

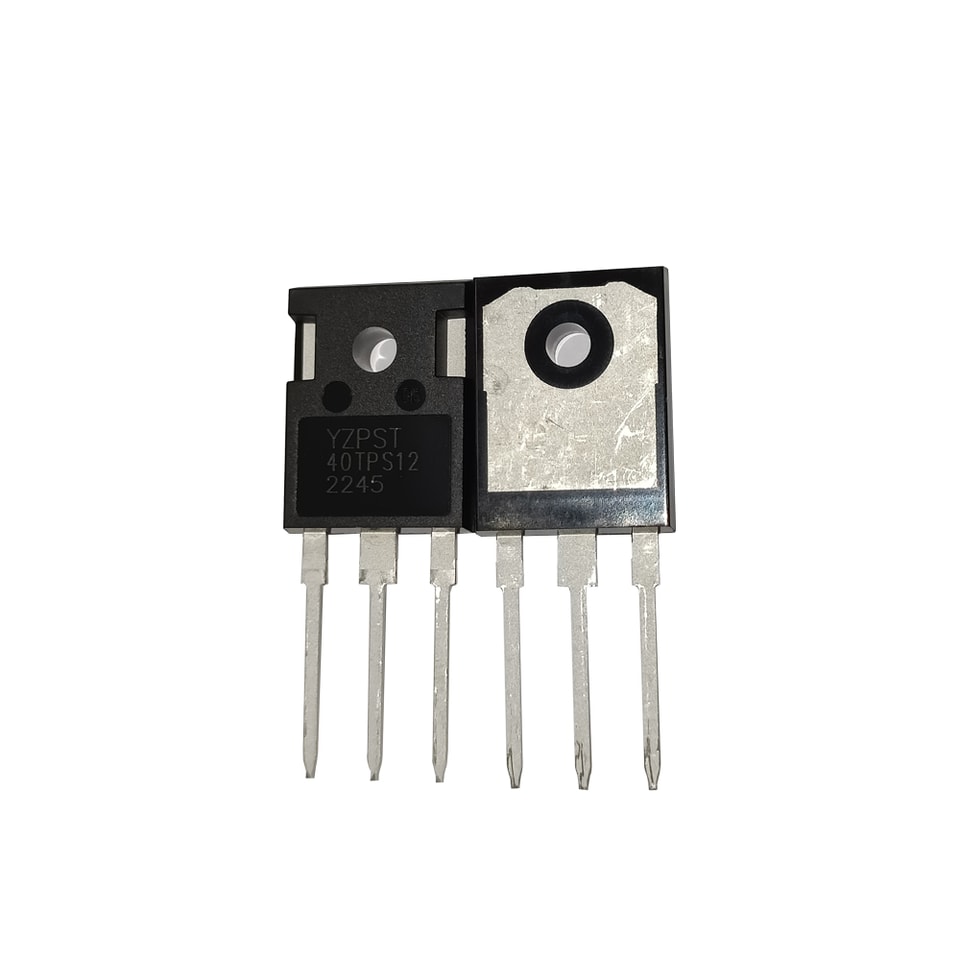

SCR YZPST-40TPS12
Product features
Table glass passivation process,
The back (anode) electrode metal: Ti-Ni-Ag
The Positive (gate, anode ) electrode metal: AL
The main purposes
Alternating current switch,
AC DC power converter,
The control of electric heating
Motor speed control

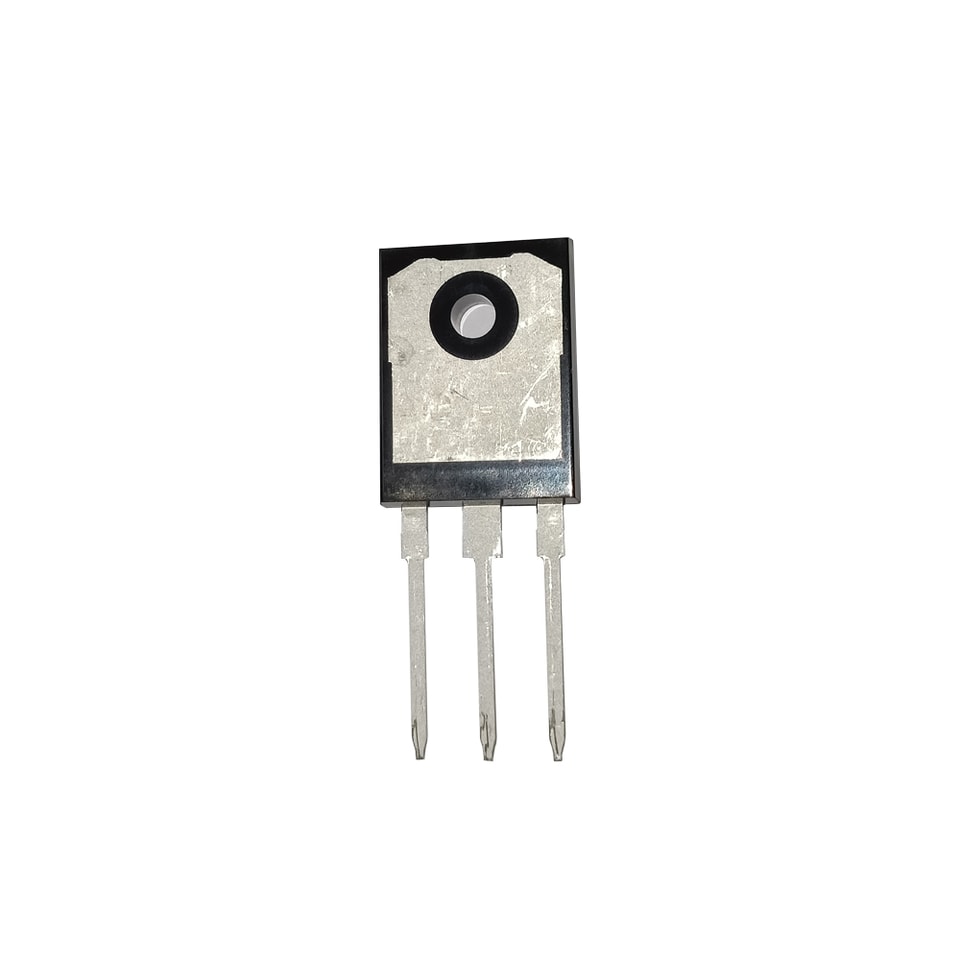

Package
TO-247
MainFeature (Tj=25℃)
Symbol | Value | Unit |
IT (RMS) | 40 | A |
VDRM / VRRM | 1200 | V |
IGT | ≤35 | mA |
Absolute ratings (Limiting Values)
Symbol | Parameter | Value | Unit |
IT (RMS) | RMS on-state current (180°conduction angle) | 40 | A |
ITSM
| Non repetitive surge peak on-state Current (tp= 10ms) | 460 | A |
IGM | Peak gate current(tp=20us) | 4 | A |
PGM | Peak gate power | 5 | W |
PG(AV) | Average gate power | 1 | W |
Tstg Tj | Storage temperature Operating junction temperature | -40--+ 150 -40--+ 125 | ℃ |
Thermai Resistances
Symbol | Parameter |
| Value | Unit |
Rth (j-c) |
Junction to case |
TO-247 |
0.95 |
℃/W |
Electrical characteristicsTj=25℃ unless otherwise stated
Symbol | Test Conditions | Value | Unit | |||
Min | Type | Max | ||||
IGT | VD= 12V, RL=33 Ω | ---- | ----- | 35 | mA | |
VGT | VD= 12V, RL=33 Ω | ----- | ----- | 1.5 | V | |
VGD | VD=VDRM, RL=3.3KΩ, RGK= 1KΩ,Tj=125℃ | 0.2 | ----- | ----- | V | |
H | IT=500mA | ----- | ----- | 75 | mA | |
L | IG= 1.2IGT | ----- | ----- | 150 | mA | |
dV/dt | VD=67%VDRM, GateOpen, Tj=110℃ | 1000 |
----- |
----- | v/ μs | |
VTM | IT=80A,tp=380 μs | ----- | ----- | 1.6 | V | |
dI/dt | IG=2IGT | 50 | ----- | ----- | A/ μs | |
I2T | Tp= 10ms | ----- | ----- | 1060 | A2 S | |
IDRM | VD=VDRM | Tj=25℃ | ----- | ----- | 10 | μA |
Tj=125℃ | ----- | ----- | 4 | mA | ||
VRRM | VR=VRRM | Tj=25℃ | ----- | ----- | 10 | μA |
Tj=125℃ | ----- | ----- | 4 | mA | ||
For more information about YZPST-40TPS12 please download the PDF file above named " YZPST-40TPS12 "
