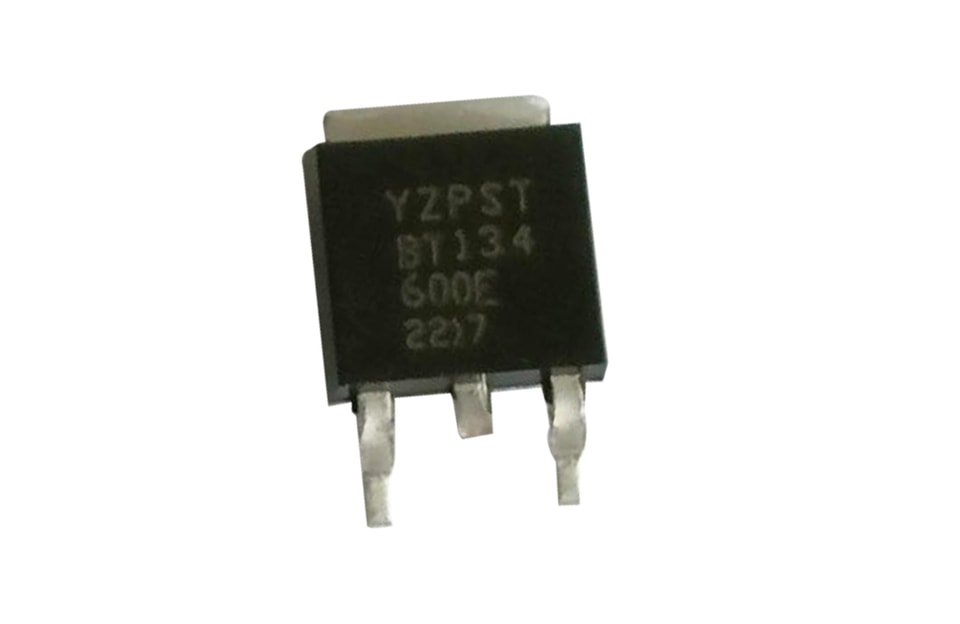

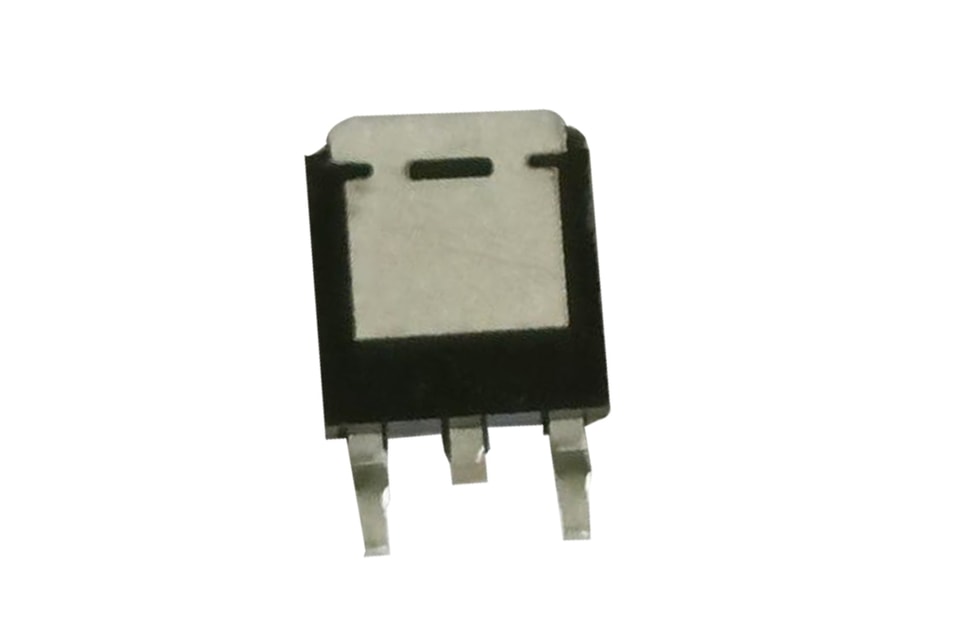

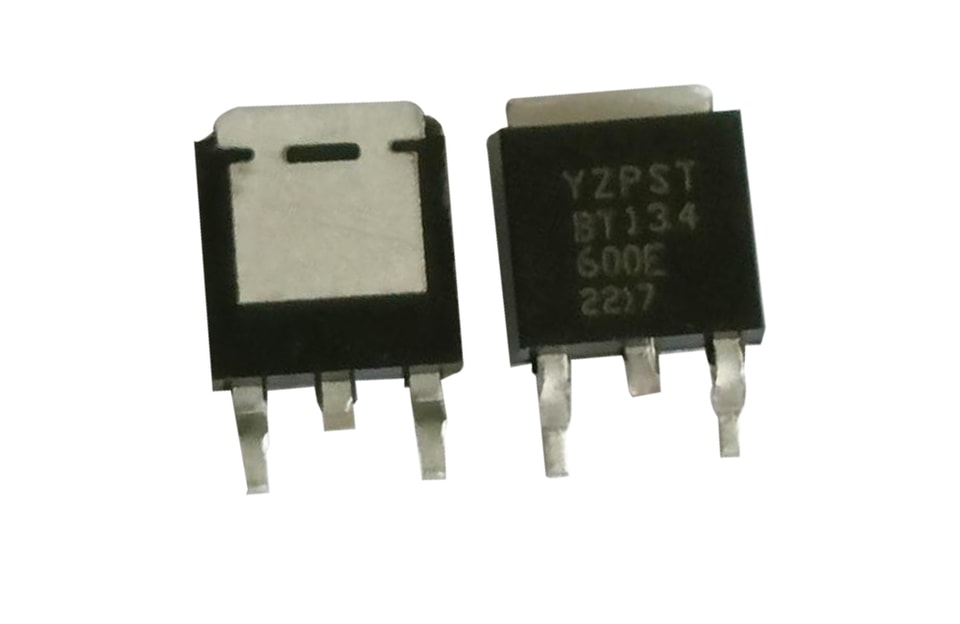

YZPST-BT134-600E
✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry
EmailTechnical sales
PhoneContact team
Tip: include the part number, target voltage/current and application environment.
DOCUMENT CENTER
Downloads & technical files
YZPST-BT134Series 2A TRIAC
DESCRIPTION:
The BT134 triac series is suitable to fit all models of control Found in applications such as motor control ,industrial and domestic lighting ,heating and static switching , motor speed controllers,…
Different gate current sensitivities are available, allowing optimized performances when controlled directly from microcontrollers. UL approved.
MAIN FEATURES
Symbol | Value | Unit |
IT(RMS) | 2 | A |
VDRM VRRM | 600 | V |
VTM | 1.55 | V |
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Value | Unit |
| Storage junction temperature range | Tstg | -40 ~150 | ℃ |
| Operating junction temperature range | Tj | -40~125 | ℃ |
| Repetitive peak off-state voltage (T =25℃) | VDRM | 600 | V |
| Repetitive peak reverse voltage (T =25℃) | VRRM | 600 | V |
| RMS on-state current (T =105℃) | IT(RMS) | 2 | A |
| Non repetitive surge peak on-state current (full cycle, F=50Hz) | ITSM | 20 | A |
| I2t value for fusing (tp=10ms) | I2t | 5.1 | A2S |
| Critical rate of rise of on-state current | dI/dt | 50 | A/μS |
| (I =2×I GT) | |||
| Peak gate current | IGM | 1 | A |
| Average gate power dissipation | PG(AV) | 0.1 | W |
ELECTRICAL CHARACTERISTICS (T=25℃unless otherwise specified)

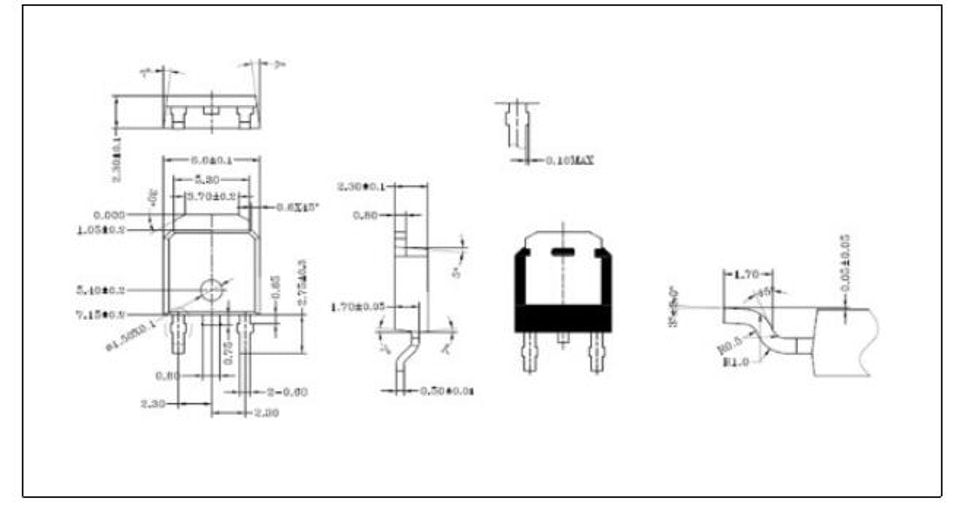

TO-252 Package Mechanical Data
