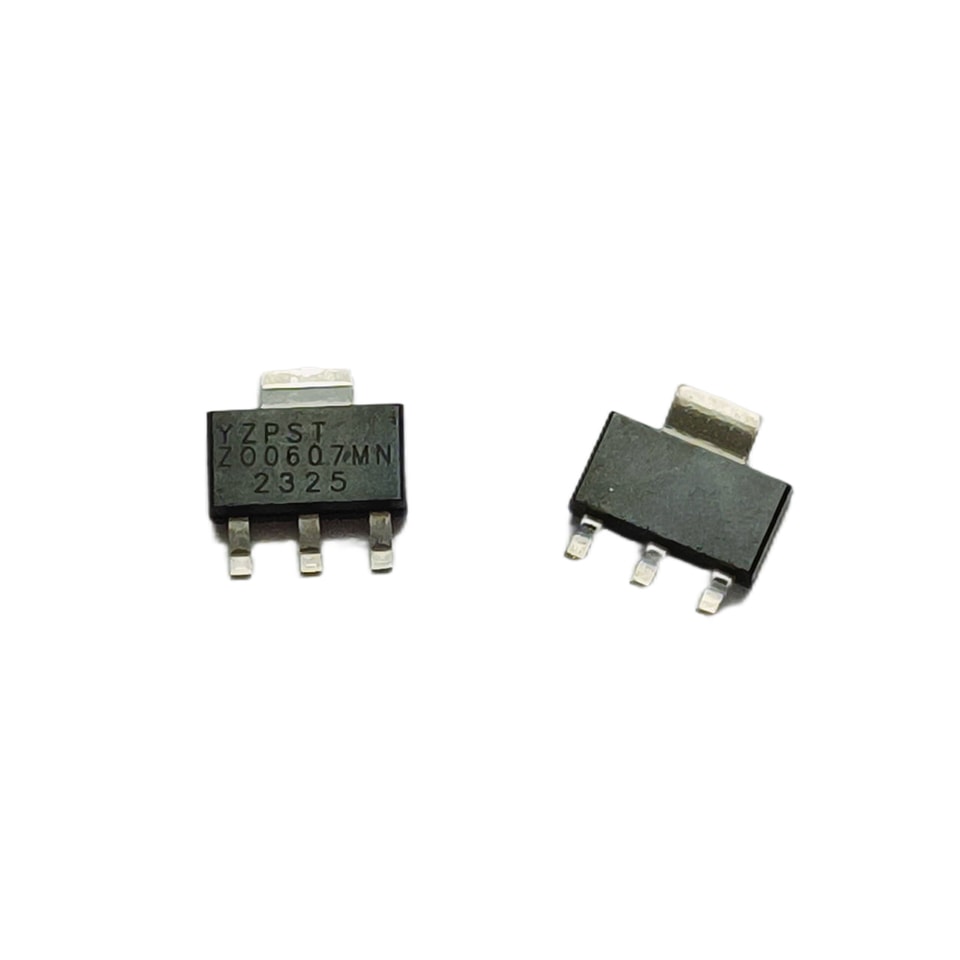

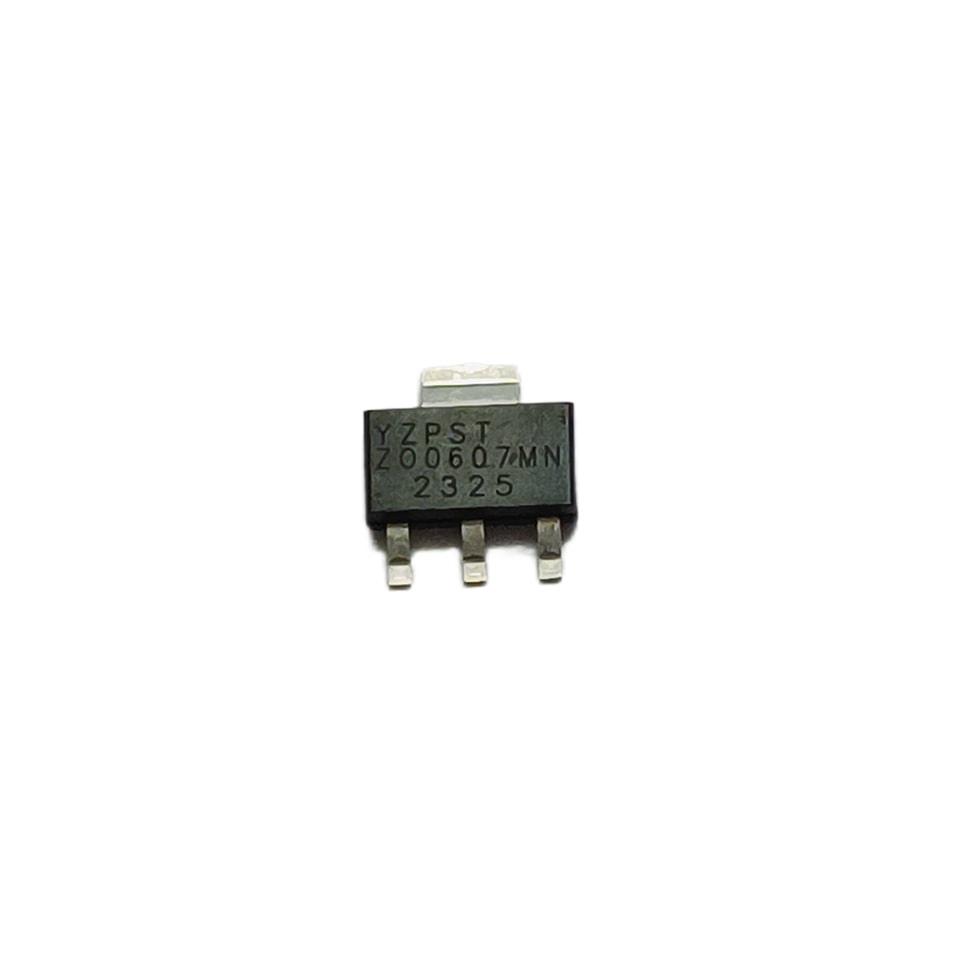

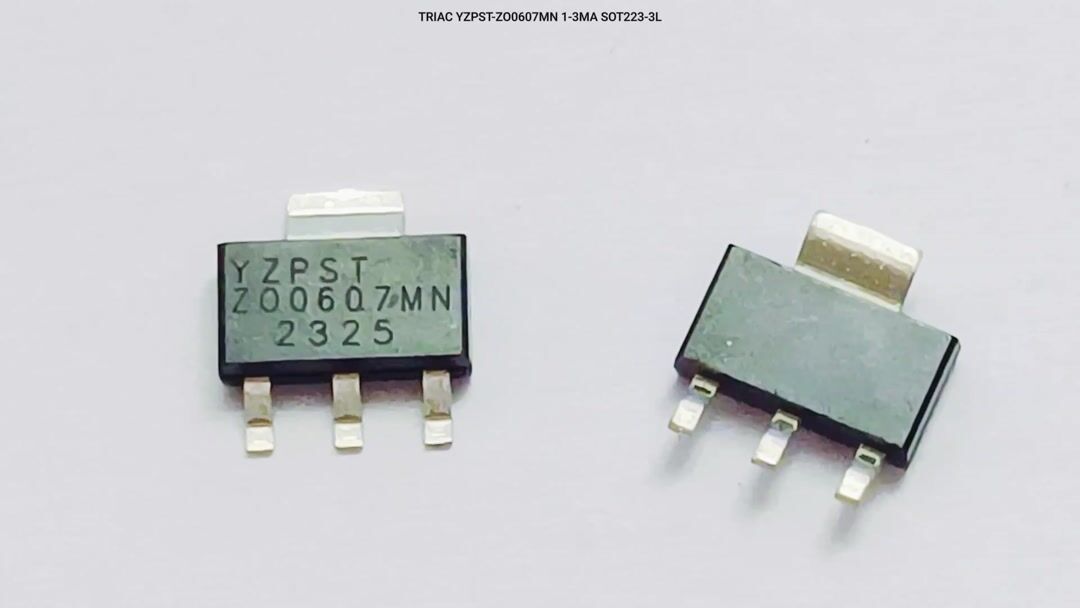

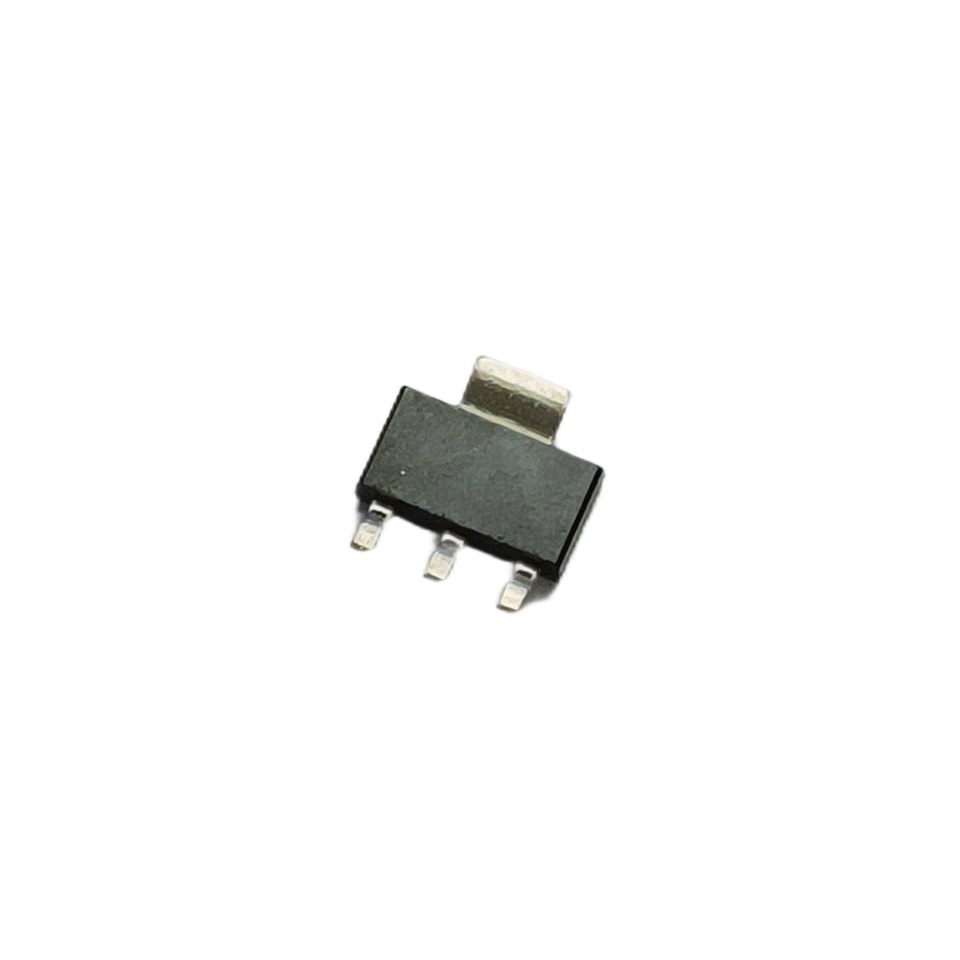

YZPST-ZO0607MN

symbol

value

unit

IT(RMS)

0.8

A

VDRM/VRRM

600/800

V

VTM

≤1.5

V

Parameter

Symbol

Value

Unit

Storage junction temperature range

Tstg

-40~150

℃

Operating junction temperature range

Tj

-40~125

℃

Repetitive peak off-state voltage (Tj=25℃)

VDRM

600/800

V

Repetitive peak reverse voltage (Tj=25℃)

VRRM

600/800

V

RMS on-state current

IT(RMS)

0.8

A

Non repetitive surge peak on-state current (full cycle, F=50Hz)

ITSM

9

A

I2t value for fusing (tp=10ms)

I2t

0.45

A2s

Average gate power dissipation

PG(AV)

0.1

W

Peak gate power

PGM

5

W

Symbol

Test Condition

Value

Unit

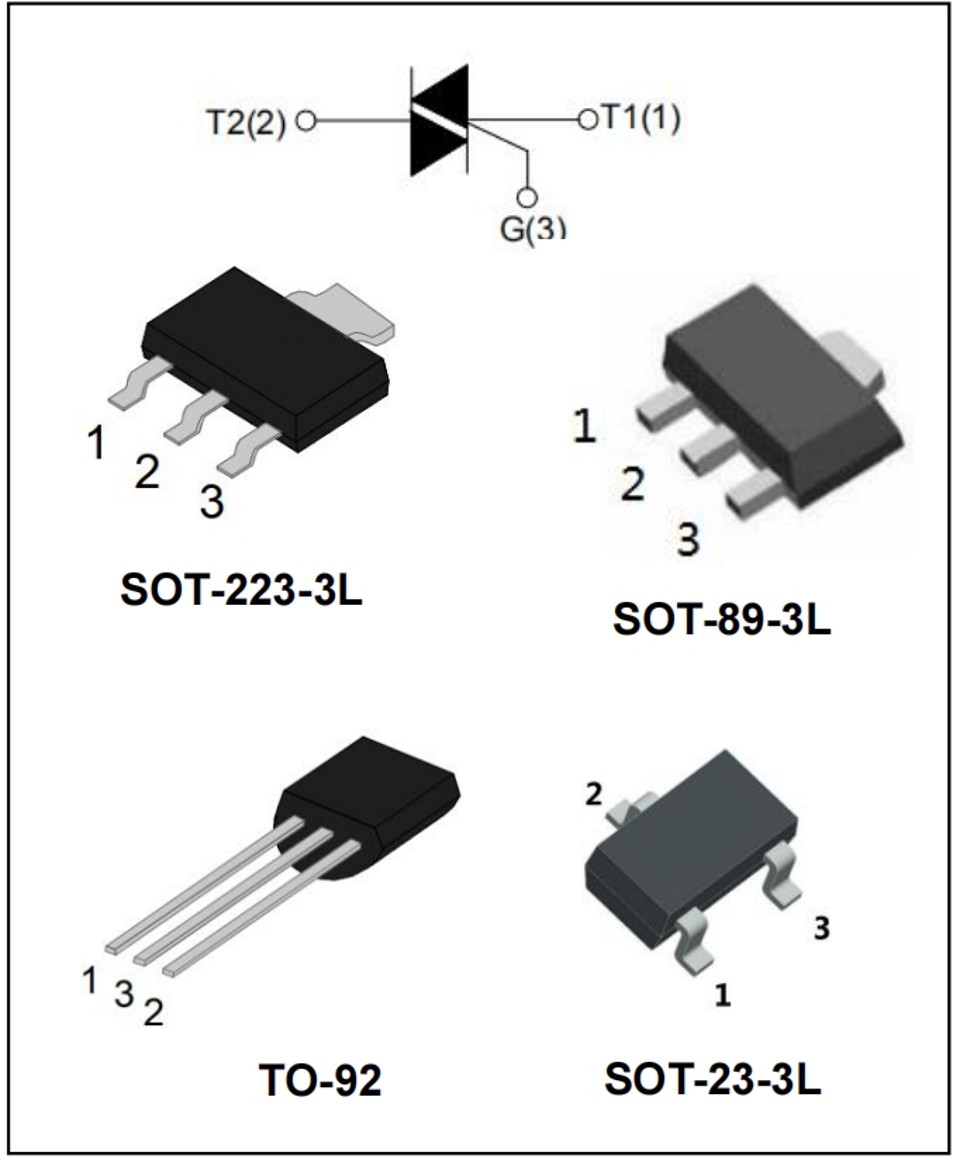

Rth(j-c)

junction to case(AC)

TO-92

75

℃/W

SOT-223/SOT-23-2L

45

SOT-89-2L

60
