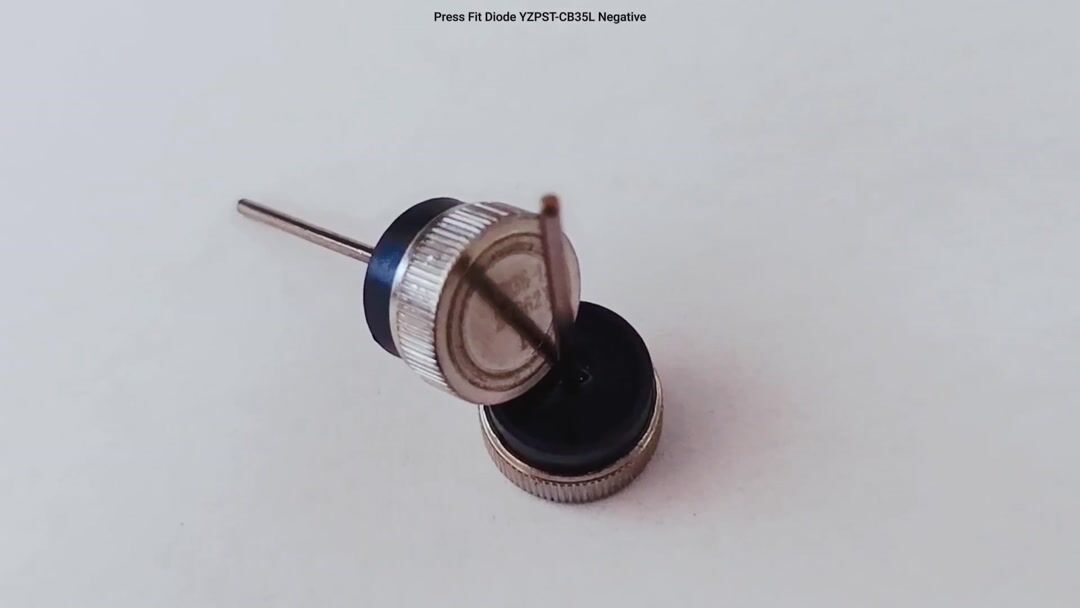

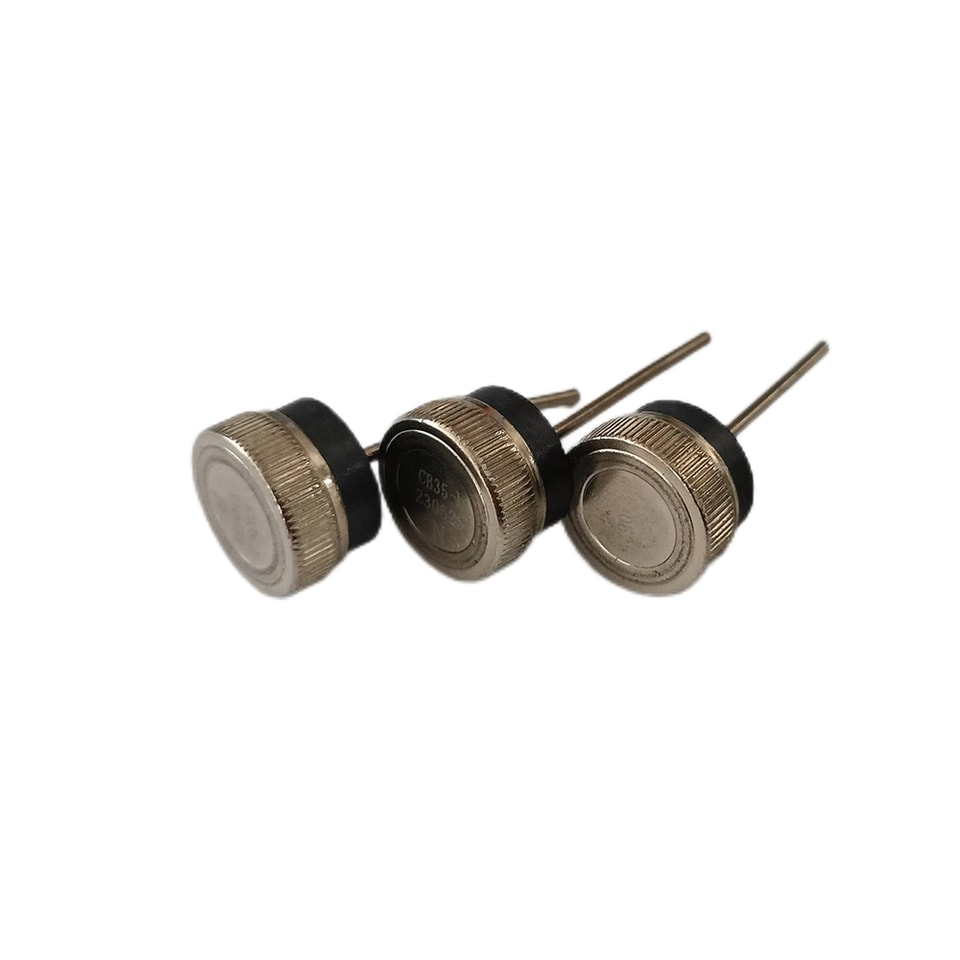

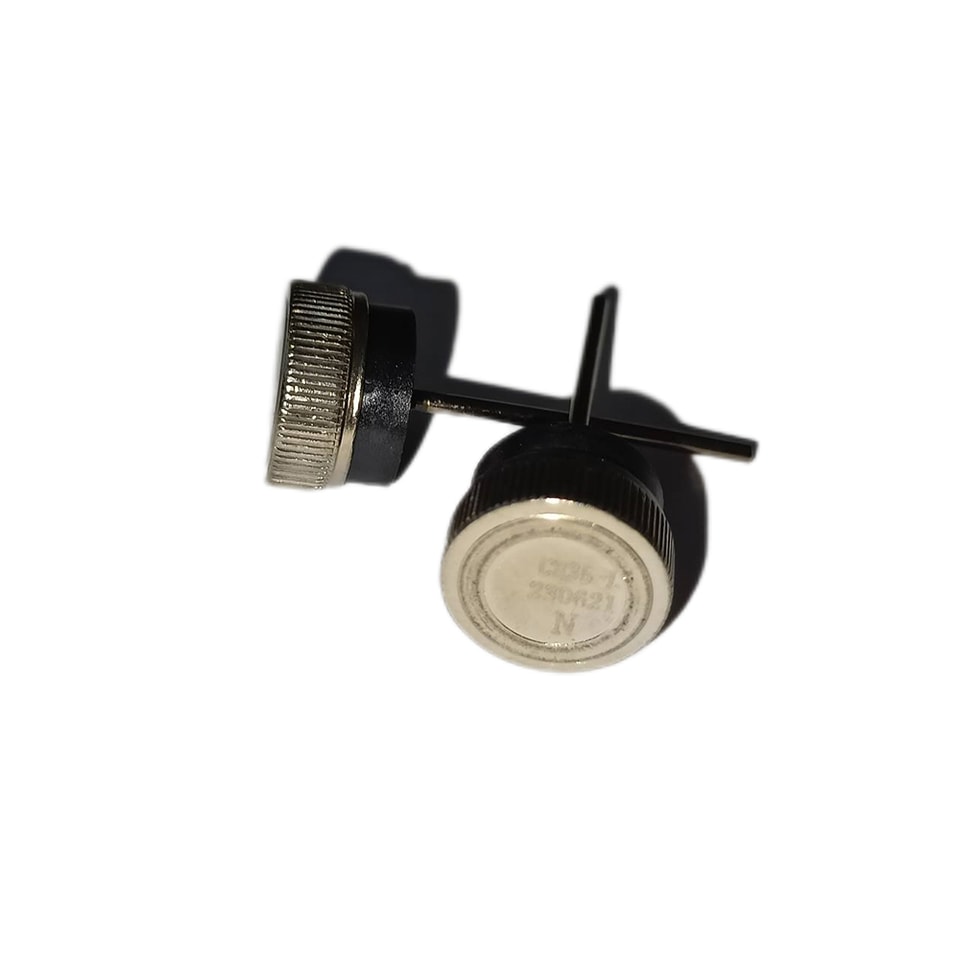

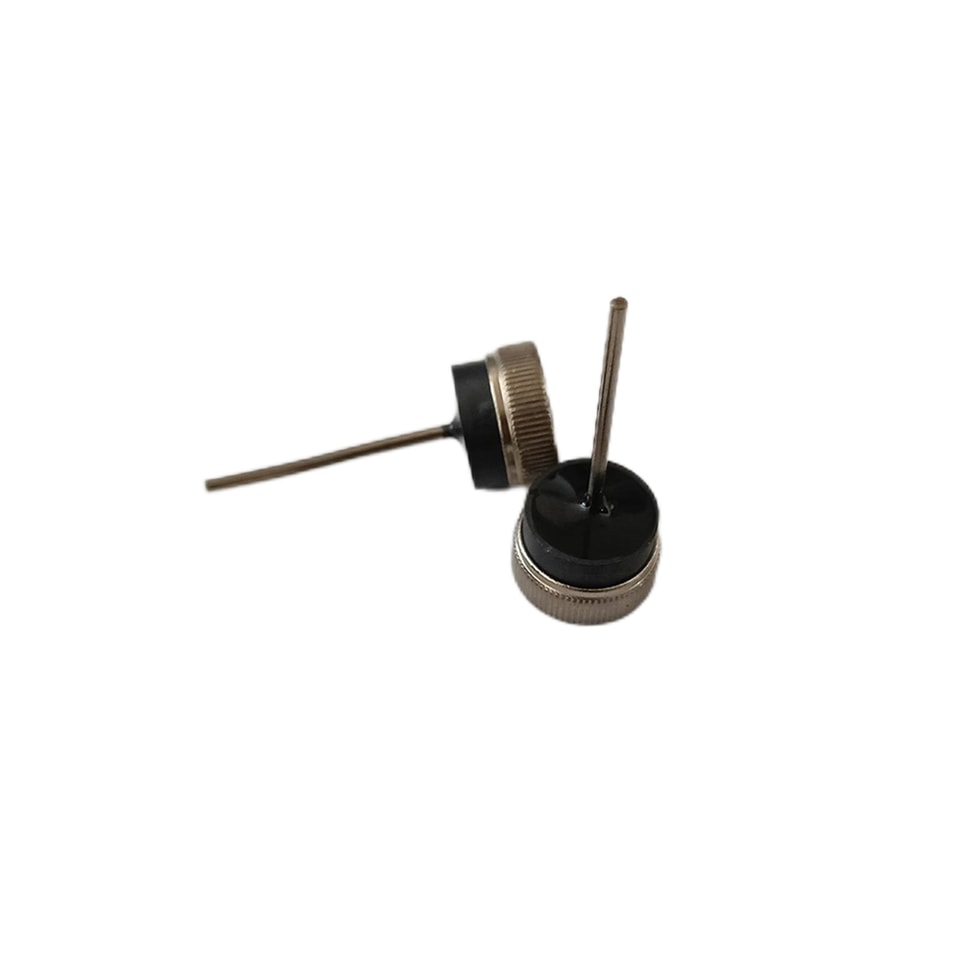

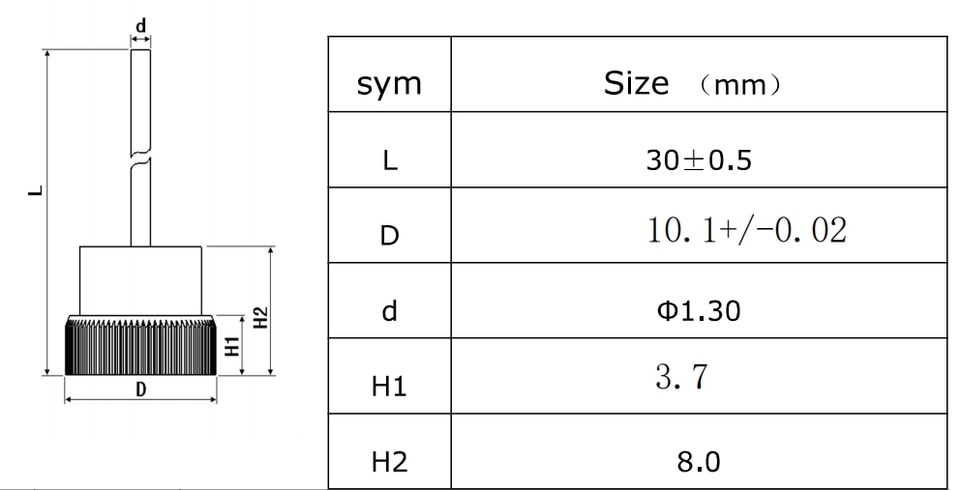

Press Fit Diode YZPST-CB35L/N P
FEATURES:

a 、Adopt a vacuum solder techniques with one-step soldering Technology. High soldering Lug welds temperature , Good consistency of Max. Forward voltage Drop and Low △VF Dispersion coefficient.

b 、 EPoxy molded packages. Good hermetic closure, and strong resistance against bending , tension , humidity.

c 、 o/J CHIP. Good consistency of Forward and Reverse feature, effective utilization of silicon area , small high temperature leaking currency and good capacity of reverse surge current.

d 、 Apply to each field Automotive Rectifiers Extensively. e 、 Replacement of LUCAS Type diodes.

			TYPE
CHARACTERISTIC	SYM	UNIT	YZPST-CB35MP/N
Max. Average Forward current (Tc = 17o℃)
	IF (AV)	A	35
Max. peak, one-cycle forward , non -repetitive surge current	IFSM		400
		A
Max. Forward voltage Drop (IF	VFM	V	1.1
100A, Tc = 25℃)
Max. Repetitive Reverse peak voltage
	VRRM	V	25-29
Maximum reverse leakage current (VR = VRRM , TC = 25℃)	IRRM1	uA
			1
Maximum reverse leakage current (VR = VRRM,TC = 175℃)	IRRM2	uA
			800
△VF Disperse coefficient	(max-average)/ average		≤ 15%
Max. Thermal Resistance, Junction to case	Rthic	℃/W	≤0 . 8
storage temperature Range	Tstg	℃	-40200
Junction Temperature	Tjm	℃	200
