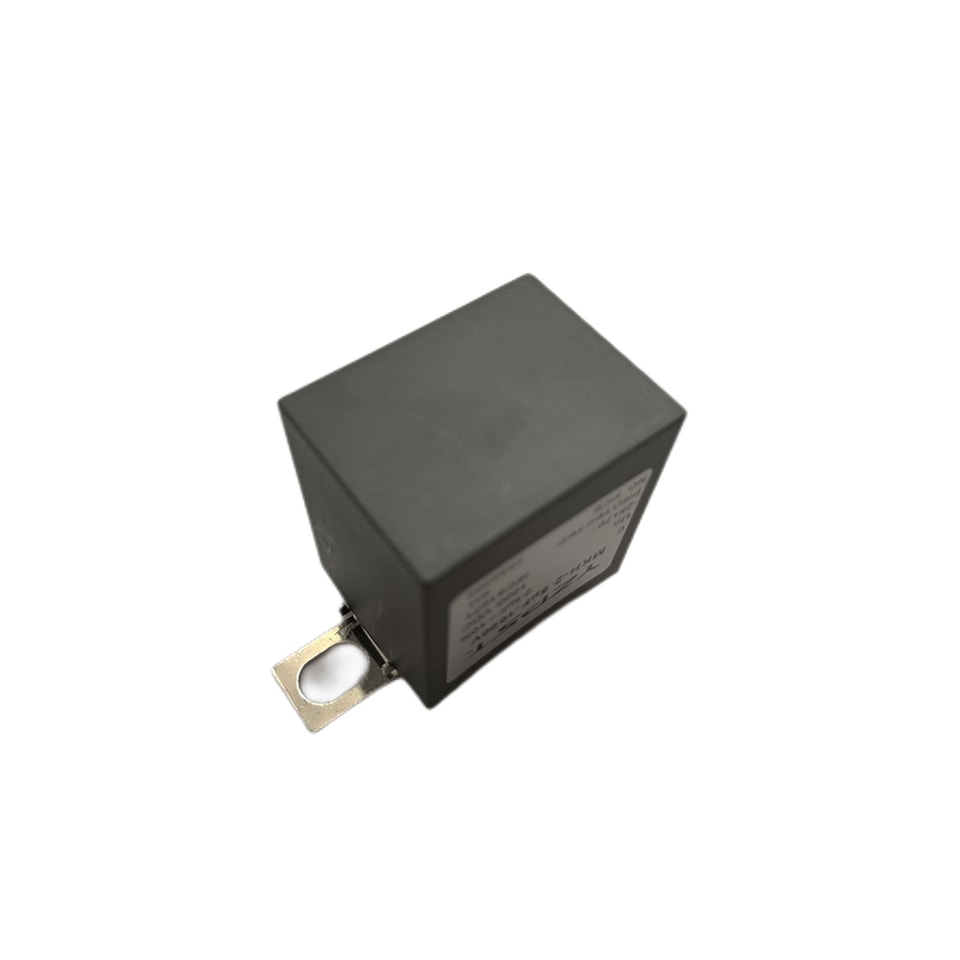

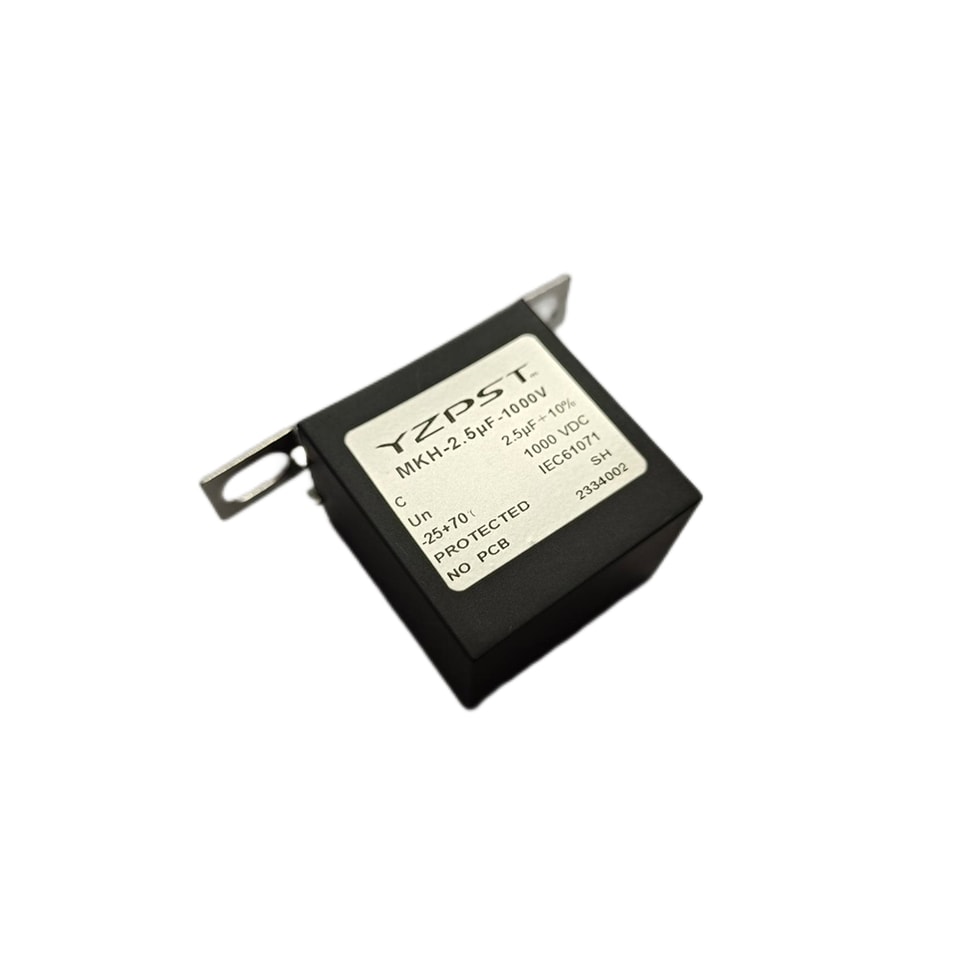

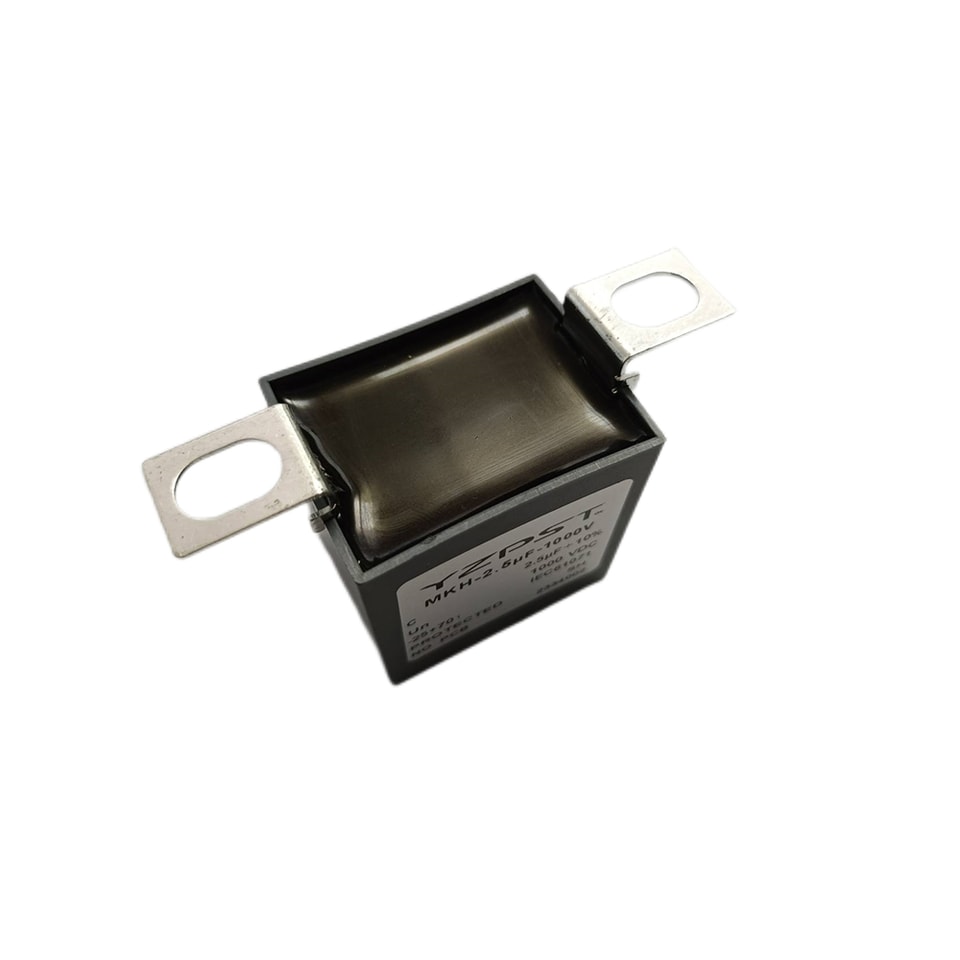

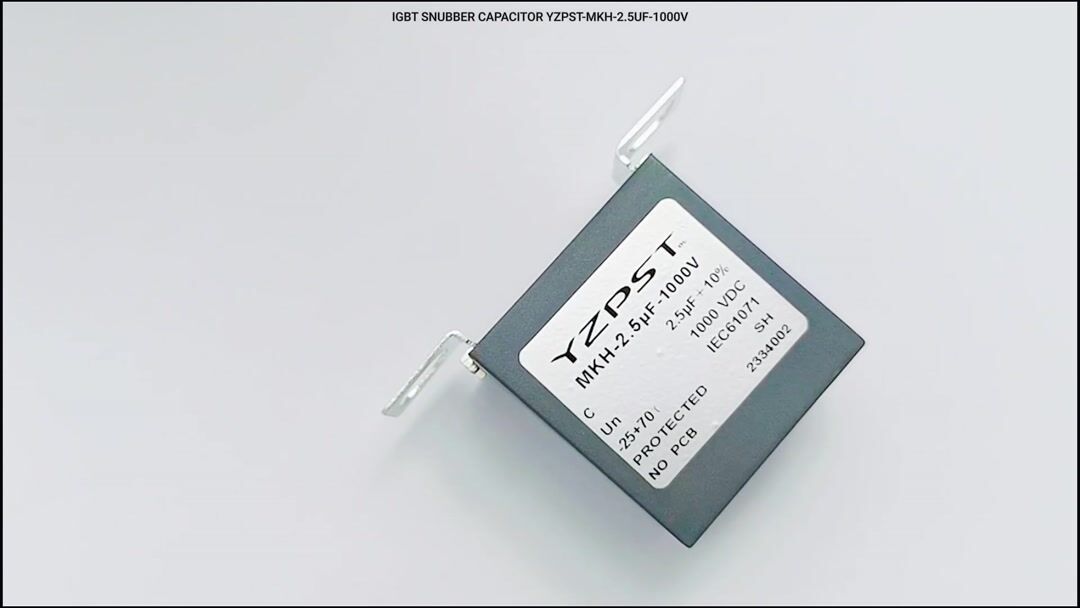

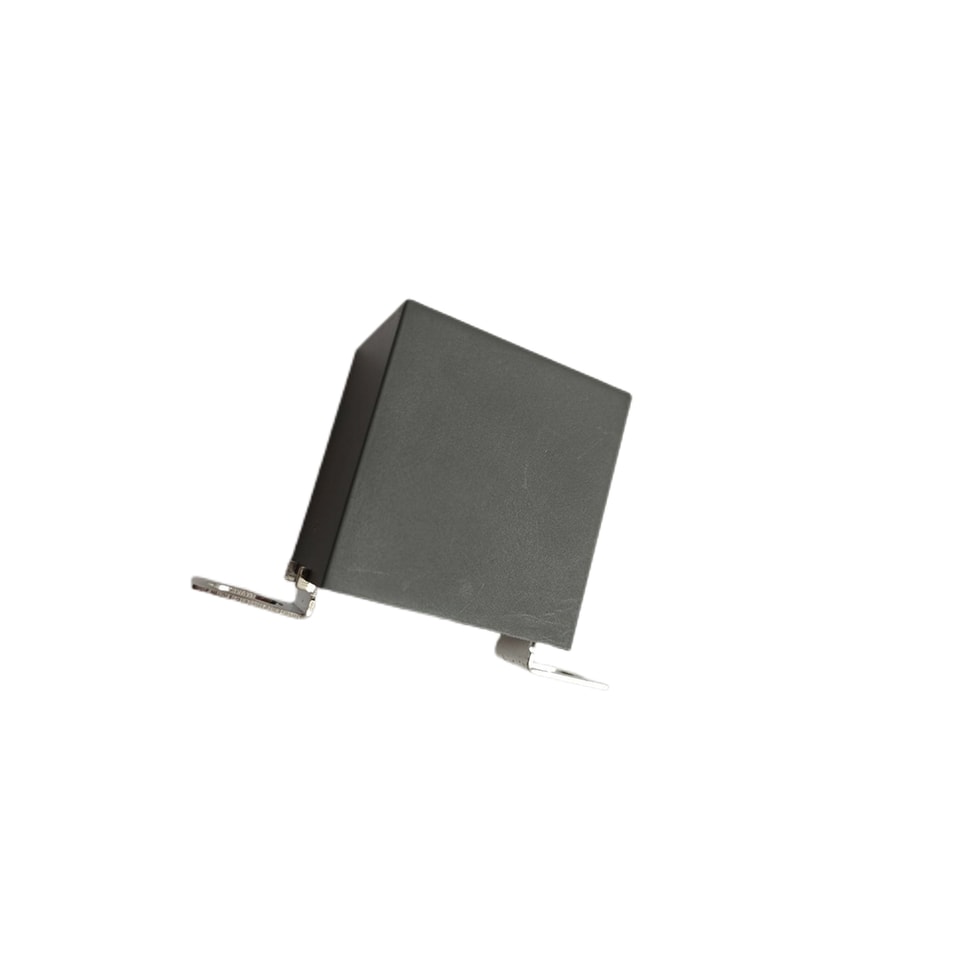

IGBT snubber capacitor YZPST-MKH-2.5uF-1000V
✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry
EmailTechnical sales
PhoneContact team
Tip: include the part number, target voltage/current and application environment.
DOCUMENT CENTER
Downloads & technical files

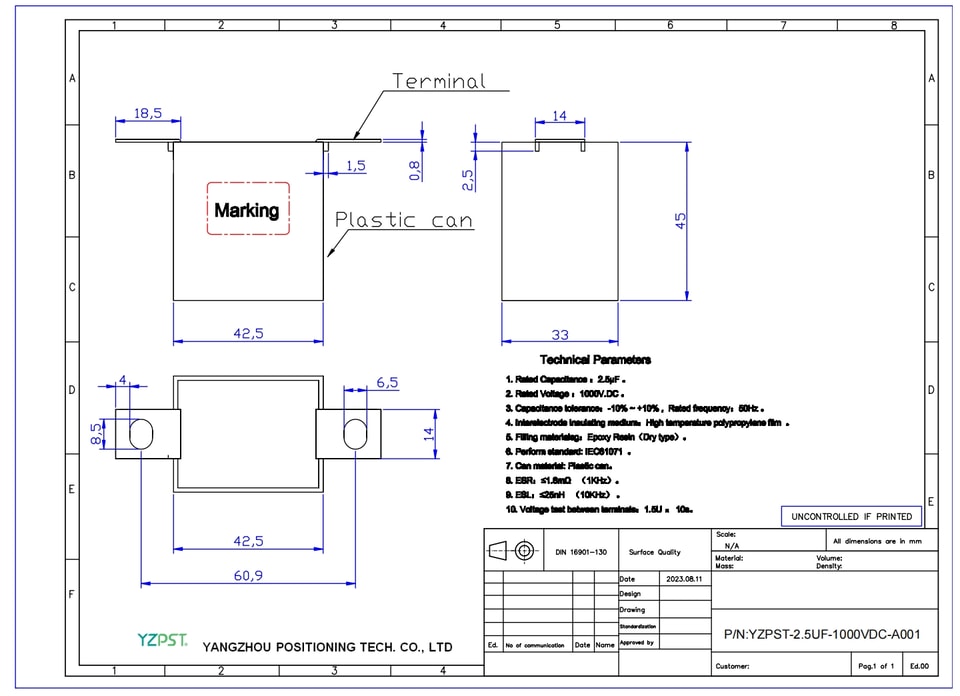

IGBT snubber capacitor YZPST-MKH-2.5uF-1000V
1.Rated Capecltance:2.5μF。
2.Rated Voltage:1000V.DC.
3.Capectance tolerance;-10%～+10%,Rated frequency:50Hz。
4.Interelectrode insulating medium:High temperature polypropylene film
5.Fling matertalag:Epoxy Resln(Dry type)。
6.Poriom standard:IEC81071。
7.Can matorlal:Plastlc can。
8.ESR:≤1.8mo(1KHz)。
9.ESL:≤25nH (10KHz)。
10.Voltage test between terminale:1.5UN 10S.
