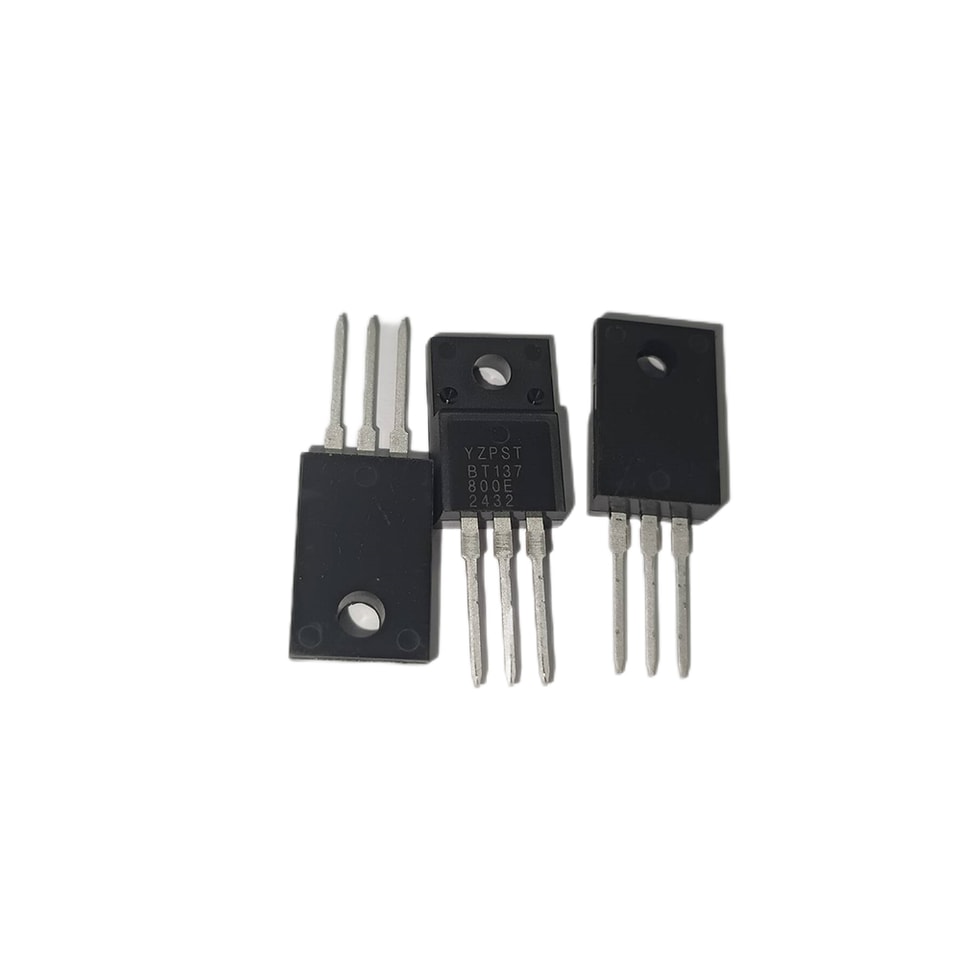

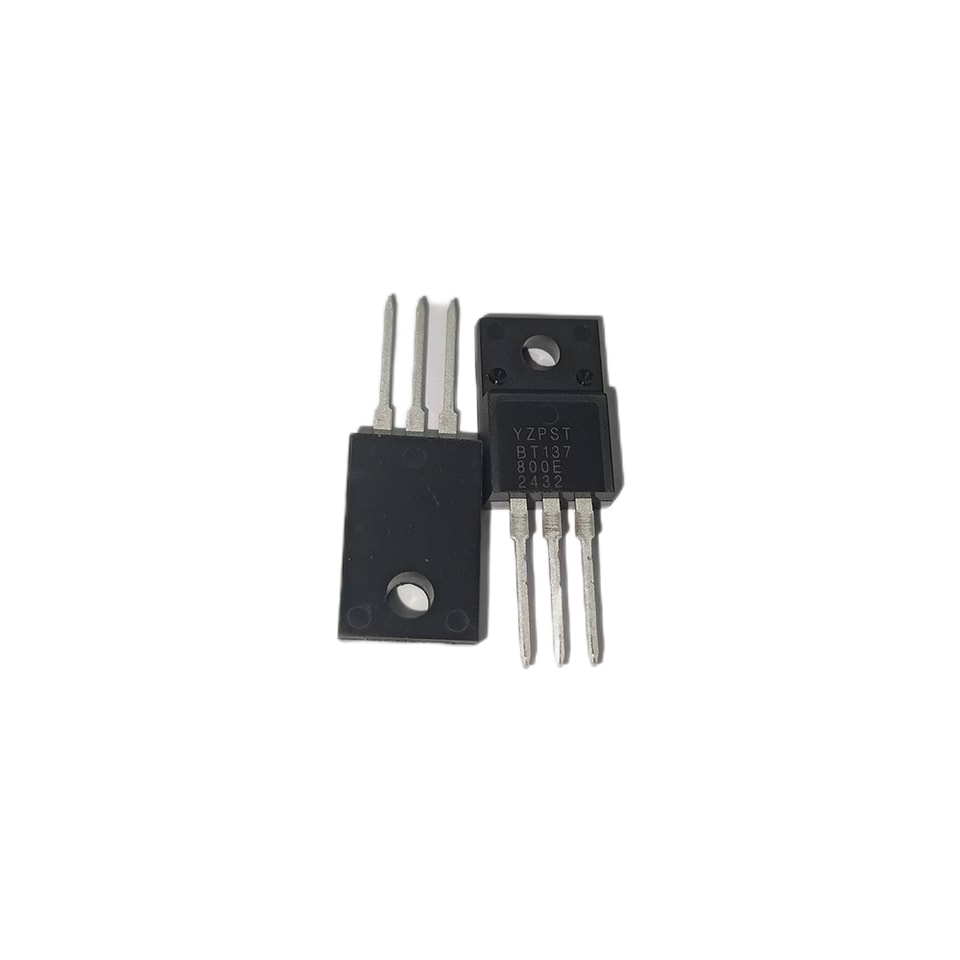

YZPST-BT137-800E
Product summary and primary technical information will be loaded from the product database.
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
BT137 Series 8A Triacs
DESCRIPTION
With low holding and latching current, BT137
Series triacs are especially recommended for
use on middle and small resistance type power
load.

MAIN FEATURES:
symbol | value | unit |
IT(RMS) | 8 | A |
VDRM/VRRM | 600/800 | V |
VTM | ≤1.6 | V |
ABSOLUTE MAXIMUM RATINGS:
Parameter | Symbol | Value | Unit |
Storage junction temperature range | Tstg | -40~150 | ℃ |
Operating junction temperature range | Tj | -40~125 | ℃ |
Repetitive peak off-state voltage (Tj=25℃) | VDRM | 600/800 | V |
Repetitive peak reverse voltage (Tj=25℃) | VRRM | 600/800 | V |
RMS on-state current | IT(RMS) | 8 | A |
Non repetitive surge peak on-state current (full cycle, F=50Hz) |
ITSM |
65 |
A |
I2t value for fusing (tp=10ms) | I2t | 21 | A2s |
ELECTRICAL CHARACTERISTICS (Tj=25℃ unless otherwise specified)
| Parameter | Value | |||||||
| Test Condition | Quadrant | D | E | F | G | Unit | ||
| Ⅰ- Ⅱ-Ⅲ | 5 | 10 | 25 | 50 | ||||
| IGT | Ⅳ | 10 | 25 | 70 | 100 | mA | ||
| VGT | VD=12V, RL=33Ω | Ⅰ- Ⅱ-Ⅲ-Ⅳ | MAX | 1.3 | V | |||
| VGD | VD=VDRM | Ⅰ- Ⅱ-Ⅲ-Ⅳ | MIN | 0.2 | V | |||
| IH | IT=100mA | MAX | 10 | 20 | 40 | 60 | mA | |
| Ⅰ-Ⅲ-Ⅳ | 10 | 30 | 50 | 70 | ||||
| IL | IG=1.2IGT | Ⅱ | MAX | 20 | 40 | 70 | 100 | mA |
| VD=0.66×VDRM Tj=125℃ Gate open | ||||||||
| dV/dt | MIN | 20 | 50 | 100 | 200 | V/ µs | ||
PACKAGE MECHANICAL DATA
