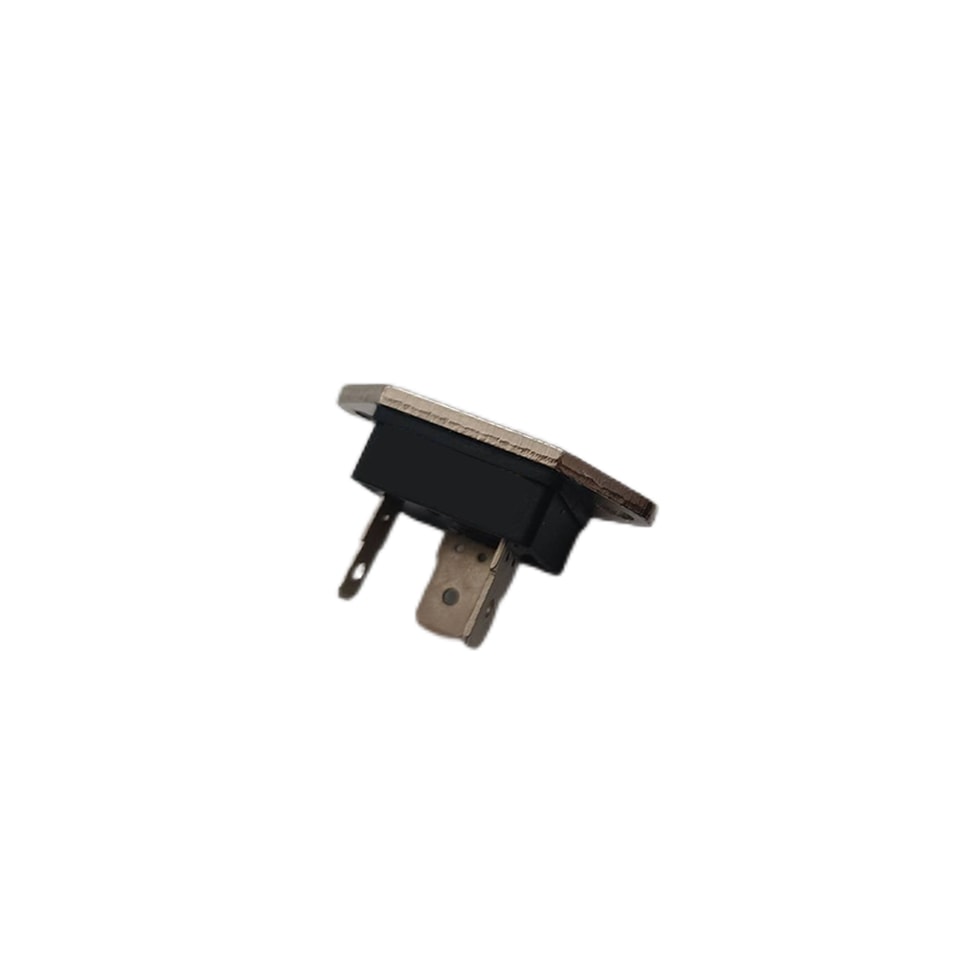

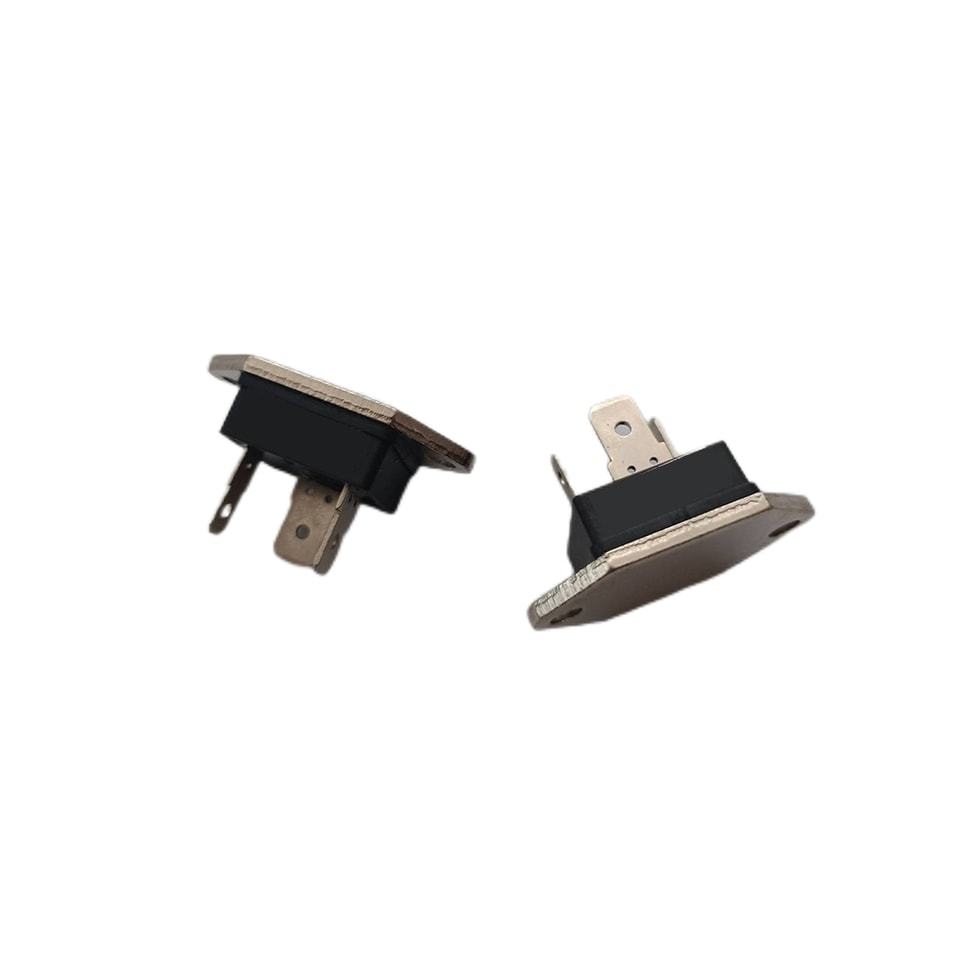

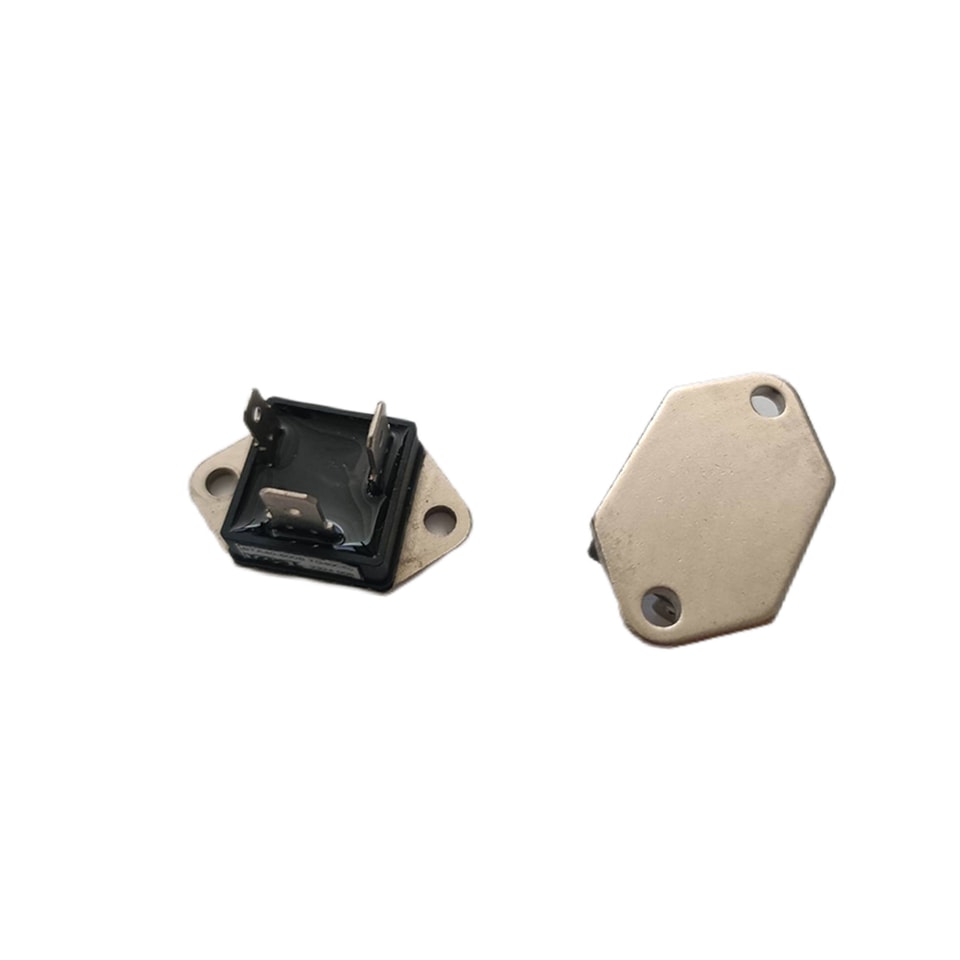

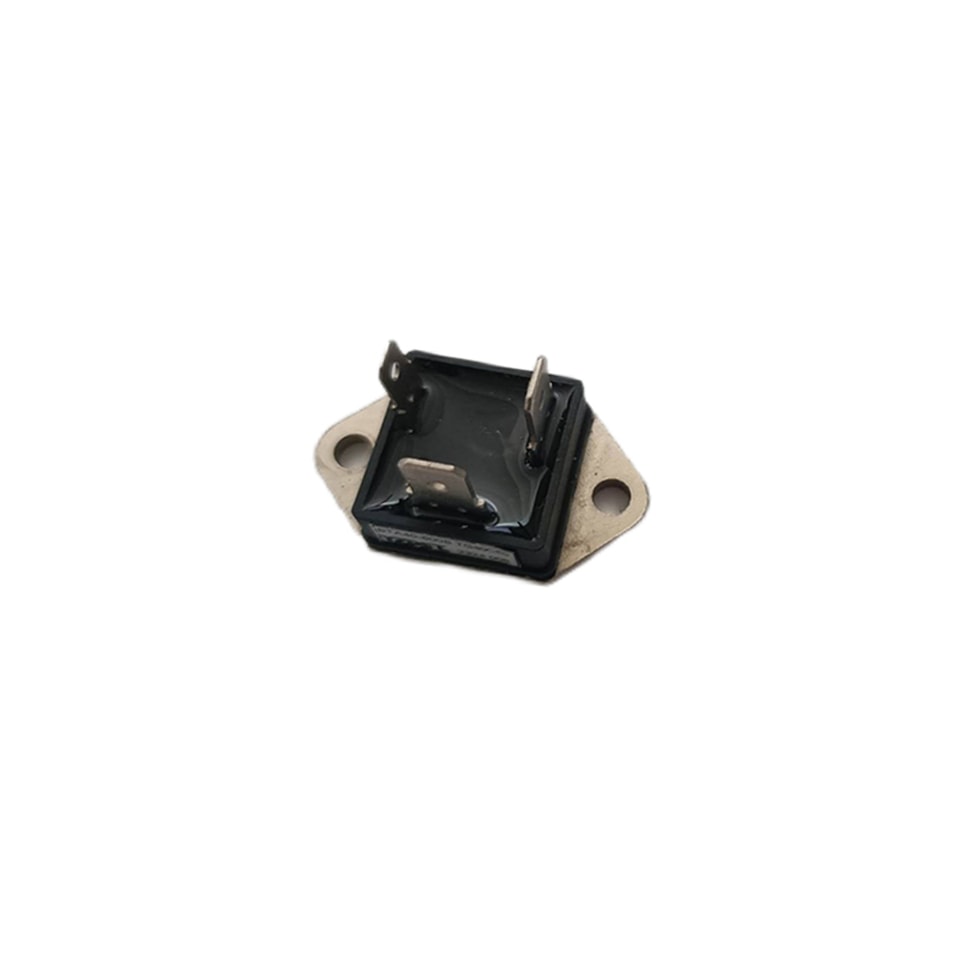

Power Triac in TG-C Insulated package
P/N:YZPST-TG25F60
PRODUCT FEATURES
Isolated molded triacs
IT(AV) 25A
High surge capability 300A
Isolated Mounting(AC2500V)
Tab terminals
APPLICATIONS
Microwave oven
Copier
Solid state switch
Motor control
Light control
Heater control
ABSOLUTE MAXIMUM RATINGS TC=25°C unless otherwise specified
| Symbol | Parameter | Test Conditions | Values | Unit |
| VDRM | Repetitive Peak Off-State Voltage | 600 | V | |
| IT(RMS) | R.M.S. On-State Current | TC=80°C | 25 | A |
| ITSM | Surge On-State Current | One cycle 50/60Hz | 270/300 | A |
| I2t | I2t (For Fusing) | 360 | A2s | |
| PGM | Peak Gate Power Dissipation | 10 | W | |
| PG(AV) | Average Gate Power Dissipation | 1 | W | |
| IGM | Peak Gate Current | 3 | A | |
| VGM | Peak Gate Voltage | 10 | V | |
| di/dt | Critical Rate of Rise of On-State Current | TJ = 25°C,VD = 1/2 VDRM | 50 | A/us |
| TJ | Junction Temperature | -25 to +125 | °C | |
| TSTG | Storage Temperature Range | -40 to +125 | °C | |
| Visol | a.c. 50Hz，r.m.s, 1min | 2500 | V~ | |
| Torque | Mounting torque | Recommended value | 1.0-1.4(10-14) | Nm(kgfcm) |
| Weight | 27 | g |

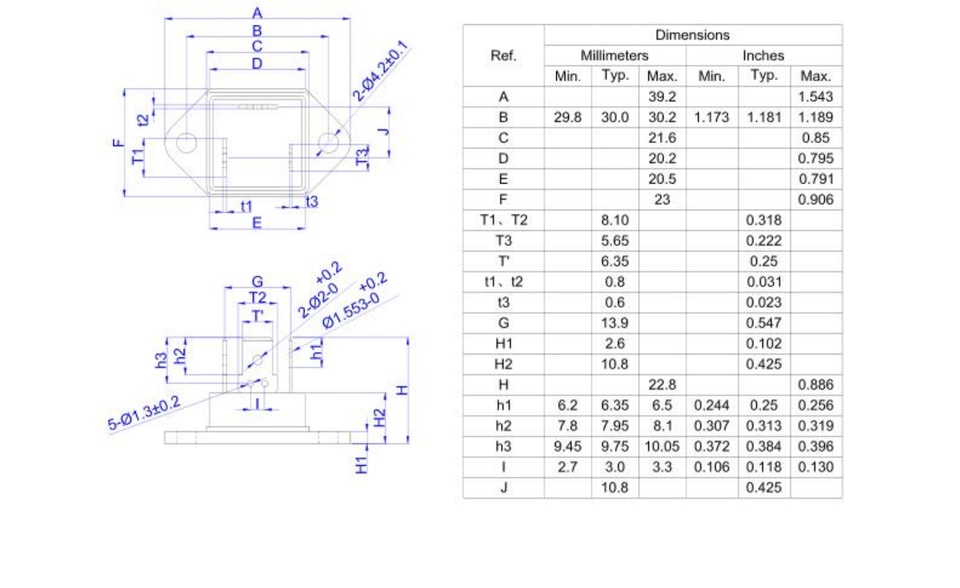

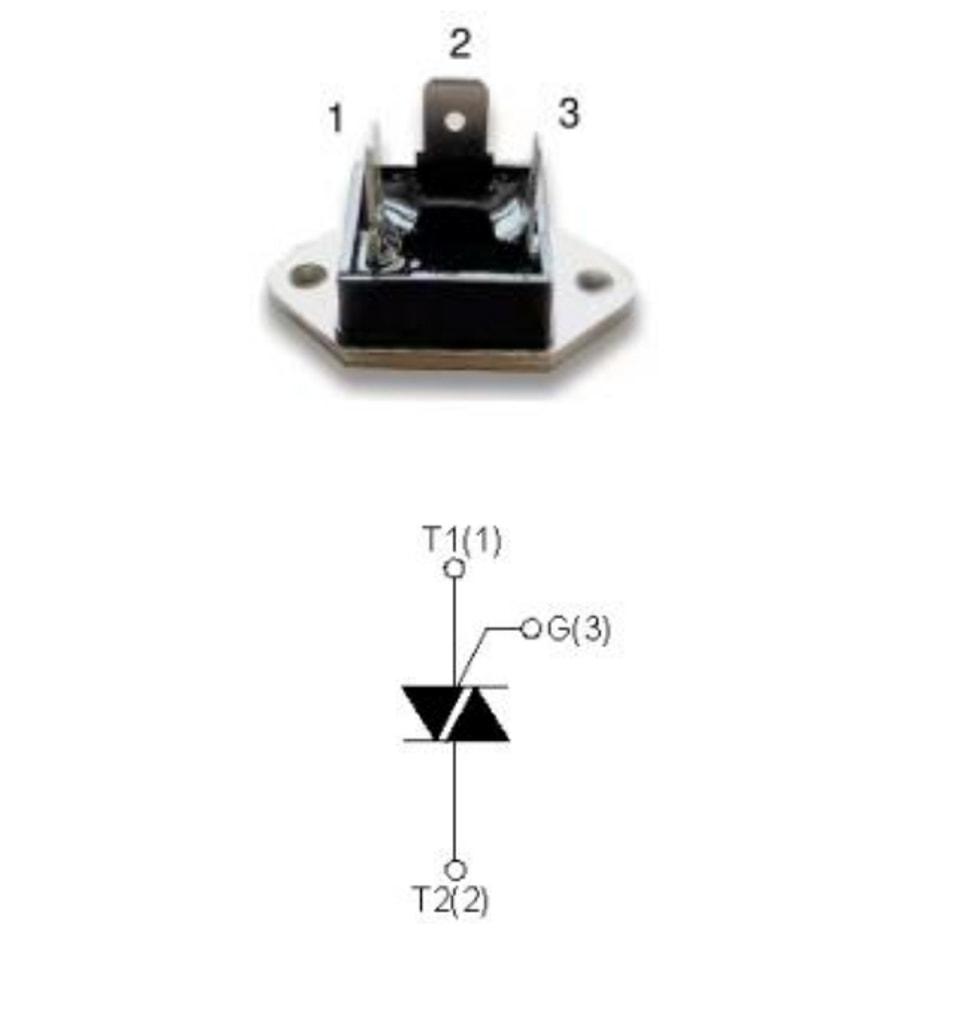

TG-C PACKAGE:
