YZPST-BTA12-800BW

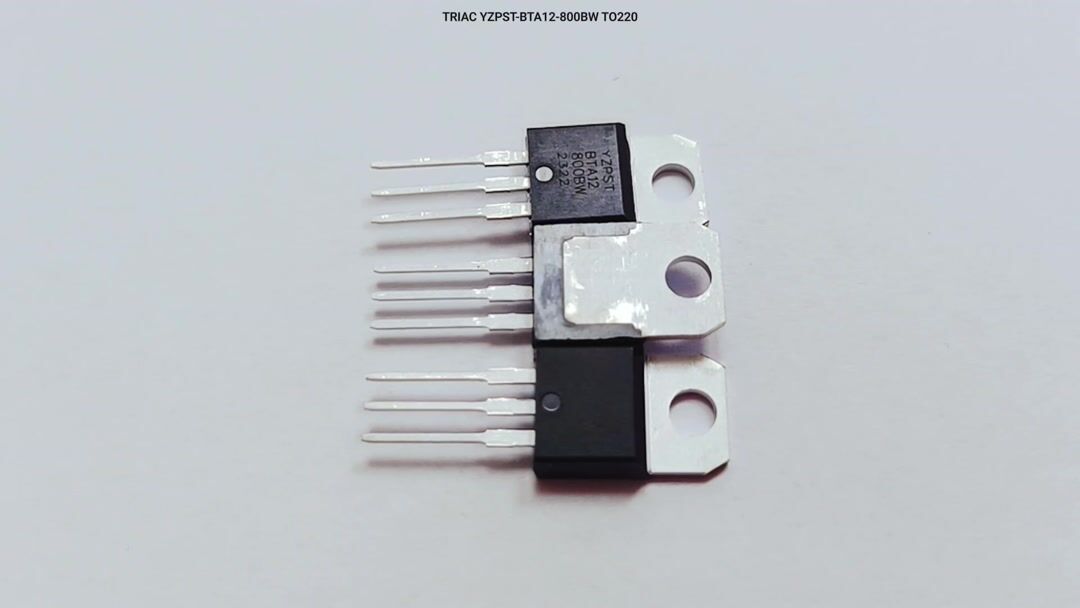

Single mesa structure BTA12-800BW 800V Triac TO-220A
●Product features
Single mesa structure (Single Mesa),
Table glass passivation process,
Voltage stability
The ability of strong current shock resistance
The applicable model： BTA12
The main purpose
Washing machine, the hair straightened
Solid state relay, AC motor speed control

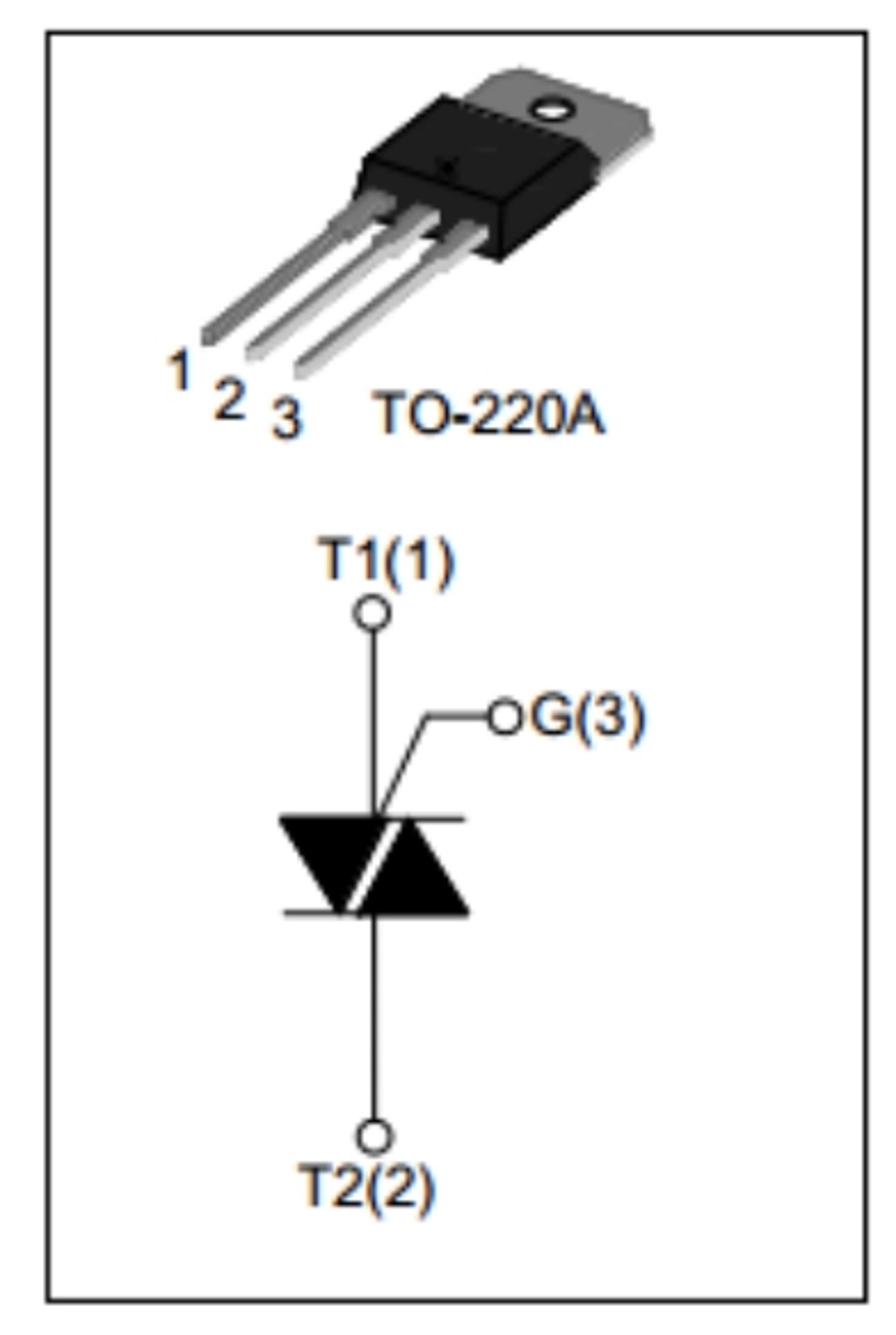

●Package
TO-220A
Main Feature (Tj=25℃)
Symbol | Value | Unit |
IT (RMS) | 12 | A |
VDRM / VRRM | 600/800 | V |
VTM | 1.55 | V |
Absolute ratings (Limiting Values)
Symbol | Parameter | Value | Unit |
ITSM | Non repetitive surge peak on-state Current (tp=10ms) | 115 | A |
I2t | (tp=10ms) | 70 | A2S |
dI/dt | IG=2IGT ，tr≤100ns,Tj=125℃ | 50 | A/ μs |
IGM | Peak gate current(tp=20us) | 4 | A |
PG(AV) | Average gate power | 1 | W |
Tstg Tj | Storage temperature Operating junction temperature | -40--+150 -40--+125 | ℃ |
Thermai Resistances
| Symbol | ||||
| Parameter | Value | Unit | ||
| TO-220A | 2.3 | |||
| Rth (j-c) | Junction to case | TO-220B/TO-220C | 1.4 | ℃/W |
| TO-220F | 3.9 |
Electrical characteristics (Tj=25℃ unless otherwise stated)
| Symbol | Test Conditions | Value | Unit | ||||||
| TW | SW | CW | BW | C | B | ||||
| IGT | VD=12V, RL=30Ω | ⅠⅡⅢ | ≤5 | ≤10 | ≤25 | ≤50 | ≤25 | ≤50 | mA |
| Ⅳ | ---- | ---- | ---- | ---- | ≤50 | ≤100 | |||
| IDRM | VD=VDRM | Tj=25℃ | ≤5 | μA | |||||
| Tj=125℃ | ≤1 | mA | |||||||
| IRRM | VD=VRRM | Tj=25℃ | ≤5 | μA | |||||
| Tj=125℃ | ≤1 | mA | |||||||
| ⅠⅢ | ≤10 | ≤25 | ≤50 | ≤70 | ≤40 | ≤50 | |||
| IL | IG=1.2IGT | Ⅳ | ---- | ---- | ---- | ---- | ≤40 | ≤50 | mA |
| Ⅱ | ≤15 | ≤30 | ≤60 | ≤80 | ≤80 | ≤100 | |||
| VGT | VD=12V ,RL=30Ω | ≤1.3 | V | ||||||
| VGD | VD=VDRM, Tj=125℃RL=3.3KΩ | ≥0.2 | V | ||||||
| VTM | ITM=17A,tp=380 μs | 1.55 | V | ||||||
| IH | VD=12V ，IT=200mA | ≤20 | ≤25 | ≤35 | ≤50 | ≤25 | ≤50 | mA | |
| dV/dt | VD=67%VDRM, | ≥40 | ≥ | ≥ | ≥ 1000 | ≥ | ≥400 | v/ μs | |
| GateOpen, Tj=125℃ | 100 | 400 | 200 | ||||||
Measure of package
.webp)
.jpg)
.jpg)
