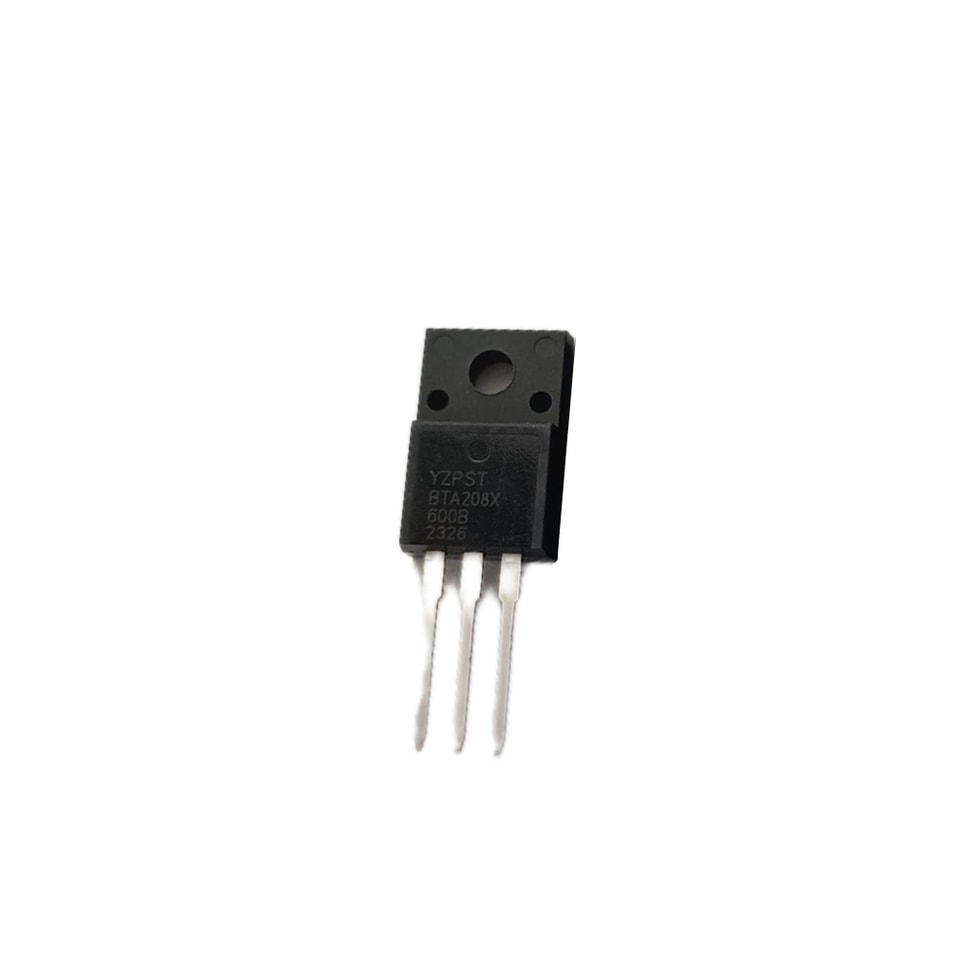

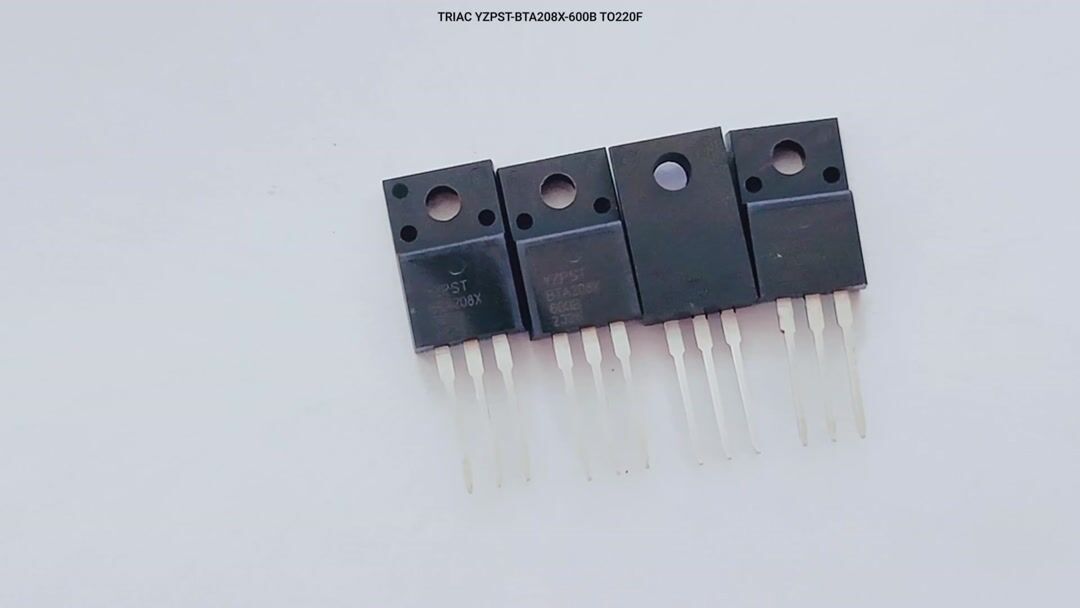

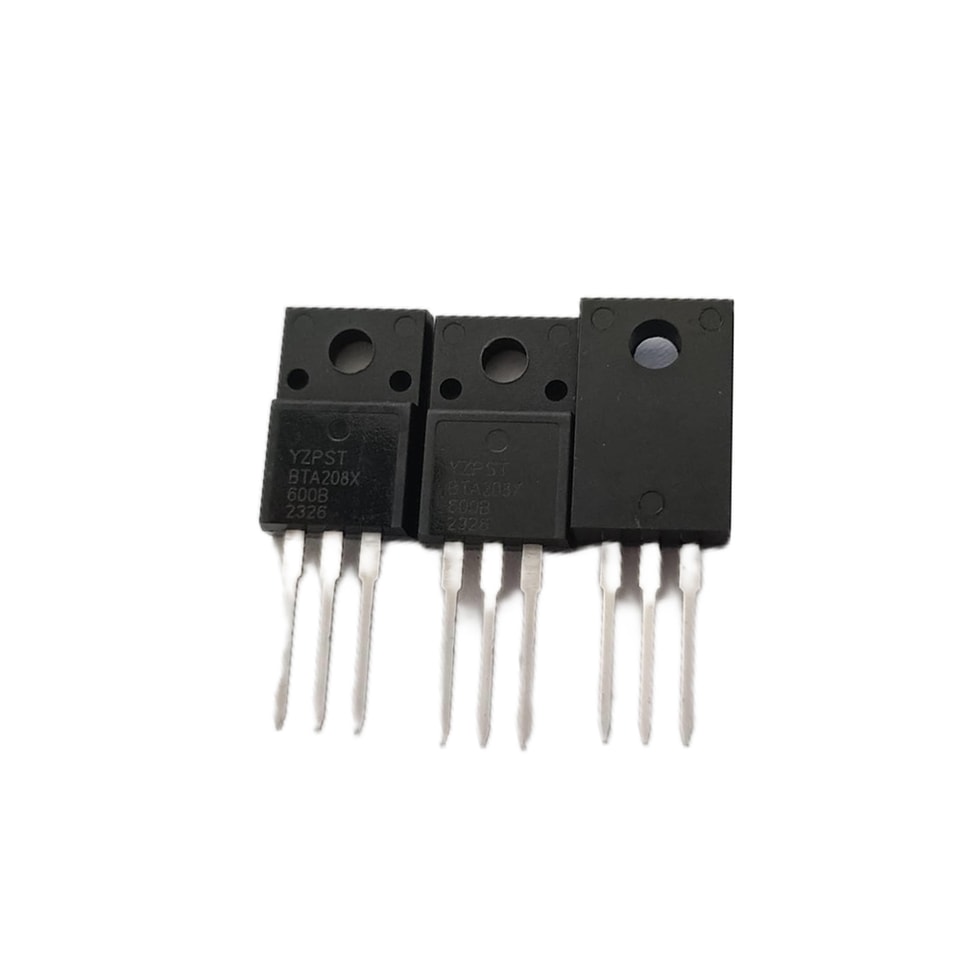

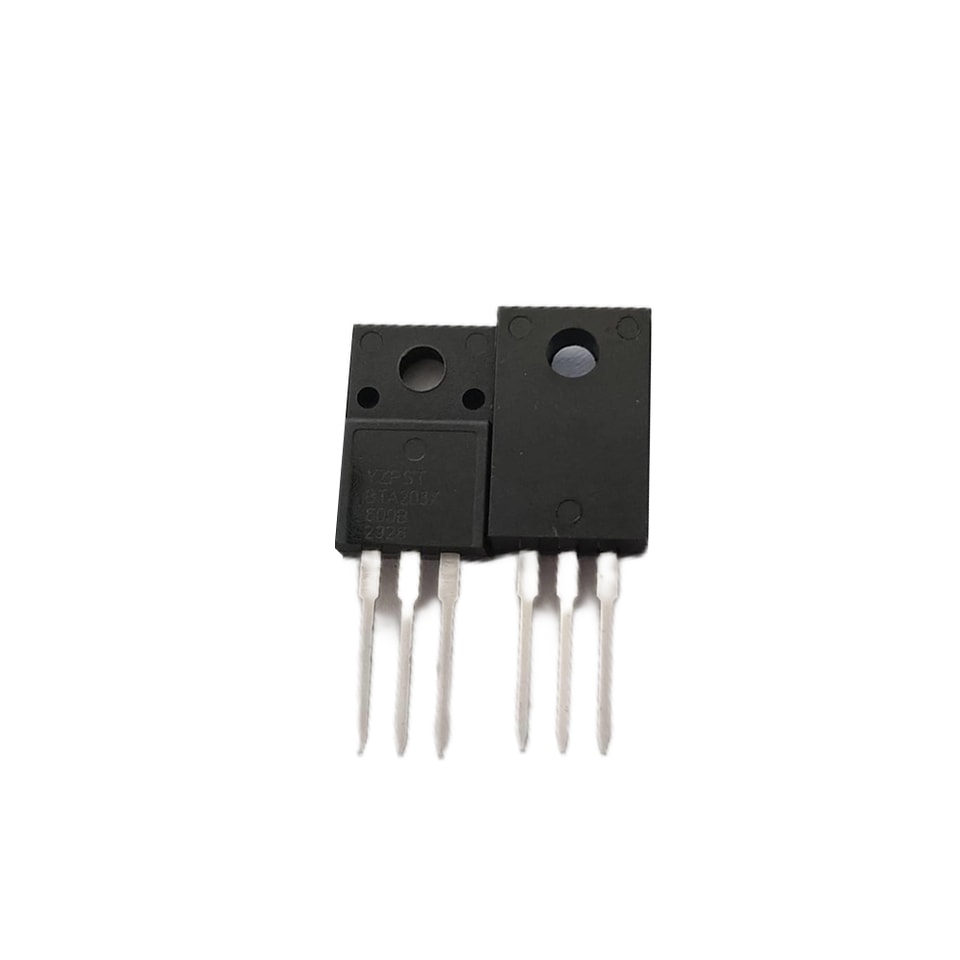

BTA208 Series 8A Triacs
YZPST-BTA208X-600B
DESCRIPTION:
With high ability to withstand the shock loading of Large
current, BTA208 series triacs provide high dv/dt
rate with strong resistance to electromagnetic interface.
With high commutation performances, 3 quadrants
products especially recommended for use on inductive
load. From all three terminals to external heatsink,
BTA208 provides a rated insulation voltage of 2500 VRM
S complying with UL standards (File ref: E516503).
MAIN FEATURES:
symbol | value | unit |
IT(RMS) | 8 | A |
VDRM/VRRM | 600/800 | V |
VTM | ≤1.5 | V |
ABSOLUTE MAXIMUM RATINGS:
Symbol | Parameter | Value | Unit |
ITSM | Non repetitive surge peak on-state Current (tp=10ms) | 80 | A |
I2t | (tp=10ms) | 32 | A2S |
dI/dt | IG=2IGT ，tr≤100ns,Tj=125℃ | 50 | A/ μs |
IGM | Peak gate current(tp=20us) | 2 | A |
PG(AV) | Average gate power | 1=0.5 | W |
Tstg Tj | Storage temperature Operating junction temperature | -40--+125 -40--+125 | ℃ |
Viso | AC RMS App lied for 1 minute Between lead and case |
1800 |
V |
I2t value for fusing (tp=10ms) | I2t | 32 | A2s |
Critical rate of rise of on-state current(IG=2 × IGT) | dI/dt | 50 | A/ μs |
Peak gate current | IGM | 4 | A |
Average gate power dissipation | PG(AV) | 1 | W |
Peak gate power | PGM | 5 | W |
ELECTRICAL CHARACTERISTICS (Tj=25℃ unless otherwise specified)
| Parameter | Value | |||||||
| Test Condition | Quadrant | TW | SW | CW | BW | Unit | ||
| IGT | VD=12V, | 5 | 10 | 35 | 50 | mA | ||
| VGT | RL=33Ω | Ⅰ- Ⅱ-Ⅲ | MAX | 1.5 | V | |||
| VGD | VD=VDRM | Ⅰ- Ⅱ-Ⅲ | MIN | 0.2 | V | |||
| IH | IT=100mA | MAX | 10 | 20 | 40 | 60 | mA | |
| Ⅰ-Ⅲ | 20 | 25 | 50 | 70 | ||||
| IL | IG=1.2IGT | Ⅱ | MAX | 25 | 35 | 70 | 90 | mA |
| VD=2/3VDRM Tj=125℃ Gate open | ||||||||
| dV/dt | MIN | 50 | 200 | 500 | 1000 | V/ µs | ||
| Ⅱ |
| 70 | 90 |
| |
dV/dt | VD=2/3VDRM Tj=125℃ Gate open |
MIN |
200 |
500 |
V/ µs | |
STATIC CHARACTERISTICS
| Symbol | Test Condition | Value | Unit | ||
| VTM | ITM=11A tp=380μs | Tj=25℃ | MAX | 1.5 | V |
| IDRM | Tj=25℃ | 5 | µA | ||
| IRRM | VDRM= VRRM | Tj= 125℃ | MAX | 1 | mA |

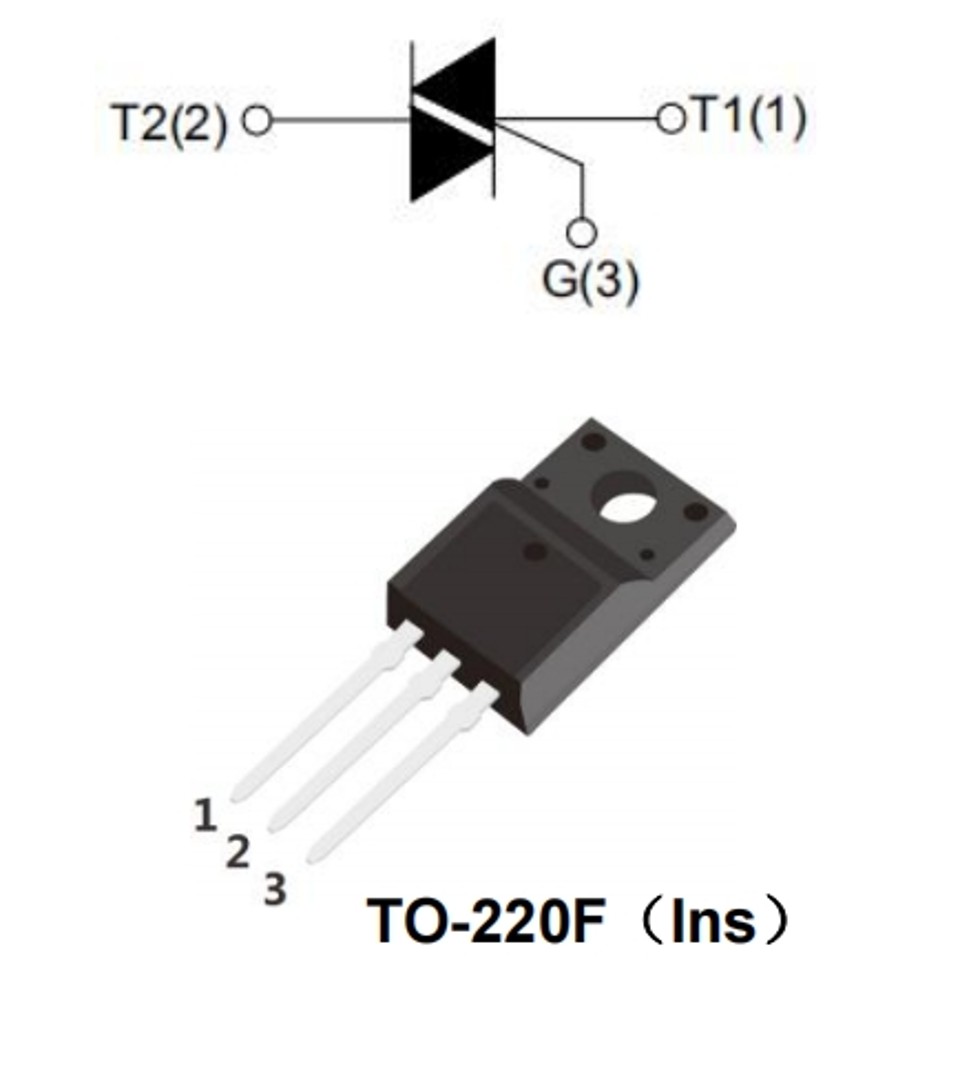

PACKAGE MECHANICAL DATA
