BT138 Series 12A Triacs
YZPST-BT138-800E
DESCRIPTION
With low holding and latching current, BT138
Series triacs are especially recommended for
use on middle and small resistance type power
load.
MAIN FEATURES:
symbol | value | unit |
IT(RMS) | 12 | A |
VDRM/VRRM | 600/800 | V |
VTM | ≤1.6 | V |
ABSOLUTE MAXIMUM RATINGS:
Parameter | Symbol | Value | Unit |
Storage junction temperature range | Tstg | -40~150 | ℃ |
Operating junction temperature range | Tj | -40~125 | ℃ |
Repetitive peak off-state voltage (Tj=25℃) | VDRM | 600/800 | V |
Repetitive peak reverse voltage (Tj=25℃) | VRRM | 600/800 | V |
RMS on-state current | IT(RMS) | 12 | A |
Non repetitive surge peak on-state current (full cycle, F=50Hz) |
ITSM |
120 |
A |
I2t value for fusing (tp=10ms) | I2t | 45 | A2s |
| Critical rate of rise of on-state current (IG=2 × IGT) | Ⅰ- Ⅱ-Ⅲ | 50 | ||
| dI/dt | Ⅳ | 10 | A/ μs | |
| Peak gate current | IGM | 2 | A | |
| Average gate power dissipation | PG(AV) | 0.5 | W | |
| Peak gate power | PGM | 5 | W | |
ELECTRICAL CHARACTERISTICS (Tj=25℃ unless otherwise specified)
3 Quadrants：
| Parameter | Value | ||||||
| Test Condition | Quadrant | SW | CW | BW | Unit | ||
| IGT | 10 | 35 | 50 | mA | |||
| VGT | VD=12V, RL=33Ω | Ⅰ- Ⅱ-Ⅲ | MAX | 1.3 | V | ||
| VGD | VD=VDRM Tj=125℃ | Ⅰ- Ⅱ-Ⅲ | MIN | 0.2 | V | ||
| IH | IT=100mA | MAX | 10 | 40 | 60 | mA | |
| Ⅰ-Ⅲ | 30 | 50 | 70 | ||||
| IL | IG=1.2IGT | Ⅱ | MAX | 40 | 60 | 80 | mA |
| VD=2/3VDRM Tj=125℃ | |||||||
| dV/dt | Gate open | MIN | 200 | 500 | 1000 | V/ µs | |
4 Quadrants：
| Parameter | Value | |||||||
| Test Condition | Quadrant | D | E | F | G | Unit | ||
| Ⅰ- Ⅱ-Ⅲ | 5 | 10 | 25 | 50 | ||||
| IGT | Ⅳ | 10 | 25 | 70 | 100 | mA | ||
| VGT | VD=12V, RL=33Ω | Ⅰ- Ⅱ-Ⅲ-Ⅳ | MAX | 1.3 | V | |||
| VGD | VD=VDRM | Ⅰ- Ⅱ-Ⅲ-Ⅳ | MIN | 0.2 | V | |||
| IH | IT=100mA | MAX | 10 | 20 | 40 | 60 | mA | |

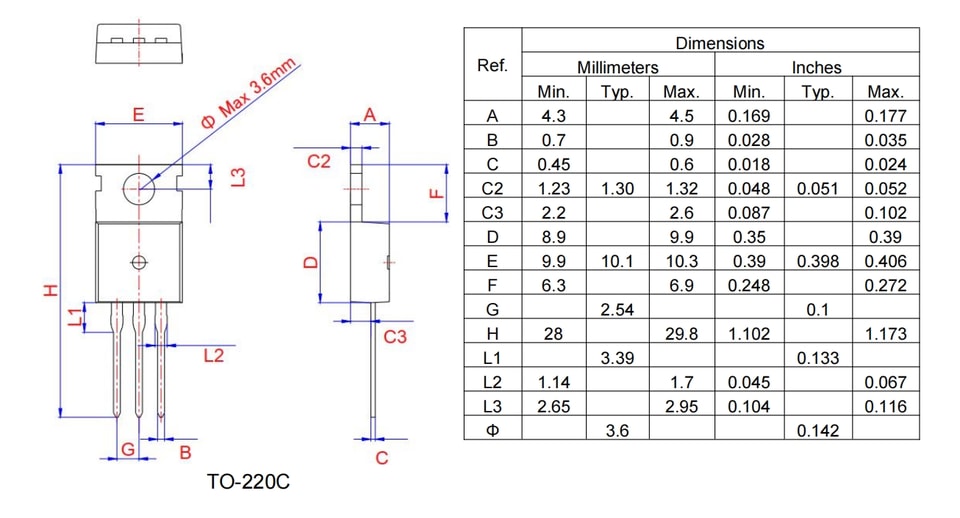

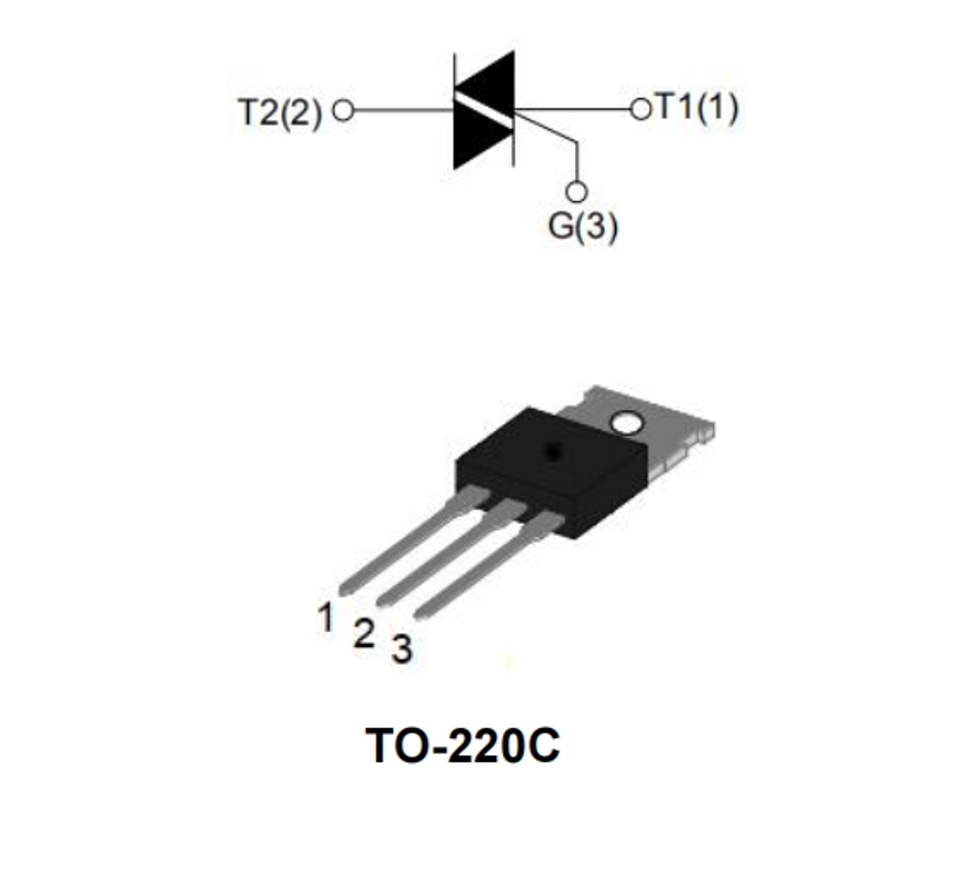

PACKAGE MECHANICAL DATA
