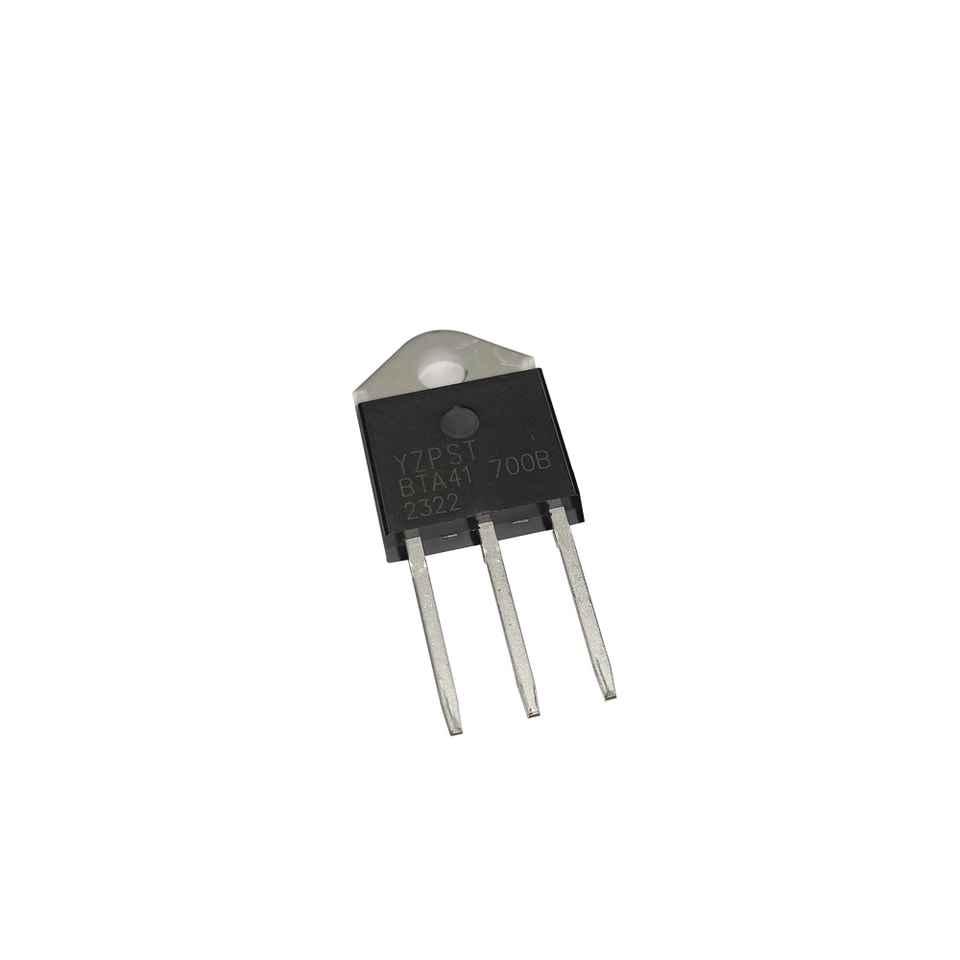

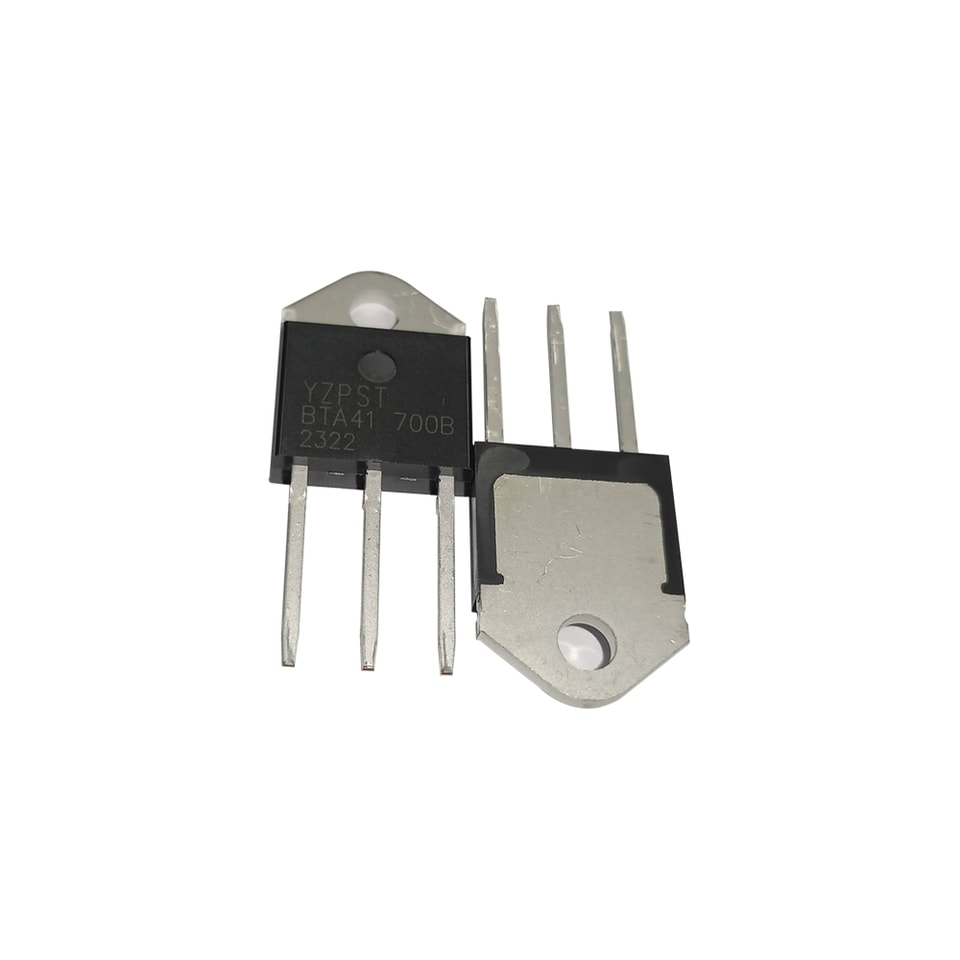

YZPST-BTA41-700B

BTA40 and BTA/BTB41 Series

YZPST-BTA41-700B

DESCRIPTION

Available  in  high  power  packages,  the   BTA/ BTB40-41 series is suitable for general purpose AC power switching. They can be used as an ON/ OFF function in applications such as static relays, heating regulation, water heaters, induction motor starting circuits, welding equipment... or for phase control operation in high power motor speed con- trollers, soft start circuits...

Thanks  to  their  clip  assembly  technique,  they provide a superior performance in surge current handling capabilities.

By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500 V RMS)

​​​

MAIN FEATURES

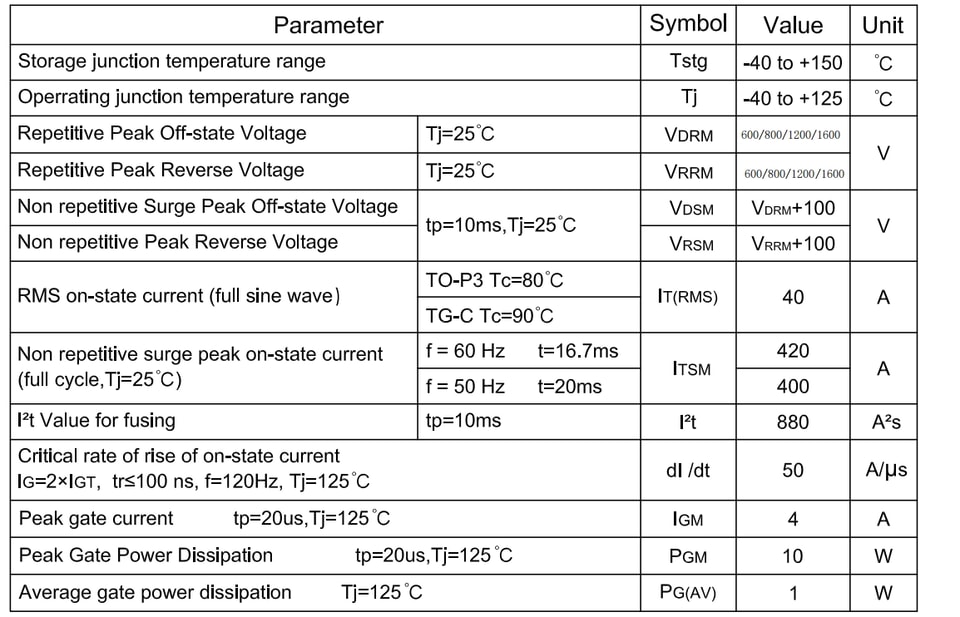

ABSOLUTE MAXIMUM RATINGS

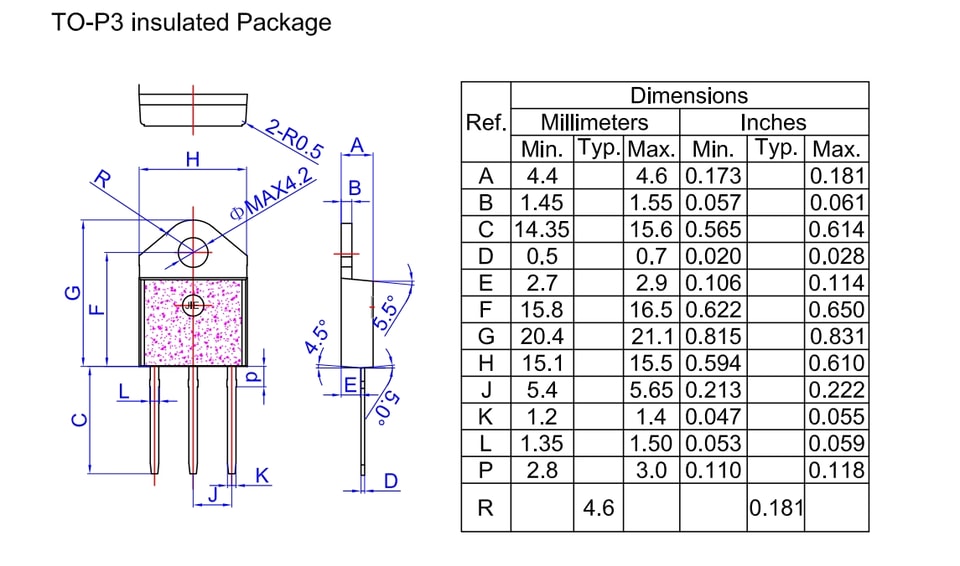

PACKAGE MECHANICAL DATA

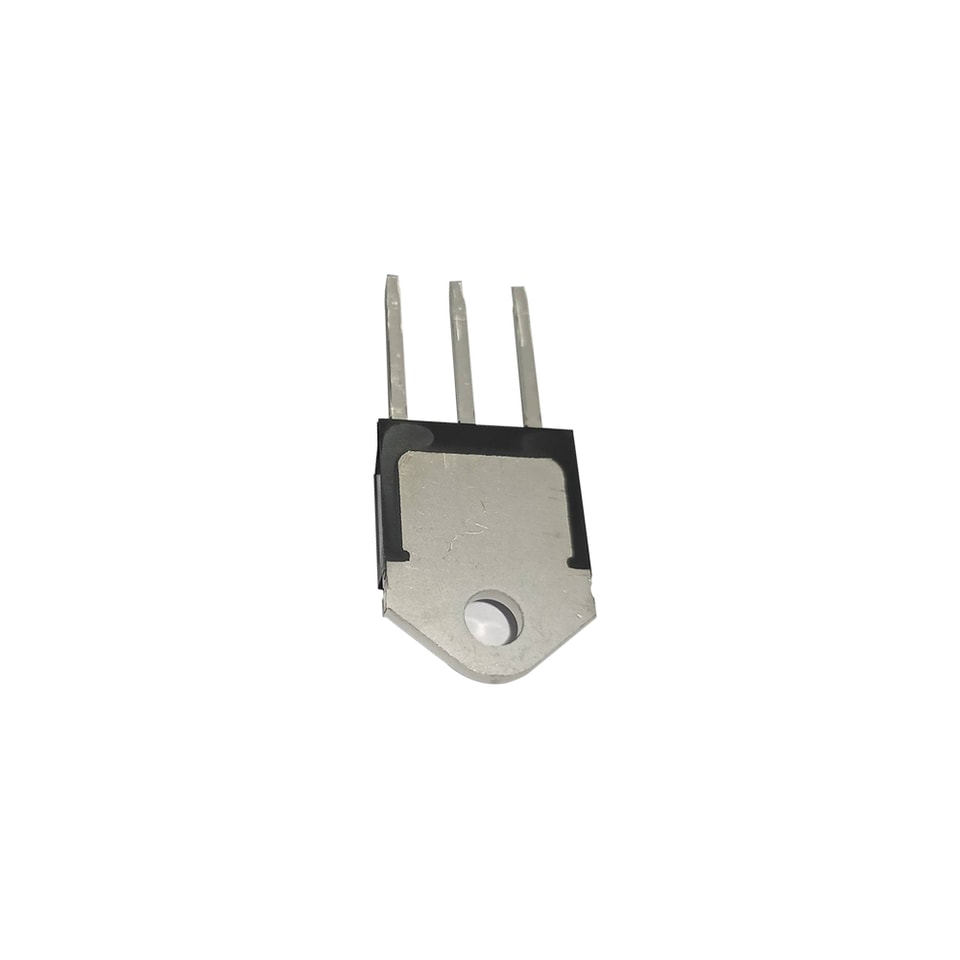

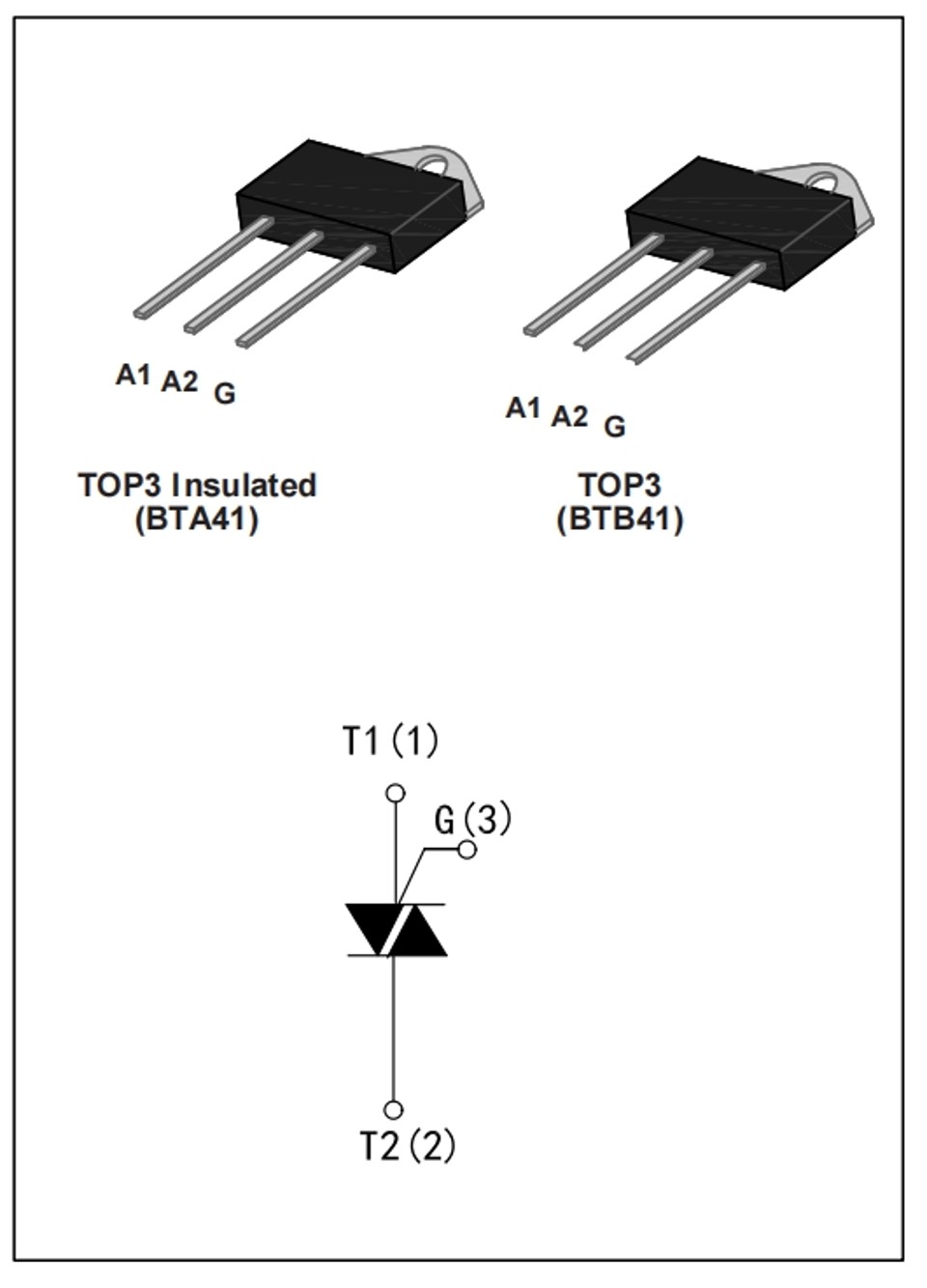

TO-P3 insulated Package
