YZPST-T1650H-6I
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files

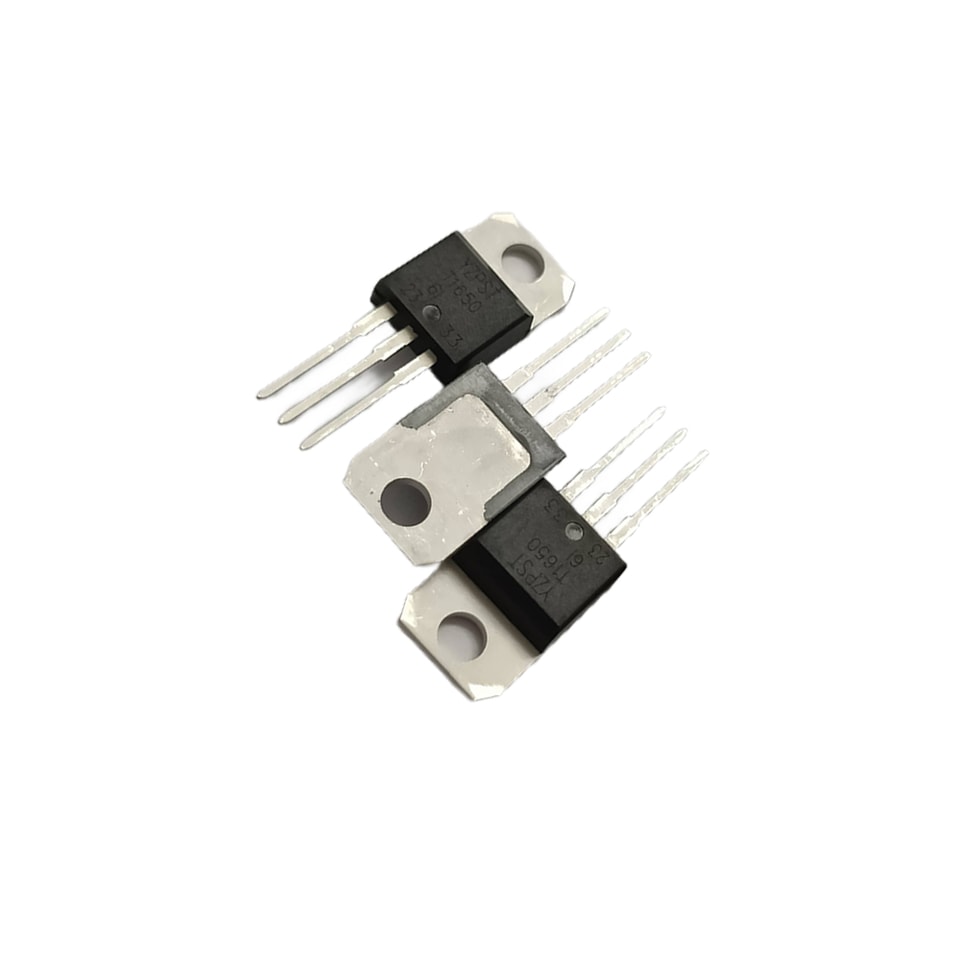

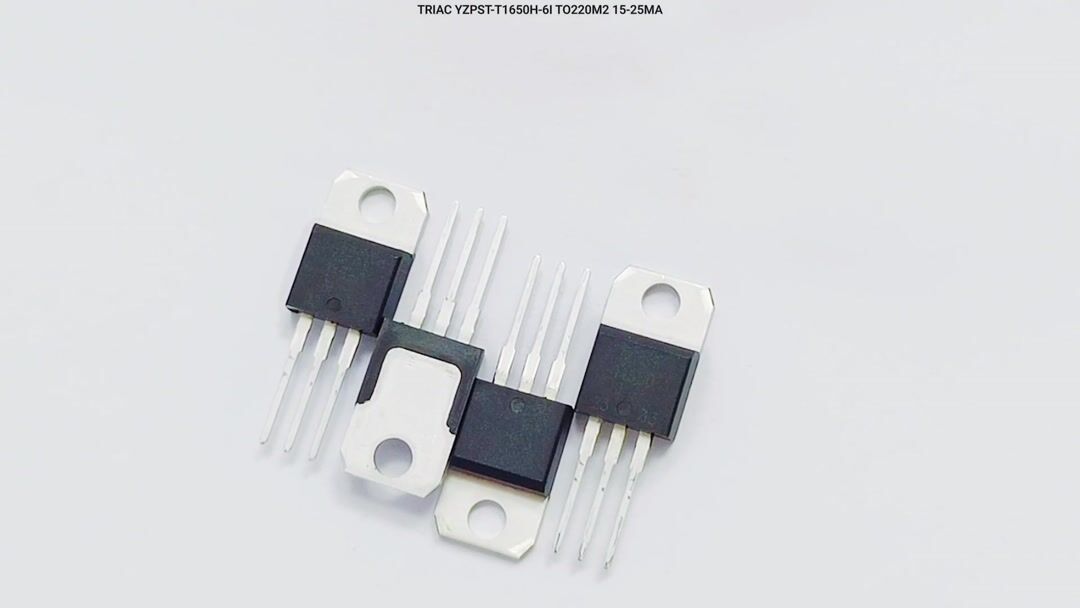

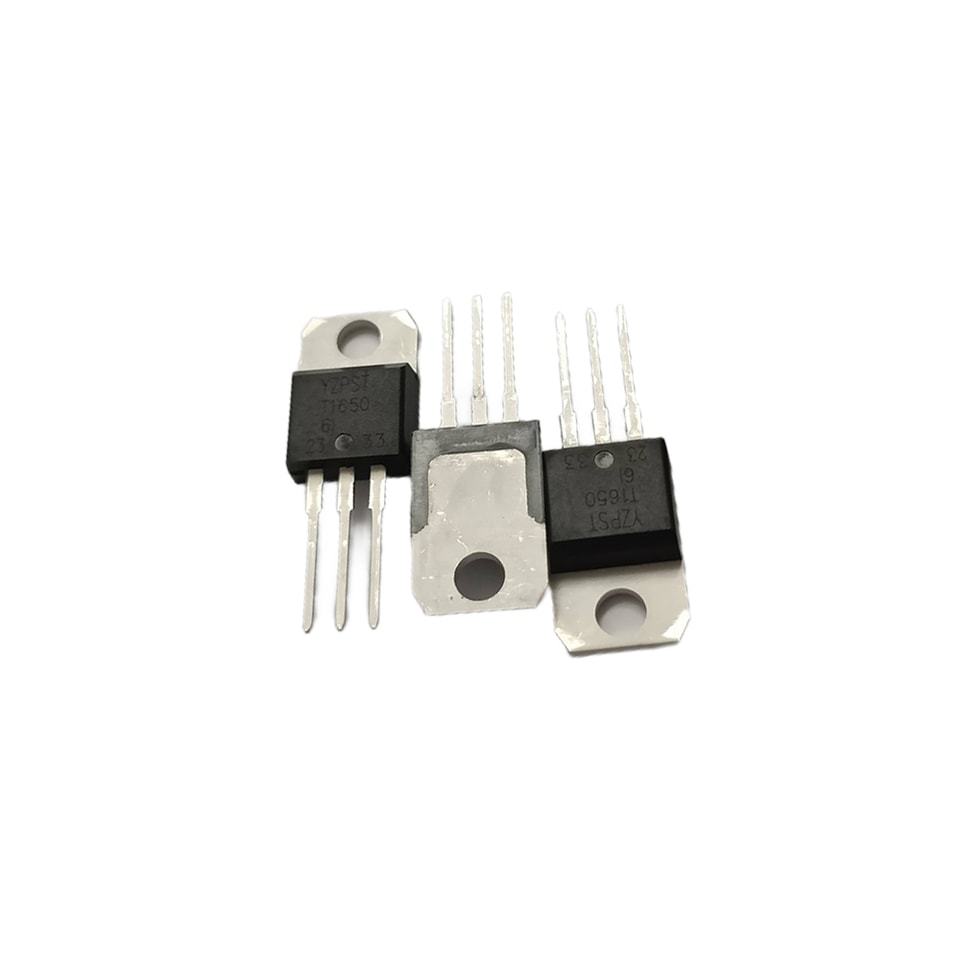

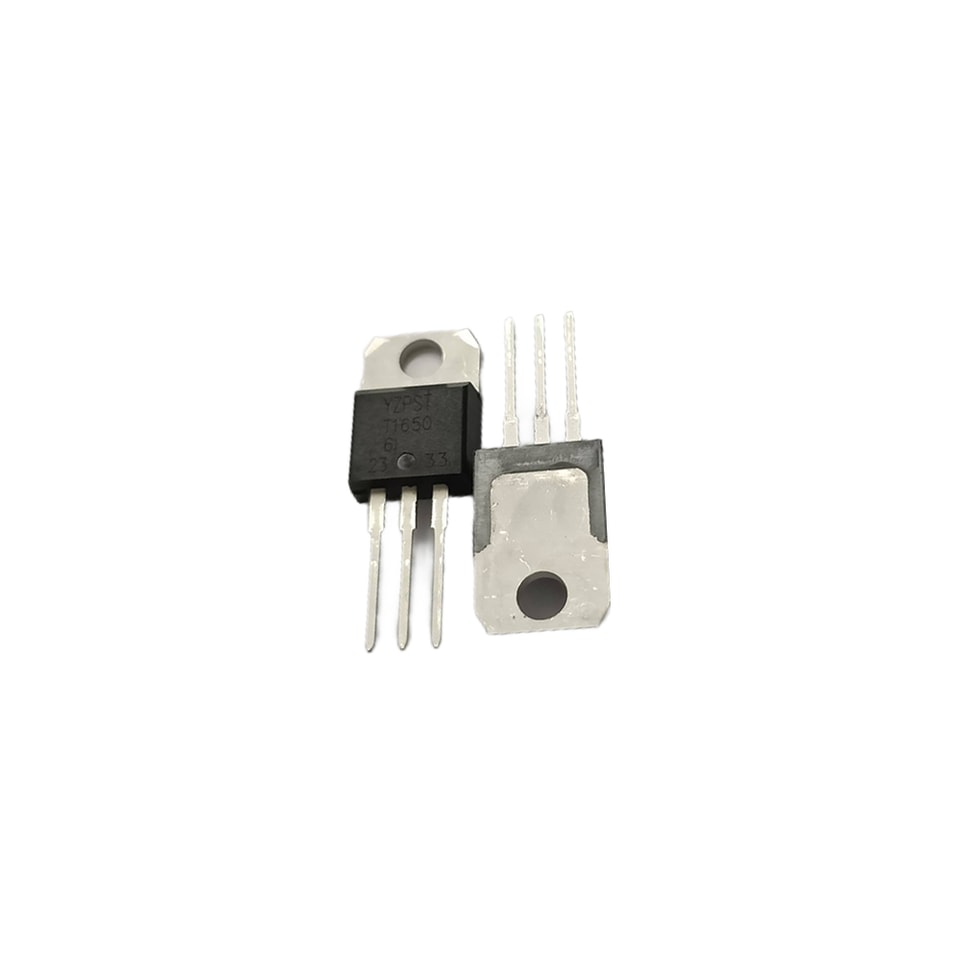

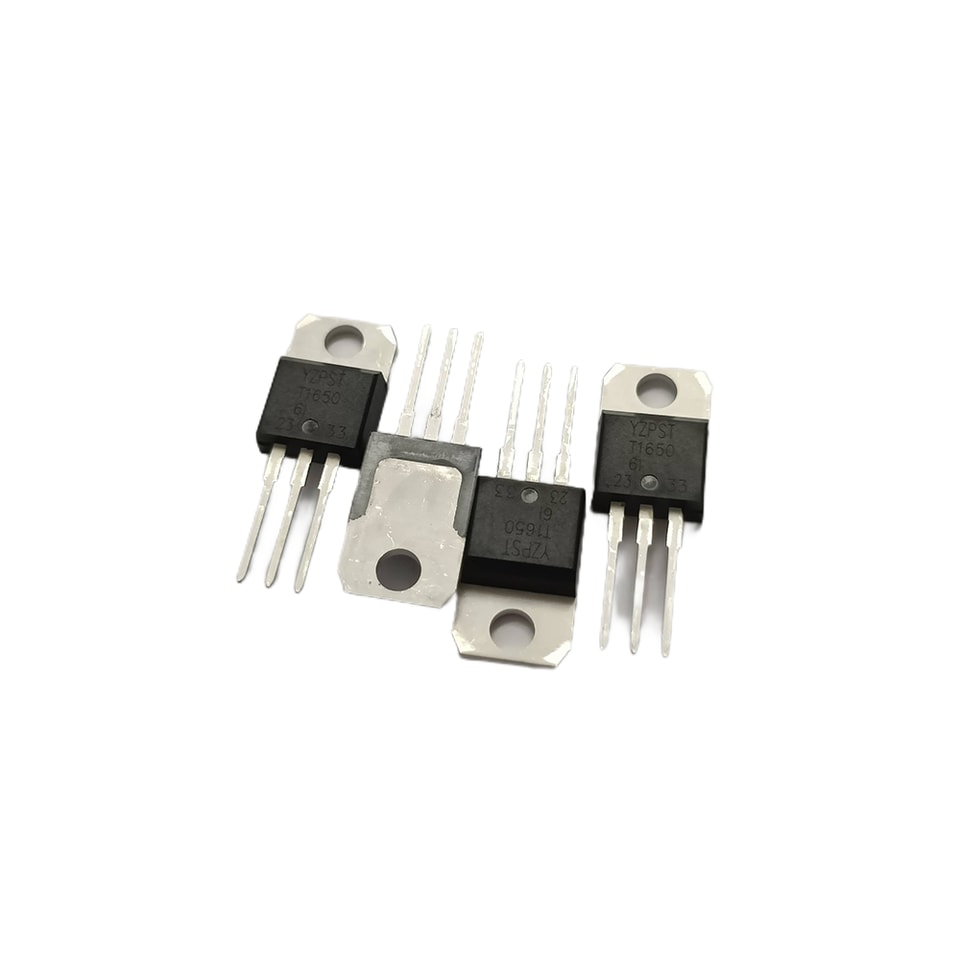

T1650H-6I 16A TRIACs
DESCRIPTION:
Especially designed to operate in high power density or universal motor applications such as vacuum cleaner and washing machine drum motor, these 16A triacs provide a very high switching capability up to junction temperatures of 150° C.
The heatsink can be reduced, compared to traditional triacs, according to the high performance at given junction temperatures
MAIN FEATURES
Symbol | Value | Unit |
IT(RMS) | 16 | A |
VDRM VRRM | 600 | V |
IGT | 50 | mA |
ABSOLUTE MAXIMUM RATINGS
Parameter | Symbol | Value | Unit |
Storage junction temperature range | Tstg | -40 ~150 | ℃ |
Operating junction temperature range | Tj | -40~150 | ℃ |
Repetitive peak off-state voltage (T =25℃) | VDRM | 600 | V |
Repetitive peak reverse voltage (T =25℃) | VRRM | 600 | V |
RMS on-state current | IT(RMS) | 16 | A |
Non repetitive surge peak on-state current (full cycle, F=50Hz) | ITSM | 160 | A |
I2t value for fusing (tp=10ms) | I2t | 169 | A2S |
Critical rate of rise of on-state current (I =2×IGT) | dI/dt | 50 | A/μS |
Peak gate current | IGM | 4 | A |
Average gate power dissipation | PG(AV) | 1 | W |
ELECTRICAL CHARACTERISTICS (T=25℃unless otherwise specified)
| Symbol | Value | |||||
| Test Condition | Quadrant | T1635 | T1650 | Unit | ||
| IGT | Ⅰ Ⅱ Ⅲ | MAX. | 35 | 50 | mA | |
| VGT | V =12V R =33Ω | Ⅰ Ⅱ Ⅲ | MAX. | 1.3 | V | |
| VGD | VD=VDRM Tj=125℃ R=3.3KΩ | Ⅰ Ⅱ Ⅲ | MIN. | 0.2 | V | |
| IL | IG=1.2IGT | ⅠⅡ Ⅲ | MAX. | 80 | 110 | mA |
| IH | IT=100mA | MAX. | 50 | 75 | mA | |
| dV/dt | VD=2/3VDRM Gate Open Tj=125℃ | MIN. | 1000 | 1500 | V/μs | |
STATIC CHARACTERISTICS
| Symbol | Parameter | Value | Unit | |
| VTM | ITM =23A tp=380μs | Tj =25℃ | 1.55 | V |
| IDRM | VD=VDRM VR=VRRM | Tj =25℃ | 5 | μA |
| IRRM | Tj =125℃ | 5.5 | mA | |
Thermal Resistances
| Symbol | Parameter | Value | Unit |
| Rth(j-a) | junction to ambient | 60 | |
| Rth(j-c) | Junction to case(AC) | 2.1 | ℃/W |

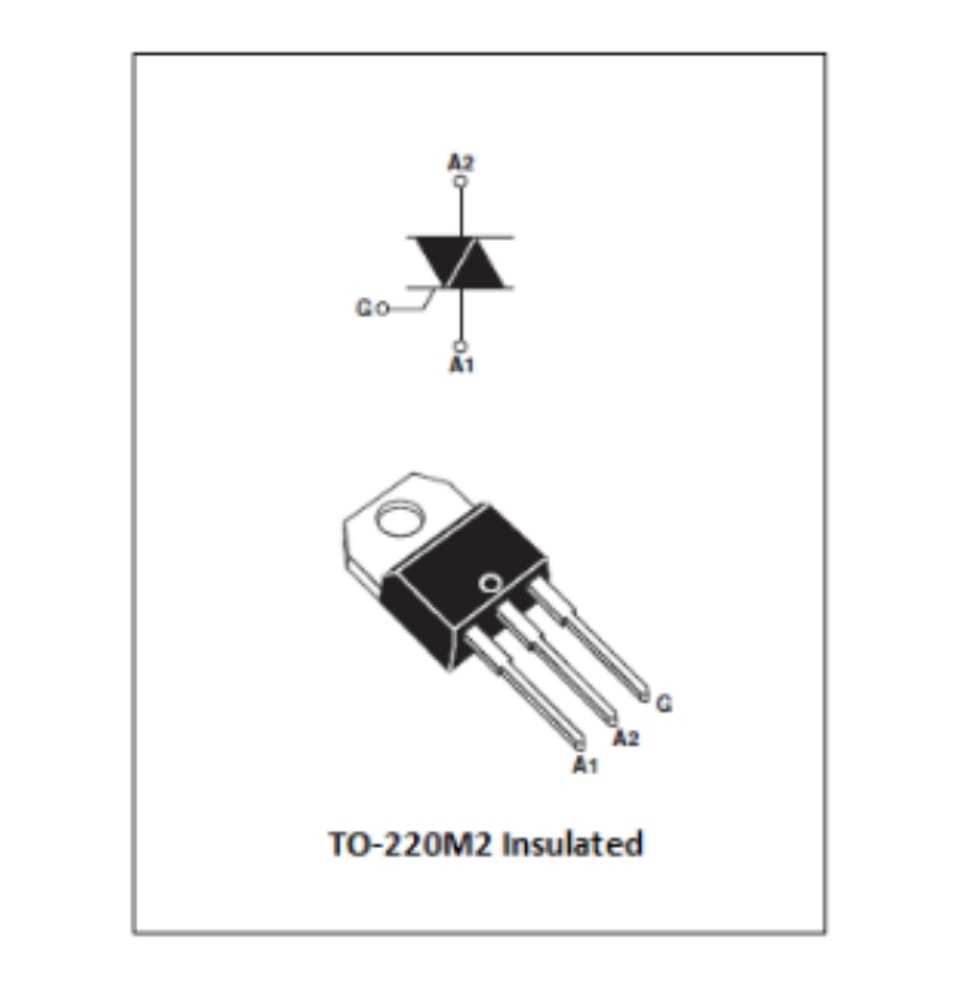

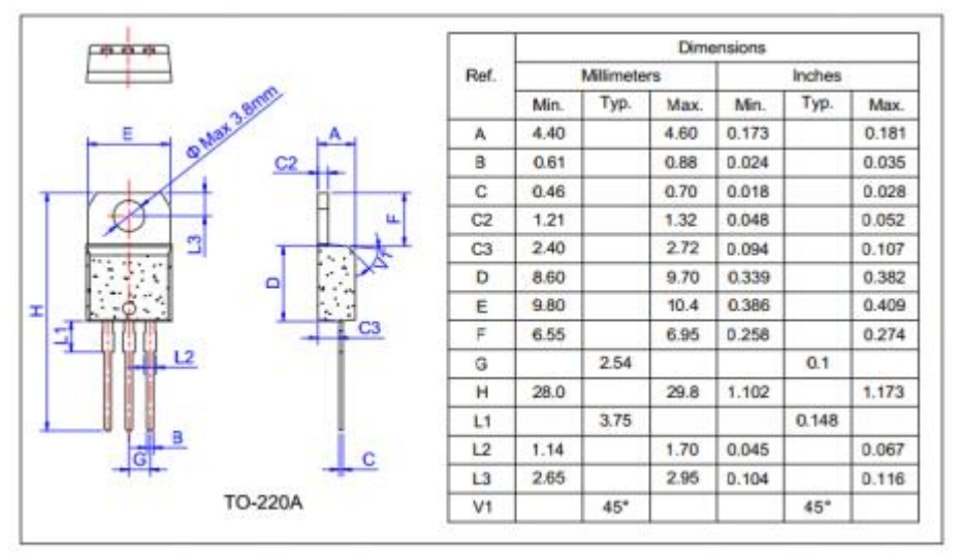

TO-220M2 Package Mechanical Data
