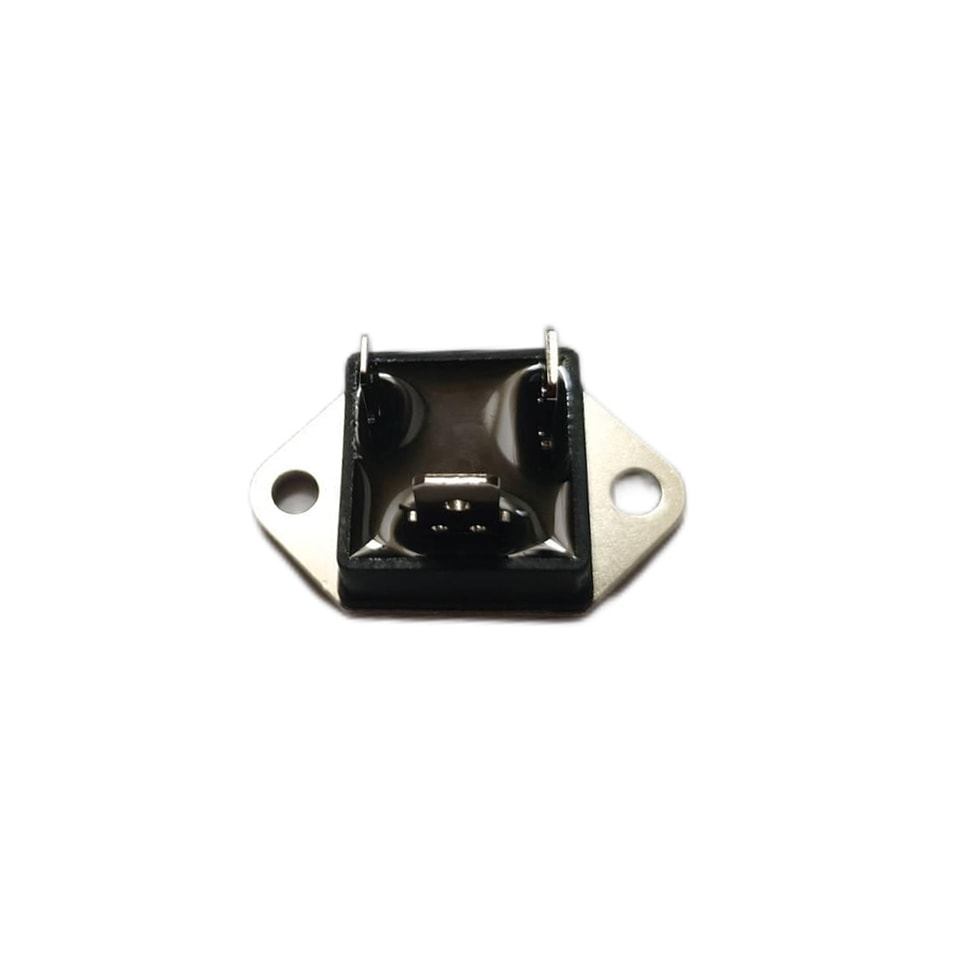

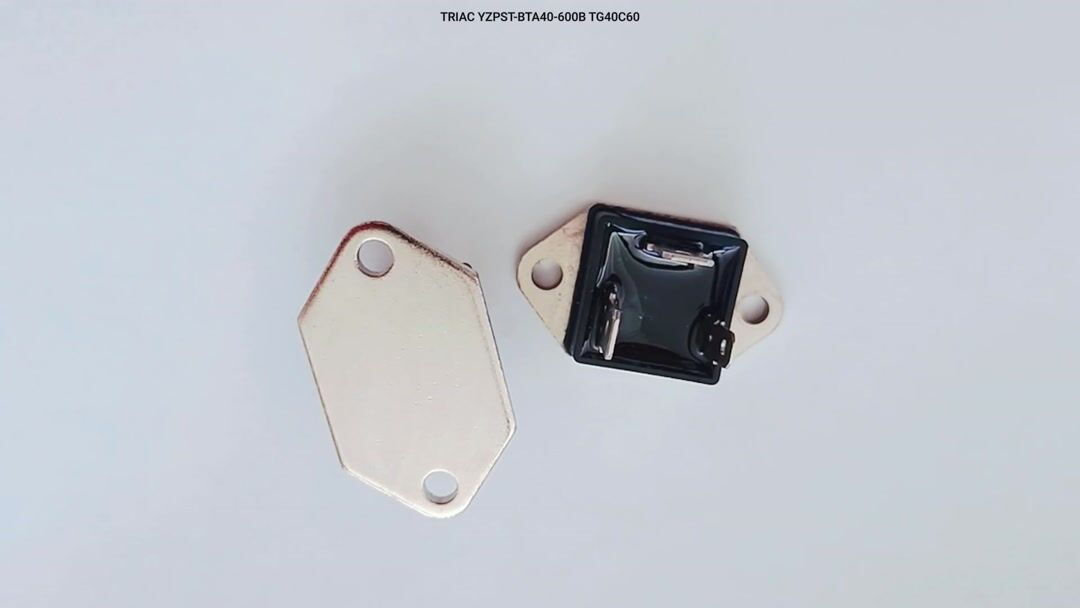

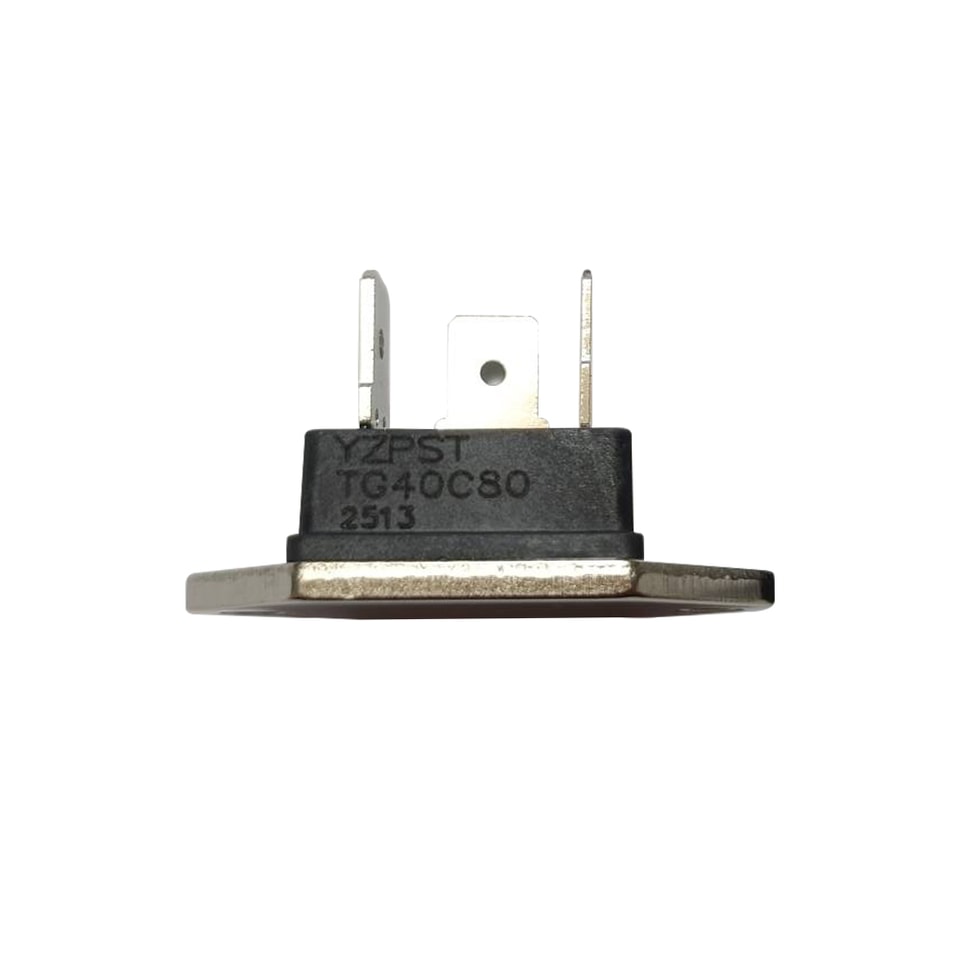

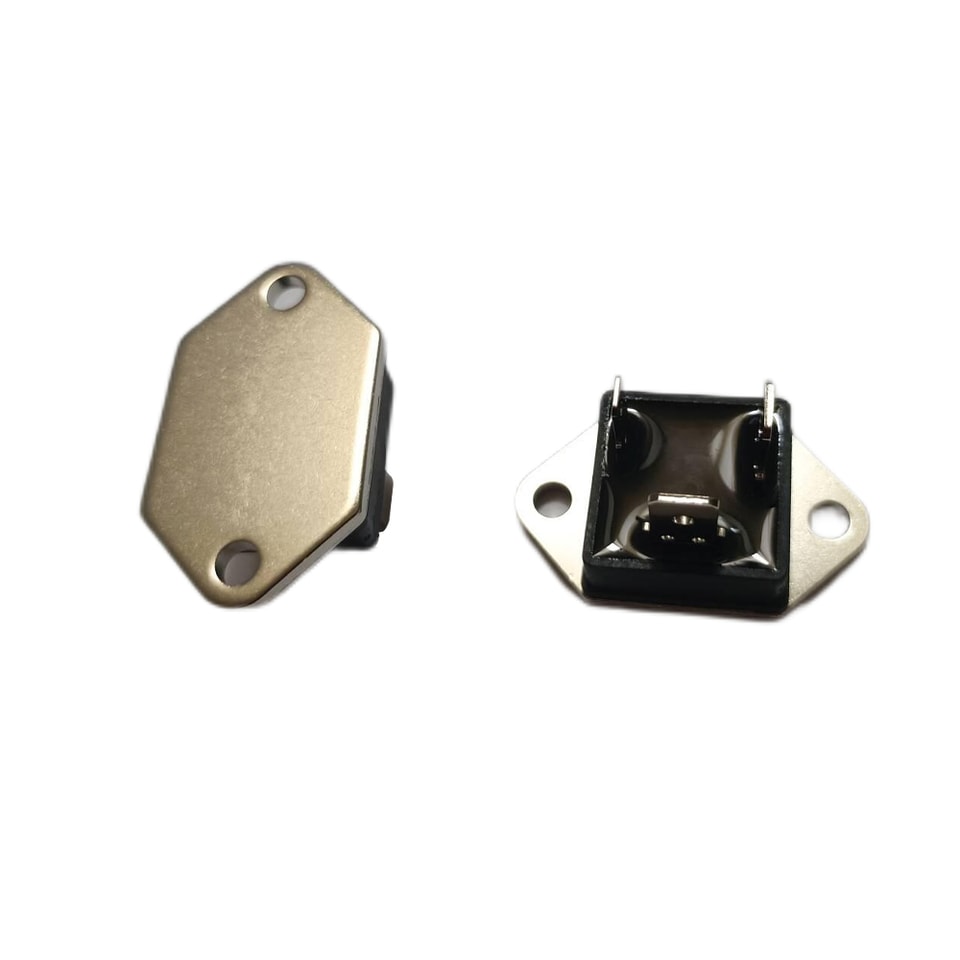

YZPST-TG40C80-T41
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files

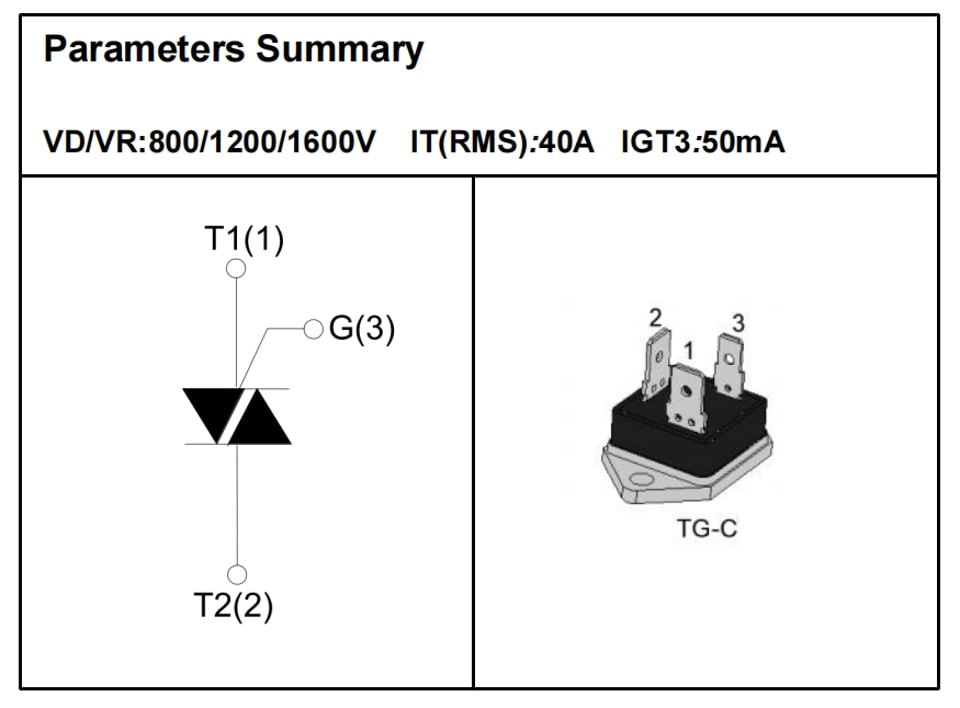

P/N: YZPST-T41T Series 40A TRIACS
FEATURES
Glass Passivated Junctions
High voltage and surge capability
Low Thermal Resistance and Durability
Triggering in three quadrants
APPLICATIONS
Static relays
Heating regulation
In-duction motor starting circuits
Phase control operation in light dimmers
Motor speed controllers
ABSOLUTE MAXIMUM RATINGS | |||
Parameter | Symbol | Value | Unit |
Storage junctiontemperature range | Tstg | -40~ 150 | ℃ |
Operating junction temperature range | Tj | -40~ 125 | ℃ |
Repetitive peak off-state voltage (T =25℃) | VDRM | 800/1200/1600 | V |
Repetitive peak reverse voltage (T =25℃) | VRRM | 800/1200/1600 | V |
RMS on-state current | IT(RMS) | 40 | A |
Non repetitive surge peak on-state current (full cycle, F=50Hz) | ITSM | 400 | A |
I2t value for fusing (tp= 10ms) | I2t | 800 | A2 S |
Critical rate of rise of on-state current(I =2×IGT) | di/dt | 50 | A/μS |
Peak gate current | IGM | 8 | A |
Peakgate power dissipation | PGM | 10 | W |
Average gate power dissipation | PG(AV) | 1 | W |
Thermal Resistances | |||
Symbol | Parameter | Value | Unit |
Rth(j-c) | Junction to case | 0.7 |
℃/W |
Rth(j-a) | Junction to ambient | 45 | |

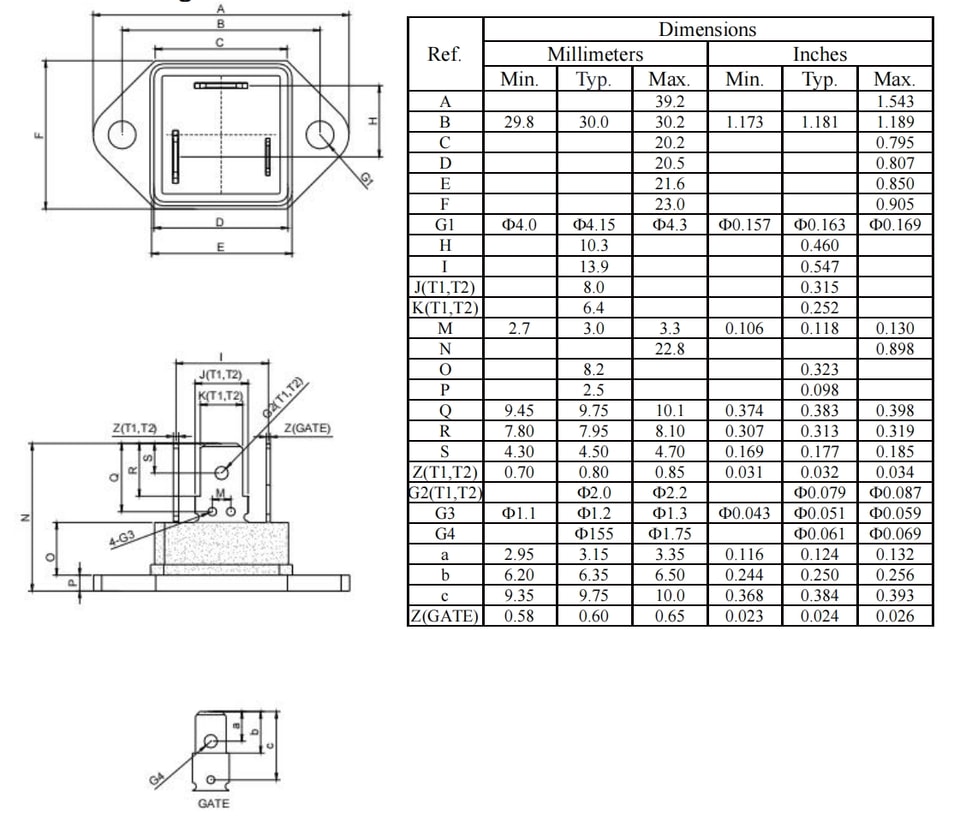

TG-C Package Mechanical Data
