POWER COMPONENT
YZPST-X2
✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry
EmailTechnical sales
PhoneContact team
Tip: include the part number, target voltage/current and application environment.
DOCUMENT CENTER
Downloads & technical files
P/N: YZPST-X2 334K310VAC P=15mm W*H*T=18*14.5*8.4mm
DESCRIPTIONS : Metallized polypropylene film interference suppression capacitor（class X2）
Operating temperature :-40℃~ 110℃

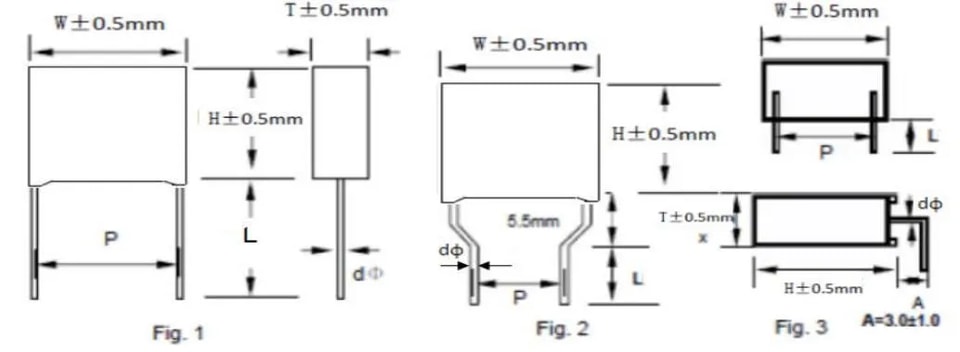

PRODUCT DIMENSIONS :
CUSTOMER'S PART NO. |
CAP （uF） | Tol. ± % |
R.V. VAC |
T.V. VDC |
W ± 1.0 |
H ± 1.0 |
T ± 1.0 |
P ±1.0 | d ±0.05 |
L0 ±2 |
Fig. |
HONGFARAD Cap PART NO. |
| 0.33 | 10 | 310 | 1333 | 18.0 | 14.5 | 8.4 | 15 | 0.8 | 18 | 1 | C62-Q3334K-D48T35 |

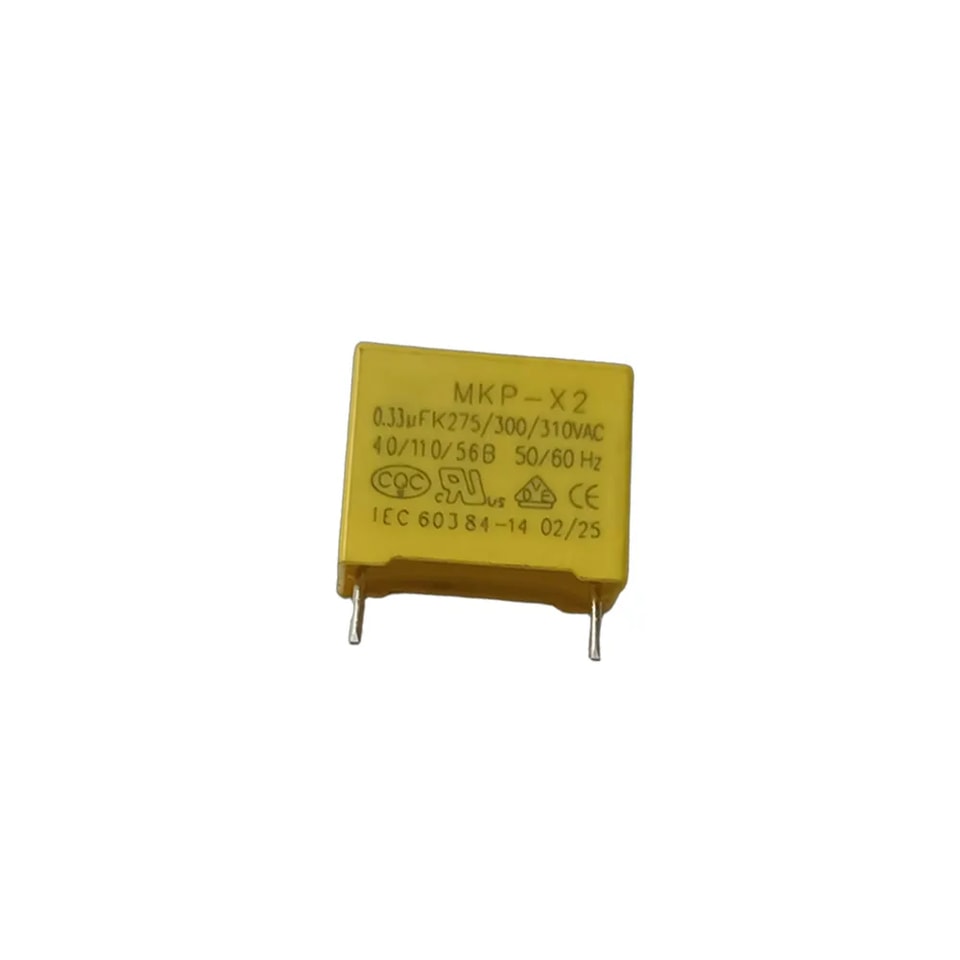

Marking
| |
MKP-X2 |
BOX -TYPE METALLIZED POLYPROPYLENE AC CAPACITOR |
0.33uF |
CAPACITANCE |
K |
CAPAC.ITANCE TOLERANCE |
275/300/310VAC |
RATED VOLTAGE AC VOLTAGE |
40/110/56 | Working Lowest Temperature (- 40℃) Working HighestTemperature(+ 110℃) Working Times (56days) |
B | Class of operation |
02/25 | 25 years in week 02 |
For more details, please refer to the PDF product specification sheet！
