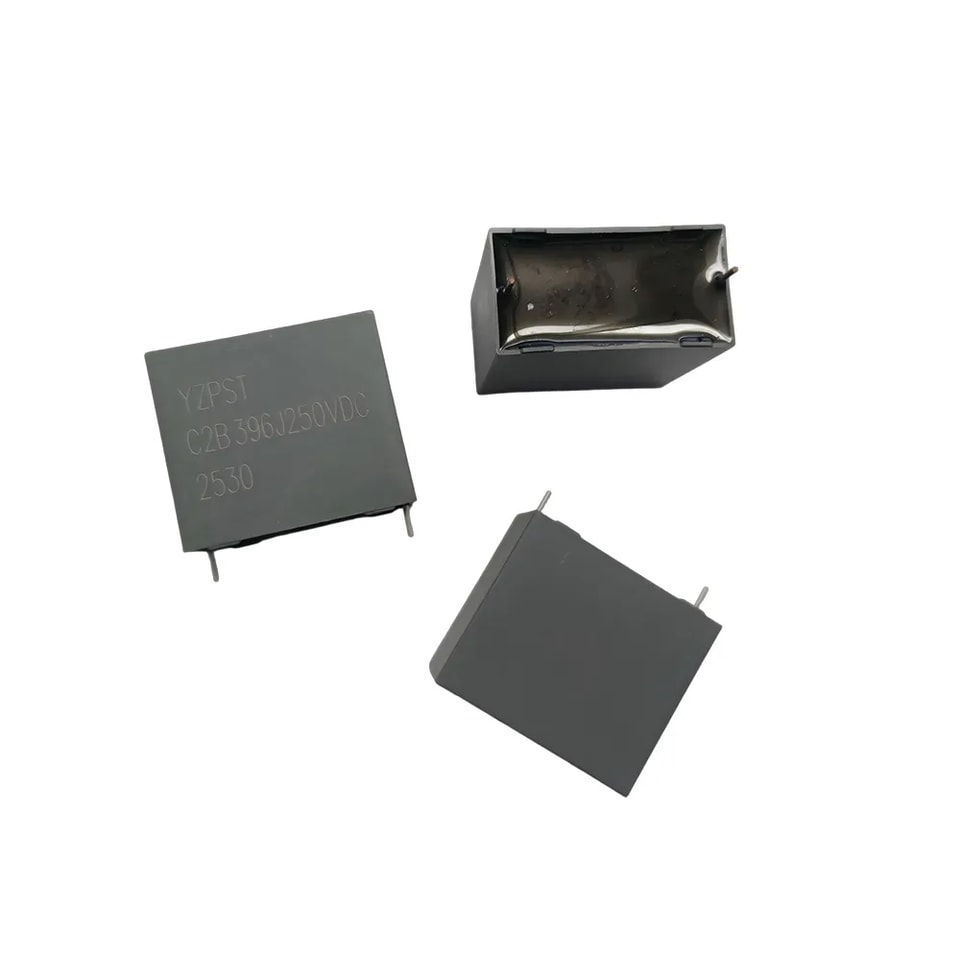

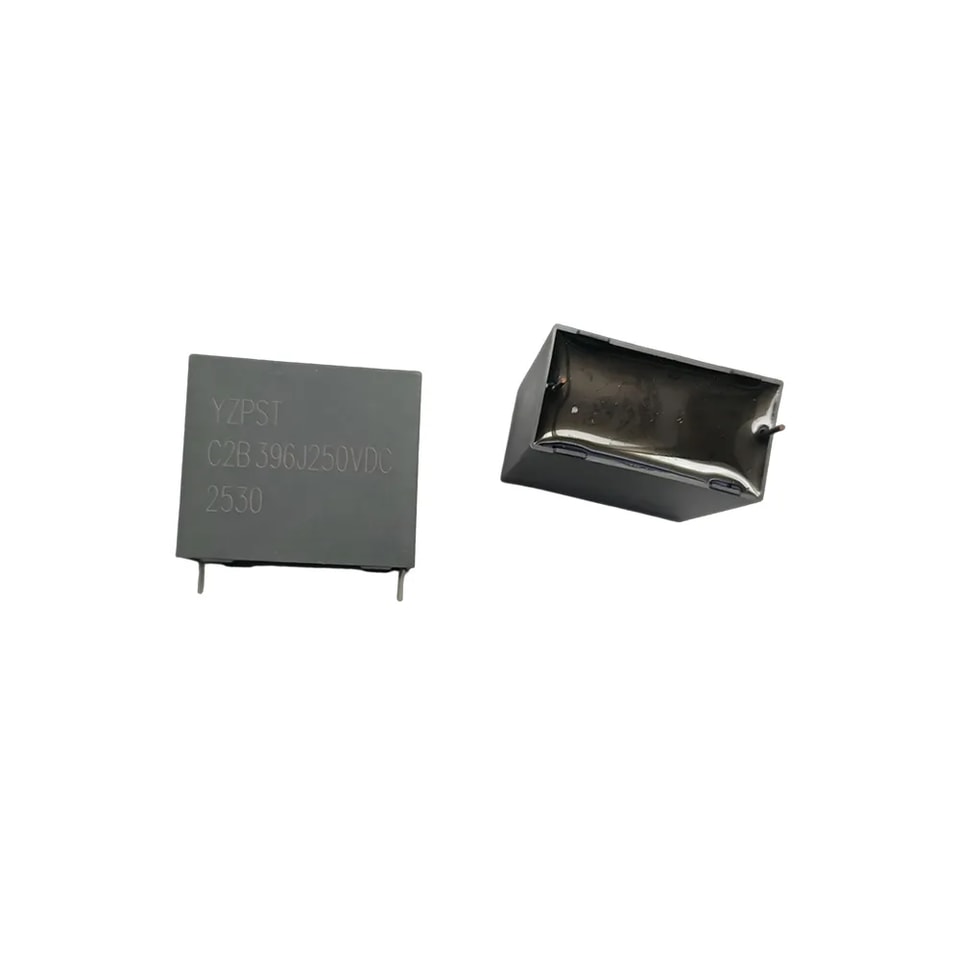

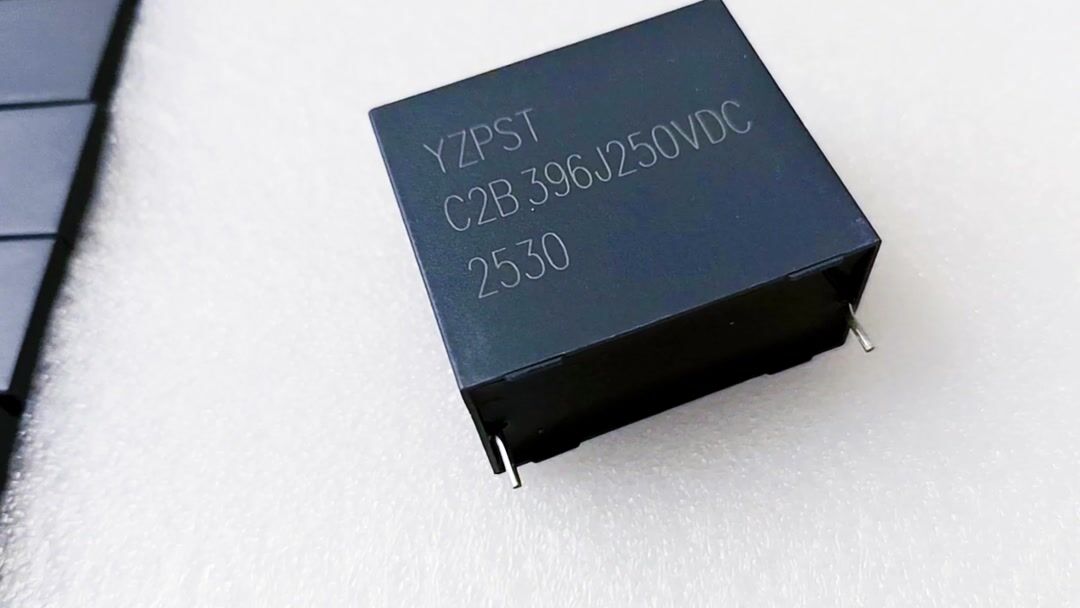

YZPST-C2B 396J250VDC
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
C2B Series Metallized Polypropylene Film Capacitor

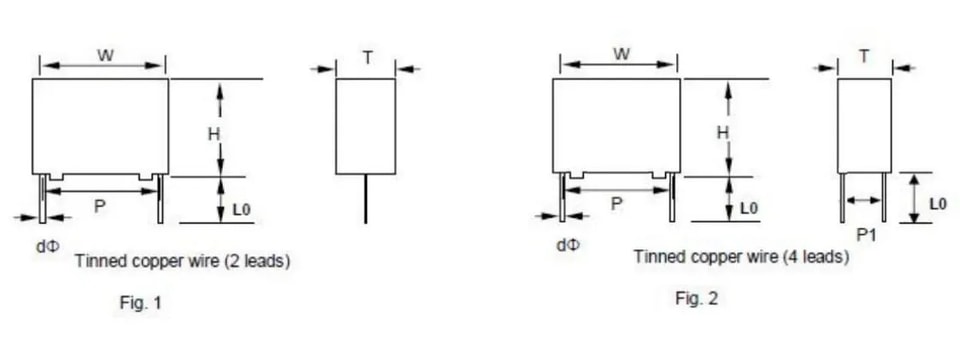

PRODUCT DIMENSIONS :mm
CUSTOMER'S PART NO. |
CAP ( μF） |
To l. ± % |
R.V.VDC |
T.V.VDC |
W ±0.5 |
H ±0.5 |
T ±0.5 |
P ± 1.0 | d线径±0.05 |
L0 ±2 |
Fig. |
CASE |
PART NO. |
| 68 | 5 | 250 | 375 | 42 | 43 | 28 | 37.5 | 1.0 | 18 | 1 | CASE |
|
| 150 | 5 | 100 | 150 | 42 | 43 | 28 | 37.5 | 1.0 | 18 | 1 | CASE |
|
| 68 | 5 | 160 | 240 | 42 | 37 | 22 | 37.5 | 1.0 | 18 | 1 | CASE |
|
| 39 | 5 | 250 | 375 | 42 | 37 | 22 | 37.5 | 1.0 | 18 | 1 | CASE |
|
| 180 | 5 | 63 | 95 | 57.5 | 50 | 35 | 52.5 | 1.0 | 18 | 1 | CASE |
|

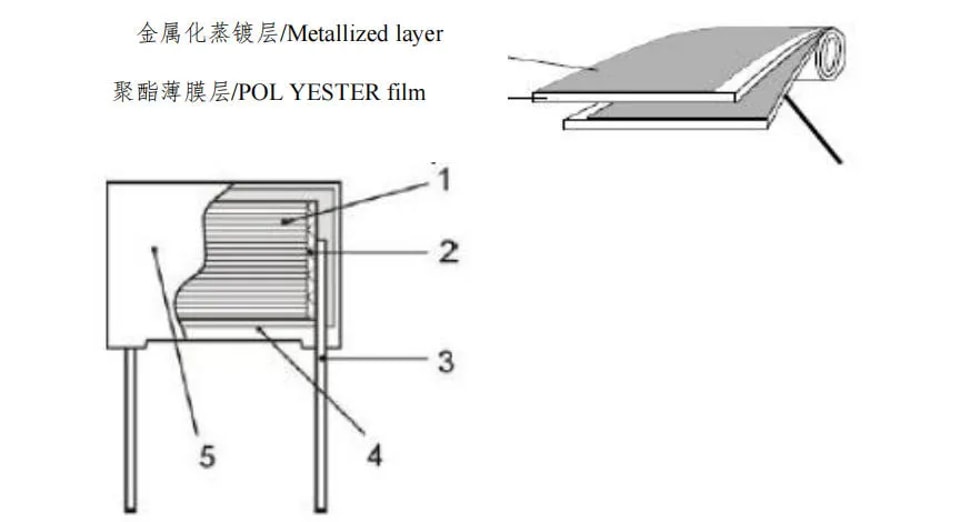

Construction and Component
Construction&Mark
Item | Component | Material | RoHS Requirements |
1 | Element | Metallized PET film | Compliant with RoHS |
2 | Metal spray layer | Zn and Zn-Tin alloy wire | Compliant with RoHS |
3 | Leads | Tinned copper wire | Compliant with RoHS |
4 | Potting Compound | Flame retardant epoxy resin(UL94V0) | Compliant with RoHS |
5 | Enclosure | Flame retardant PBT Plastic(UL 94V0) | Compliant with RoHS |
6 | Marking | Laset | Compliant with RoHS |
