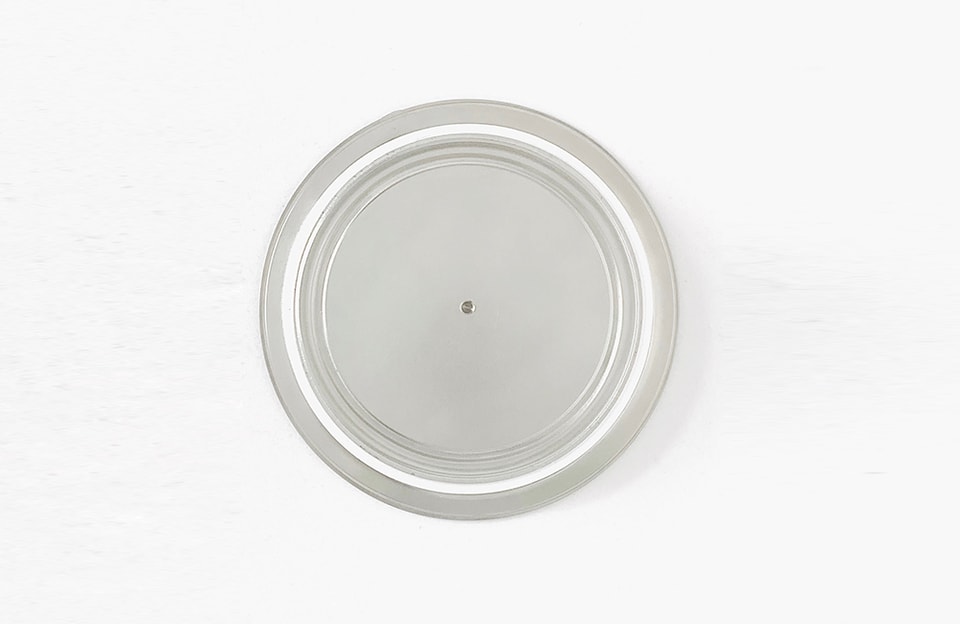

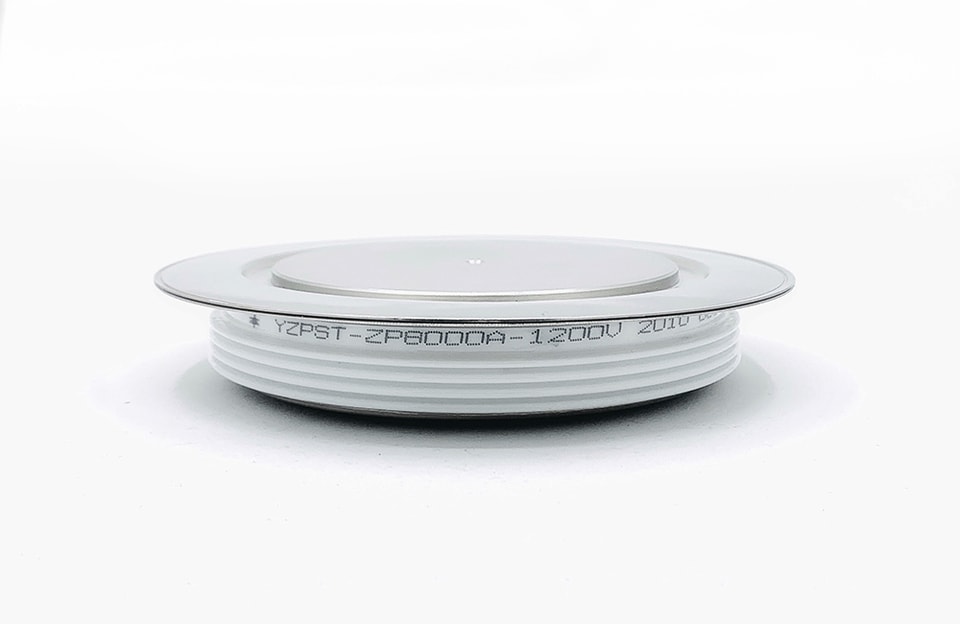

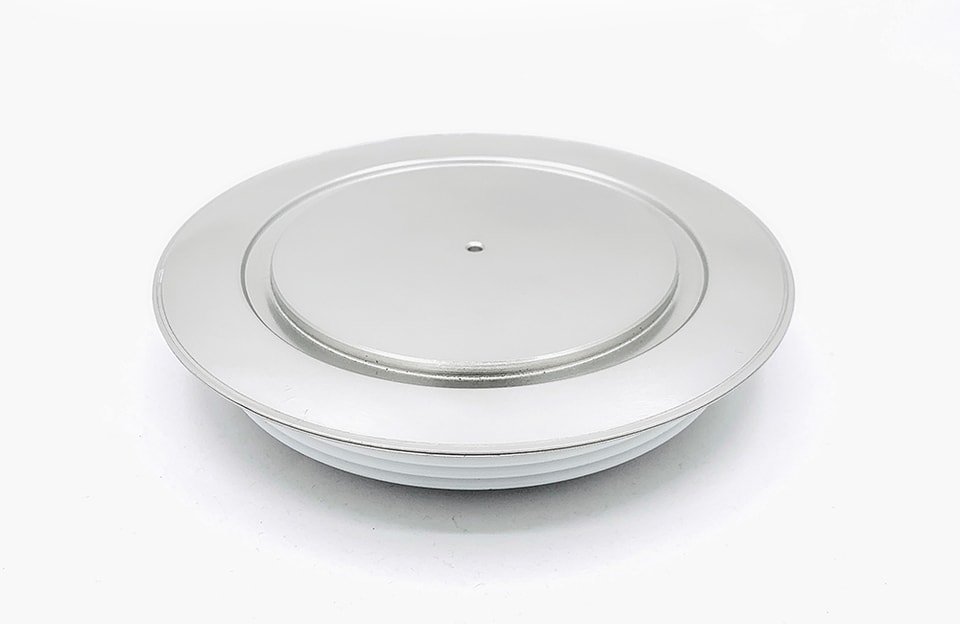

YZPST-ZP8000A-1200V
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
VOLTAGE RATINGS |
MAXIMUM
LIMITS
| UNITS | |
VRRM | Repetitive peak reverse voltage, Tj=25℃ | 1200 | V |
VRSM | Non-repetitive peak reverse voltage, Tj=25℃ | 1300 | V |
OTHER RATINGS |
MAXIMUM
LIMITS
| UNITS | |
IF(AV) | Average forward current, Tj=150℃ | 8410 | A |
IF(RMS) | Nominal RMS forward current, Tj=25℃ | 15025 | A |
IFSM | Peak non-repetitive surge tp=10ms, Tj=25℃ | 72 | kA |
I2t | I2t capacity for fusing tp=10ms, Tj=25℃ | 25.92×106 | A2s |
Tjop | Operating temperature range | -40 to +150 | ℃ |
Tstg | Storage temperature range | -40 to +150 | ℃ |
PARAMETER | MIN. | TYP. | MAX. | TEST CONDITIONS | UNITS | |
VFM | Maximum peak forward, Tj=150℃ | - | - | 1.13 | IFM=6800A | V |
V(T0) | Threshold voltage | - | - | 0.67 | V | |
rT | Slope resistance | - | - | 0.038 | mΩ | |
IRRM | Peak reverse current | - | - | 100 | Rated VRRM, Tj=150℃ | mA |
Rated VRRM, Tj=25℃ | ||||||
Qrr | Recovered charge | - | - | - | μC | |
Irm | Reverse recovery current | - | - | - | Vr=50V, 50% Chord. | A |
trr | Reverse recovery time, 50% Chord | - | - | - | μs | |
RthJK | Thermal resistance, junction to heatsink | - | - | 0.011 | Double side cooled | K/W |
- | 0.022 | Single side cooled | ||||
F | Mounting force | 63 | - | 91 | kN | |
Wt | Weight | - | - | - | g |
Type | Sym | A | B | C | D | H |
mm | 150 | 100 | 108 | 3.5×3 | 26±1 |
YZPST can provide Following Equivalent List of Standard Diodes With High Junction (Capsule Types)
| Type | IF(AV) | IFSM @TVJM&10ms | VRRM | IRRM (max) Tj=125 °C | VFM(max) | Tvj | Rthjc | F±10 % | ||
| A | KA | V | mA | IFM (A) | IFM (A) | Tj(°C) | °C | K/W | KN | |
| A640 | 1500 | 16 | 1200-2200 | 35 | 1.09 | 1000 | 25 | 185 | 0.04 | 15 |
| A641 | 1500 | 15 | 1800-2600 | 70 | 1.09 | 1000 | 25 | 185 | 0.04 | 15 |
| A643 | 1000 | 10 | 3600-4600 | 50 | 1.40 | 1000 | 160 | 170 | 0.04 | 15 |
| A740 | 2400 | 30 | 1400-2000 | 50 | 0.86 | 1000 | 160 | 185 | 0.02 | 25 |
| A750 | 1800 | 22 | 2400-3200 | 50 | 0.96 | 1000 | 160 | 175 | 0.02 | 25 |
| A780 | 1500 | 18 | 3500-4600 | 50 | 1.15 | 1000 | 160 | 170 | 0.02 | 25 |
| A800 | 4400 | 63 | 1800-2600 | 100 | 0.865 | 2000 | 160 | 185 | 0.01 | 36 |
| A801 | 3900 | 57 | 2800-3200 | 100 | 1.05 | 2000 | 150 | 175 | 0.01 | 36 |
| A880 | 2900 | 36 | 3600-4500 | 100 | 1.15 | 2000 | 160 | 170 | 0.01 | 36 |
