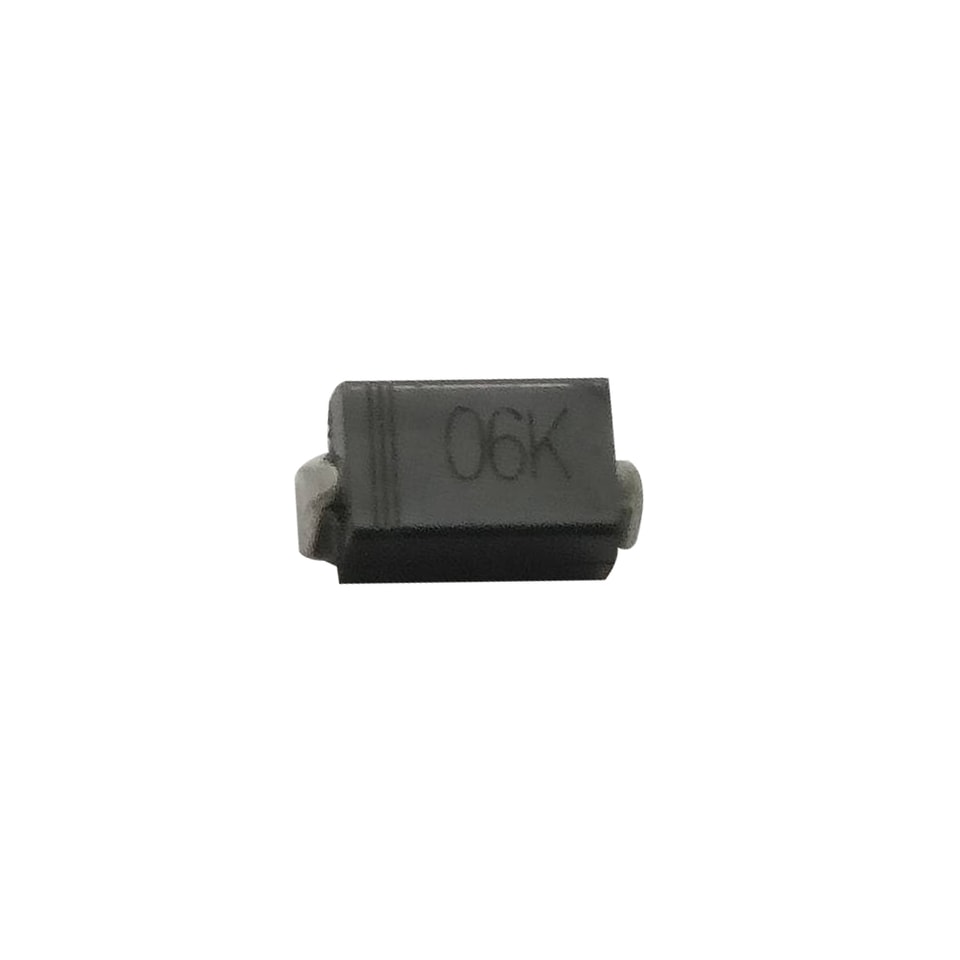

YZPST-2CL06K Reverse Voltage 6KV Plastic Fast Recover High Voltage Rectifier Diode
Plastic Fast Recover High Voltage Rectifier
YZPST-2CL06K
Reverse Voltage 6KV Plastic Fast Recover High Voltage Rectifier Diode
Reverse Voltage 6kV
Forward Current 5mA
Features
For high resolution displays or TV receivers and Working automation equipment
Diffused-junction
Excellent high temperation output characteristics (Small leakage current at high temperature and excellent reverse characterics)
Plastic Fast Recover High Voltage Rectifier
YZPST-2CL06K
Reverse Voltage 6KV Plastic Fast Recover High Voltage Rectifier Diode
Reverse Voltage 6kV
Forward Current 5mA
Features
For high resolution displays or TV receivers and Working automation equipment
Diffused-junction
Excellent high temperation output characteristics (Small leakage current at high temperature and excellent reverse characterics)
Maximum Ratings & Thermal Characteristics Ratings at 25℃ ambient temperature unless otherwise specified.
|
ltem |
Symbols |
2CL06K |
Unit |
|
Repetitive Peak Reverse Voltage |
VRRM |
6 |
KV |
|
Average Forward Current |
IF(AV) |
5 (50HZ half-sine wave,Resistance load Ta=25℃) |
mA |
|
Non-Repetitive Forward Surge Current |
IFSM |
2 (50HZ half-sine wave,1/2 cycle, Ta=25℃) |
A |
|
Ambient temperature |
Tamb |
-140 |
℃ |
|
Virtual Junction Temperature |
TJ |
120 |
℃ |
|
Storage temperature |
Tstg |
-160 |
℃ |
Electrical Characteristics Ratings at 25℃ ambient temperature unless otherwise specified.
|
ltem |
Symbols |
2CL06K |
Unit |
||
|
Forward voltage Drop |
IF = 10mA |
VF |
6 |
V |
|
|
Normal Temperature Reverse Current |
VR=VRRM |
IRm1 |
2 |
μA |
|
|
TA=100℃ High Temperature Reverse Current |
VR=VRRM |
IRm2 |
5 |
μA |
|
|
Reverse Recovery Time |
IF=2mA , Irp=4mA 1mA recovery |
trr |
100 |
nS |
|
