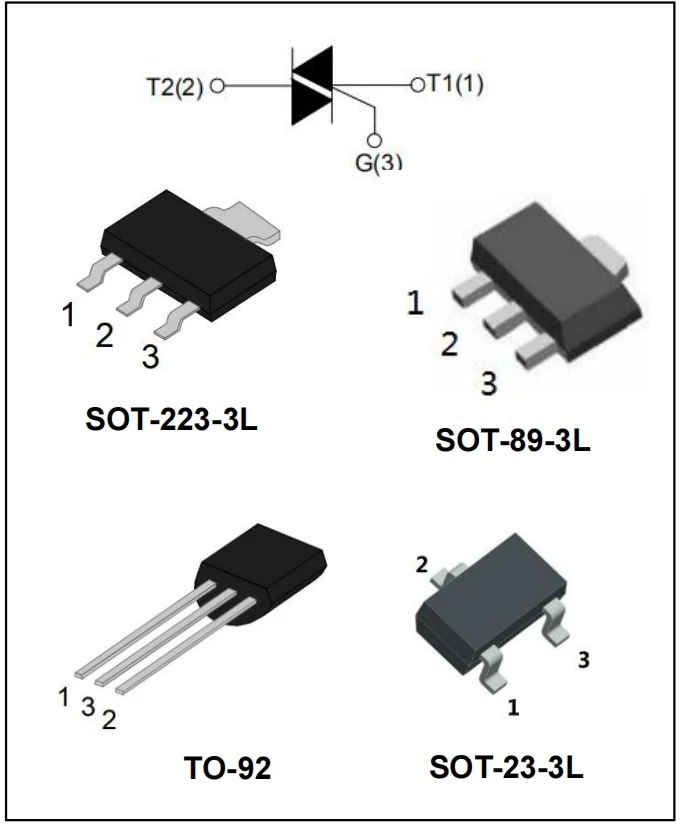

YZPST-ZO0607MA
DESCRIPTION:
With low holding and latching current, Z0607 Series triacs are especially recommended for use on middle and small resistance type power load.
DESCRIPTION:
With low holding and latching current, Z0607 Series triacs are especially recommended for use on middle and small resistance type power load.
MAIN FEATURES:
|
symbol |
value |
unit |
|
IT(RMS) |
0.8 |
A |
|
VDRM/VRRM |
600/800 |
V |
|
VTM |
≤1.5 |
V |
ABSOLUTE MAXIMUM RATINGS:
|
Parameter |
Symbol |
Value |
Unit |
|
|
Storage junction temperature range |
Tstg |
-40~150 |
℃ |
|
|
Operating junction temperature range |
Tj |
-40~125 |
℃ |
|
|
Repetitive peak off-state voltage (Tj=25℃) |
VDRM |
600/800 |
V |
|
|
Repetitive peak reverse voltage (Tj=25℃) |
VRRM |
600/800 |
V |
|
|
RMS on-state current |
IT(RMS) |
0.8 |
A |
|
|
Non repetitive surge peak on-state current (full cycle, F=50Hz) |
ITSM |
9 |
A |
|
|
I2t value for fusing (tp=10ms) |
I2t |
0.45 |
A2s |
|
|
Average gate power dissipation |
PG(AV) |
0.1 |
W |
|
|
Peak gate power |
PGM |
5 |
W |
|
THERMAL RESISTANCES
|
Symbol |
Test Condition |
Value |
Unit |
|
|
Rth(j-c) |
junction to case(AC) |
TO-92 |
75 |
℃/W |
|
SOT-223/SOT-23-2L |
45 |
|||
|
SOT-89-2L |
60 |
|||
PACKAGE MECHANICAL DATA
