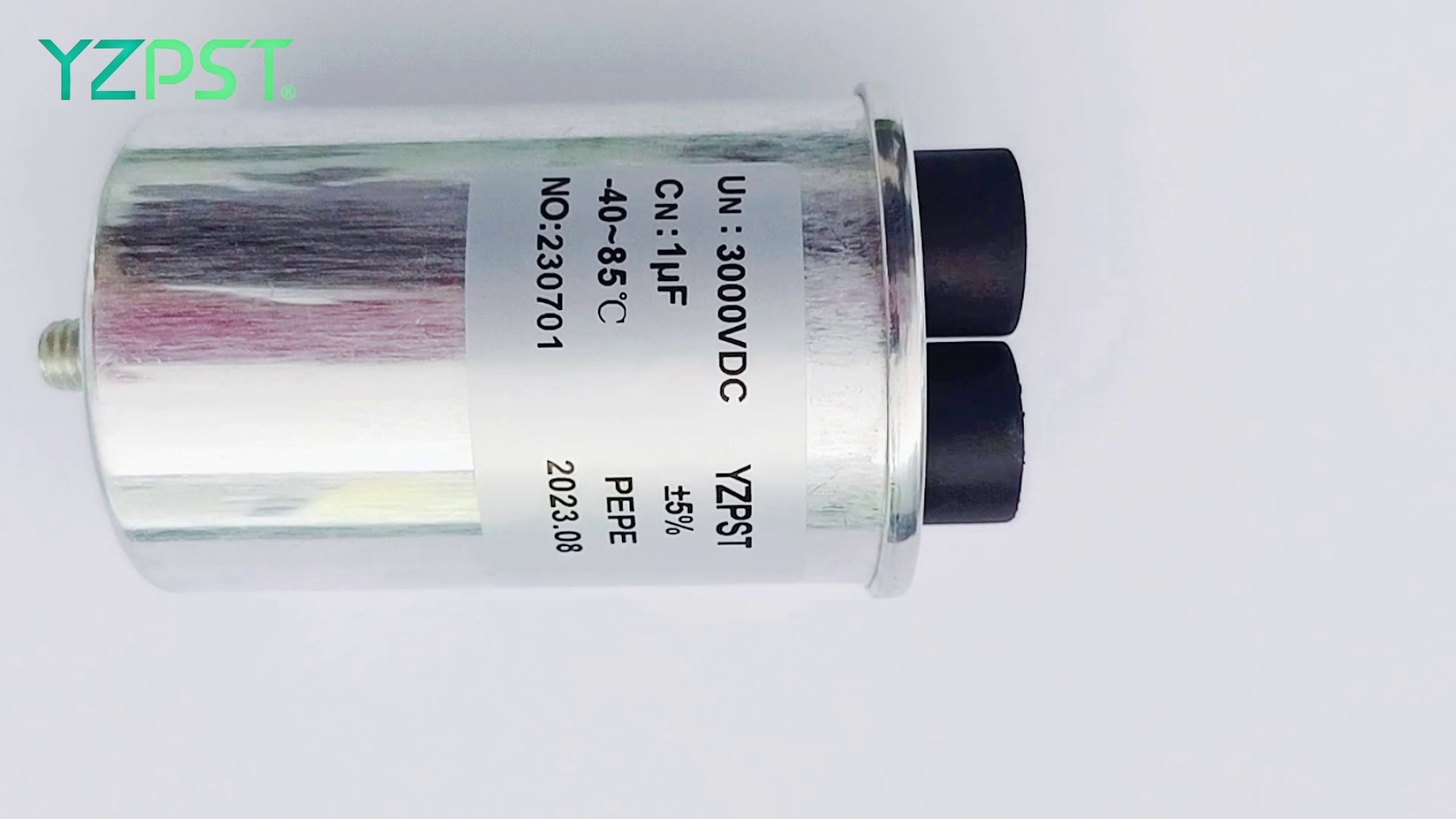

YZPST-3kVDC-1UF
Damping and absorption capacitor technical index
YZPST-CLA100E16
|
Standard |
IEC 61071-2017 |
|
Rated Voltage Rated capacity Capacity Tolerance within |
2000VDC/3000VDC 1µF/0.47µF/0.68µF ±5% |
|
Ambient temperature： Min.running temp. Tmin Max.running temp. Tmax Relative humidity Altitude Storage temperature |
-40℃ +85℃ ≤95% ≤1000m -25～60℃ |
|
Test Item： AC Testing Voltage VTT Voltage between terminal and housing VTC Insulation resistance R
Discharge time τ ( Rins ×C ) Loss angle tan δ (1kHz) Sealing test Discharge test between terminals |
AC 1.5×UN or DC 2.15×UN ,10s
2×Ui +1000V, 10s(Ui = UN / )
≤ 1μF :≥ 3000MΩ 〉1μF :≥ 3000s ≤0.0009 75℃ ±5℃ at constant temperature,4 hours without leakage 1.1 UN voltage ， 10mins bear 5 times DC charging and discharging in polarity, Without breakdown and capacitance loss. |
Damping and absorption capacitor technical index
YZPST-CLA100E16
|
Standard |
IEC 61071-2017 |
|
Rated Voltage Rated capacity Capacity Tolerance within |
2000VDC/3000VDC 1µF/0.47µF/0.68µF ±5% |
|
Ambient temperature： Min.running temp. Tmin Max.running temp. Tmax Relative humidity Altitude Storage temperature |
-40℃ +85℃ ≤95% ≤1000m -25～60℃ |
|
Test Item： AC Testing Voltage VTT Voltage between terminal and housing VTC Insulation resistance R
Discharge time τ ( Rins ×C ) Loss angle tan δ (1kHz) Sealing test Discharge test between terminals |
AC 1.5×UN or DC 2.15×UN ,10s
2×Ui +1000V, 10s(Ui = UN / )
≤ 1μF :≥ 3000MΩ 〉1μF :≥ 3000s ≤0.0009 75℃ ±5℃ at constant temperature,4 hours without leakage 1.1 UN voltage ， 10mins bear 5 times DC charging and discharging in polarity, Without breakdown and capacitance loss. |

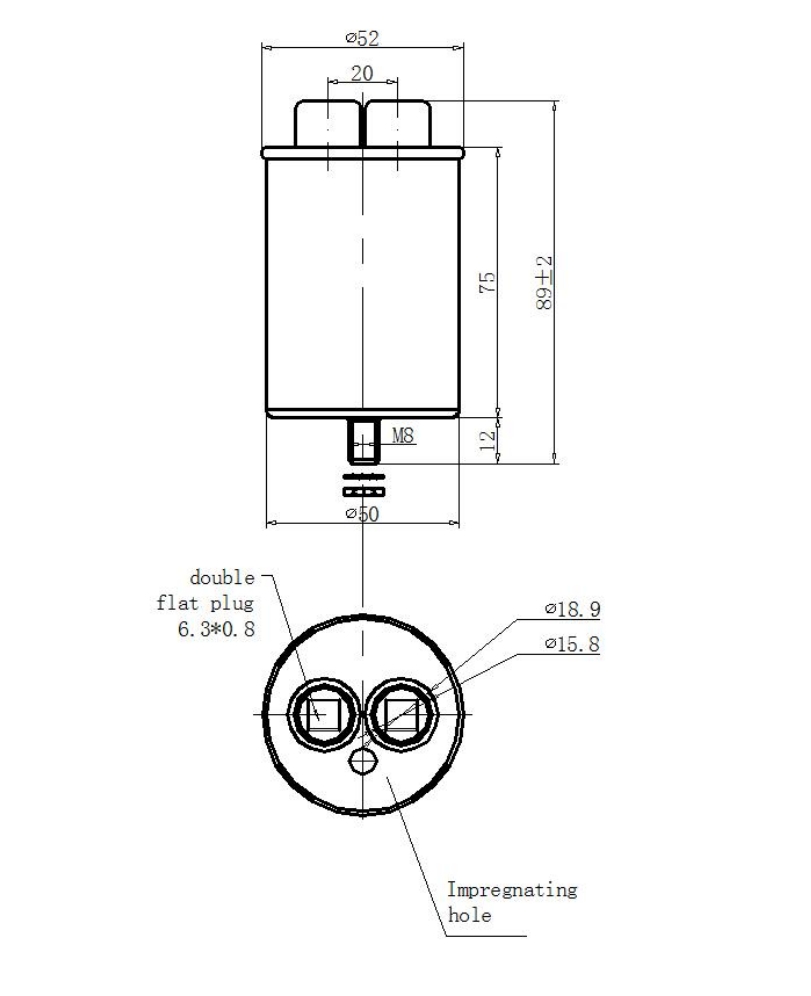

Drawing : Unit:mm
