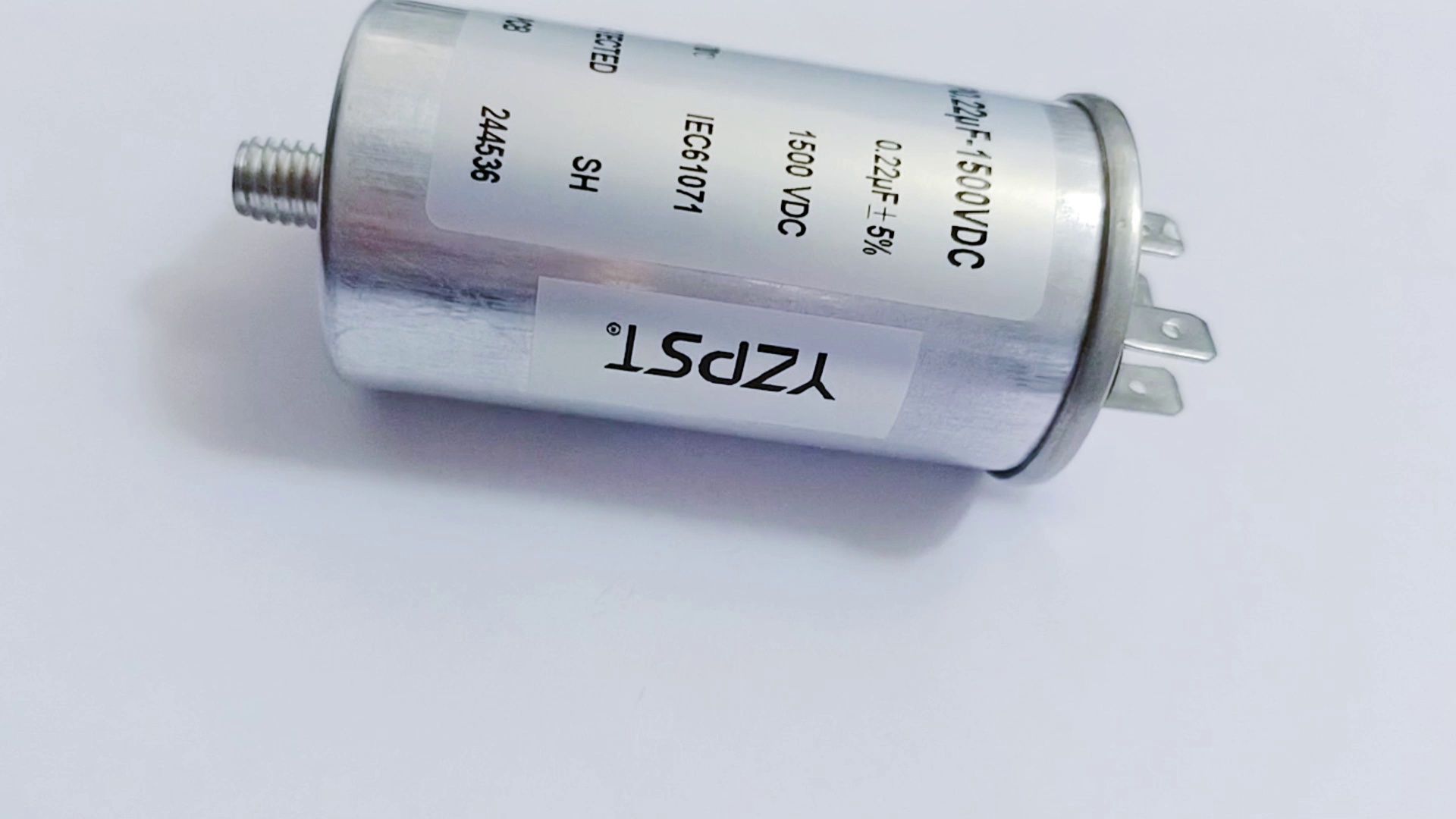

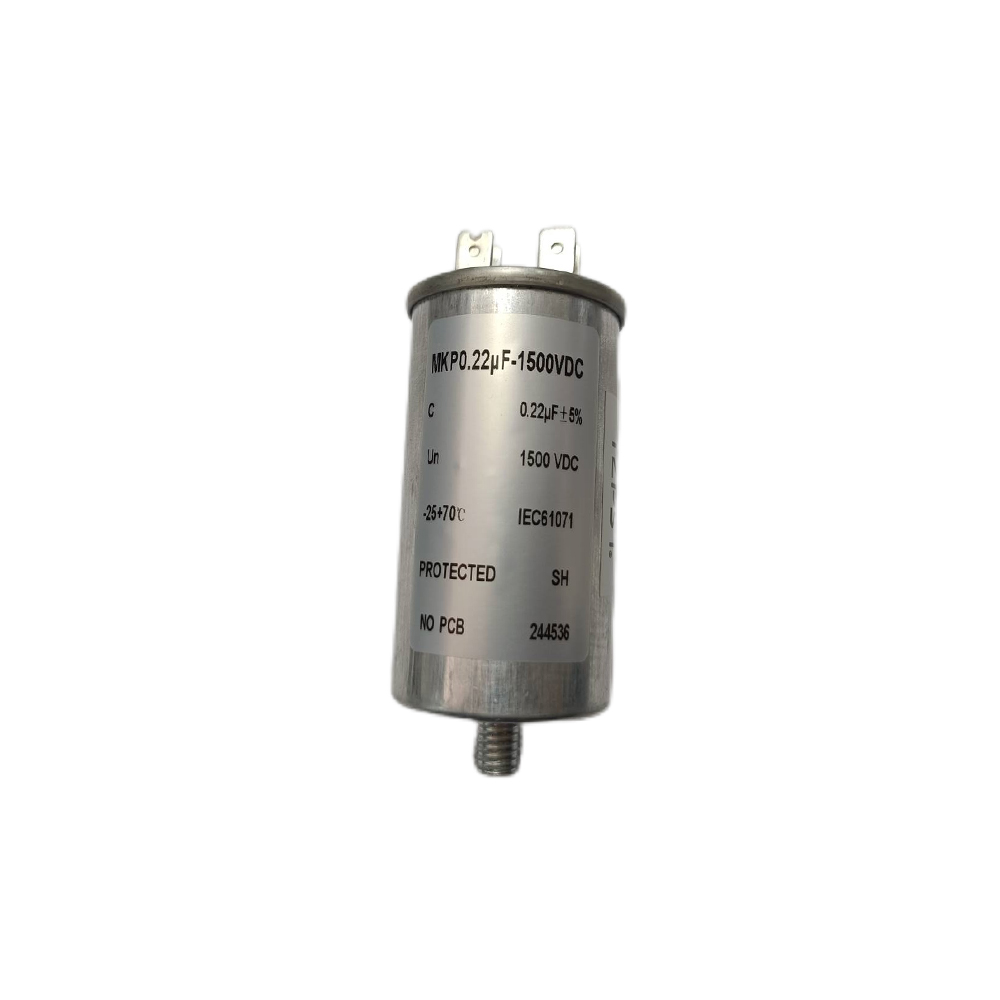

YZPST-MKP0.22 UF-1500VDC
| Product apeclicaton | Rated capeclty | Rated yoltage | Dimenslons(mm) | Bolt of the botlom | ||
| (Cn) | (Un) | φD | φD1 | H | ||
| 0.22μF-1500VDC | 0.22μF | 1500VDC | 35 | 38 | 65 | M8×10 |
.jpg)

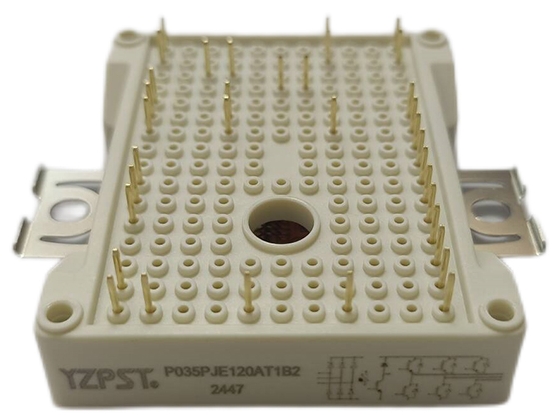

PIM with Trench Field-Stop lGBT, Emitter Controlled Diode and NTC
YZPST-P035PJE120AT1B
Features
Trench+Field Stop Technology
1200V Trench Field-Stop IGBT
LowVCE(sat)with Low Switching Losses
Applications
Frequency Coverters
Motor Drives
Auxiliary Inverters

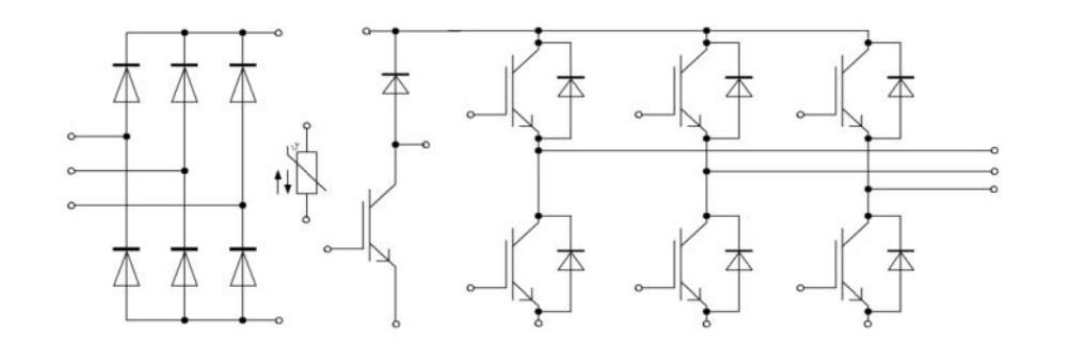

Equivalent Circuit Schematic
IGBT-Inverter
Maximum Rated Values
|
Symbo |
Description |
Conditions |
Values |
Unit |
|
VCES |
Collector-Emitter Voltage |
Ty=25℃ |
1200 |
V |
|
VGEs |
Gate-Emitter Peak Voltage |
Ty=25℃ |
±20 |
V |
|
Ic |
Continuous DC Collector Current |
Tc=100℃ |
35 |
A |
|
CRM |
Repetitive Peak Collector Current |
tp=1ms |
70 |
A |
|
Ptot |
Total Power Dissipation |
Tc=25℃,Tyimax=175℃ |
172 |
W |
Characteristic Values
|
Symbo |
Description |
Conditions |
Values |
Unit |
||
|
Min |
Typ. |
Max. |
||||
|
VcE(sat) |
Collector-Emitter Saturation Voltage |
VGE=15V,Ic=35A,Ty=25℃ |
|
2.15 |
|
V |
|
VGE=15V,Ic=35A,Tv=125℃ |
|
2.57 |
|
V |
||
|
VgE(th |
Gate Threshold Voltage |
VGE=VcE,c=1.2mA |
|
5.6 |
|
V |
|
CES |
Collector-Emitter Cut-Off Current |
VcE=1200V,VGE=0V |
|
|
1 |
mA |
|
GES |
Gate-Emitter Leakage Current |
VGE=20V,VcE=0V |
|
|
100 |
nA |
|
Cies |
Input Capacitance |
VcE=25V,VGE=OV,f=1MHz |
|
2590 |
|
pF |
|
Coes |
Output Capacitance |
|
180 |
|
pF |
|
|
Cres |
Reverse Transfer Capacitance |
|
86 |
|
pF |
|
|
td(on) |
Turn-on Delay Time |
VcE=600V VGF=±15V Ic=35A Rg=120 Inductive Load Ty=25℃ |
|
34 |
|
ns |
|
t |
Turn-on Rise Time |
|
20 |
|
ns |
|
|
td(off) |
Turn-off Delay Time |
|
230 |
|
ns |
|
|
t |
Turn-off Fall Time |
|
160 |
|
ns |
|
|
Eon |
Turn-on Switching Loss |
|
2.5 |
|
mJ |
|
|
Eoff |
Turn-off Switching Loss |
|
2.5 |
|
mJ |
|
|
lsc |
Short Circuit Data |
VGE≤15V,Vcc=800V tp≤10μs,Tv=150℃ |
|
151 |
|
A |
|
RthJC |
Thermal Resistance,Junction to Case |
Per IGBT |
|
|
0.87 |
K/W |
|
Tw OF |
Virtual JunctionTemperature |
Under Switching |
-40 |
|
150 |
℃ |

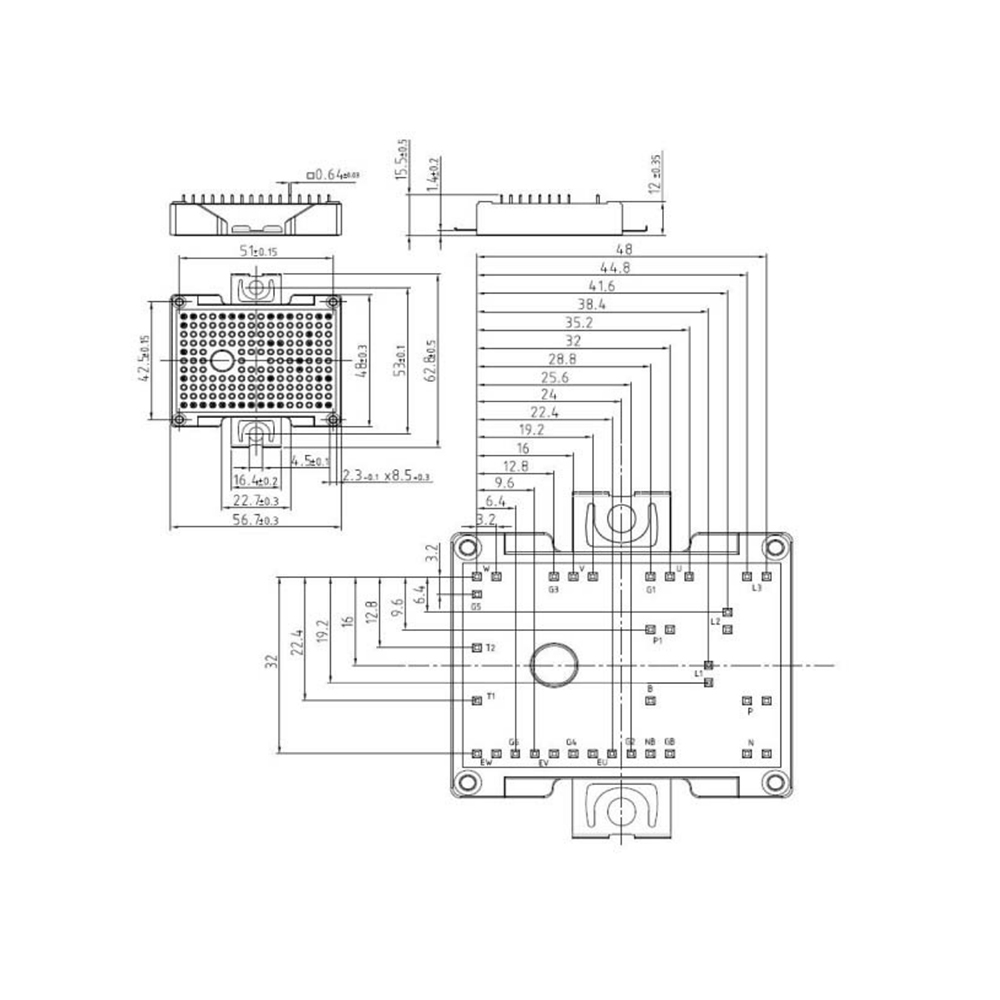

Package Outlines (mm)
