YZPST-MKPH630VAC

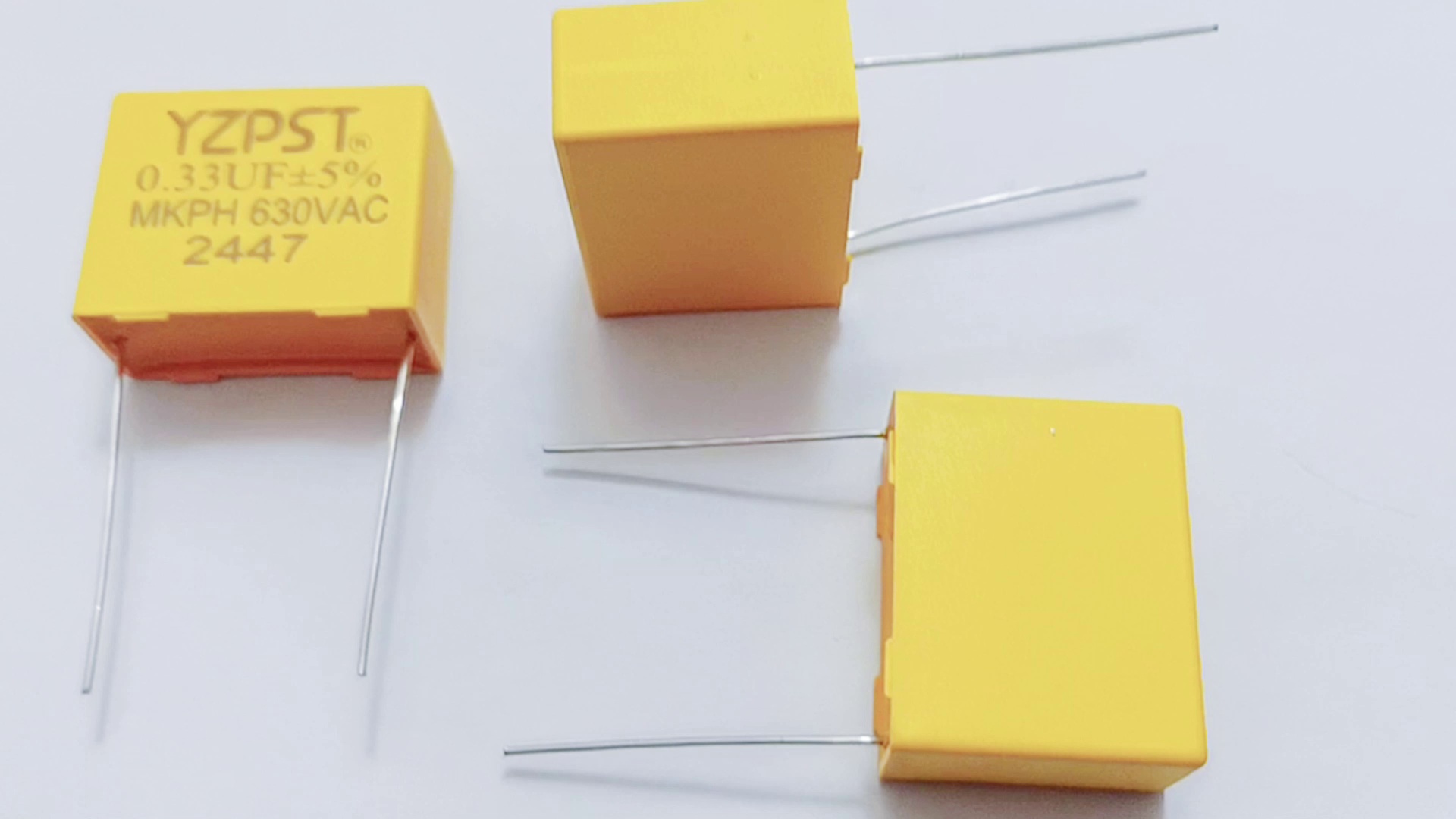

YZPST-MKPH630VAC capacitor
YZPST-MKPH630VAC capacitor
SPECIFIC REFERENCE DATA
|
DESCRIPTION |
VALUE |
TEST CONDITIONS |
||
|
Capacit ance |
Rated Capacitance |
0.33uF |
Measuring frequency: 1kHz±10% Measuring voltage: 1Vrms. |
|
|
Capacitance olerance |
J=±5% |
|||
|
Voltage |
Rated voltage |
630VAC |
1.6*1.4*UR Unit:VDC (5 S at 20℃) |
|
|
Voltage proof |
||||
|
Dissipation factor (tangent of loss) |
DF≤0. 1% 1KHz 1V DF≤0.2% 10KHz 1V |
Measuring frequency:1kHz±10% Measuring voltage: 1Vrms. |
||
|
Insulation resistance |
C≤0.33uF C＞0.33uF |
IR≥30000M Ω IR*C≥5000S |
measured at rated voltage or less than 100VDC 1 minute at 20℃ and RH≤65% |
|
|
（Ut-t） |
1.6*U |
Unit:VDC (10 S at 20℃) |
||
|
（Ut-c） |
3000VDC |
Unit:VAC (60S at 20℃) |
||
|
≤100fit |
|
|||
|
<2000M |
|
|||
|
Climatic catalogue |
40/85/21 |
|
||
|
Reference standard |
IEC61071 GB/T17702 |
|
||
|
（Irms） |
20A |
70℃ |
||
FEATURE:
Non-inductive construction and self-healing
Withstanding over-voltage stressing.
Super physical and environmental characteristics.
APPLICATION:
IGBT
IGBT Snubber
Widely used in power electronic devices in series/parallel resonant circuit;
Widely used in power electronic equipment when the peak voltage,peak current Absorption protection;
MARKING:
YZPST
- 33 uF ±5% MKPH630VAC
Marking:on.individualcapacitor, includes:
Rated capacitance: such as 334
Rated'voltage: such as630VAC
Capacitance tolerance: such as J
Manufacturer's symbol : YZPST.
Marking on package
Each package unit carry the type, rating, quantity and date of manufacture, location of manufacture, and manufacturer's name
6.EXPLANATION OF IMPORTANT TERMINOLOGY:
Rated capacitance
The rated capacitance value in Pico farads is expressed by a three digit number, the first two digits are significant figures and the last digit specifies the number of zero to follow.
Example: 224 indicated 220,000pF or 0.22uF
225 indicated 2,200,000pF or 2.2Uf
CAPACITANCE UNIT:
1F= 1,000mF= 1,000,000uF= 1,000,000,000nF= 1,000,000,000,000Pf

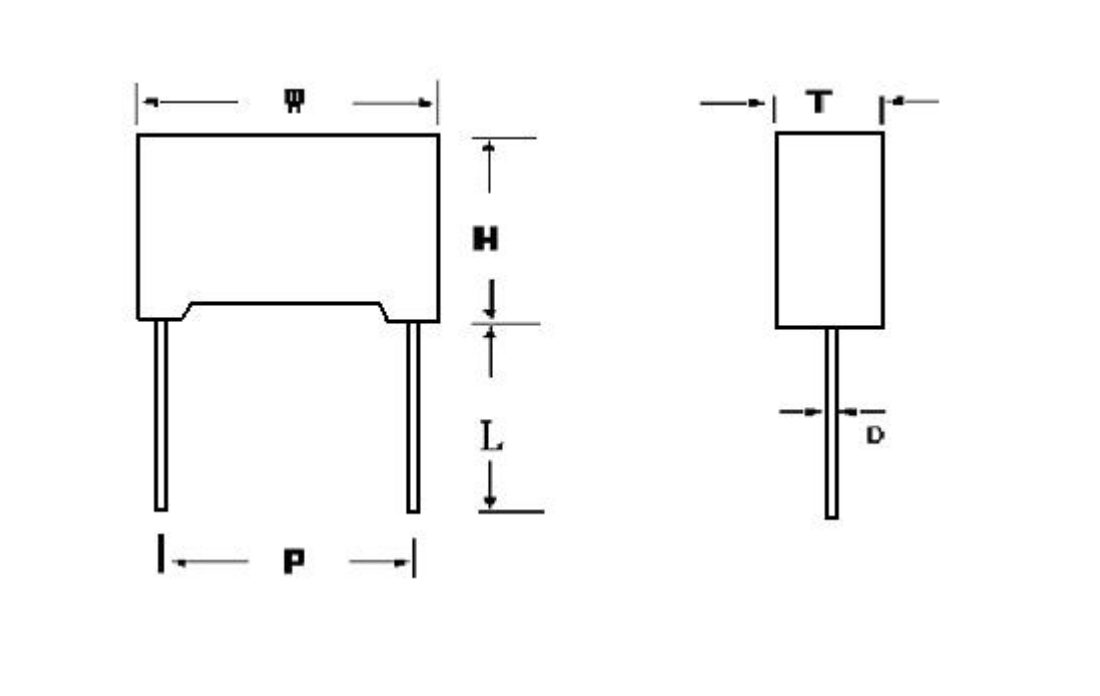

OUTLNE DRAWING:
