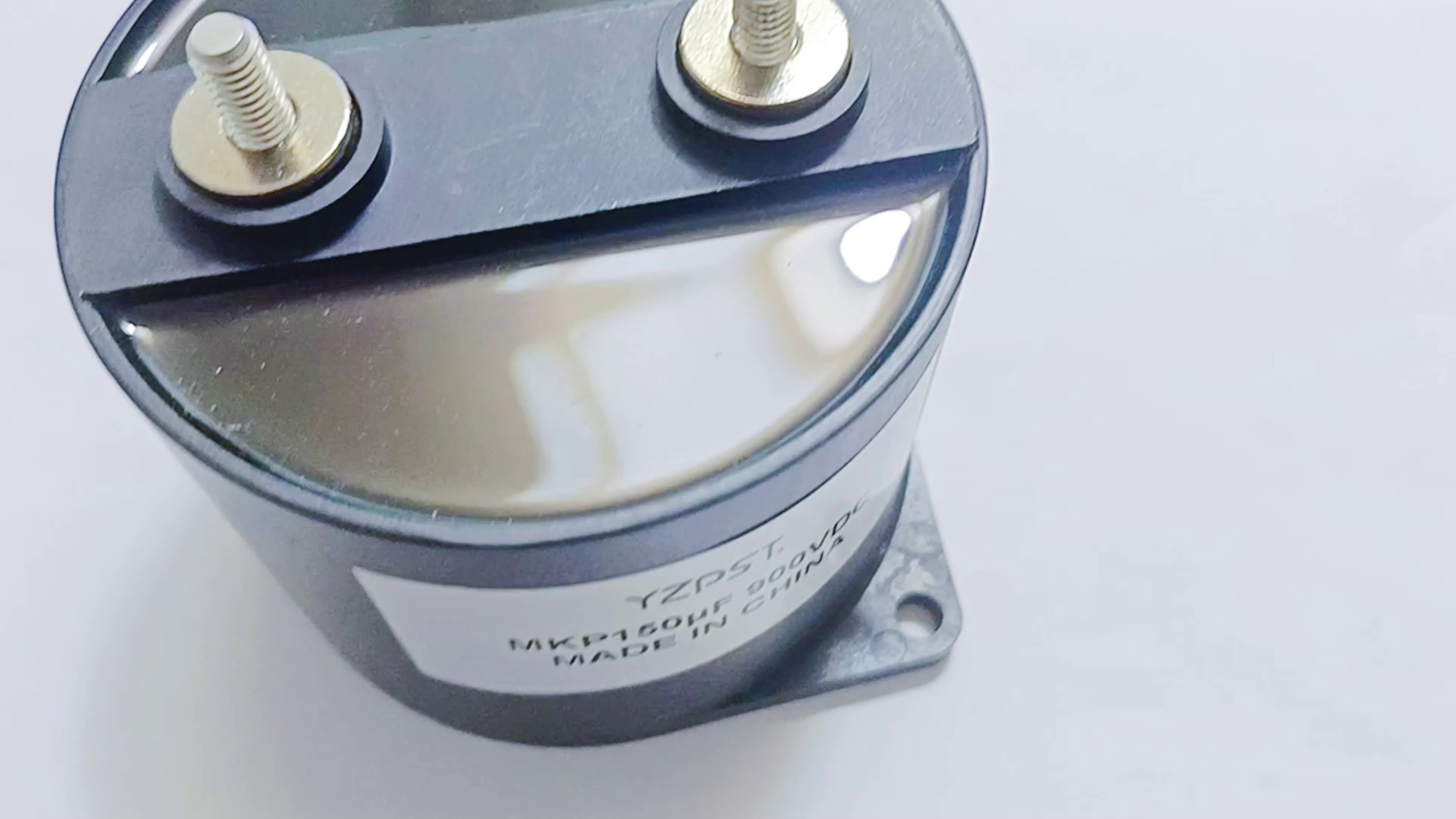

YZPST-MKP150UF-900VDC
Filtering Capacitor
YZPST- MKP150uF 900V ±10%
Features
Used in DC-Link circuits，can replace electrolytic capacitor
PP film design,good temperature characteristics
Stable capacity
Low ESR,high ripple current handing capabilities
Self-healing property
Plastic case,filed with fire-retardant resin
Dry type design
UL94-V0
Applications
Wind energy,Solar
Transportation:HEV or EV
Welders,Elevators,Motor Sriver systems
High voltage frequency converter
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product description
Filtering Capacitor
YZPST- MKP150uF 900V ±10%
Features
Used in DC-Link circuits，can replace electrolytic capacitor
PP film design,good temperature characteristics
Stable capacity
Low ESR,high ripple current handing capabilities
Self-healing property
Plastic case,filed with fire-retardant resin
Dry type design
UL94-V0
Applications
Wind energy,Solar
Transportation:HEV or EV
Welders,Elevators,Motor Sriver systems
High voltage frequency converter

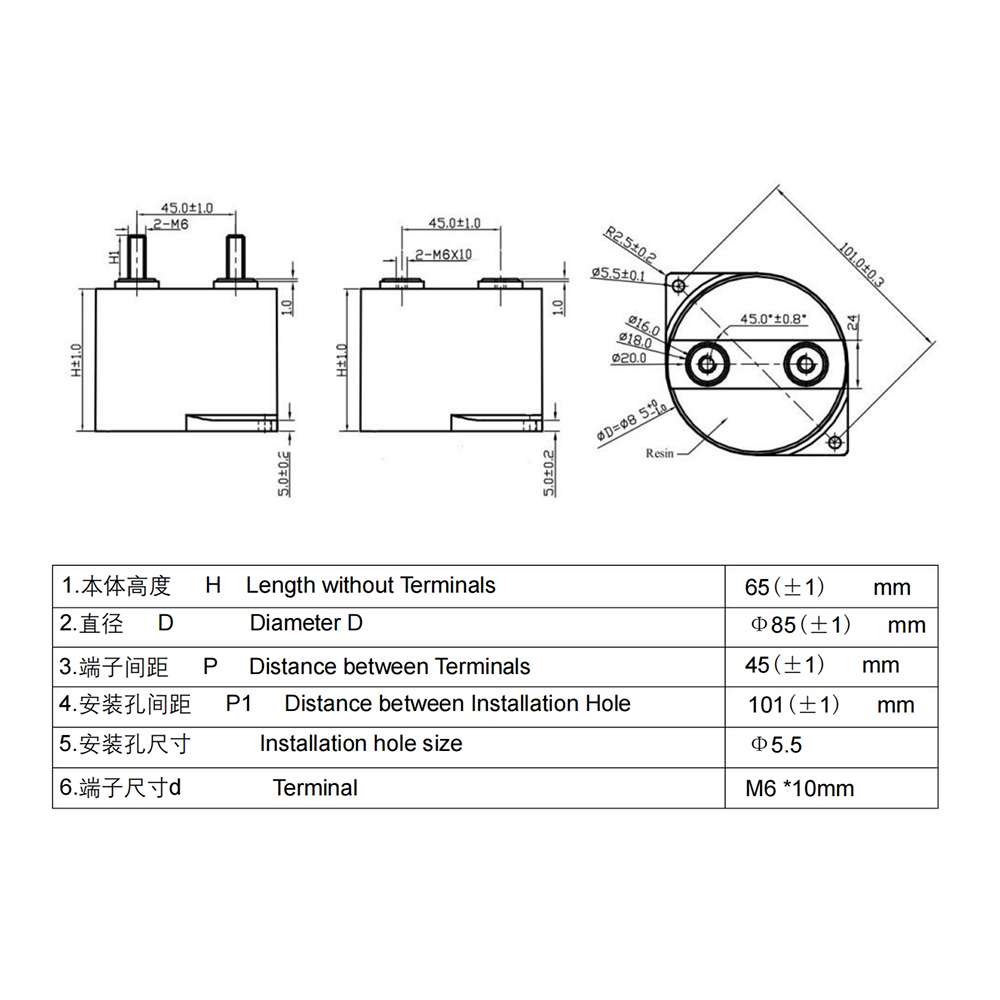

| 1. H Length without Terminals | 65(±1) mm |
| 2. D Diameter D | Φ85(±1) mm |
| 3. P Distance between Terminals | 45(±1) mm |
| 4. P1 Distance between Installation Hole | 101(±1) mm |
| 5. Installation hole size | Φ5.5 |
| 6.d Terminal | M6*10mm |
Technical Data
