YZPST-FFC3SY 850-55.8-S
Heavy-Duty AC filter capacitor
YZPST-FFC3SY 850-55.8-S
Product Features
High lrms rating/ High lpeak rating
Low self-inductance
High reliability and long life expectancy
Design of metallized polypropylene film with self-healing property
Non-polar

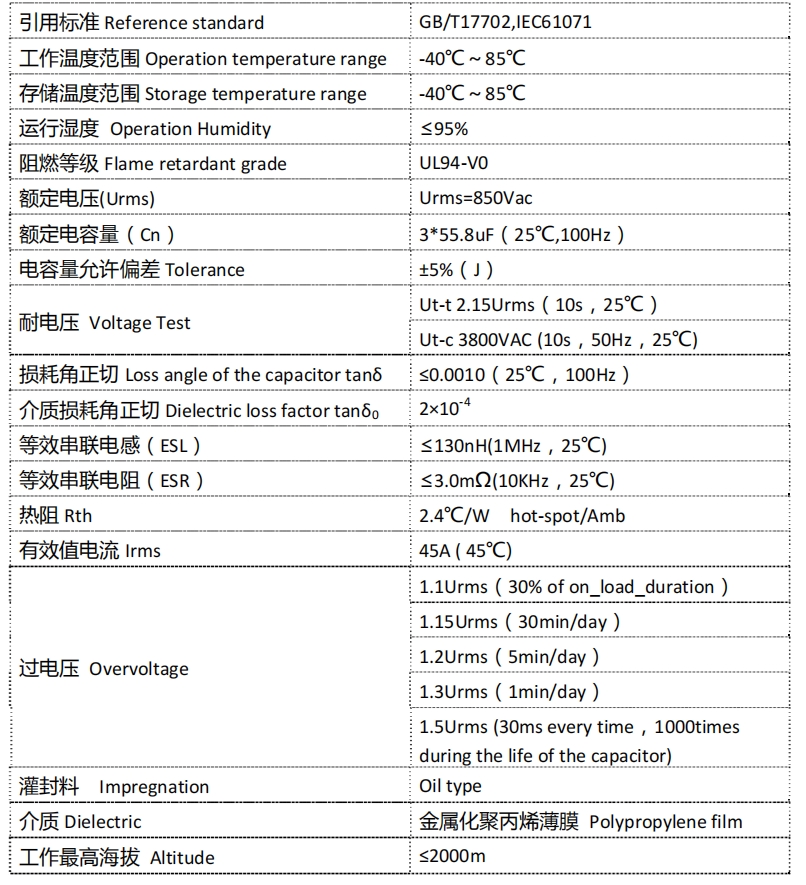

Technical parameters
Type test
|
No. |
Test Item |
Requirements |
Test standard and condition |
|
1 |
Vibration |
No visible damage |
f=10～55Hz ；a=±0.35mm f=10～55Hz ；a=±0.35mm Test duration per axis = 10 frequency cycles (3 axes offset from each other by 90°) , 1 octave/min |
|
2 |
Environmental |
No visible damage Δ C/C≤±1% ，tgδ≤ 1.2×tanδ0+1×10‐4 (100Hz) |
θA =‐40℃, θ B =+85℃ 5cycles Duration: 2 hours, switchine period≤3min |
|
3 |
Thermal stability |
C ：（ 100 Hz ） Δ C /C0≤±0.5% tanδ（ 100 Hz ） tanδ≤ 1.2× tanδ0+1×10‐4 Δ C/C < ±0.5% ， tanδ≤ 1.2×tgδ0+1×10‐4 at 100Hz |
Test temperature ：normal temperature Applied current ：1Irms Frequency ：10KHz Duration: ≥8h During the last 1 hour, the case temperature shall be measured at least 4 times; throughout this period of 1 hour, the temperature rise shall not increase by more than 1 K. |
|
4 |
Damp heat, Steady state |
） No visible damage Δ C/C≤±5% tanδ≤ 1.2×tanδ0+1×10‐4 RC≥ RC0 * 50% at 100Hz |
Temperature: 40℃±2℃ Humidity:80%～85%RH Duration: 66 days |
|
5 |
Endurance |
Δ C/C≦±3% tanδ≤ 1.2×tanδ0+1×10‐4 |
Apply 1.35Un, 70℃, running 250hours; discharge by 1.4Ip, 1000 times; Apply 1.35Un, 70℃, running 250hours |

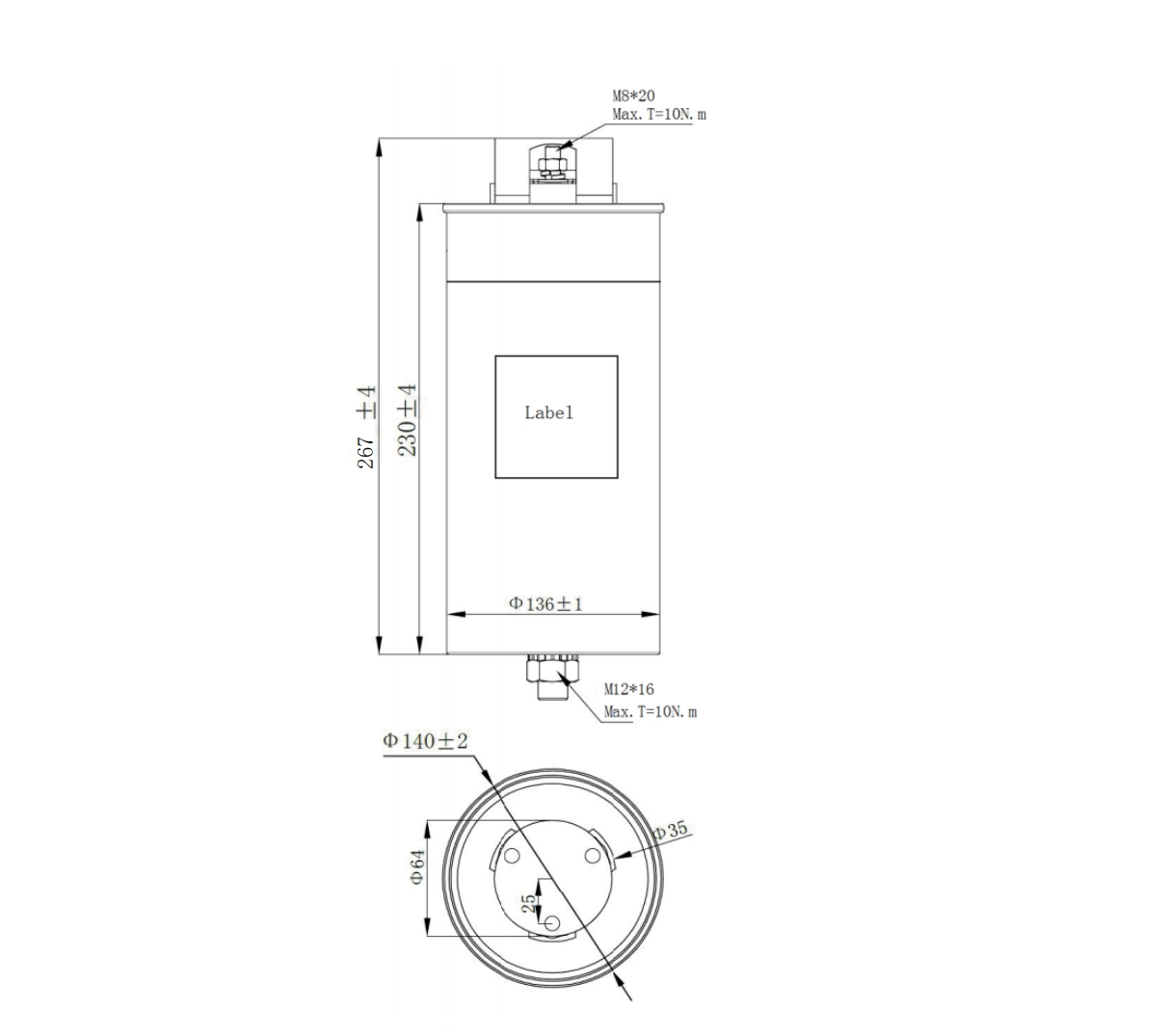

Product outline drawing
