P/N:YZPST-N2055MC280

HIGH POWER THYRISTOR FOR PHASE CONTROL APPLICATIONS
Features:
. All Diffused Structure
. Center Amplifying Gate Configuration
. Guaranteed Maximum Turn-Off Time
. High dV/dt Capability
. Pressure Assembled Device
ELECTRICAL CHARACTERISTICS AND RATINGS
Blocking - Off State
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
DESCRIPTION

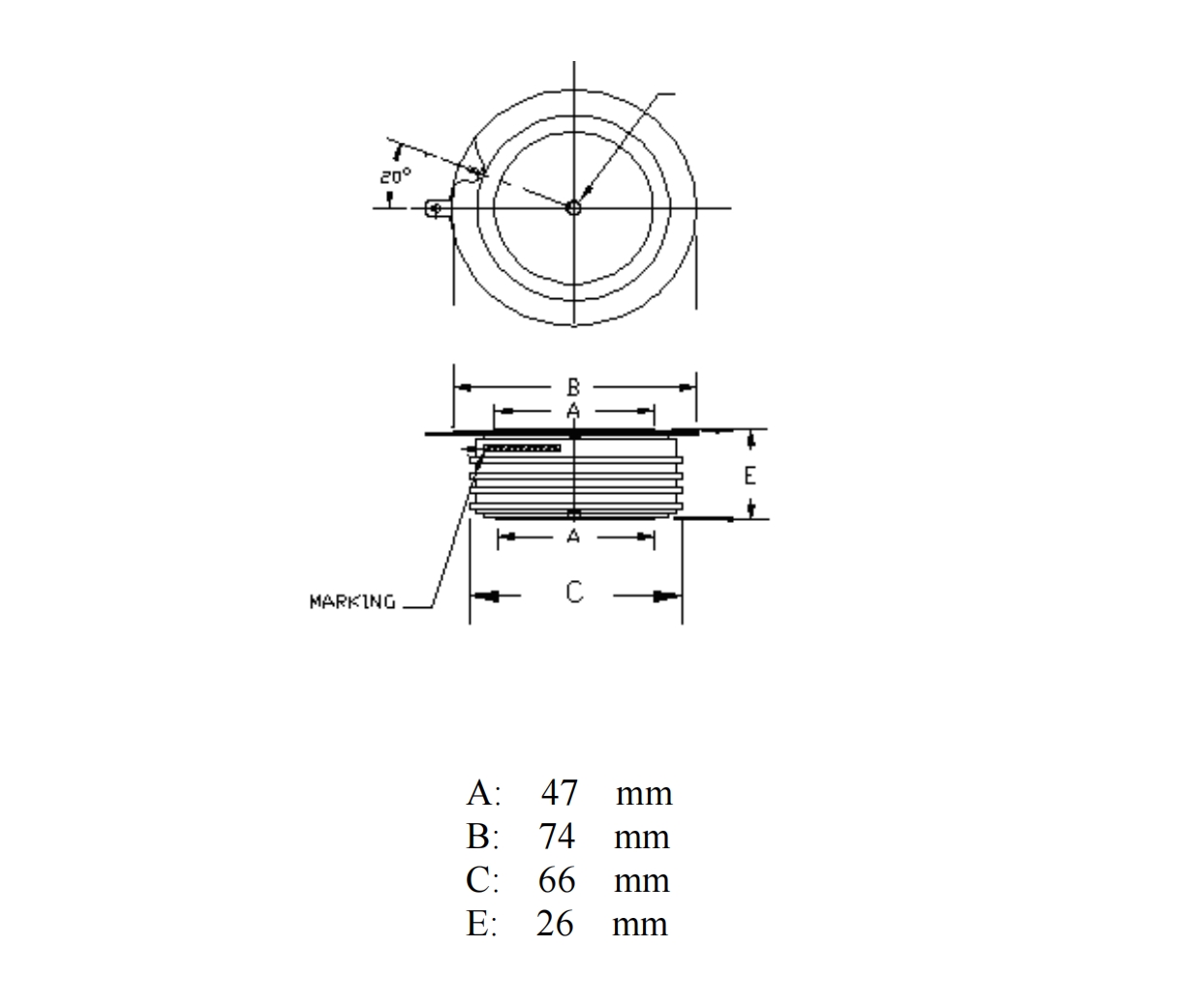

P/N:YZPST-N2055MC280

HIGH POWER THYRISTOR FOR PHASE CONTROL APPLICATIONS
Features:
. All Diffused Structure
. Center Amplifying Gate Configuration
. Guaranteed Maximum Turn-Off Time
. High dV/dt Capability
. Pressure Assembled Device
ELECTRICAL CHARACTERISTICS AND RATINGS
Blocking - Off State


VRRM(1)

V DRM(1)

VRSM(1)

2800

2800

2900

VRRM = Repetitive peak reverse voltage
VDRM = Repetitive peak off state voltage
VRSM = Non repetitive peak reverse voltage (2)

Repetitive peak reverse

leakage and off state leakage

IRRM / IDRM

10 mA

65 mA (3)

Critical rate of voltage rise

dV/dt (4)

500 V/μsec

YZPST-N2055MC280-1

Conducting - on state

Parameter Symbol Min. Max. Typ. Units Conditions
Average value of on-state current IT(AV) 2000 A Tc=93oC
RMS value of on-state current ITRMS 2000 A Nominal value
Peak one cPSTCle surge ITSM 41000 A 8.3 msec (60Hz),sinusoidal wave-   shape, 180o conduction, Tj = 125 oC 10.0 msec (50Hz), sinusoidal wave- shape, 180o conduction, Tj = 125 oC
(non repetitive) current 36000 A
I square t I2t 3.3x106 A2s 8.3 msec and 10.0 msec
Latching current IL 800 mA VD = 24 V; RL= 12 ohms
Holding current IH mA VD = 24 V; I = 2.5 A
400
Peak on-state voltage VTM V ITM = 2000 A;
1.45
Critical rate of rise of on-state current (5) di/dt A/μs Switching from VDRM  < 1000 V, non-repetitive
200
 Gating
Parameter Symbol Min. Max. Typ. Units Conditions
Peak gate power dissipation PGM 200 W tp = 40 us
Average gate power dissipation PG(AV) 5 W
Peak gate current IGM 10 A
Gate current required to trigger all units IGT 300 mA VD = 6 V;RL  = 3 ohms;Tj  = -40 oC   VD = 6 V;RL  = 3 ohms;Tj  = +25 oC  VD = 6 V;RL  = 3 ohms;Tj  = +125oC
150 mA
125 mA
Gate voltage required to trigger all units VGT 5 V VD = 6 V;RL  = 3 ohms;Tj  = -40 oC    VD = 6 V;RL  = 3 ohms;Tj  = 0-125oC VD = Rated VDRM; RL  = 1000 ohms; Tj = + 125 oC
0.3 3 V
V
Peak negative voltage VGRM 5 V

Dynamic

Parameter Symbol Min. Max. Typ. Units Conditions
Delay time td 1.5 0.7 μs ITM = 50 A; VD  = Rated VDRM
Gate pulse: VG = 20 V; RG  = 20 ohms; tr = 0.1 μs; tp  = 20 μs
Turn-off time (with VR  = -50 V) t 500 250 μs ITM = 1000 A; di/dt = 25 A/μs;
VR > -50 V; Re-applied dV/dt = 20   V/μs linear to 80% VDRM; VG  = 0;     Tj = 125 oC; Duty cPSTCle > 0.01%
Reverse recovery charge Qrr μC ITM = 1000 A; di/dt = 25 A/μs;
* VR > -50 V
