YZPST-TG40E60

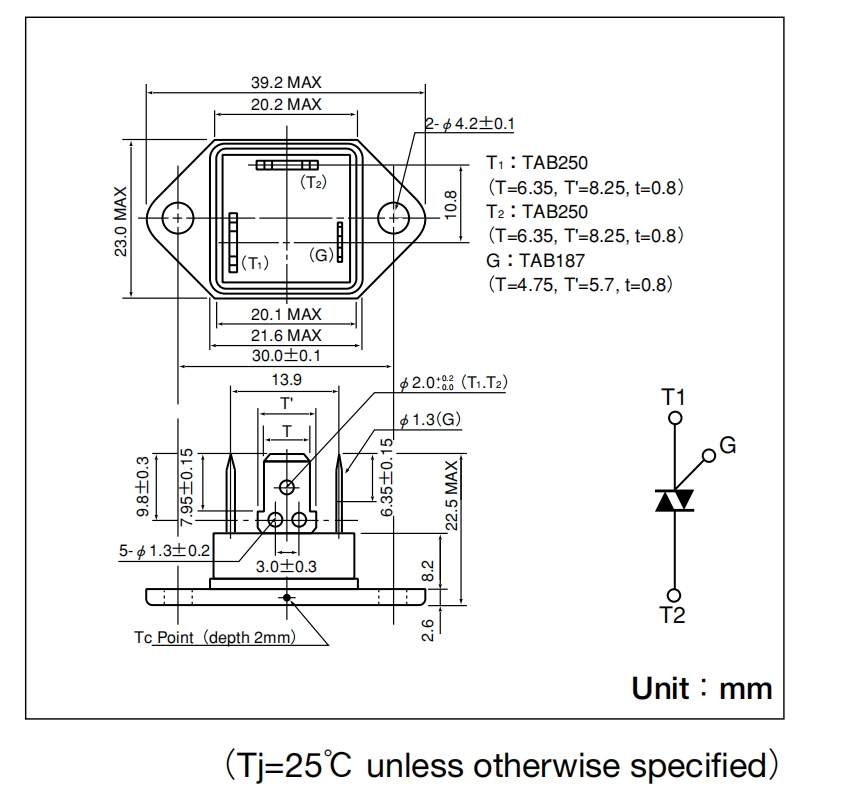

Maximum Ratings
|
Symbol |
Item |
Ratings |
Unit |
|
TG40E60 |
|||
|
VDRM |
Repetitive Peak Off-State Voltage |
600 |
V |
|
Symbol |
Item |
Conditions |
Ratings |
Unit |
|
IT（RMS） |
R.M.S. On-State Current |
Tc ＝64℃ |
40 |
A |
|
ITSM |
Surge On-State Current |
One cycle, 50/60Hz, peak value, non-repetitive |
380/420 |
A |
|
I2t |
I2t |
Value for one cycle of surge current |
730 |
A2s |
|
PGM |
Peak Gate Power Dissipation |
|
10 |
W |
|
PG（AV） |
Average Gate Power Dissipation |
|
1 |
W |
|
IGM |
Peak Gate Current |
|
3 |
A |
|
VGM |
Peak Gate Voltage |
|
10 |
V |
|
di/dt |
Critical Rate of Rise of On-State Current |
IG ＝100mA，VD = ½VDRM，diG/dt ＝1A/ μs |
50 |
A/ μs |
|
Tj |
Operating Junction Temperature |
|
-40～＋125 |
℃ |
|
Tstg |
Storage Temperature |
|
-40～＋150 |
℃ |
|
VISO |
Isolation Breakdown Voltage（R.M.S.） |
A.C.1 minute |
2500 |
V |
|
|
Mounting Torque（M4） |
Recommended Value 1.0～1.4N ・m（10～14kgf・㎝） |
1.5（15） |
N･m （kgf･㎝） |
|
|
Mass |
Typical value |
23 |
g |
Electrical Characteristics
|
Symbol |
Item |
Conditions |
Ratings |
Unit |
|||
|
Min. |
Typ. |
Max. |
|||||
|
IDRM |
Repetitive Peak Off-State Current |
Tj ＝125℃, VD ＝VDRM |
|
|
5 |
mA |
|
|
VTM |
Peak On-State Voltage |
IT ＝60A |
|
|
1.4 |
V |
|
|
I GT1 |
1 |
Gate Trigger Current |
VD ＝6V, IT ＝1A |
|
|
50 |
mA |
|
I GT1 |
2 |
|
|
50 |
mA |
||
|
I GT3 |
3 |
― |
― |
― |
mA |
||
|
I GT3 |
4 |
|
|
50 |
mA |
||
|
VGT1 |
1 |
Gate Trigger Voltage |
VD ＝6V, IT ＝1A |
|
|
1.5 |
V |
|
VGT1 |
2 |
|
|
1.5 |
V |
||
|
VGT3 |
3 |
― |
― |
― |
V |
||
|
VGT3 |
4 |
|
|
1.5 |
V |
||
|
VGD |
Non-Trigger Gate Voltage |
Tj ＝125℃, VD = ½VDRM |
0.2 |
|
|
V |
|
|
dv/dt |
Critical Rate of Rise of Off-State Voltage |
Tj ＝125℃, VD =⅔VDRM, Exponential wave. |
500 |
|
|
V/ μs |
|
|
〔dv/dt〕c |
Critical Rate of Rise of Off-State Voltage at commutation |
Tj ＝125℃, VD =⅔VDRM,〔di/dt〕c ＝10A/ms |
6 |
|
|
V/ μs |
|
|
IH |
Holding Current |
|
|
30 |
|
mA |
|
|
Rth（j-c） |
Thermal Impedance |
Junction to case |
|
|
1.3 |
℃/W |
|
