Thick Film Chip Resistor SMD Resistor
Thick Film Chip Resistor SMD Resistor
This acknowledgement applies to the lead-free and halogen-free SCR series thick film chip resistors produced by our company.
Our company's lead-free products refer to end electrodes that comply with RoHS requirements and are lead-free, while lead present in the resistance layer glass material is compliant
Comply with the lead exclusion clause of RoHS.
This product belongs to the universal series.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
DESCRIPTION
Thick Film Chip Resistor SMD Resistor
This acknowledgement applies to the lead-free and halogen-free SCR series thick film chip resistors produced by our company.
Our company's lead-free products refer to end electrodes that comply with RoHS requirements and are lead-free, while lead present in the resistance layer glass material is compliant
Comply with the lead exclusion clause of RoHS.
This product belongs to the universal series.
| type | Maximum rated voltage | Maximum overload voltage | T.C.R (ppm/℃) |
Resistance range | JUMPER (0Ω) |
Temperature range for use | |
| F(±1%)/D(±0.5%) E-24、E-96 |
J(±5%) E-24 |
||||||
| 0201 | 25V | 50V | ±400 | 1Ω≦R＜9.1Ω | 1Ω≦R＜9.1Ω | 50mΩ MAX. |
-55℃ ~ +125℃ |
| ±200 | 10 Ω≦R≦10MΩ | 10 Ω≦R≦10MΩ | |||||
| 0402 | 50V | 100V | ±100 | 10Ω≤ R＜1MΩ | --- | 50mΩ MAX. |
-55℃ ~ +155℃ |
| ±400 | 1Ω≤ R＜9.1Ω | 1Ω≤ R＜9.1Ω | |||||
| ±200 | 1MΩ≤ R≤ 10MΩ | 10Ω≤ R≤ 10MΩ | |||||
| 0603 | 75V | 150V | ±100 | 10Ω≤ R＜1MΩ | --- | 50mΩ MAX. |
|
| ±400 | 1Ω≤ R＜9.1Ω | 1Ω≤ R＜9.1Ω | |||||
| ±200 | 1MΩ≤ R≤ 10MΩ | 10Ω≤ R≤ 10MΩ | |||||
| 0805 | 150V | 300V | ±100 | 10Ω≤ R＜1MΩ | --- | 50mΩ MAX. |
|
| ±400 | 1Ω≤ R＜9.1Ω | 1Ω≤ R＜9.1Ω | |||||
| ±200 | 1MΩ≤ R≤ 10MΩ | 10Ω≤ R≤ 10MΩ | |||||
| 1206 | 200V | 400V | ±100 | 10Ω≤ R＜1MΩ | --- | 50mΩ MAX. |
|
| ±400 | 1Ω≤ R＜9.1Ω | 1Ω≤ R＜9.1Ω | |||||
| ±200 | 1MΩ≤ R≤ 10MΩ | 10Ω≤ R≤ 10MΩ | |||||
| 1210 | 200V | 400V | ±100 | 10Ω≤ R＜1MΩ | --- | 50mΩ MAX. |
-55℃ ~ +155℃ |
| ±400 | 1Ω≤ R＜9.1Ω | 1Ω≤ R＜9.1Ω | |||||
| ±200 | 1MΩ≤ R≤ 10MΩ | 10Ω≤ R≤ 10MΩ | |||||
| 2010 | 200V | 400V | ±100 | 10Ω≤ R＜1MΩ | --- | 50mΩ MAX. |
|
| ±400 | 1Ω≤ R＜9.1Ω | 1Ω≤ R＜9.1Ω | |||||
| ±200 | 1MΩ≤ R≤ 10MΩ | 10Ω≤ R≤ 10MΩ | |||||
| 2512 | 200V | 400V | ±100 | 10Ω≤ R＜1MΩ | --- | 50mΩ MAX. |
|
| ±400 | 1Ω≤ R＜9.1Ω | 1Ω≤ R＜9.1Ω | |||||
| ±200 | 1MΩ≤ R≤ 10MΩ | 10Ω≤ R≤ 10MΩ | |||||

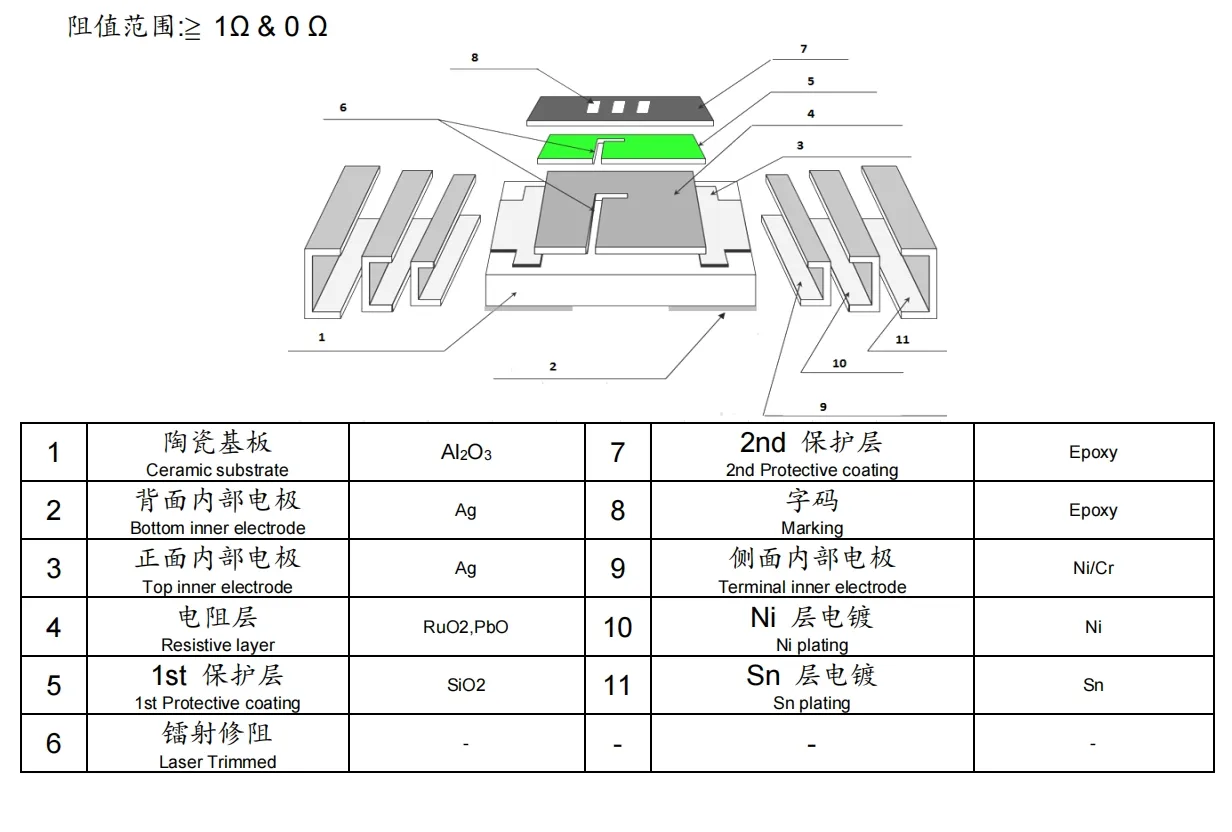

Structural diagram
