YZPST-X2
P/N: YZPST-X2 334K310VAC P=15mm W*H*T=18*14.5*8.4mm

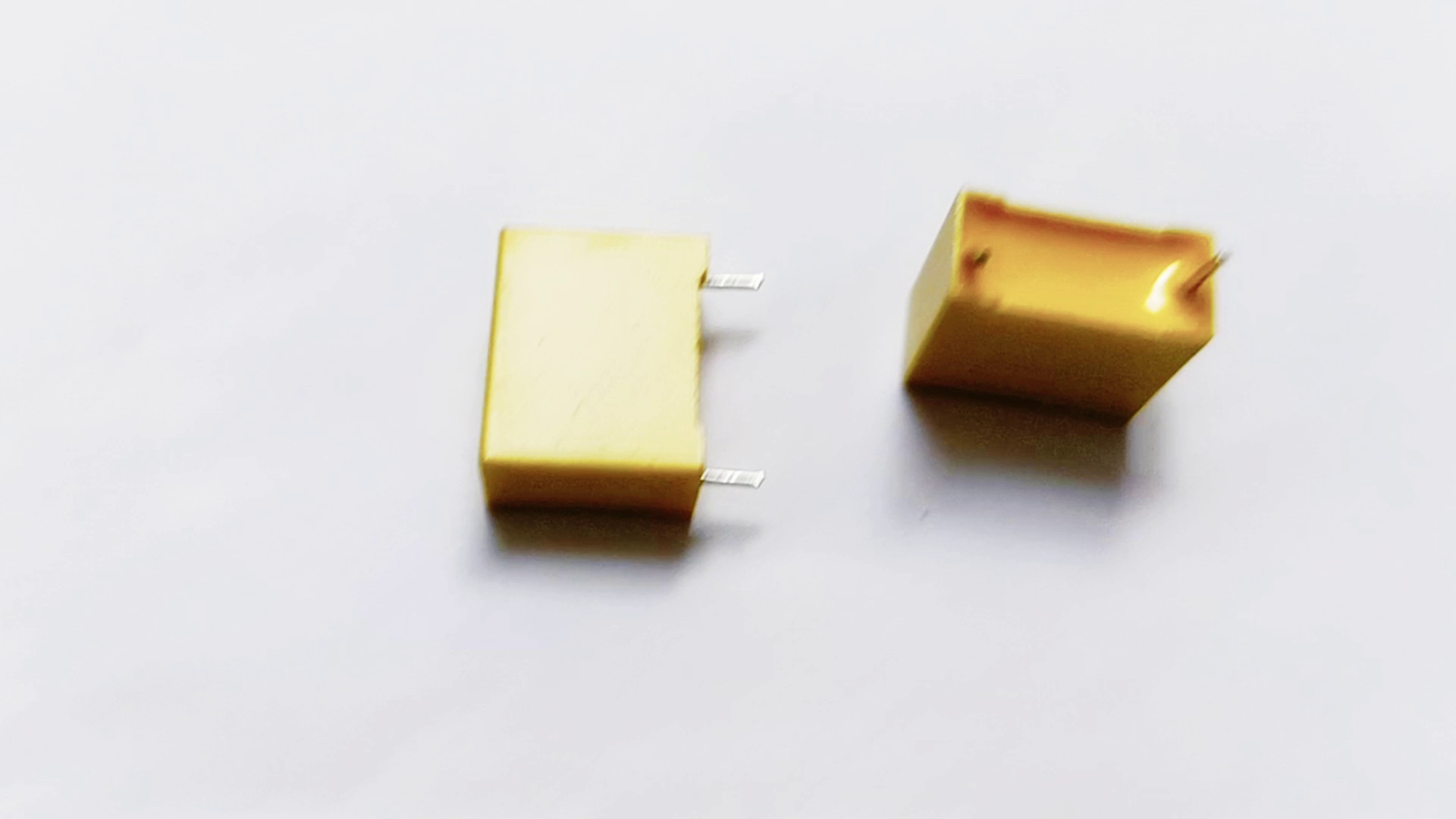

DESCRIPTIONS : Metallized polypropylene film interference suppression capacitor（class X2）
Operating temperature :-40℃~ 110℃
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
DESCRIPTION
P/N: YZPST-X2 334K310VAC P=15mm W*H*T=18*14.5*8.4mm
DESCRIPTIONS : Metallized polypropylene film interference suppression capacitor（class X2）
Operating temperature :-40℃~ 110℃

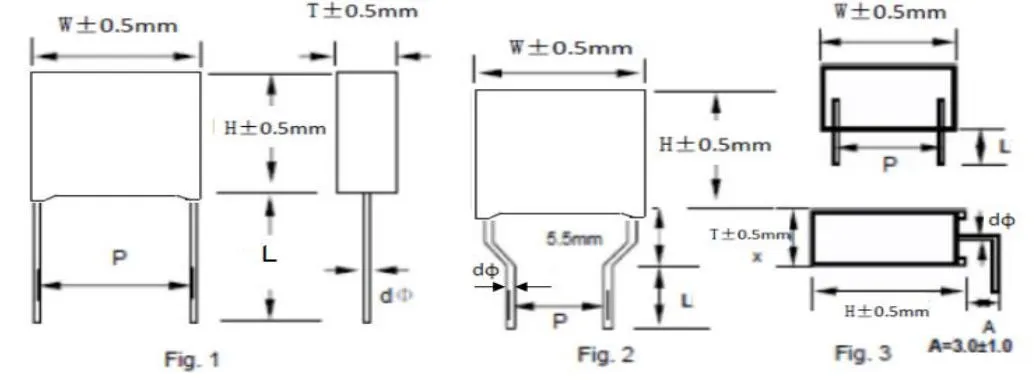

PRODUCT DIMENSIONS :
|
CUSTOMER'S PART NO. |
CAP （uF） |
Tol. ± % |
R.V. VAC |
T.V. VDC |
W ± 1.0 |
H ± 1.0 |
T ± 1.0 |
P ±1.0 |
d ±0.05 |
L0 ±2 |
Fig. |
HONGFARAD Cap PART NO. |
|
|
0.33 |
10 |
310 |
1333 |
18.0 |
14.5 |
8.4 |
15 |
0.8 |
18 |
1 |
C62-Q3334K-D48T35 |
Marking
|
|
|
|
MKP-X2 |
BOX -TYPE METALLIZED POLYPROPYLENE AC CAPACITOR |
|
0.33uF |
CAPACITANCE |
|
K |
CAPAC.ITANCE TOLERANCE |
|
275/300/310VAC |
RATED VOLTAGE AC VOLTAGE |
|
40/110/56 |
Working Lowest Temperature (- 40℃) Working HighestTemperature(+ 110℃) Working Times (56days) |
|
B |
Class of operation |
|
02/25 |
25 years in week 02 |
For more details, please refer to the PDF product specification sheet！
