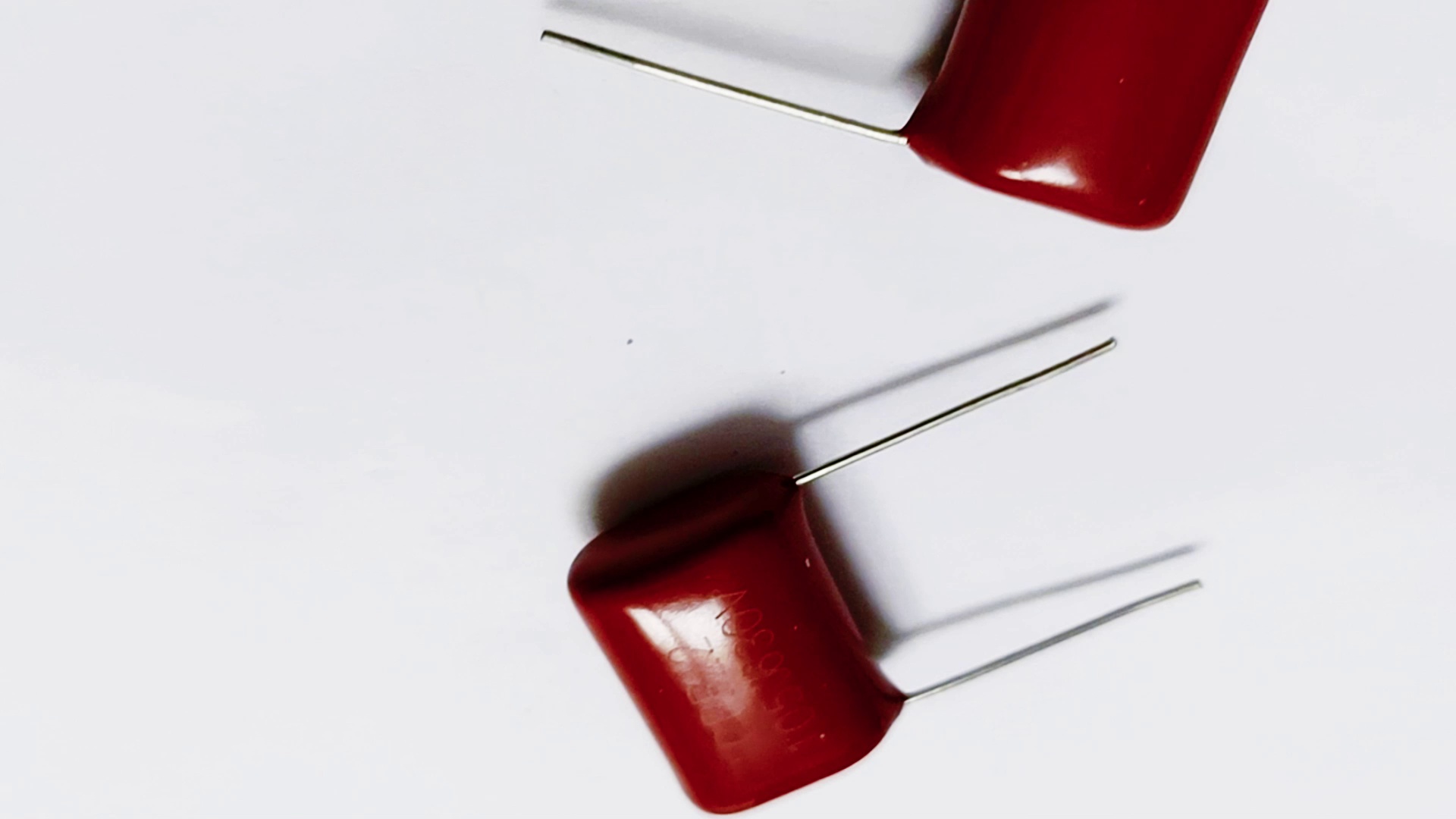

YZPST-CBB22
P/N: YZPST-CBB22 105J630V P=20mm W*H*T= 23*19*12 .5mm
DESCRIPTIONS :Metallized POLYPROPYLENE Film CAPACITOR
Operating temperature :-40℃~ 105℃(Derate DC voltage 1.5%/. above 85°C to 105°C)
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
DESCRIPTION
P/N: YZPST-CBB22 105J630V P=20mm W*H*T= 23*19*12 .5mm
DESCRIPTIONS :Metallized POLYPROPYLENE Film CAPACITOR
Operating temperature :-40℃~ 105℃(Derate DC voltage 1.5%/. above 85°C to 105°C)

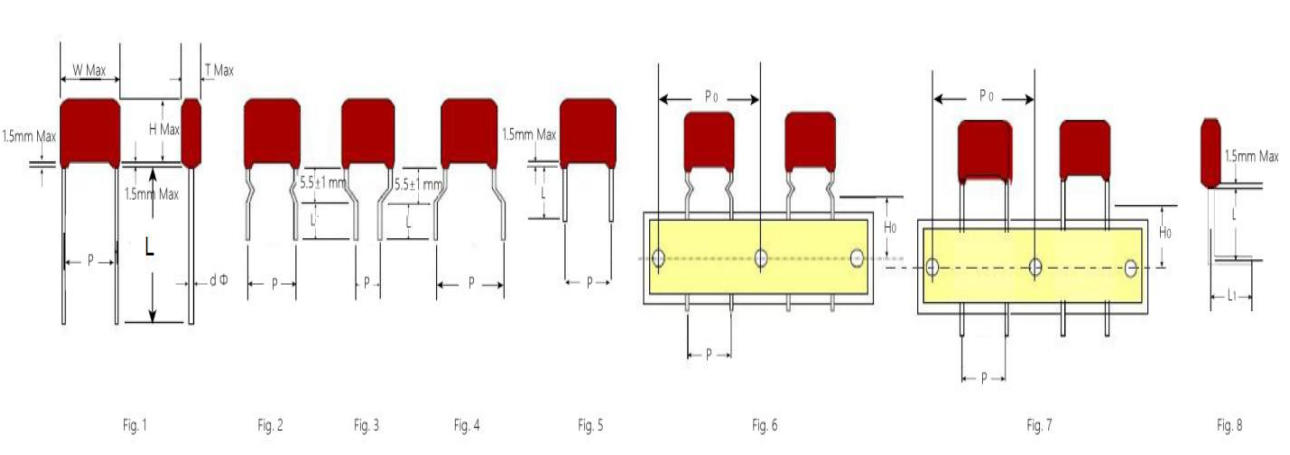

PRODUCT DIMENSIONS :mm
|
CUSTOMER'S PART NO. |
CAP （uF） |
To l. ± % |
R.V. VDC |
T.V. VDC |
W MAX |
H MAX |
T MAX |
P ± 1.0 |
d±0.05 |
L0 ±2 |
Fig. |
PART NO. |
|
|
1.0 |
5 |
630 |
1008 |
23 |
19 |
12.5 |
20 |
0.8 |
25 |
1 |
C32-2J 105J-208A01 |

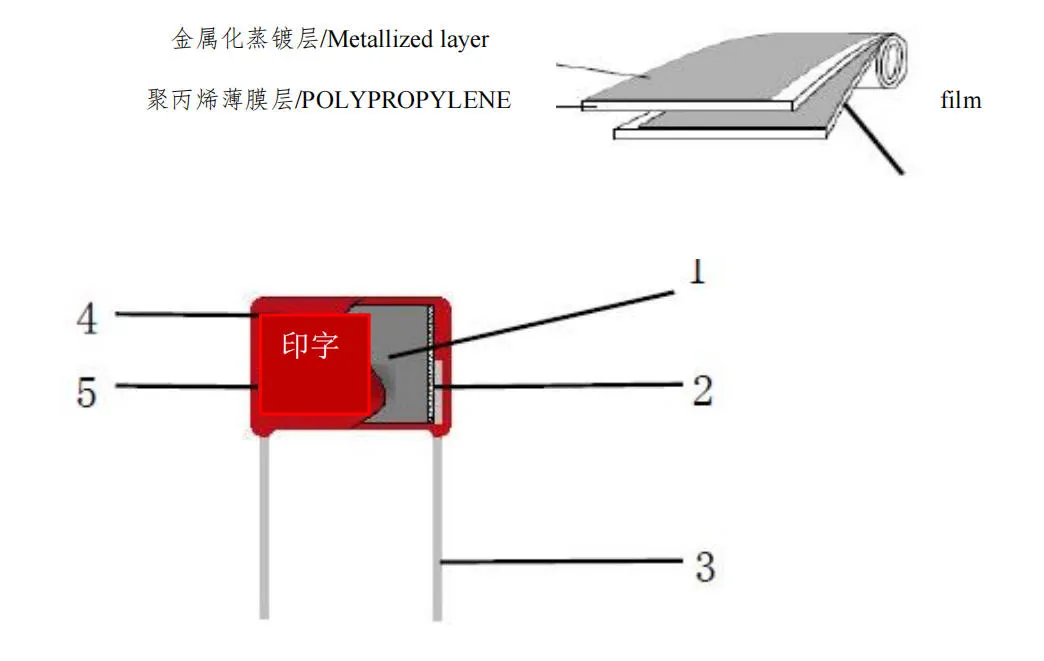

Construction and Component
Construction&Mark
Component List
|
Item |
Component |
Material |
RoHS Requirements |
|
1 |
Element |
Metallized OPP film |
Compliant with RoHS |
|
2 |
Metal spray layer |
Zn and Zn-Tin alloy wire |
Compliant with RoHS |
|
3 |
Leads |
Tinned copper-base alloy wire |
Compliant with RoHS |
|
4 |
COATING |
UL94V-0 Flame retardant epoxy resin(UL940V) |
Compliant with RoHS |
|
5 |
Marking |
Laser |
Compliant with RoHS |
