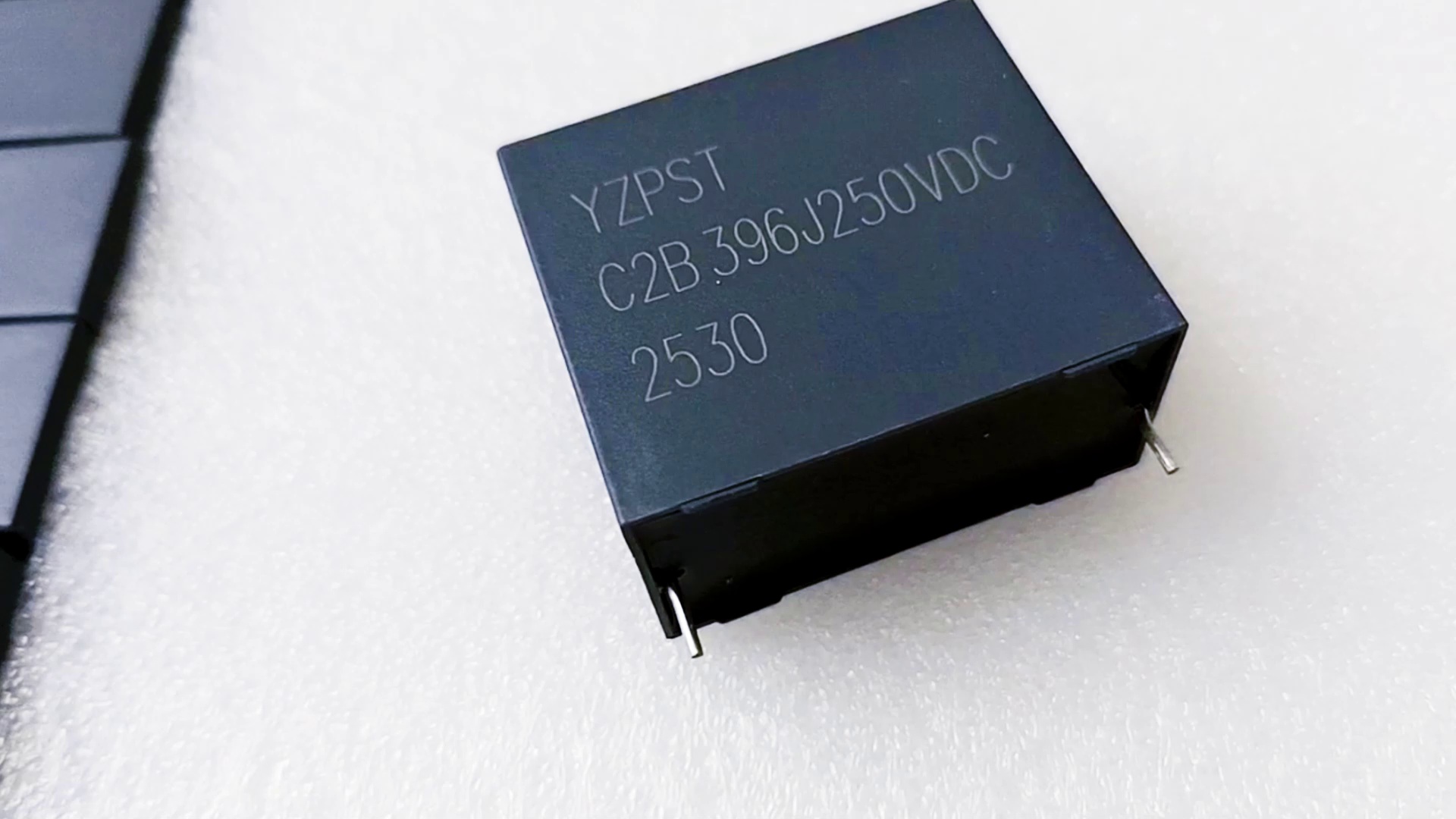

YZPST-C2B 396J250VDC
C2B Series Metallized Polypropylene Film Capacitor
C2B Series Metallized Polypropylene Film Capacitor

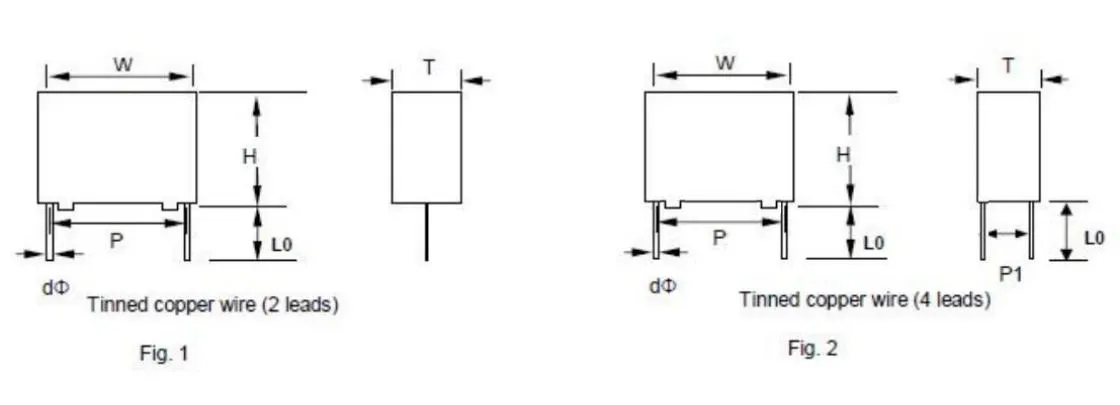

PRODUCT DIMENSIONS :mm
|
CUSTOMER'S PART NO. |
CAP ( μF） |
To l. ± % |
R.V.VDC |
T.V.VDC |
W ±0.5 |
H ±0.5 |
T ±0.5 |
P ± 1.0 |
d线径±0.05 |
L0 ±2 |
Fig. |
CASE |
PART NO. |
|
|
68 |
5 |
250 |
375 |
42 |
43 |
28 |
37.5 |
1.0 |
18 |
1 |
CASE |
|
|
|
150 |
5 |
100 |
150 |
42 |
43 |
28 |
37.5 |
1.0 |
18 |
1 |
CASE |
|
|
|
68 |
5 |
160 |
240 |
42 |
37 |
22 |
37.5 |
1.0 |
18 |
1 |
CASE |
|
|
|
39 |
5 |
250 |
375 |
42 |
37 |
22 |
37.5 |
1.0 |
18 |
1 |
CASE |
|
|
|
180 |
5 |
63 |
95 |
57.5 |
50 |
35 |
52.5 |
1.0 |
18 |
1 |
CASE |
|
Construction and Component
Construction&Mark
|
Item |
Component |
Material |
RoHS Requirements |
|
1 |
Element |
Metallized PET film |
Compliant with RoHS |
|
2 |
Metal spray layer |
Zn and Zn-Tin alloy wire |
Compliant with RoHS |
|
3 |
Leads |
Tinned copper wire |
Compliant with RoHS |
|
4 |
Potting Compound |
Flame retardant epoxy resin(UL94V0) |
Compliant with RoHS |
|
5 |
Enclosure |
Flame retardant PBT Plastic(UL 94V0) |
Compliant with RoHS |
|
6 |
Marking |
Laset |
Compliant with RoHS |
