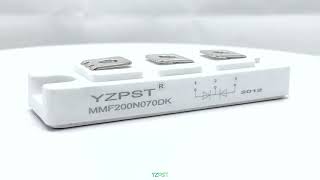

YZPST-MMF200N070DK
PRODUCT FEATURES
Ultrafast Reverse Recovery TimeSoft Reverse Recovery Characteristics
Low Reverse Recovery Loss
Low Forward Voltage
High Surge Current Capability
Low Leakage Current
Inversion Welder
Uninterruptible Power Supply
Plating Power Supply
Ultrasonic Cleaner and Welder
Converter & Chopper
PFC
|
Symbol |
Parameter/Test Conditions |
Values |
Unit |
|
|
VR |
Maximum D.C. Reverse Voltage |
700 |
V |
|
|
VRRM |
Maximum Repetitive Reverse Voltage |
|||
|
IF(AV) |
Average Forward Current |
TC=90℃, Per Diode |
100 |
A |
|
TC=90℃, Per Moudle |
200 |
|||
|
IF(RMS) |
RMS Forward Current |
TC=90°C, Per Diode |
141 |
|
|
IFSM |
Non Repetitive Surge Forward
Current
|
TJ=45℃,t=10ms,Sine,peak value |
1200 |
|
|
T =45℃,t=8.3ms,Sine,peak value |
1320 |
|||
|
I2t |
For Fusing |
TJ=45℃,t=10ms,Sine,peak value |
7200 |
A2S |
|
TJ=45℃,t=8.3ms,Sine,peak value |
7230 |
|||
|
PD |
Power Dissipation |
370 |
W |
|
|
TJ |
Junction Temperature |
-40 to +150 |
℃ |
|
|
TSTG |
Storage Temperature Range |
-40 to +125 |
℃ |
|
|
Visol |
Isolation Breakdown Voltage |
AC, 50Hz(R.M.S), t=1minute |
3000 |
V |
|
Torque |
Module to Sink |
Recommended（M5） |
2.5～4 |
Nm |
|
Torque |
Module Electrodes |
Recommended（M5） |
2.5～4 |
Nm |
|

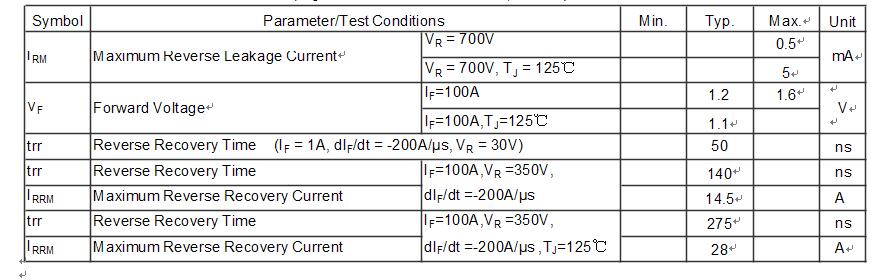

RthJC |
Junction to Case Thermal Resistance(Per Diode ) |
0.34 |
℃ /W |
|
|

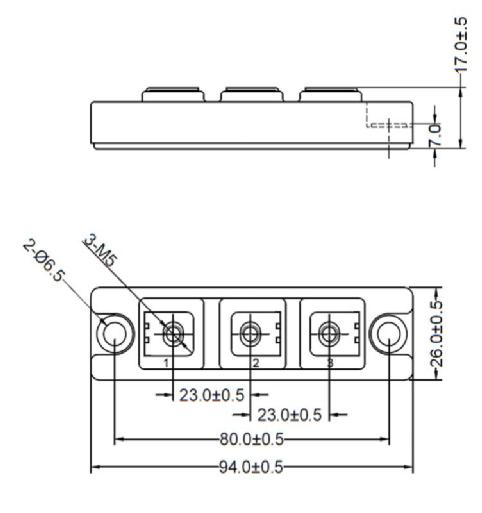

Weight |
|
100 |
g |
|
