Standard Rectifier YZPST-AR3001LTS10
General Purpose High Power Standard Rectifier
Features:
All Diffused Structure
High Surge rating
Blocking capabilty up to 1000 volts
Soft Reverse Recovery
Rugged Ceramic Hermetic Package
Pressure Assembled Device
ELECTRICAL CHARACTERISTICS AND RATINGS
Reverse Blocking
| Device Type | VRRM (1) | VRSM (1) |
| AR3001LTS | 1000 | 1100 |
VRRM = Repetitive peak reverse voltage VRSM = Non repetitive peak reverse voltage (2)
|
Repetitive peak reverse leakage |
IRRM |
75mA (3) |
Conducting - on state
|
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
|
Average value of on-state current |
IF(AV) |
|
6460 |
|
A |
Sinewave,180o conduction,TC =85oC |
|
Peak one cycle surge (non repetitive) current |
IFSM |
|
504000 |
|
A |
10.0 msec (50Hz), sinusoidal wave- shape, 180o conduction, Tj = 190 oC |
|
I square t |
I2t |
|
12700000 |
|
A2s |
10.0 msec |
|
Peak on-state voltage |
VFM |
|
1.20 |
|
V |
IFM = 4500 A; Duty cycle ≤ 0.01% Tj = 25 oC |
|
Reverse Recovery Current (4) |
IRM(REC) |
|
* |
|
A |
IFM = 1000 A; dIF/dt = 10 A/μs |
|
Reverse Recovery Charge (4) |
Qrr |
|
* |
|
μC |
|
|
Reverse Recovery Time (4) |
tRR |
|
* |
|
μs |

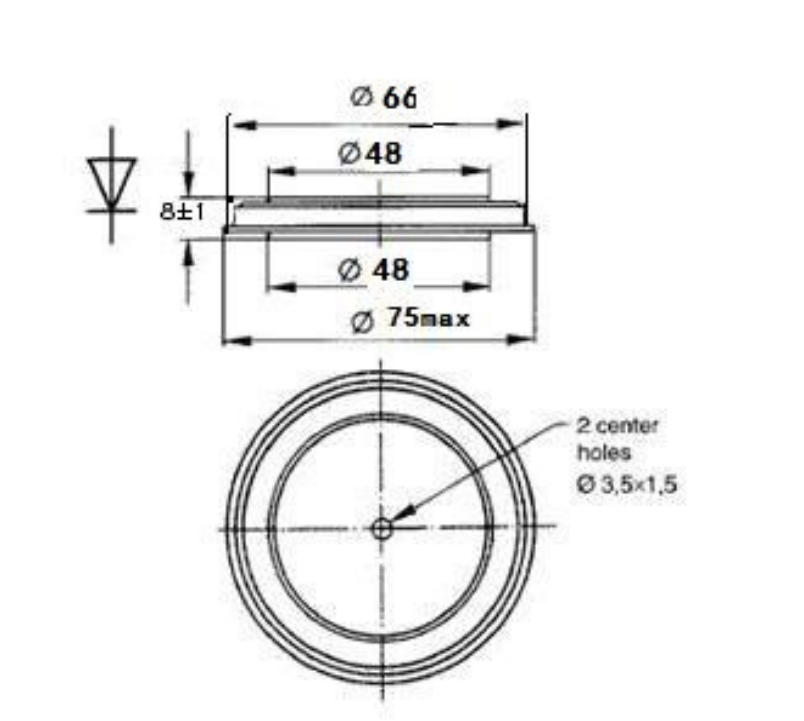

CASE OUTLINE AND DIMENSION
