YZPST-2CLG50KV30A
P/N: YZPST-2CLG50KV/30A
High Voltage Rectifier Assembly
Features:
Low leakage, low power,
-40°C~＋ 120 ° C Tj:-40℃~+120℃ .
A wide variety of sizes or customization
.webp)
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
description
P/N: YZPST-2CLG50KV/30A
High Voltage Rectifier Assembly
Features:
Low leakage, low power,
-40°C~＋ 120 ° C Tj:-40℃~+120℃ .
A wide variety of sizes or customization
Electrical characteristics and limits (Ta=25℃)
|
Item |
Sym |
Conditions |
Value |
Unit |
|
Repetitive Peak Reverse Voltage |
VRRM |
|
50 |
KV |
|
Average Forward Rectifier |
IF(AV) |
50Hz (TJ =50℃) 50 Hz Sine- half Wave Rectification Average Value (TJ =50℃) |
30.0 |
A |
|
Non-Repetitive Foreward Surge Current |
IFSM |
8.3 mS@ 60Hz 8.3 mS@ 60Hz sine-half Wave |
120.0 |
A |
|
Max. Forward Voltage |
V FM |
IF=5A |
90 |
V |
|
Max. Reverse Leakage Current |
IRM1 |
VR =VRRM T a =25 ℃ |
5.0 |
μ |
|
Reverse Recovery Time |
Trr |
IF=0.5A 、IR= 1.0A、IRR=0.25A |
75 |
nS |
|
Max. Temperature of Junction |
TJ |
|
120 |
℃ |
|
Range of storage temperature |
Tstg |
|
-40 ~ + 130 |
℃ |

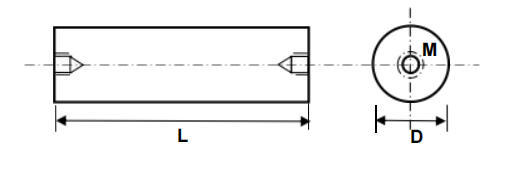

Dimension
|
Symbol |
Size |
|
|
L |
150 |
mm |
|
D |
66 |
mm |
|
M |
8 |
mm |
