YZPST-TYN616
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files

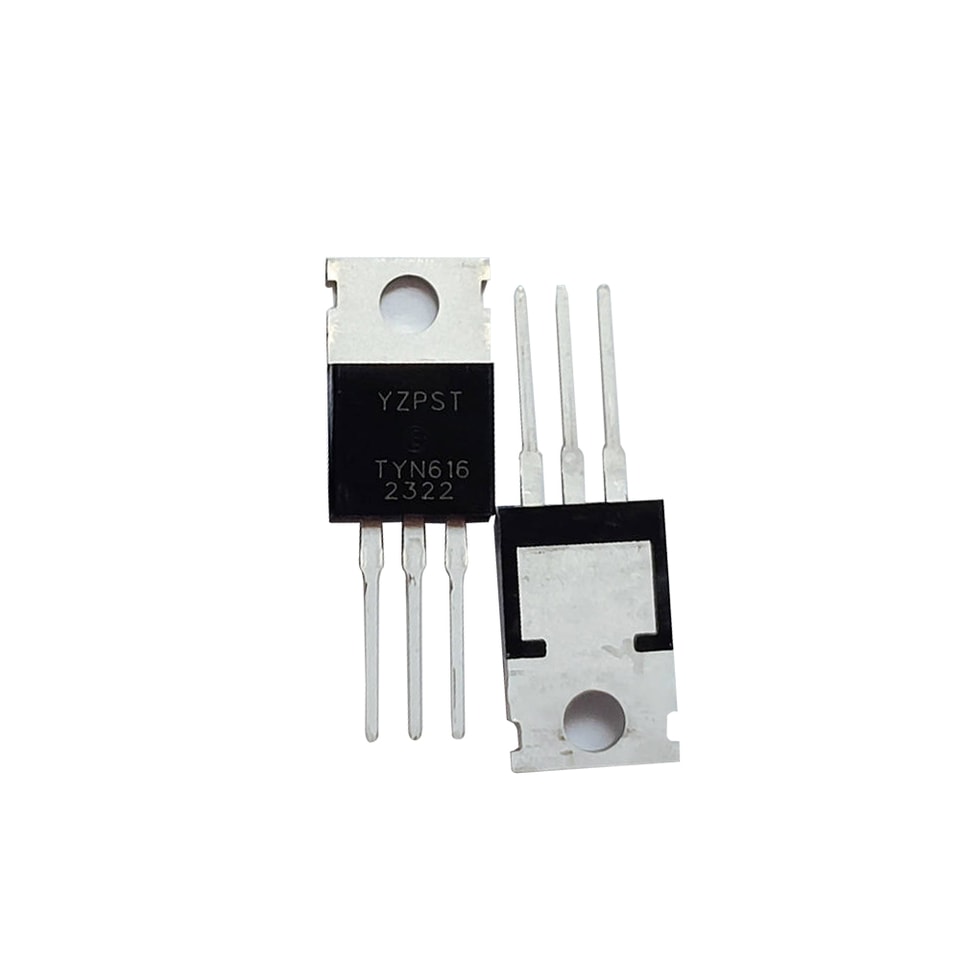

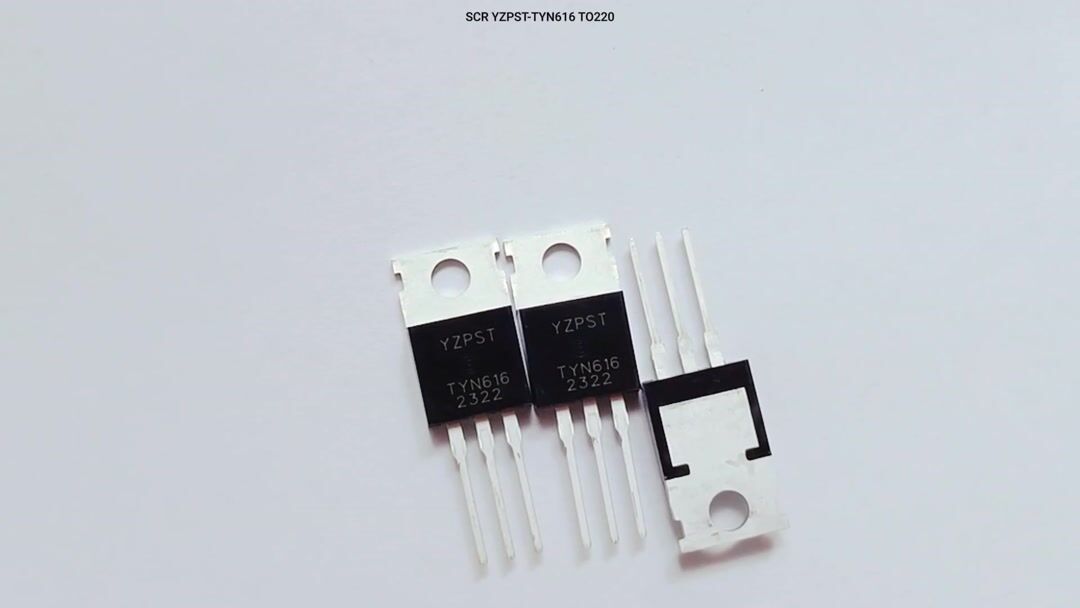

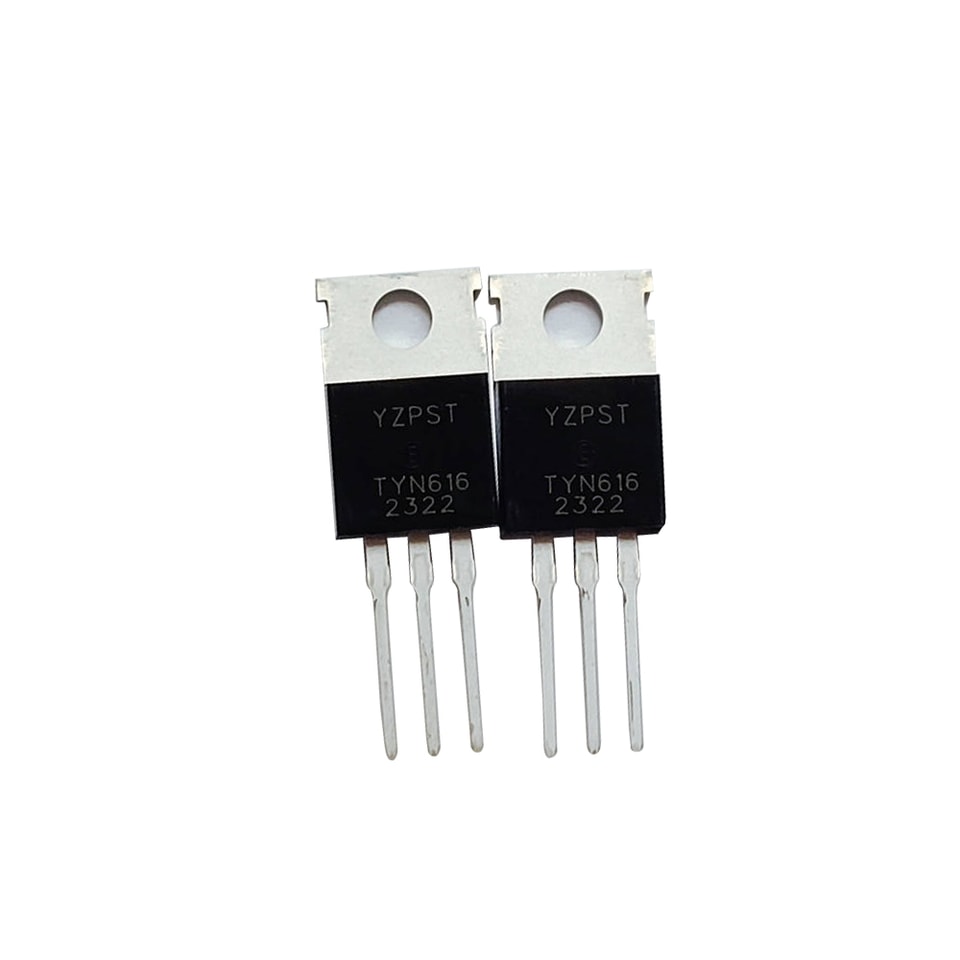

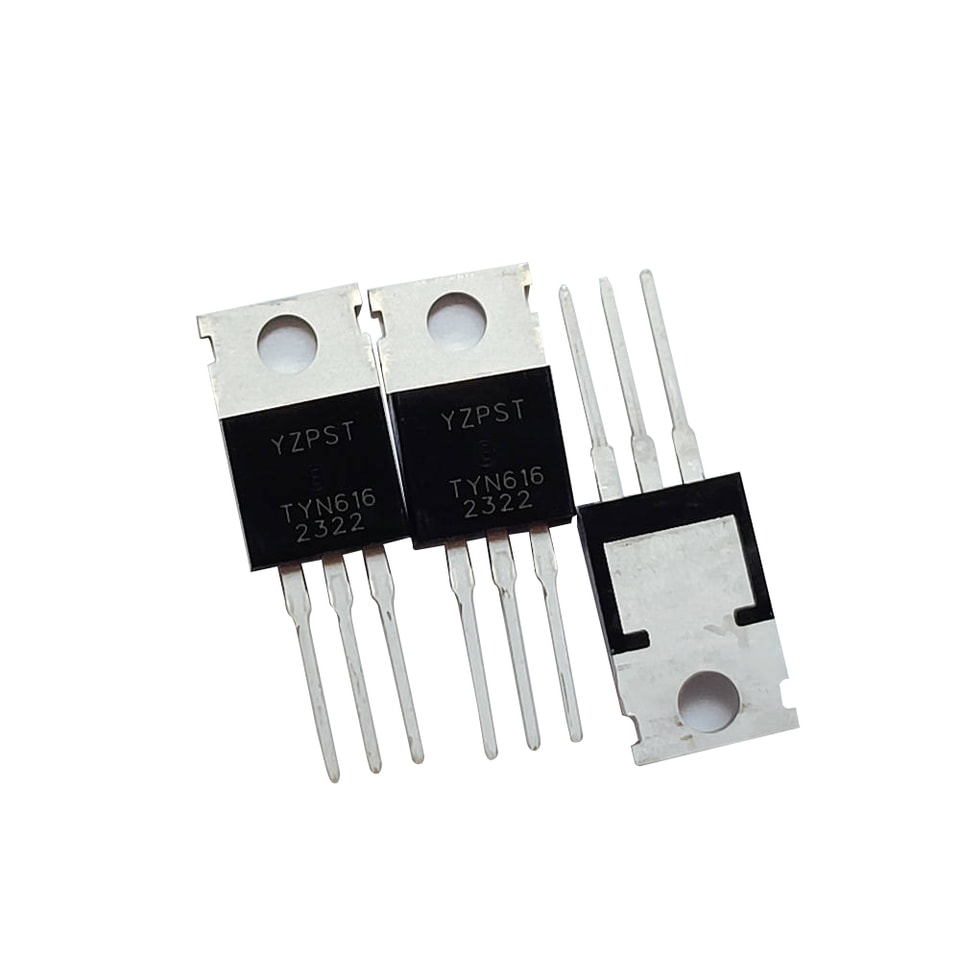

SCR P/N:YZPST-TYN616

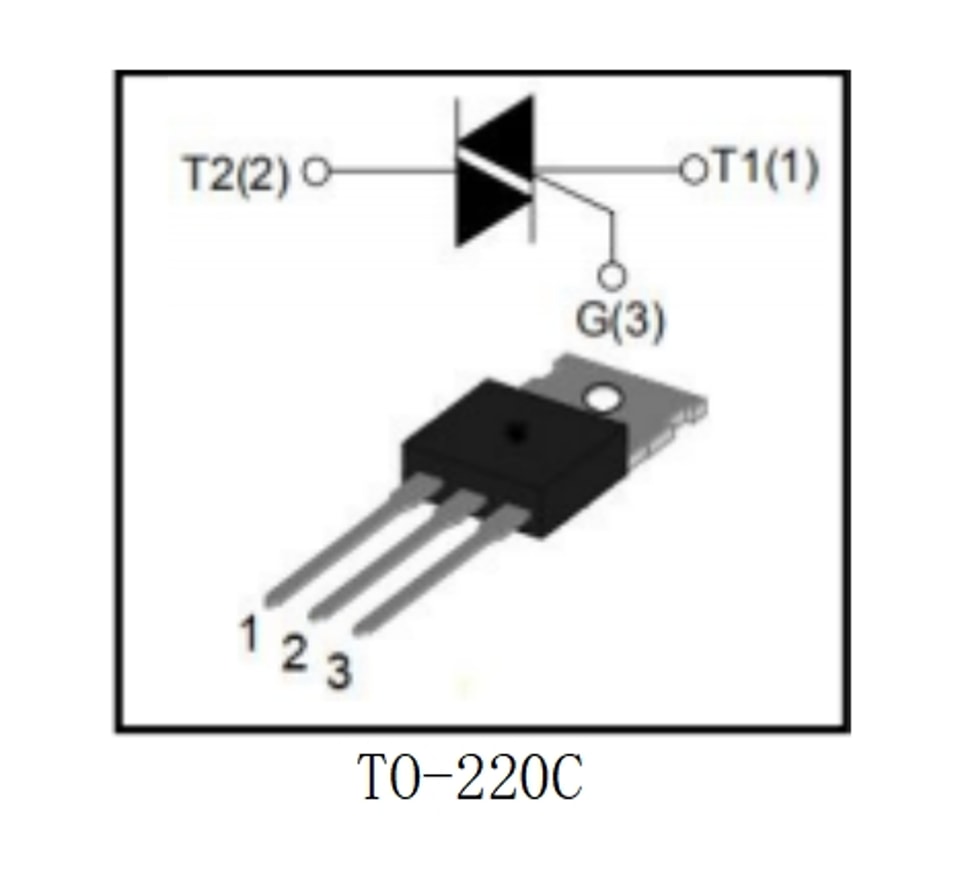

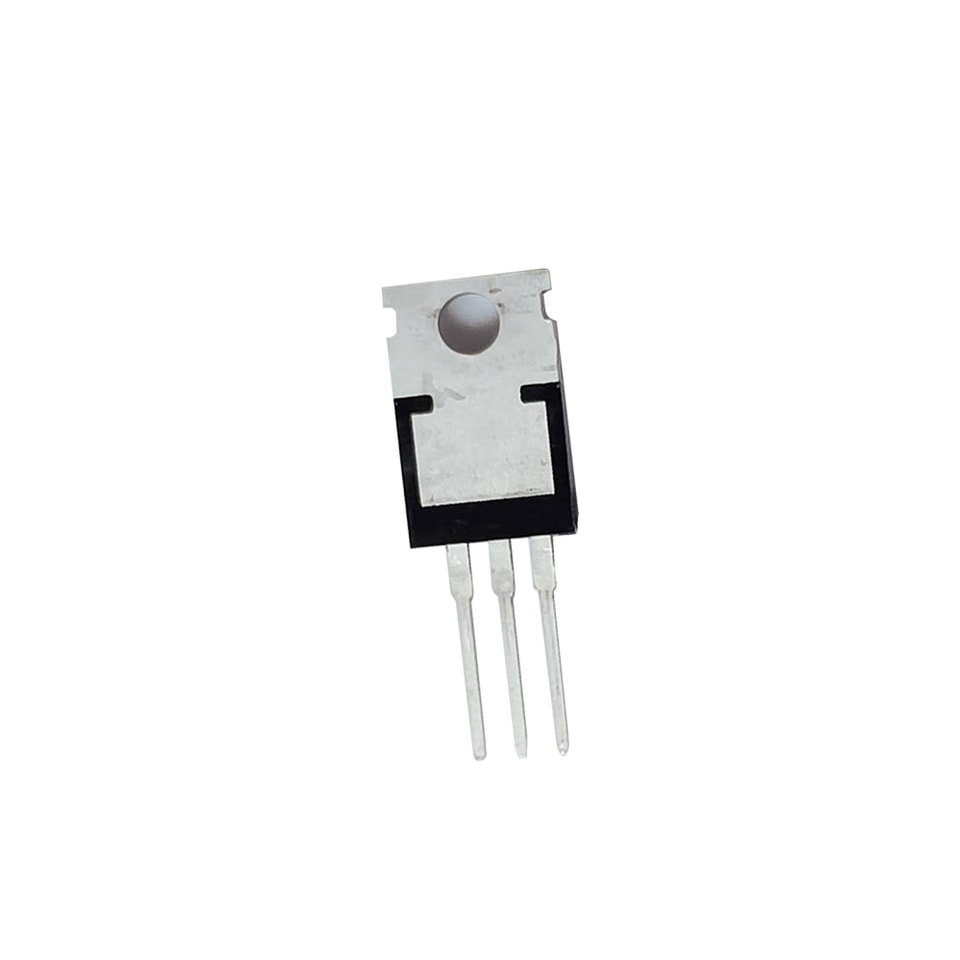

Package
TO-220C
Main Feature Tj=25℃
Symbol | Value | Unit |
IT (RMS) | 16 | A |
VDRM / VRRM | 600 | V |
IGT | 2 to15 | mA |
Absolute ratings (Limiting Values)
Symbol | Parameter | Value | Unit |
IT (RMS) | RMS on-state current (180 °conduction angle) | 16 | A |
IT(AV) | AV on-state current (180 °conduction angle) | 10 | A |
ITSM | Non repetitive surge peak on-state Current (tp= 10ms) | 160 | A |
I2t | (tp= 10ms) | 100 | A2S |
IGM | Peak gate current(tp=20us) | 4 | A |
PGM | Peak gate power | 5 | W |
PG(AV) | Average gate power | 1 | W |
Tstg Tj | Storage temperature Operating junction temperature | -40--+150 -40--+125 | ℃ |
Thermai Resistances
Symbol | Parameter | Value | Unit |
Rth (j-c) | Junction to case | 1. 1 | K/W |
Rth (j-a) | Junction to ambient | 55 | K/W |
Electrical characteristics (Tj=25℃ unless otherwise stated)
| Symbol | Test Conditions | Value | Unit | |||
| Min | Type | Max | ||||
| IGT | VD=6V, RL= 100Ω | 2 | 5 | 15 | mA | |
| VGT | VD= 12V, RL= 100Ω | ----- | 0.7 | 0.8 | V | |
| VGD | VD=VDRM, RL=3.3KΩ Tj=110℃ | 0.2 | ----- | ----- | V | |
| IH | IT= 100mA Gate Open | ----- | 30 | 40 | mA | |
| dV/dt | VD=67%VDRM, GateOpen, Tj=125℃ | 400 | v/μs | |||
| ----- | ----- | |||||
| VTM | IT=24A,tp=380μs | ----- | ----- | 1.7 | V | |
| IDRM | VD=VDRM | Tj=25℃ | ----- | ----- | 10 | uA |
| Irrm | VR=VRRM | Tj=125℃ | ----- | ----- | 1 | mA |

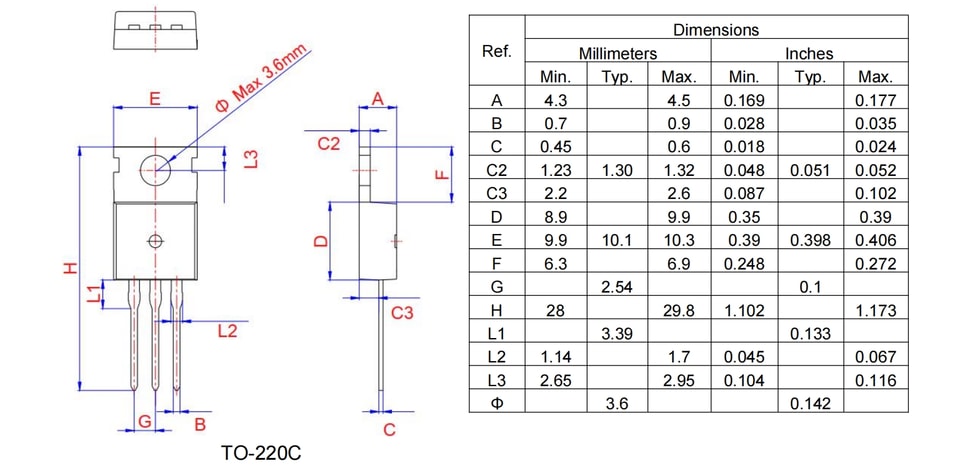

Measure of package
