YZPST-BTA41-800BW 15-25MA
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files

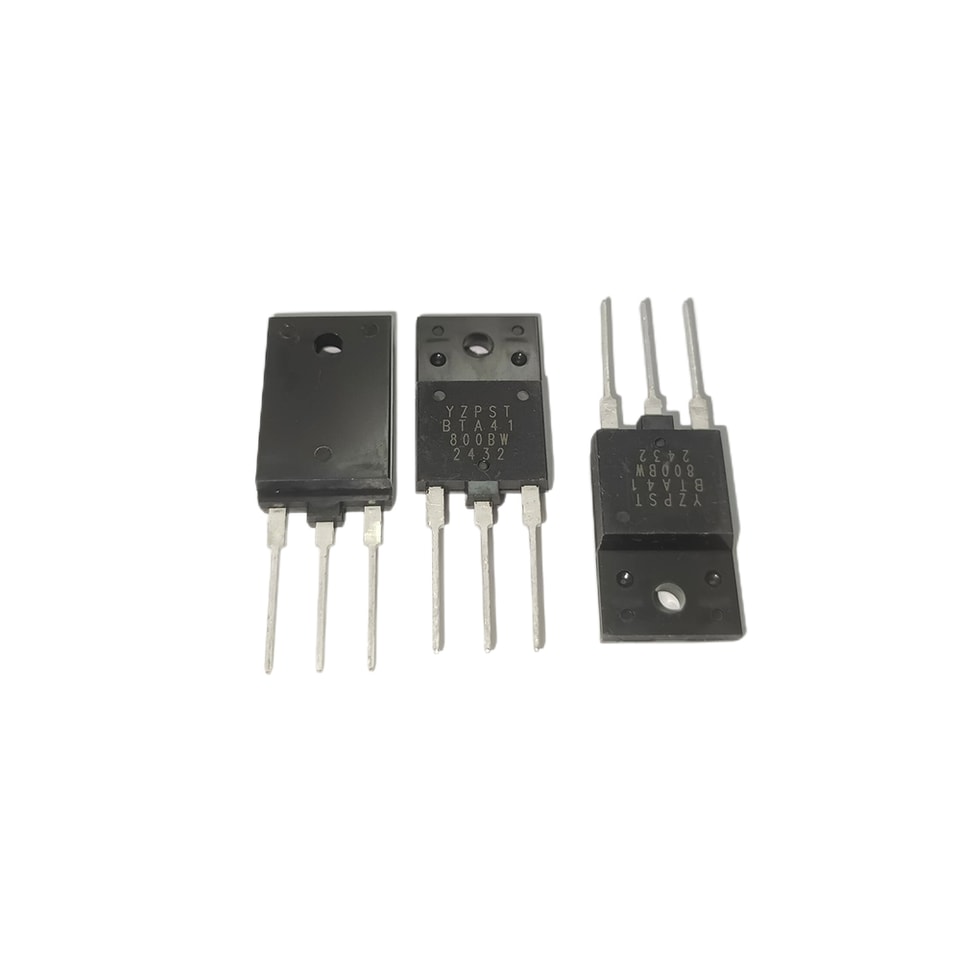

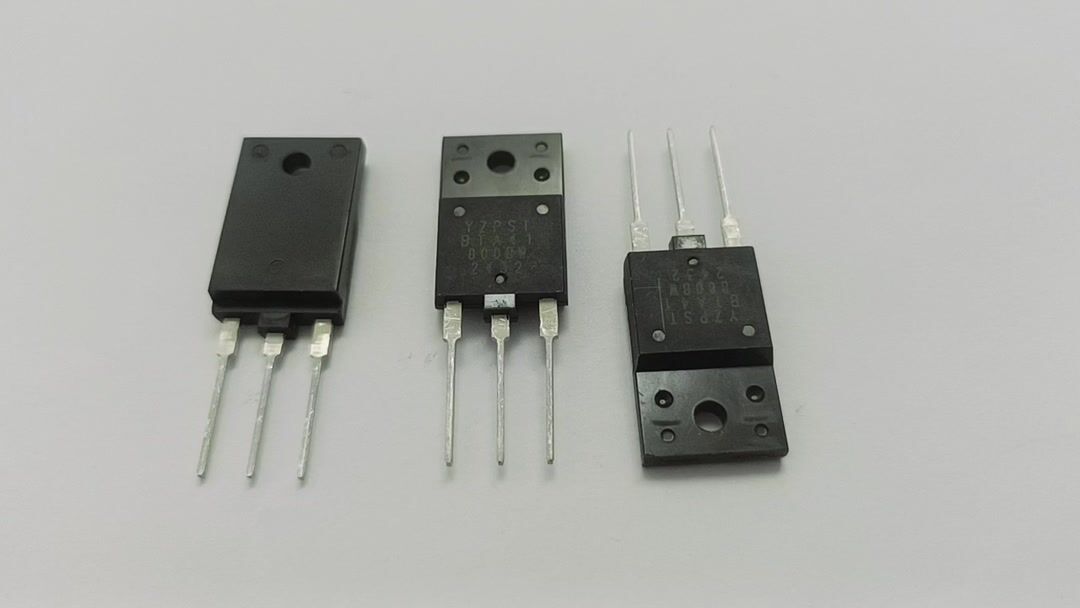

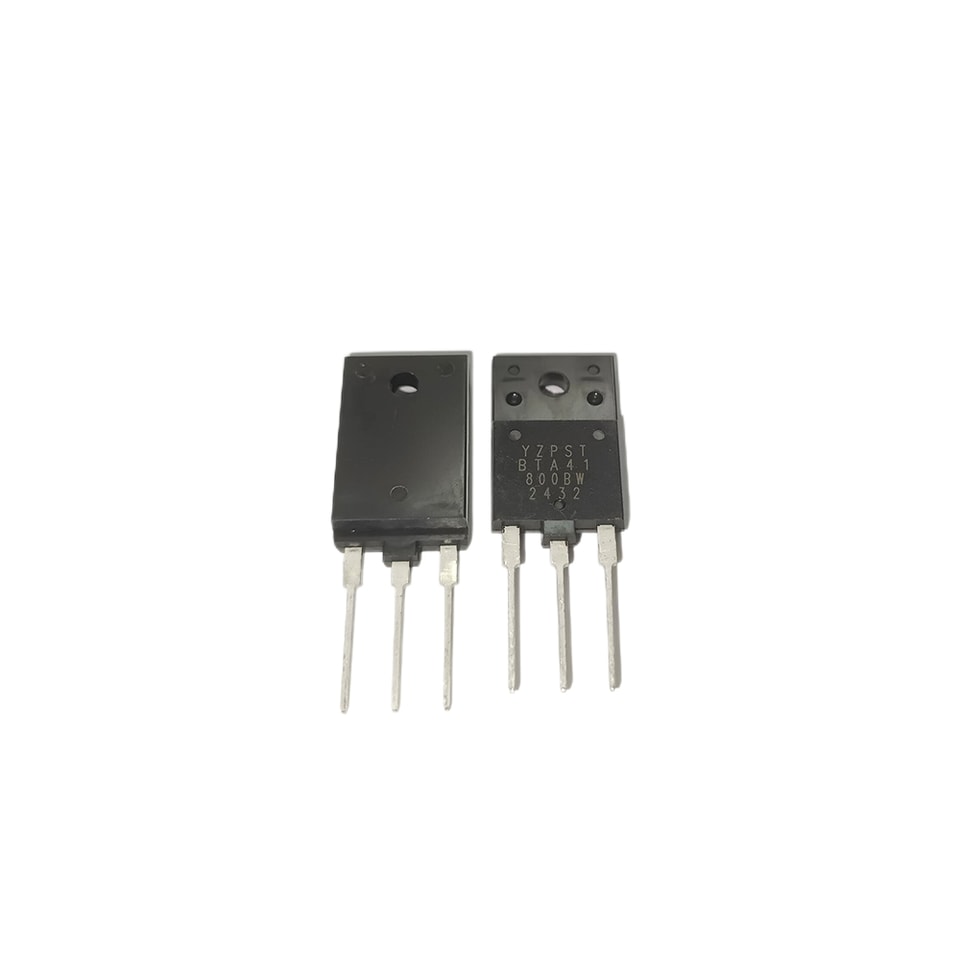

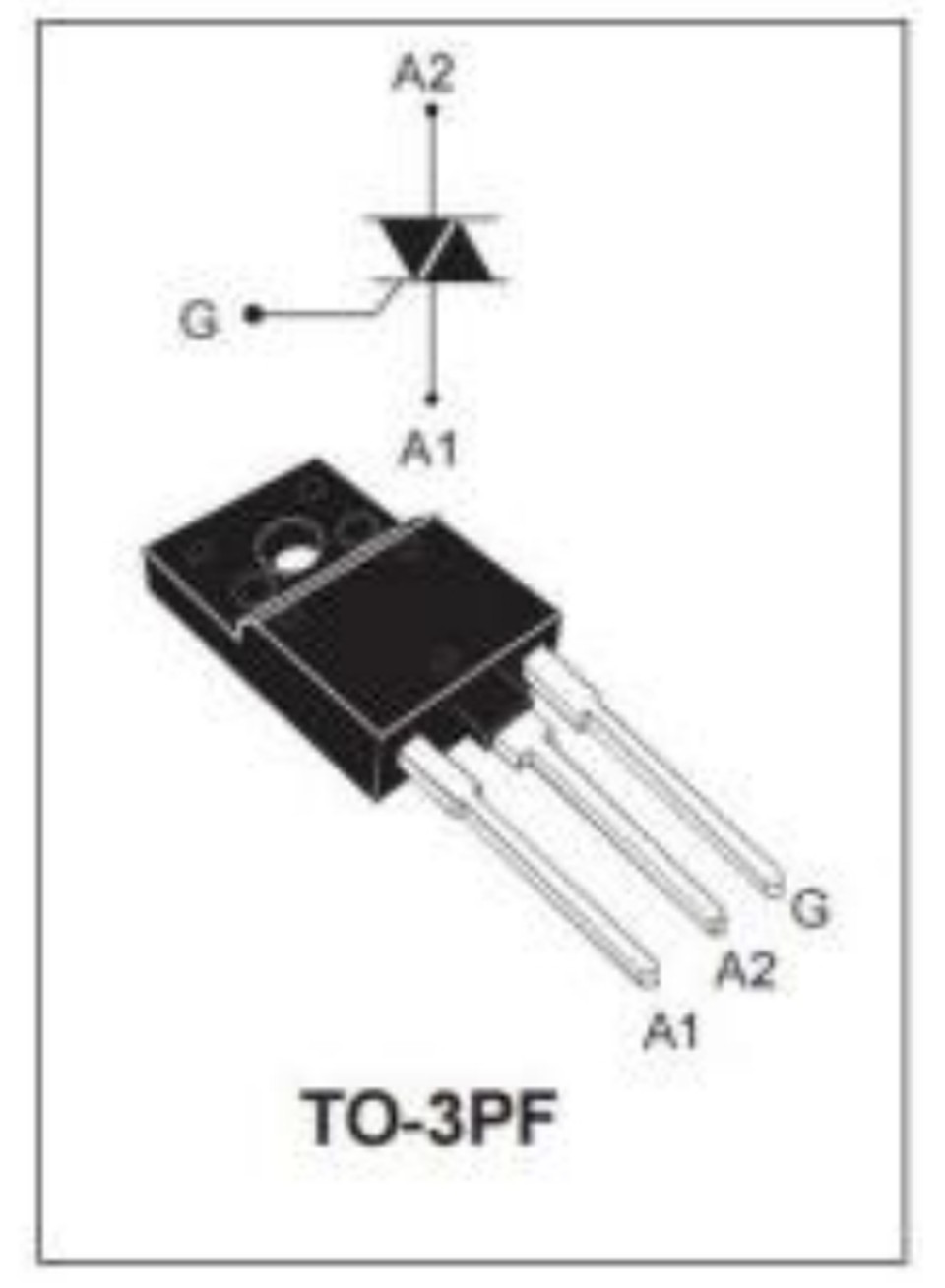

BTA41 Series 40A TRIACs YZPST-BTA41-800BW 15-25MA
DESCRIPTION:
The BTA41 triac series is suitable to fit all models of control Found in applications such as motor control ,industrial and domestic lighting ,heating and static switching , motor speed controllers, …Thanks to their clip assembly technique, theyprovide a superior performance in surge currenthandling capabilities
By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at2500VRMS) complying with UL standards
MAIN FEATURES
Symbol | Value | Unit |
IT(RMS) | 40 | A |
VDRM VRRM | 800/1600 | V |
VTM | 1.55 | V |
ABSOLUTE MAXIMUM RATINGS
Parameter | Symbol | Value | Unit |
Storage junction temperature range | Tstg | -40 ~ 150 | ℃ |
Operating junction temperature range | Tj | -40~ 125 | ℃ |
Repetitive peak off-state voltage (T =25℃) | VDRM | 800/1600 | V |
Repetitive peak reverse voltage (T =25℃) | VRRM | 800/1600 | V |
RMS on-state current | IT(RMS) | 40 | A |
Non repetitive surge peak on-state current (full cycle, F=50Hz) | ITSM | 400 | A |
I2t value for fusing (tp= 10ms) | I2t | 880 | A2S |
Critical rate of rise of on-state current (I =2×IGT) | dI/dt | 50 | A/μS |
Peak gate current | IGM | 8 | A |
Average gate power dissipation | PG(AV) | 1 | W |

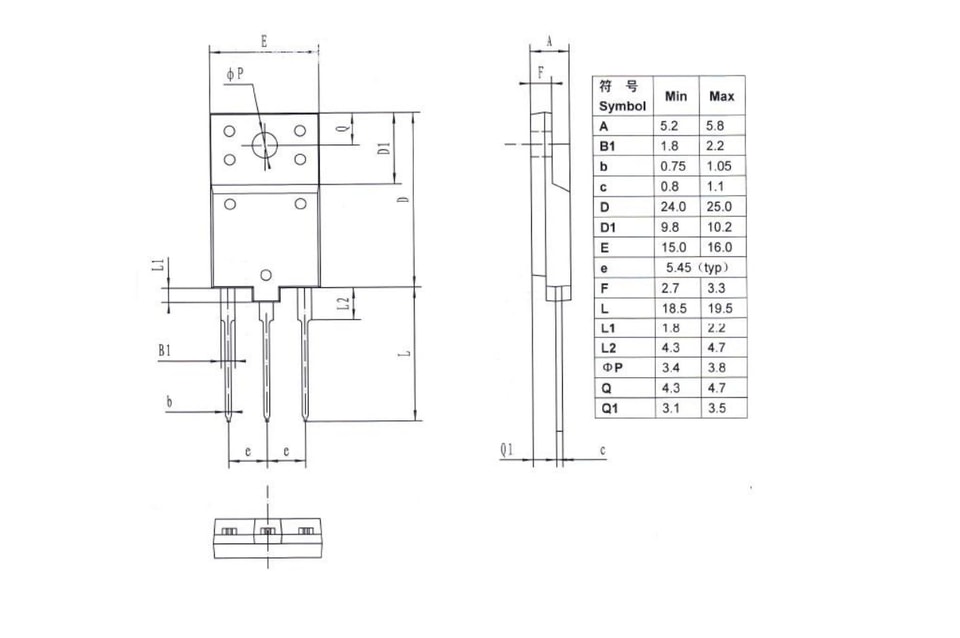

TO-3PF Package Mechanical Data
