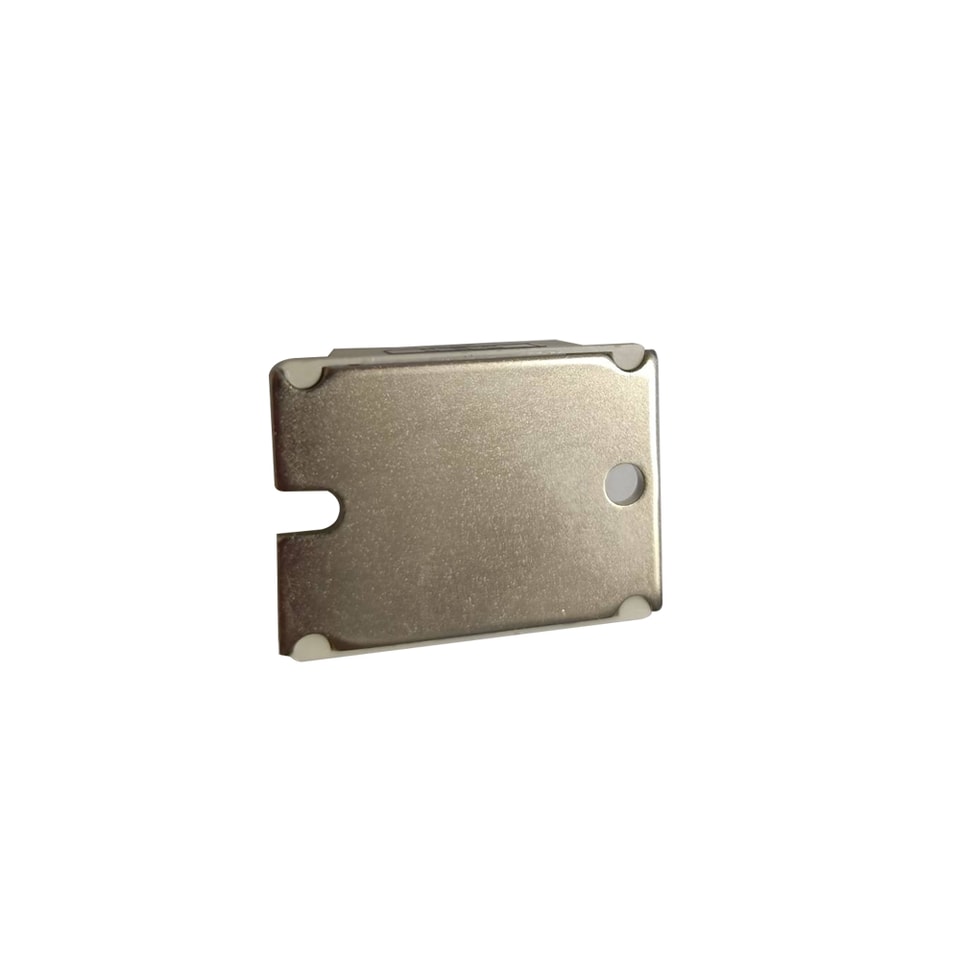

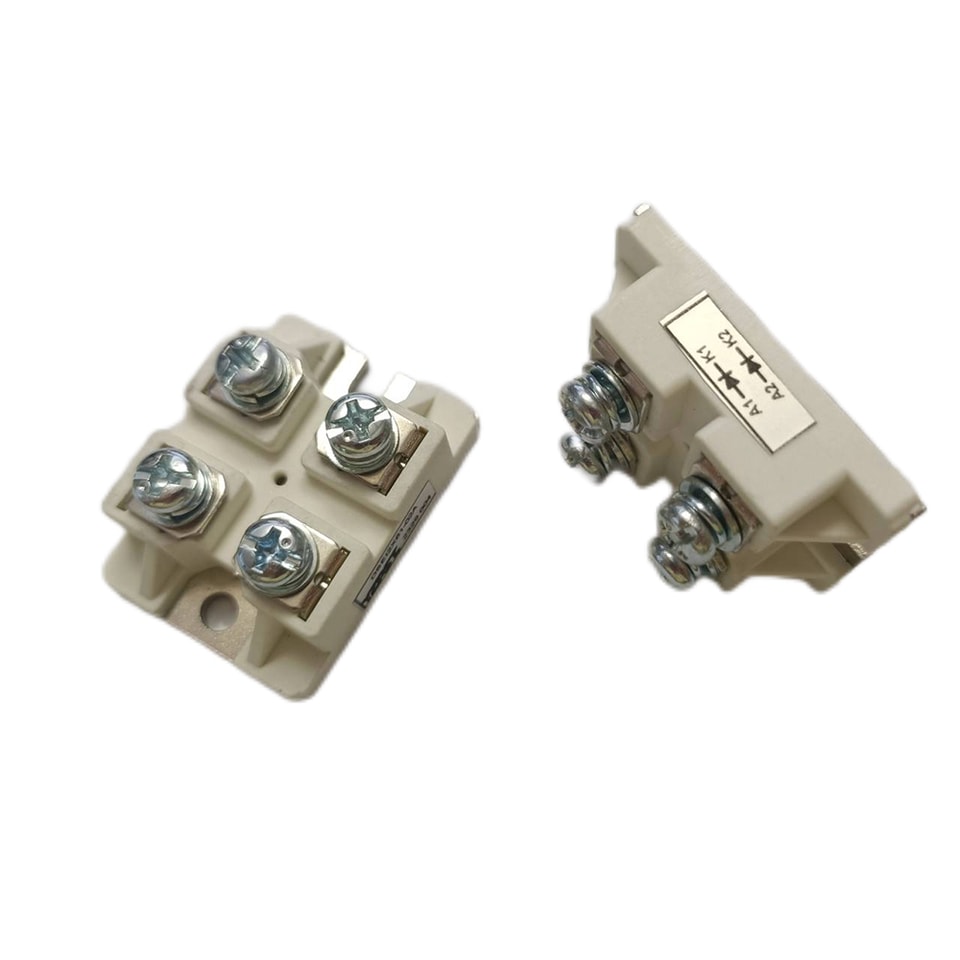

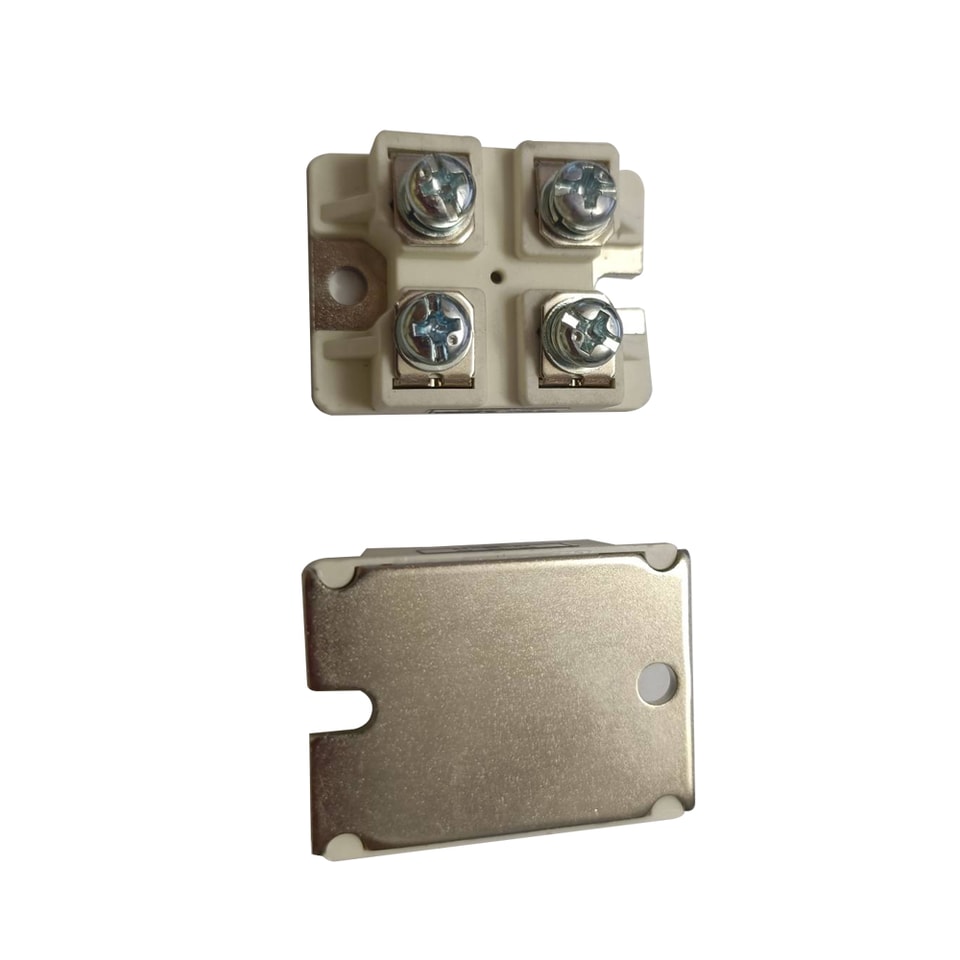

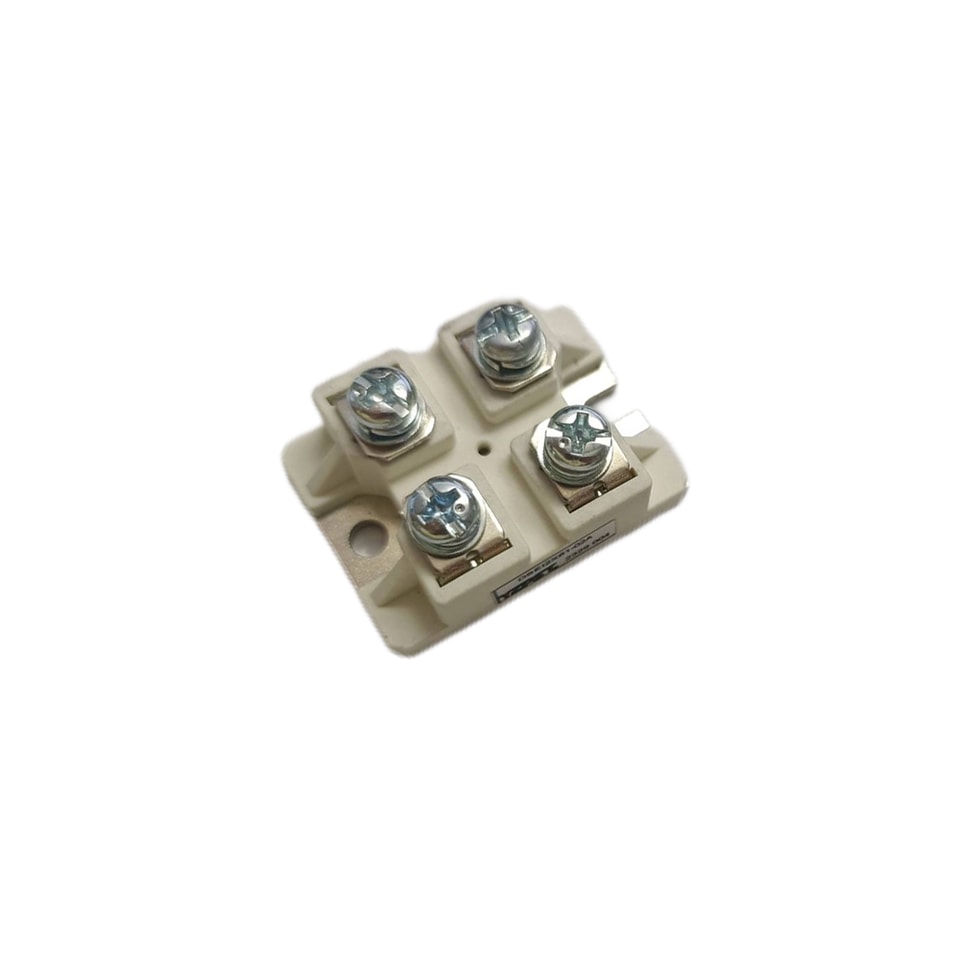

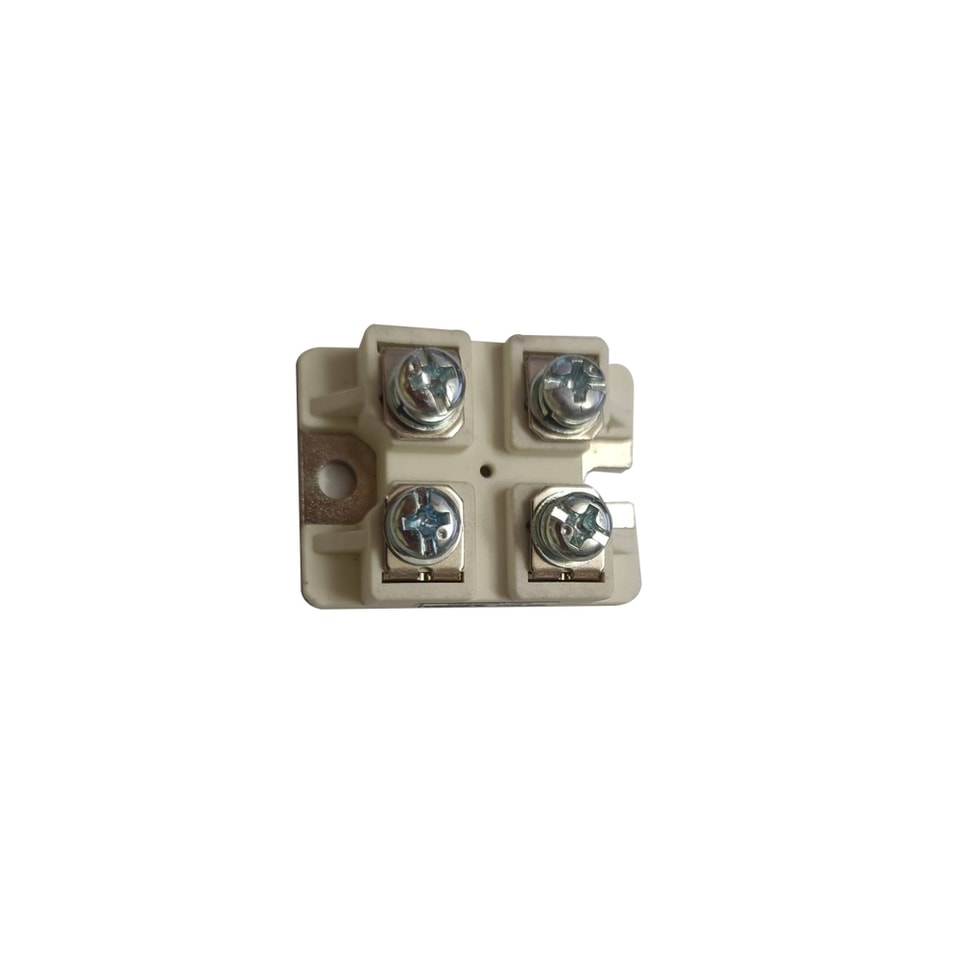

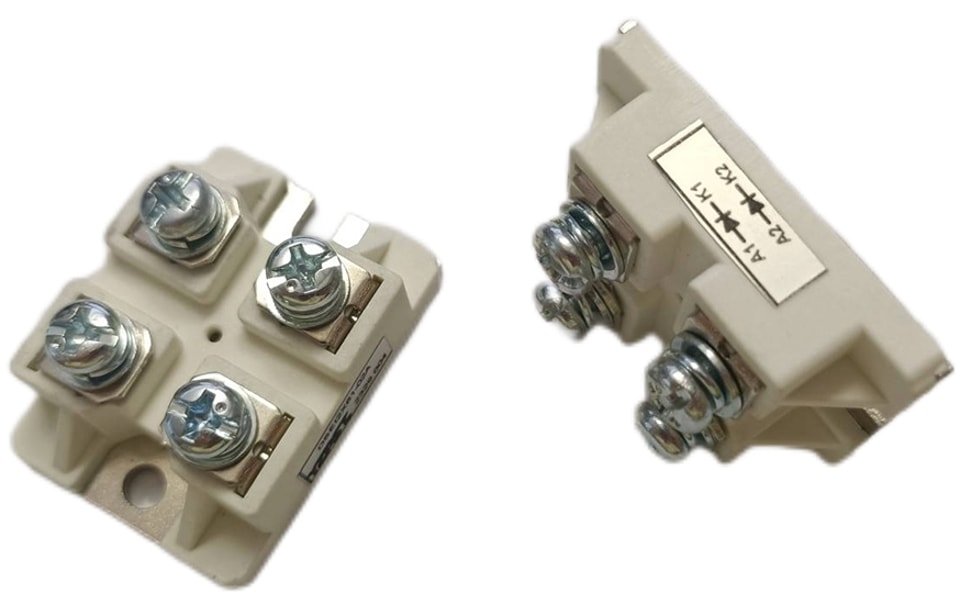

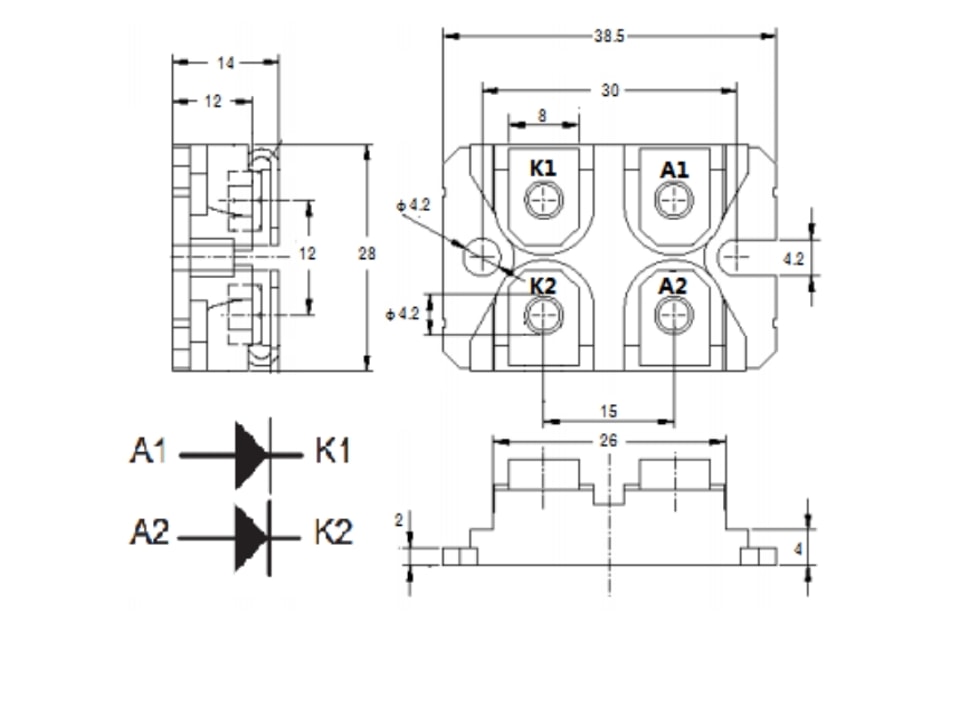

YZPST-DSEI2X61-02A Fast Recovery Diode Module

Symbol

Condition

Ratings

Unit

V_RRM

V_RSM

T_j=25°C

200

200

V

I_RRM

AtV_RRM，Single phase，half wave，T_j=125°C

15

mA

V_ISOL

50Hz, 1S/1MIN

3000/2500

V

Symbol

Condition

Ratings

Unit

I_F(AV)

T_C=150°C; 180° sine

61

A

I_F(RMS)

T_C=60°C; 180° sine

-

A

I_FSM

T_C=45°C; t = 10 ms (50 Hz); sine

550

A

I²t

T_j= T_j Max.; t = 10 ms (50 Hz); sine

-

kA²S

V_F(TO)

Tj= 150°C

1.51

V

r_F

Tj=150°C

7.1

mΩ

V_FM

On-State Current 120A，T_j=150°C

1.82

V

T_rr

I_F =100A –di/dt=600A/us V_R =600V

35

ns

Symbol

Condition

Ratings

Unit

R_th(j-c)

Per Module

0.5

K /W

R_th(c-h)

Per Module

0.1

K /W

T_j

-40  ~  + 150

°C

T_stg

-40  ~  + 125

°C

M

mounting torque

1.1-1.5

Nm

terminal torque

1.1-1.5

Nm

W

30

g
