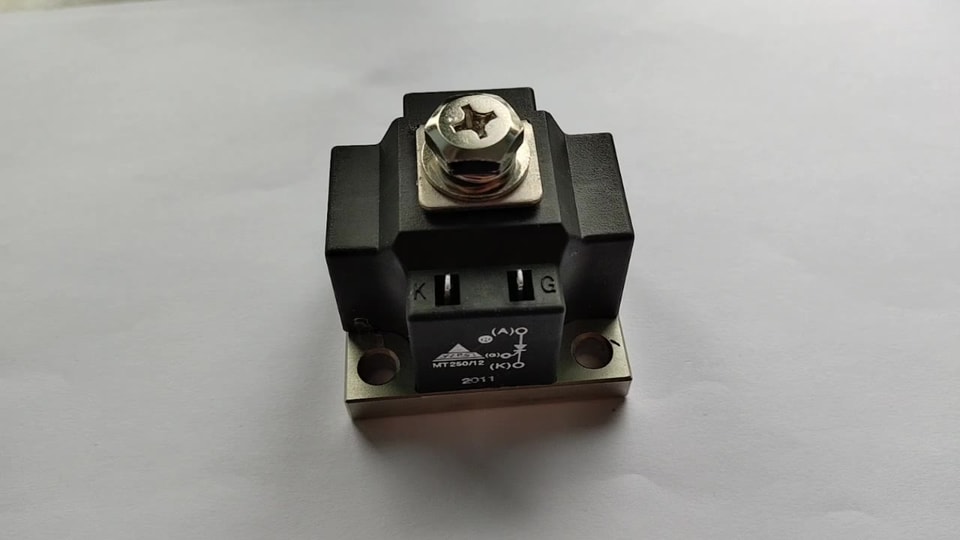

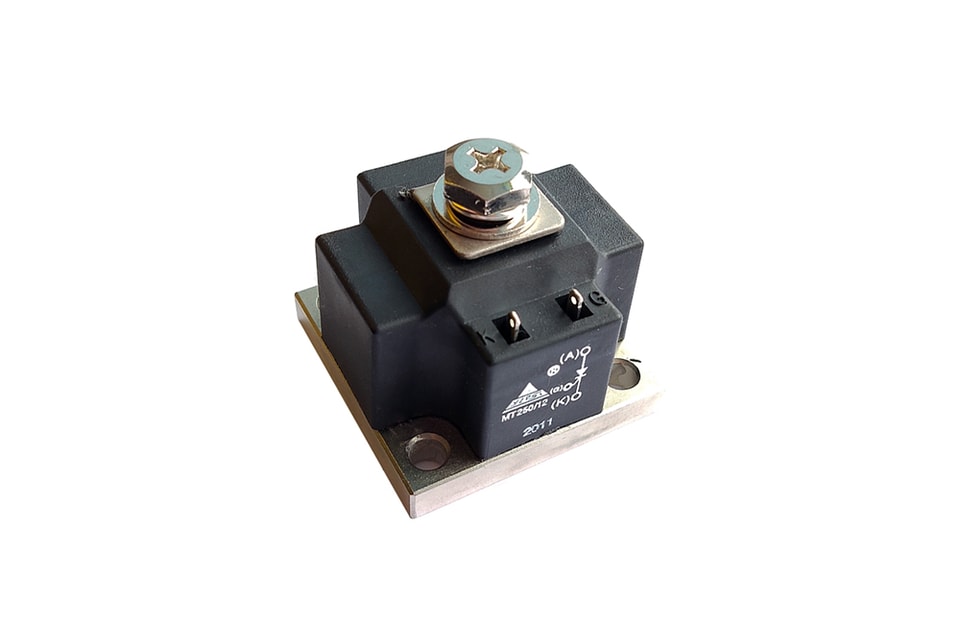

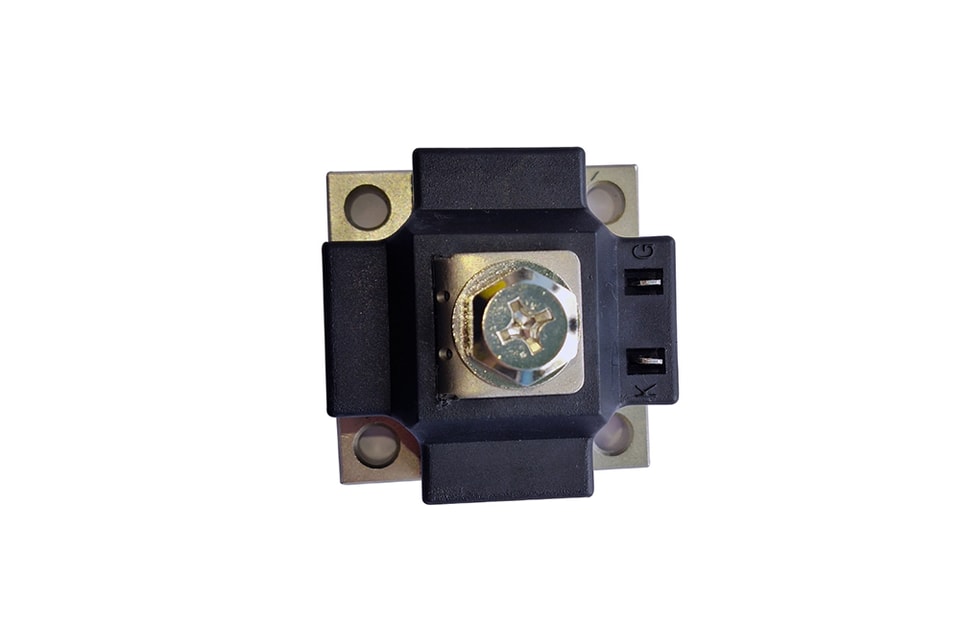

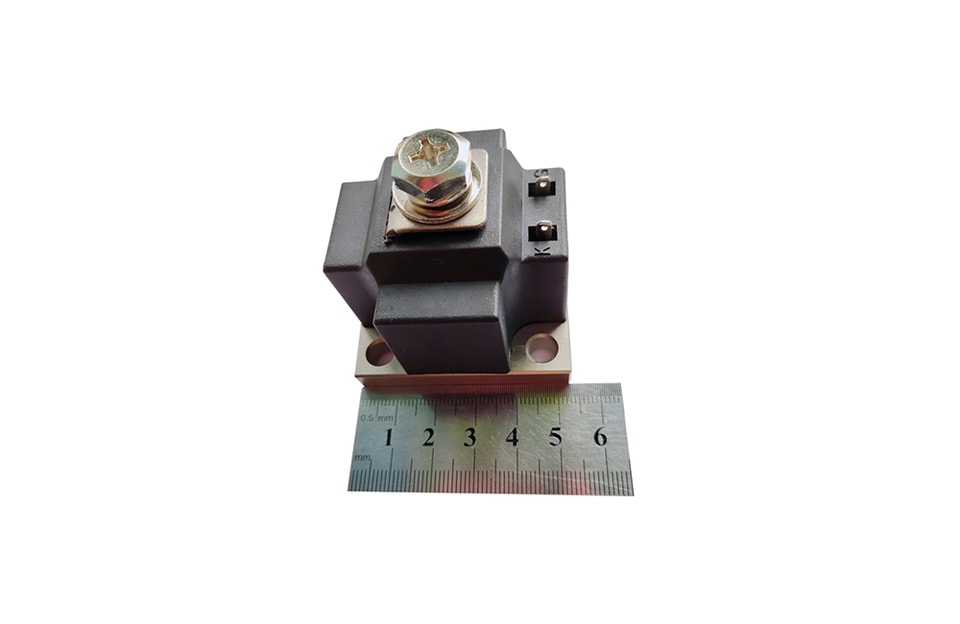

YZPST-MT250A1200V
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
Features
Industrial standard package
Electrically insulated base plate
Heat transfer through aluminium oxide ceramic insulated metal base plate
Chip soldered on direct copper bonded AL2O3 ceramic
Thyristor chip with center gate
Typical Applications
DC motor control
AC motor soft starters
Temperature control
Professional light dimming
VDRM/VRRM | 1200/1200 | V | |
VRSM | 1300 | V |
Symbol | Condition | Ratings | Unit |
IT(AV) | sin. 180; Tc =85°C, | 250 | A |
ITSM | Tvj =25°C; 10 ms | 9500 | A |
I2t | Tvj =25°C; 8,3…10 ms | 450 | kA2S |
(di/dt)cr | 130 | A/us | |
Viso | A.C. 1s / 1min. | V | |
Tj | -40 ~ + 125 | °C | |
Tstg | -40 ~ + 125 | °C | |
W | - | g |
Symbol | Condition | Ratings | Unit |
IDRM /IRRM | AtVDRM, Tj=125°C | 85 | mA |
VT | On-State Current 750A, Tj=25°C | 1.43 | V |
VT(TO) | Tj=125°C | 0.81 | V |
tgd | Tj=25°C | 1 | us |
tq | Tj=125°C | 150 | us |
IGT/VGT | Tj=25°C | 145 / 2 | mA/V |
VGD | Tj=125°C | 0.25 | V |
(dv/dt)cr | Tj=125°C | 1000 | V/us |
IH | Tj=25°C, typ. / max. | 140/450 | mA |
IL | Tj=25°C, typ. / max. | 200/1800 | mA |
Rth(j-c) | Per Module | 0.0455 | K/W |
