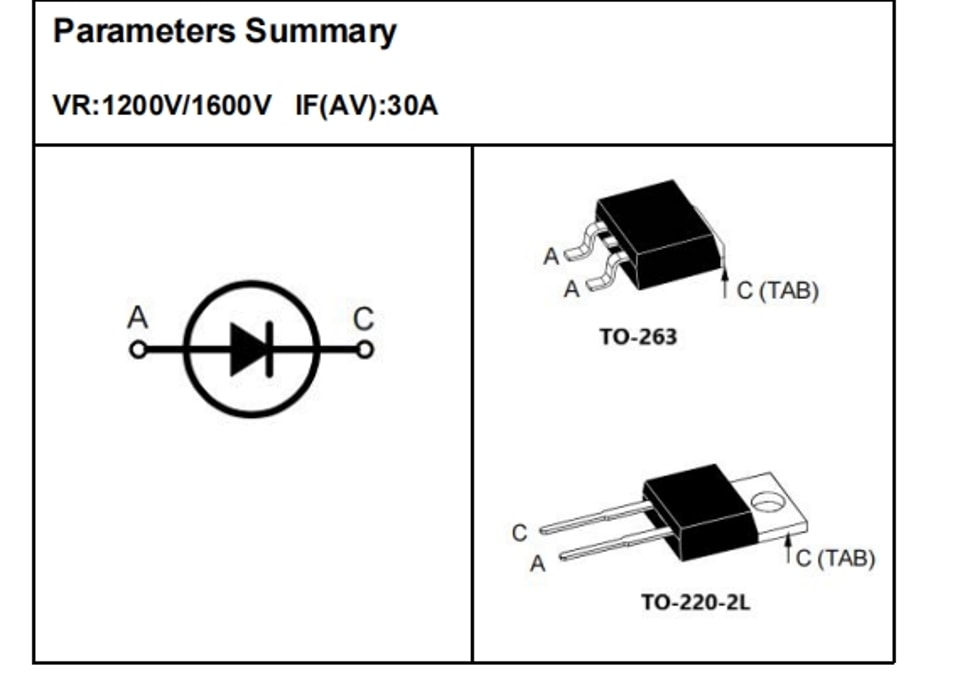

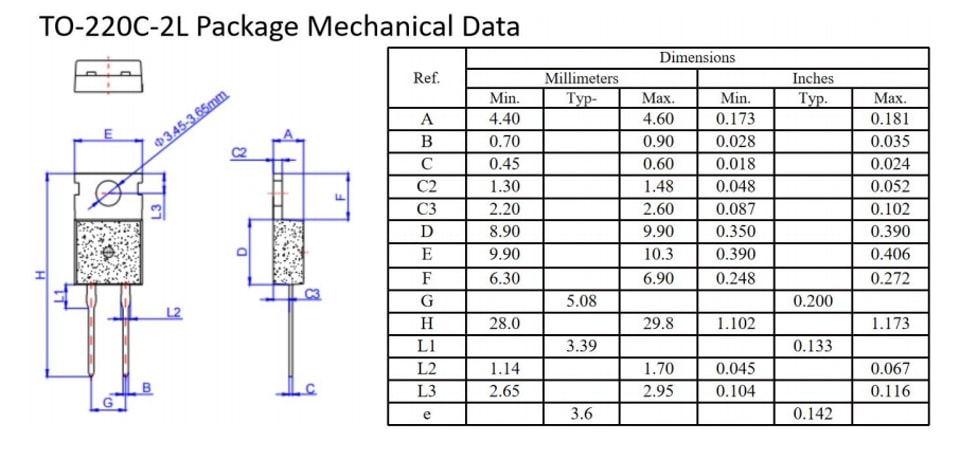

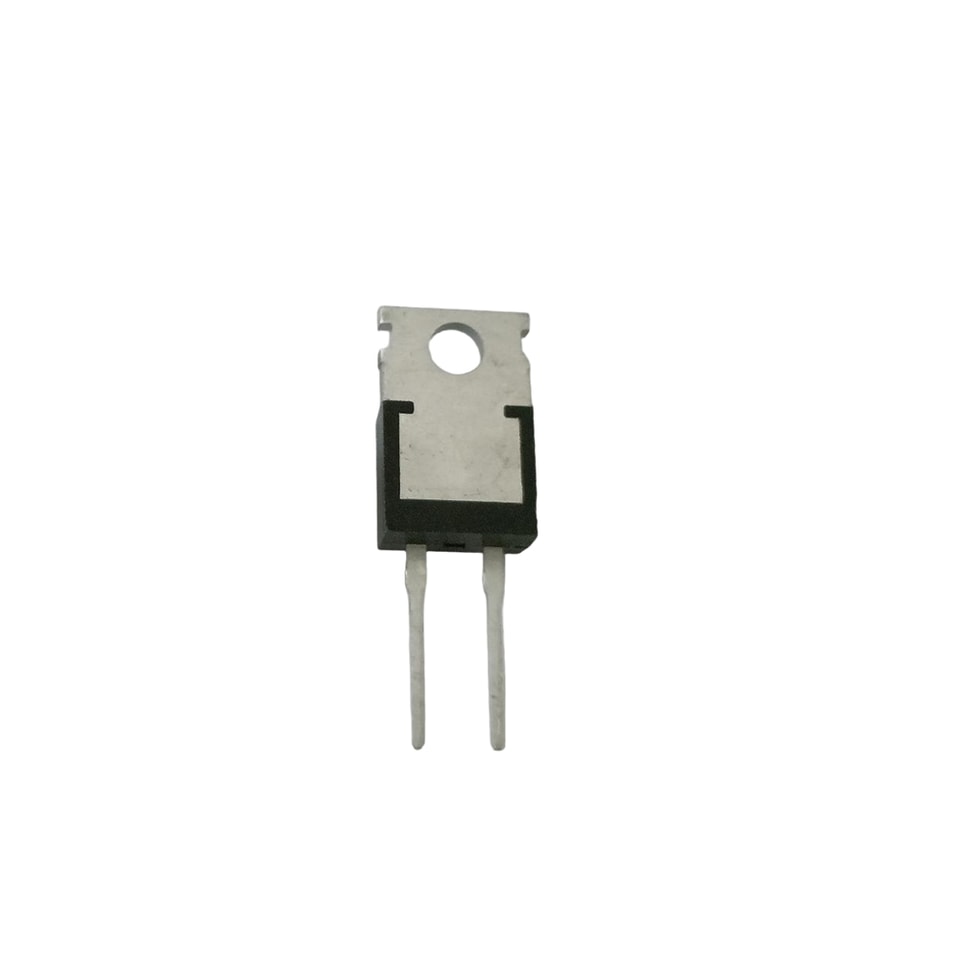

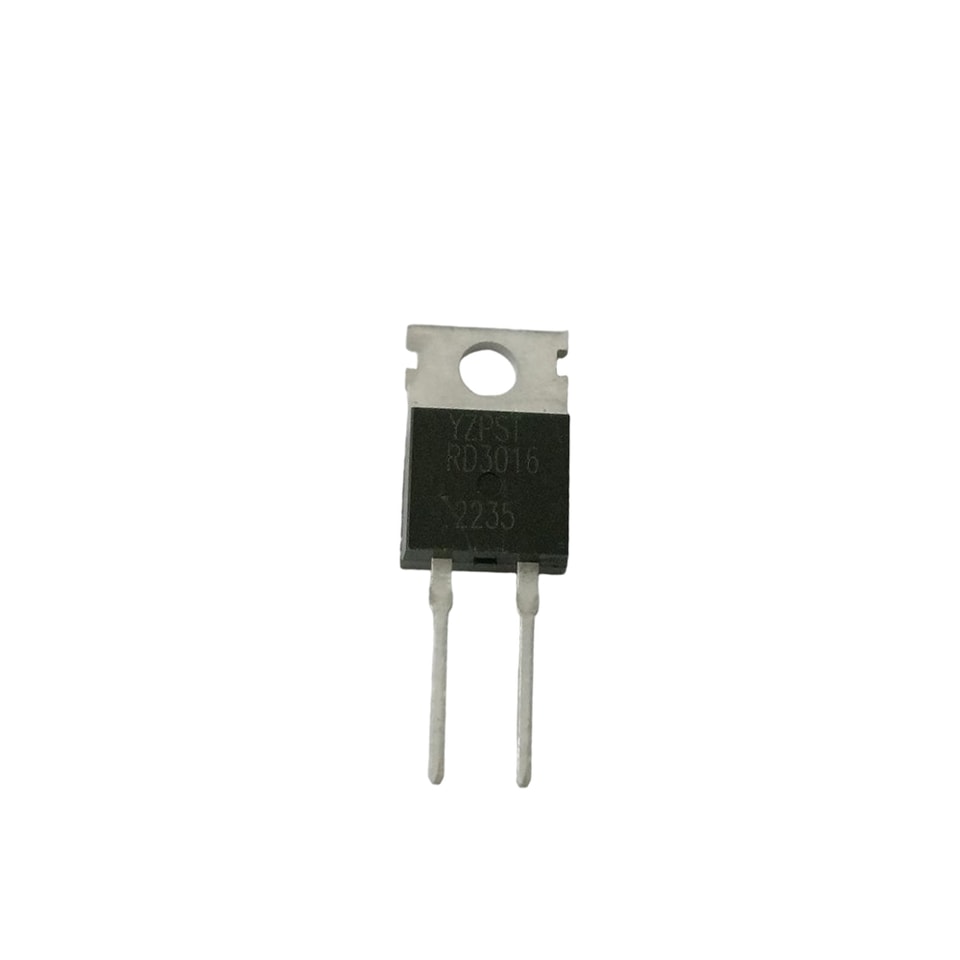

RD30 30A Rectifier Diode

YZPST-RD3016

FEATURES

Glass passivated chip junction

High surge current capability

High voltage and Durability

APPLICATIONS

DCPower Supplies

Field Supply for DCmotors

Power Rectifiers

ABSOLUTE MAXIMUM RATINGS
Parameter	Symbol	Value	Unit
Storage junction temperature range	Tstg	-55 ~ 150	℃
Operating junction temperature range	Tj	-55~ 150	℃
Maximum Repetitive peak reverse voltage	VRRM	1600	V
Maximum RMS Voltage	VRMS	1120	V
Maximum DC Blocking Voltage	VDC	1600	V
Average Forward Current	IF(AV)	30	A
Forward Surge Current (Non-repetitive) @60Hz Half- sine wave, 1 cycle, Tj=25℃	IFSM	350	A
Typical junction capacitance VR=4.0V, f= 1MHz	CJ	150	pF

Thermal Resistances

Symbol

Parameter

Value

Unit

Rth(j-c)

thermal resistance junction to case

0.9

℃/W

ELECTRICAL CHARACTERISTICS (T=25℃unless otherwise specified)
Parameter		Symbol	Value	Unit
Maximum instantaneous forward voltage drop per diode @ IF=30A		VF	1.2	V
Maximum DC reverse current at rated DC blocking voltage per diode	Tj=25℃	IR	5	μA
	Tj=150℃	IR	1	mA
