TECHNICAL PRODUCT DATA

YZPST-GMZP7500A600V

Home > Products > Diode > YZPST-GMZP7500A600V

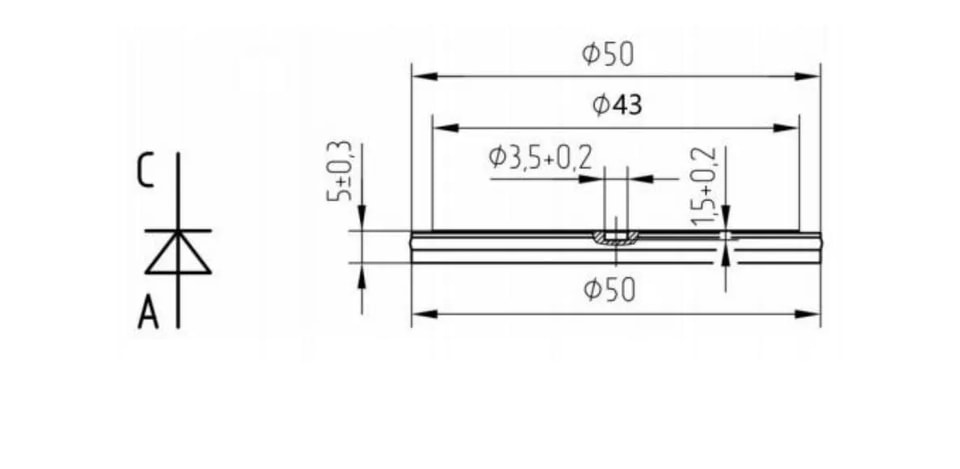

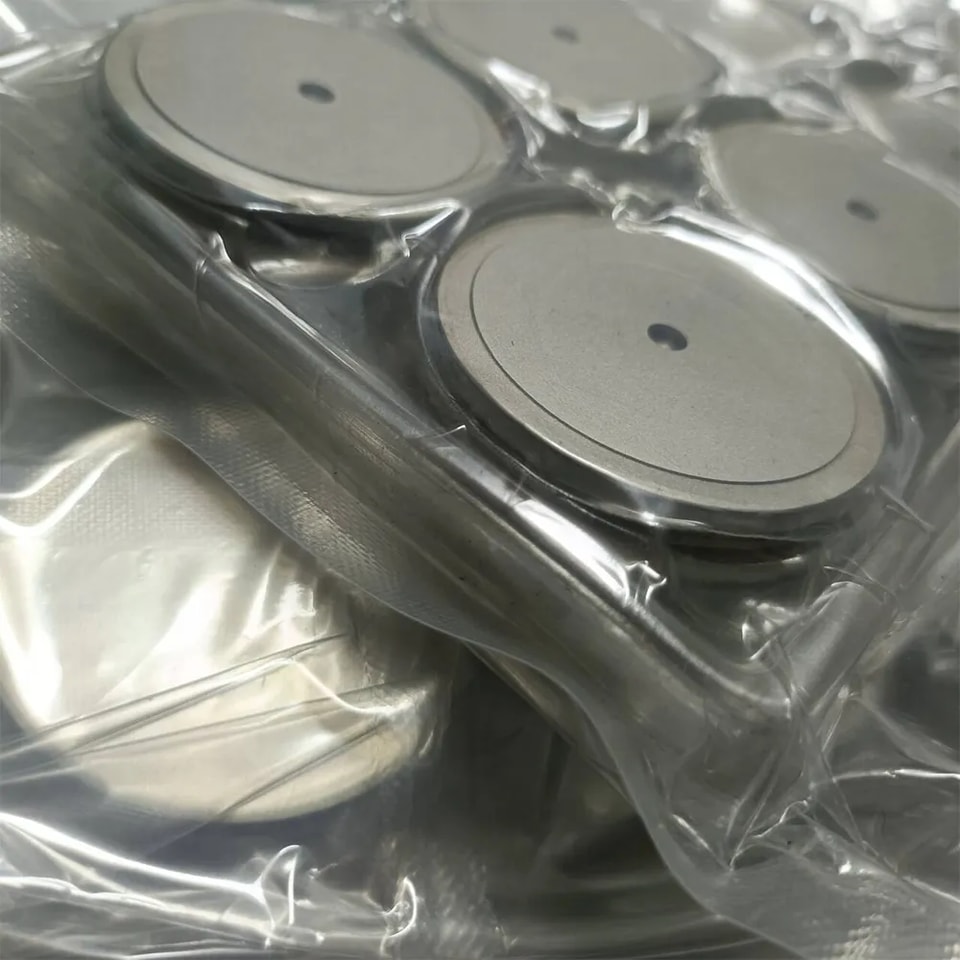

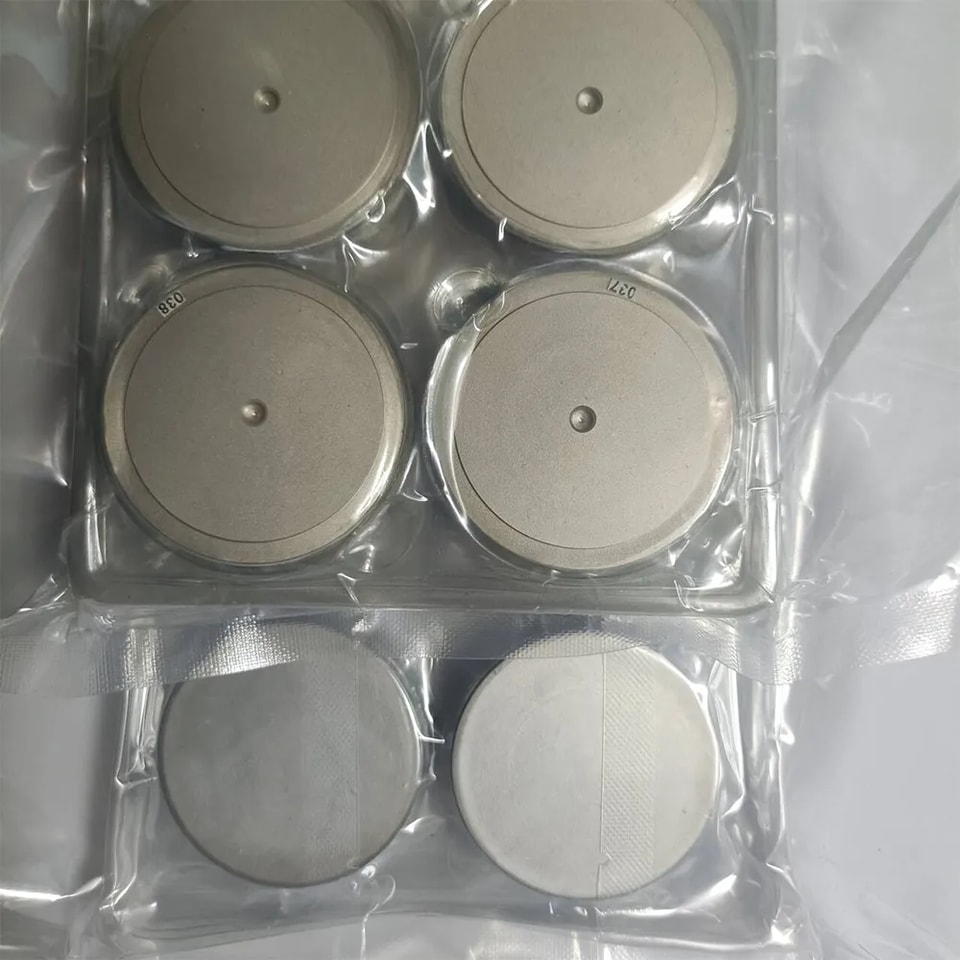

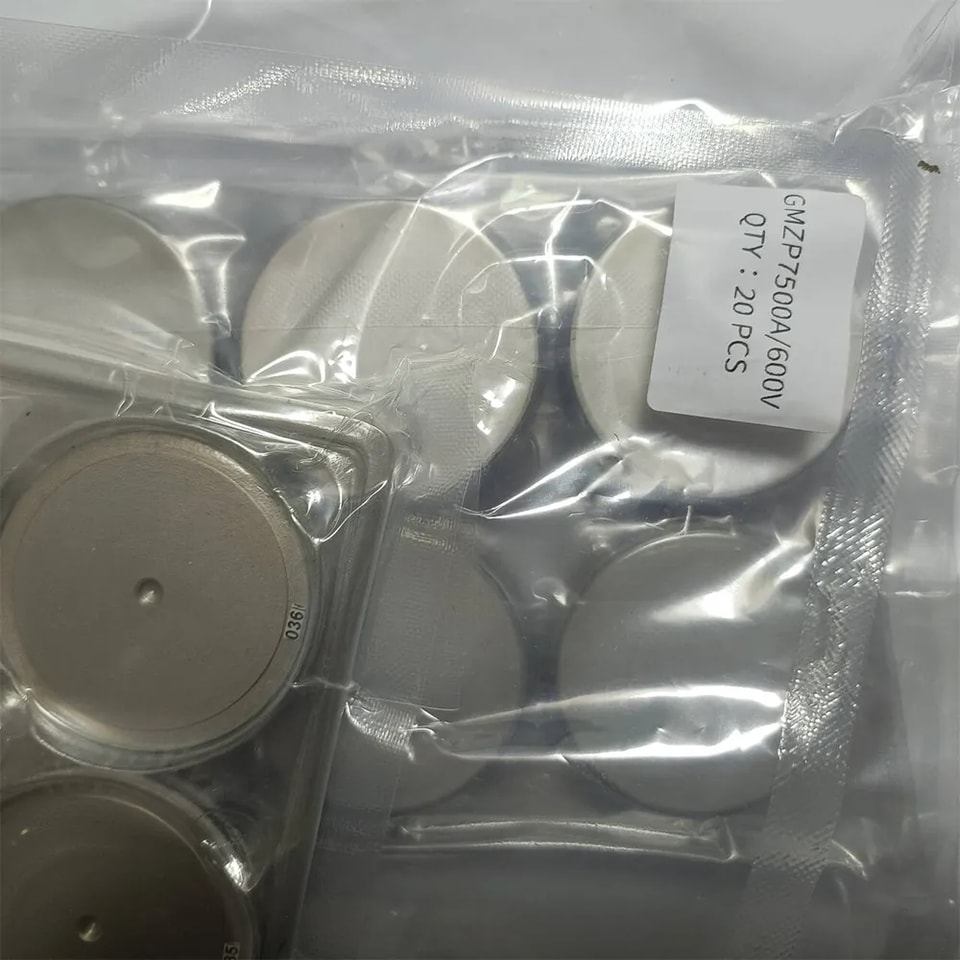

PRODUCT VISUAL01 / GALLERY

POWER COMPONENT

YZPST-GMZP7500A600V

Product summary and primary technical information will be loaded from the product database.

✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry

EmailTechnical sales

PhoneContact team

REQUEST A TECHNICAL QUOTE ↗

Tip: include the part number, target voltage/current and application environment.

DOCUMENT CENTER

Downloads & technical files

YZPST-GMZP-7500A-06-I493.pdfDOWNLOAD ↘

YZPST-GMZP7500A600V

GENERAL PURPOSE HIGH POWER STANDARD RECTIFIER

Features:

All Diffused Structure . High Surge rating

Soft Reverse Recovery

Rugged Ceramic Hermetic Package

Pressure Assembled Device

Typical Applications:

. Rectifier for Drives Applications . Medium voltage converters

. Pulsed power applications . Crowbar Applications

ELECTRICAL CHARACTERISTICS AND RATINGS

Reverse Blocking

VRRM (1)	VRSM (1)
600	600

VRRM = Repetitive peak reverse voltage

VRSM = Non repetitive peak reverse voltage (2)

Notes:

All ratings are specified for Tj=25 oC unless otherwise stated.

(1) All voltage ratings are specified for an applied 50Hz/60zHz sinusoidal waveform over the temperature range -40 to +1850 oC.

(2) 10 msec. max. pulse width

(3) Maximum value for Tj = 150 oC.

(4) See parameter definition below :

Repetitive peak reverse leakage

IRRM

4 mA

100 mA

Conducting - on state

THERMAL AND MECHANICAL CHARACTERISTICS

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Operating temperature	Tj	-40	+150		oC
Storage temperature	Tstg	-40	+150		oC
Thermal resistance - junction to case	RΘ (j-c)		0.009		K / kW	Double side cooled Single sided cooled
Thermal resistance - case to sink	RΘ (c-s)		0.005 -		K/kW	Double side cooled Single sided cooled
Thermal resistance - junction to sink	RΘ (j-s)		- -		oC/kW	Double side cooled Single sided cooled
Mounting force	P	24	30		kN
Weight	W			0.078	Kg	about
