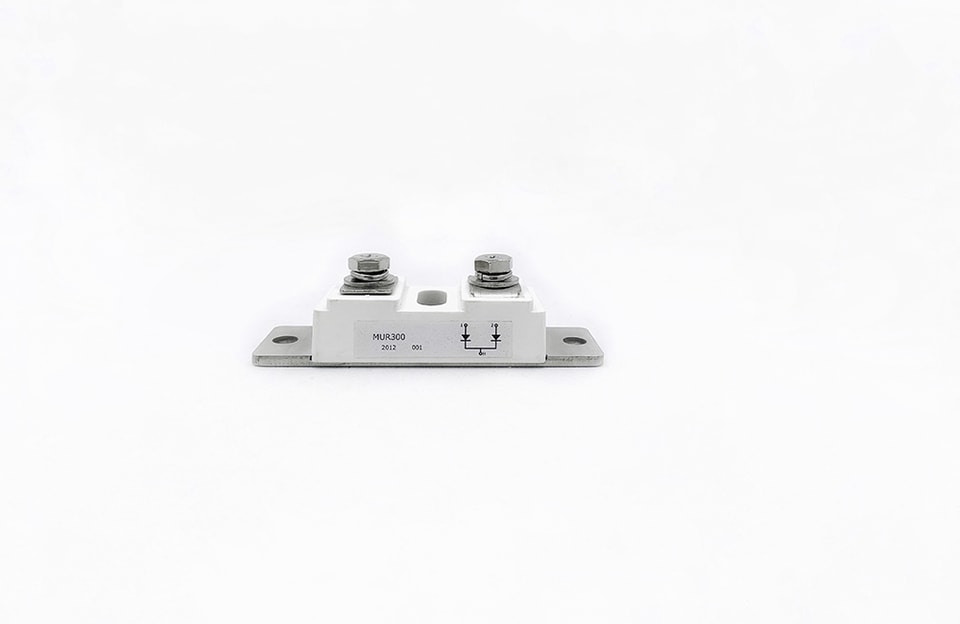

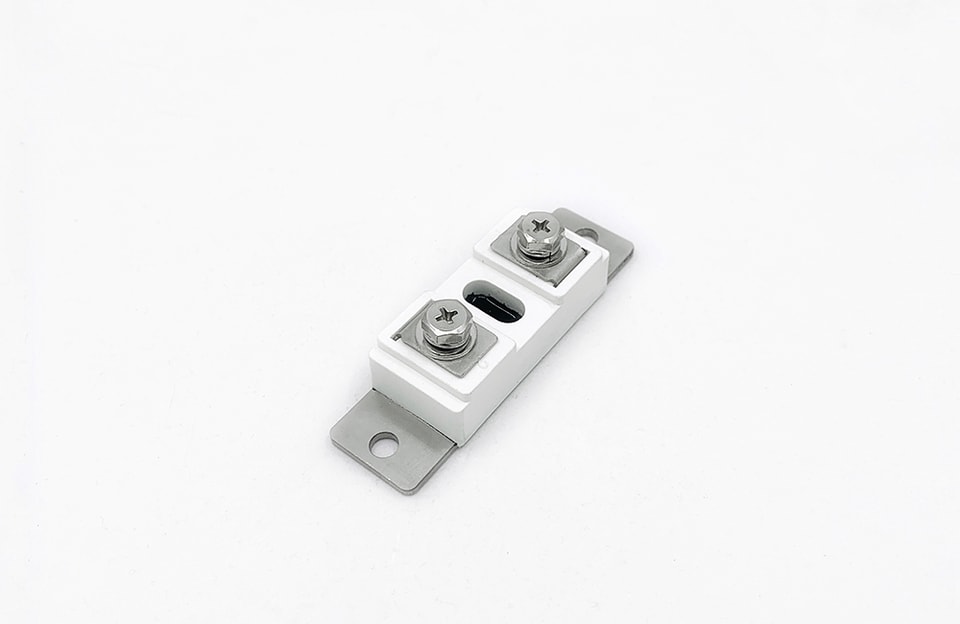

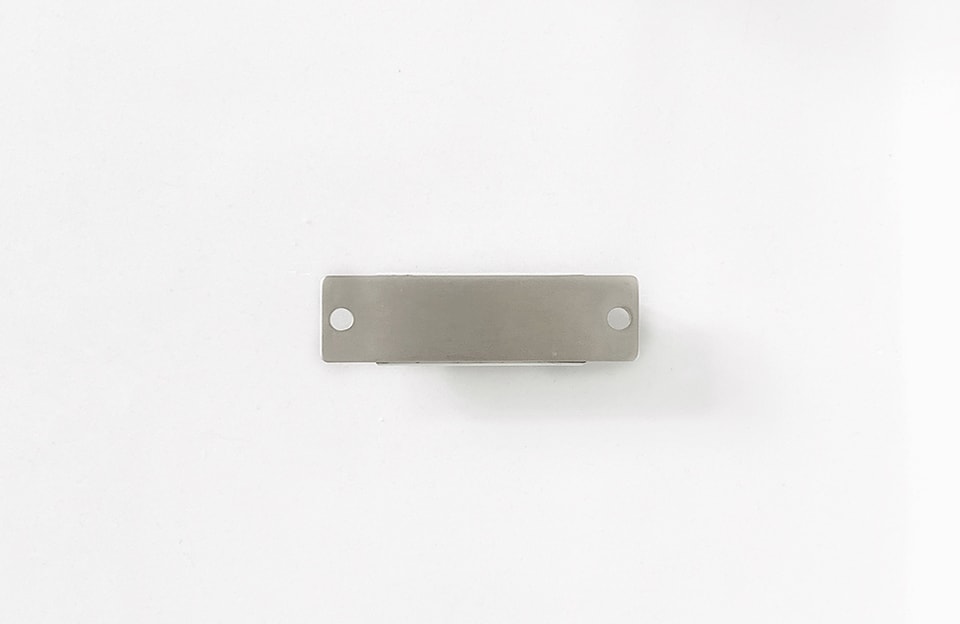

Silicon Super Fast Recovery Diode TYPE:YZPST-MUR30040

Features

High Surge Capability
Types from 50 V to 400 V VRRM
Not ESD Sensitive

Symbol	Condition	Ratings	Unit
IF(AV)M	TC=140°C; 180° sine	300	A
IFRMS	maximum value for continuous operation	425	A
IFSM	Tj=25°C; t = 8.3 ms (50 Hz); sine	1500	A
I2t	Tj=25°C; t = 8.3 ms (50 Hz); sine	-	kA2S
Viso	A.C.1minute/1second	-	V
Tj		-55 ~ + 150	°C
Tstg		-55 ~ + 150	°C
M	mounting torque; ±15%	-	Nm
M	terminal torque; ±15%	-	Nm
W	approx.	-	g
IRRM	AtVRRM，Single phase，half wave，Tj=125°C	3	mA
VFM	On-State Current 300A，Tj=25°C	1.70	V
VF0	Tj=150°C	-	V
rF	Tj=150°C	-	mΩ
trr	Tj=25°C; IF = 0.5A; -diF/dt = 15A/μs; VR = 30V; IRR = 0.25A	90	ns
Qrr	Tj=150°C; IF = 50A; -diF/dt = 100A/μs; VR = 100V	-	us
IRM	Tj=150°C; IF = 50A; -diF/dt = 100A/μs; VR = 100V	-	A
Rth(j-c)	Per Module	0.45	°C/W
Rth(c-h)	Per Module	-	°C/W

Outline Drawing

For more information about Fast Recovery Diode Module please download the PDF file above named " YANGZHOU POSITIONING TECH CO Power thyristor and diode parts "
