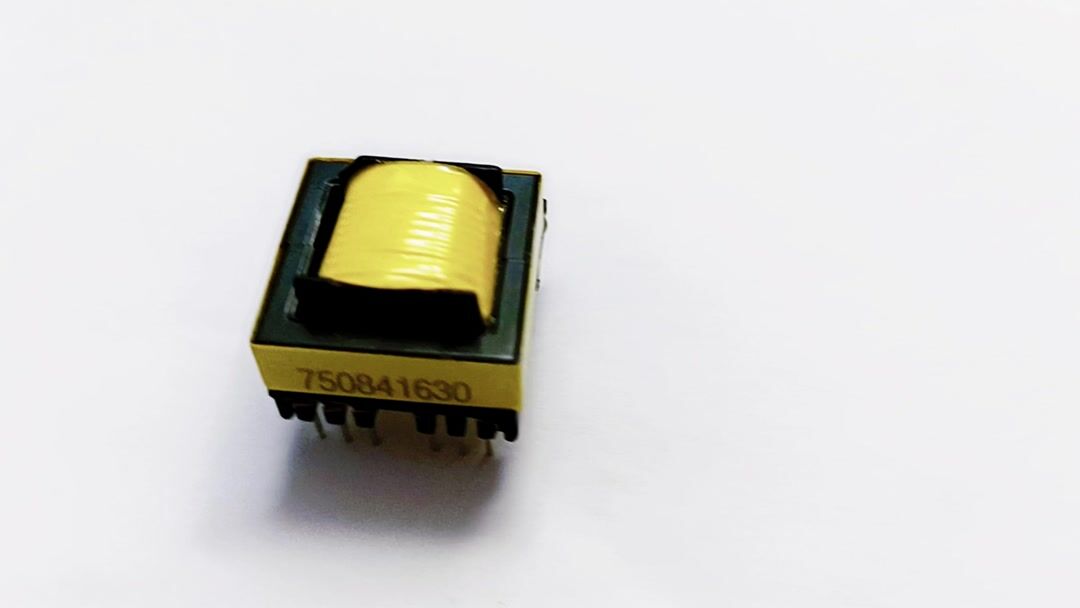

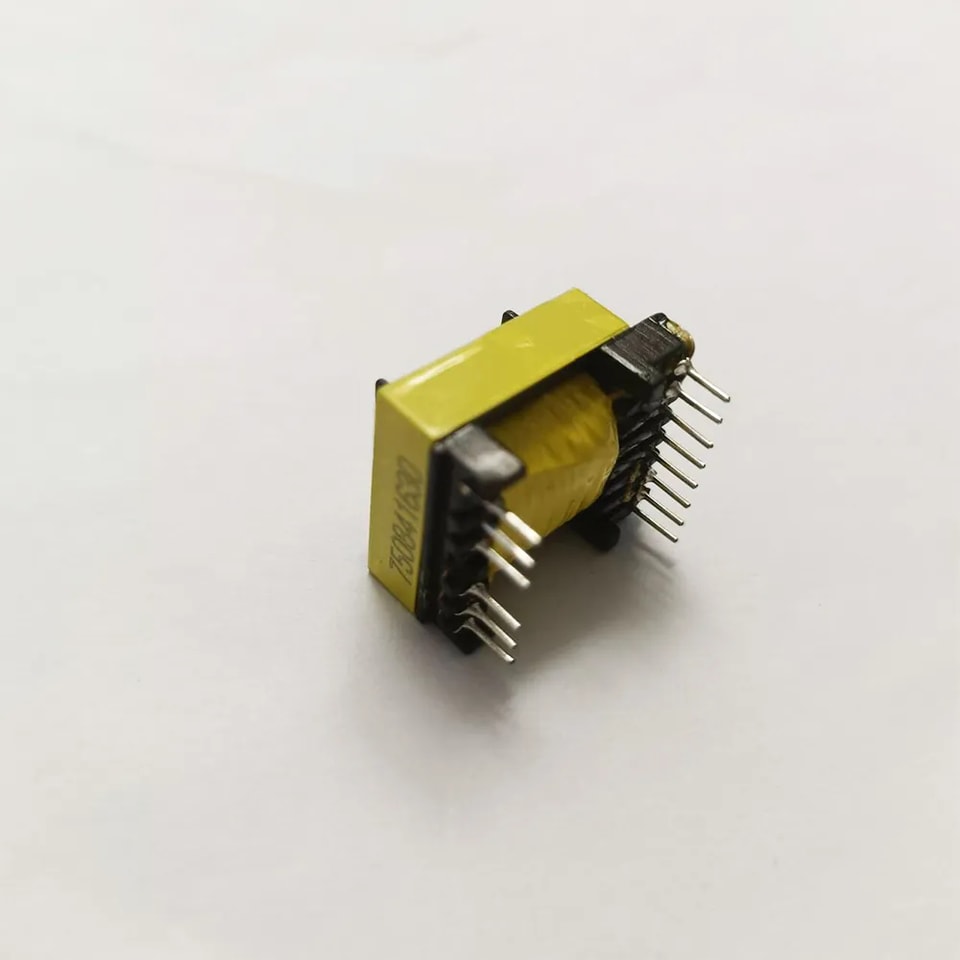

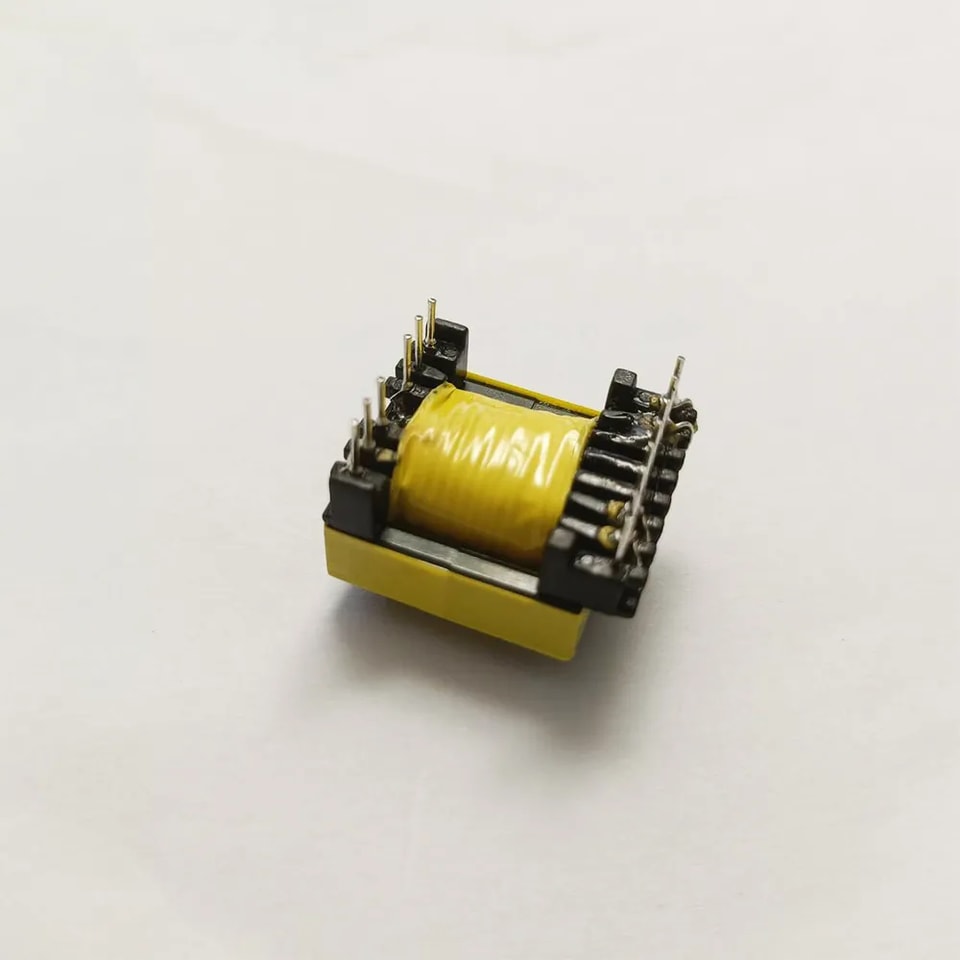

TRANSFORMER
P/N:YZPST-EF25 70.0mH

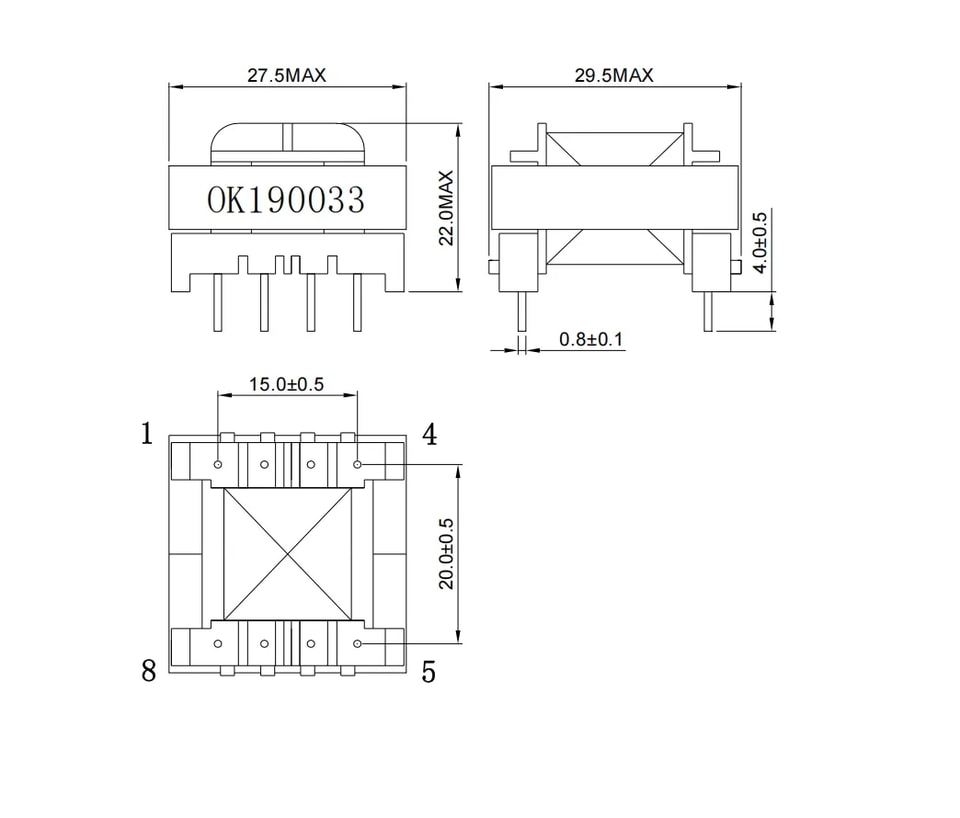

OUTLINE DIMENSION: (UNIT: mm)

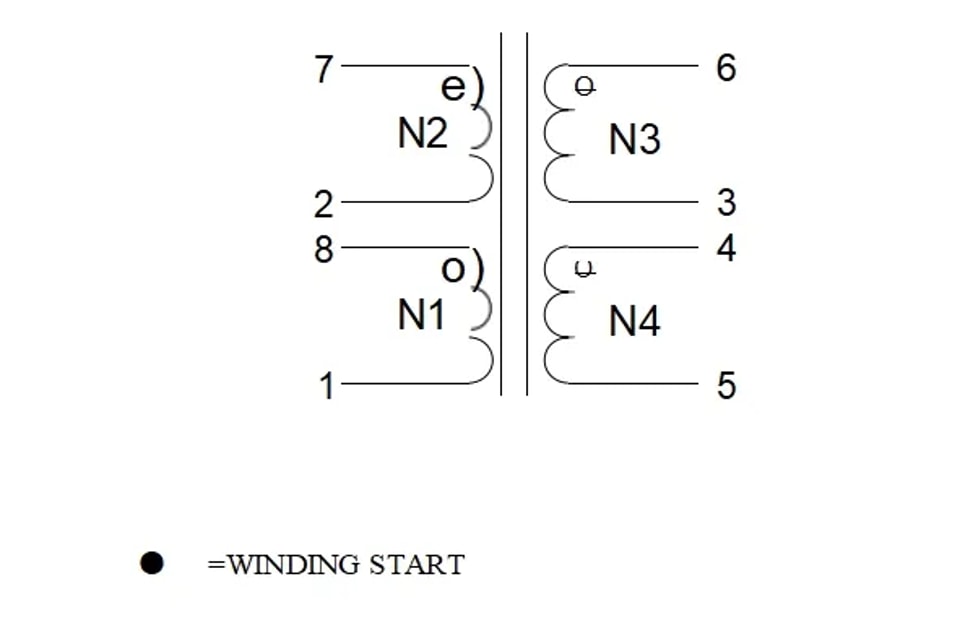

SCHEMATIC:
WINDING:
WDG | TERMINAL | WIRESIZE | TURNS | TAPE | REMARK |
N1 | 1-8 | QA-1-0.20/155℃ | 550 | 1 |
|
N2 | 7-2 | QA-1-0.45/155℃ | 6 |
1 |
|
N3 | 6-3 | QA-1-0.45/155℃ | 6 |
| |
N4 | 4-5 | QA-1-0.45/155℃ | 4 | 2 |
|
Note: Pin 1-4 of N1 winding faces the machine; N2/N3/N4 windings with pin 5-8 facing the machine | |||||
TECHNICAL PARAMETER
NO. | ITEM | MEASURED POINT | TECHNICALDATA | TEST CONDITION |
1 | INDUCTANCE | 8-1 | 70.0mH±10% | 10KHZ 0.3V LCZ1062 |
|
|
|
|
|
|
|
|
|

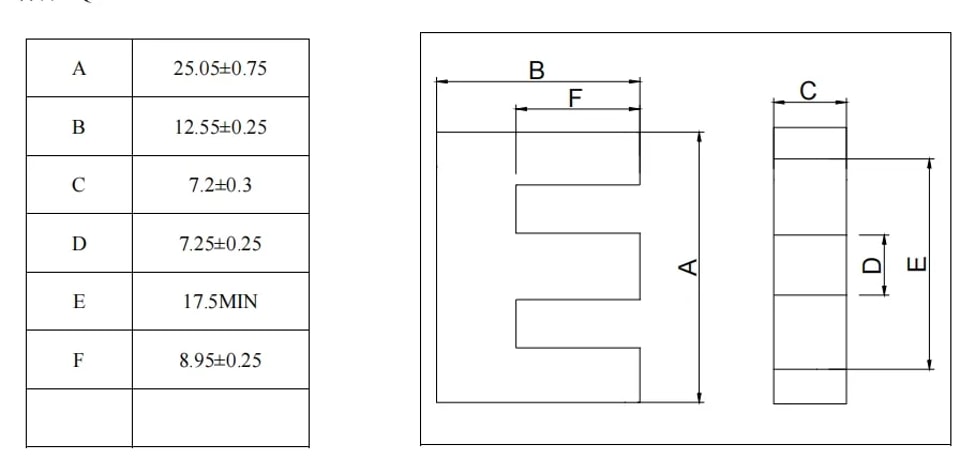

CORE DEMENSION:(UNIT:mm) QP4A
