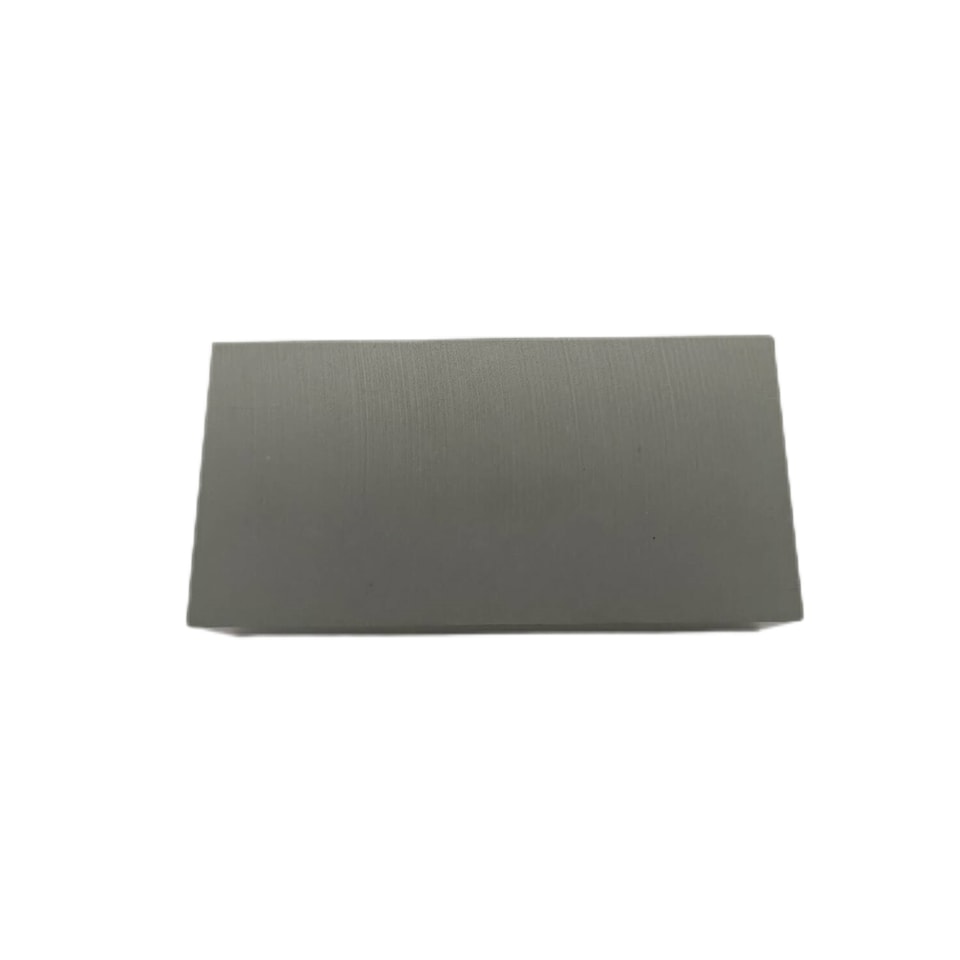

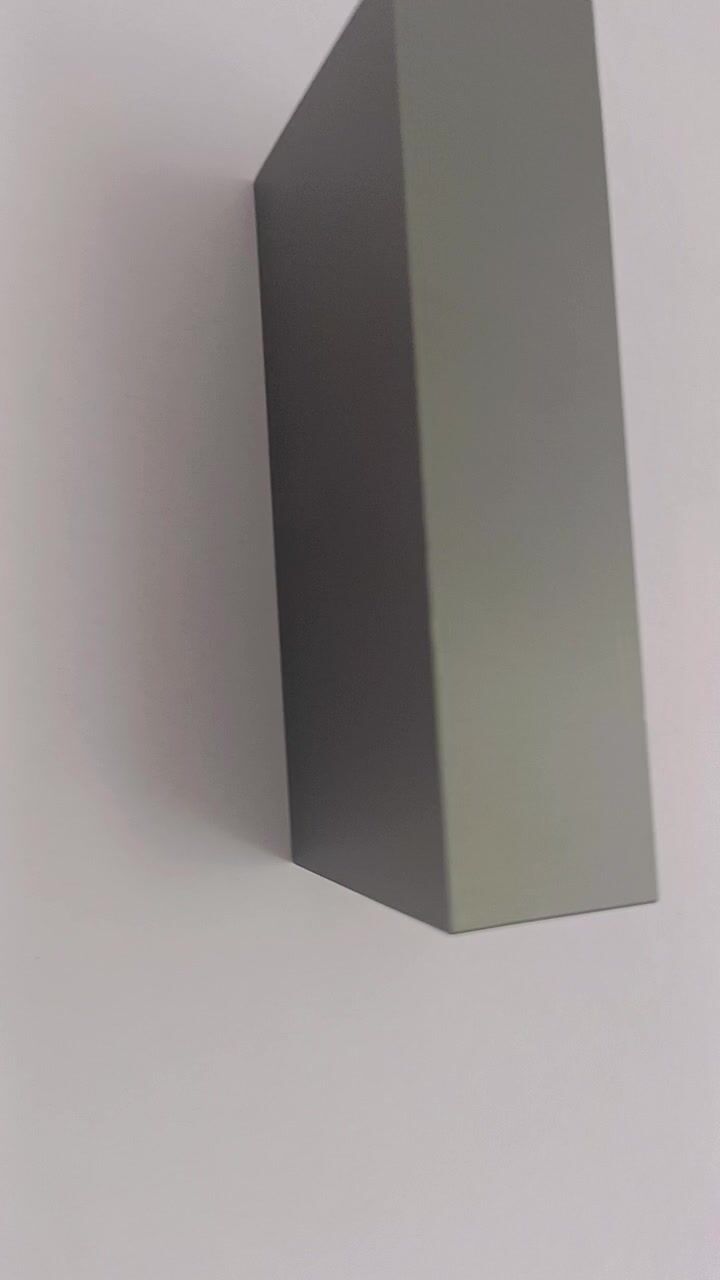

Ferrite Bar YZPST-101.6x50.8x25.4
✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry
EmailTechnical sales
PhoneContact team
Tip: include the part number, target voltage/current and application environment.
DOCUMENT CENTER
Downloads & technical files

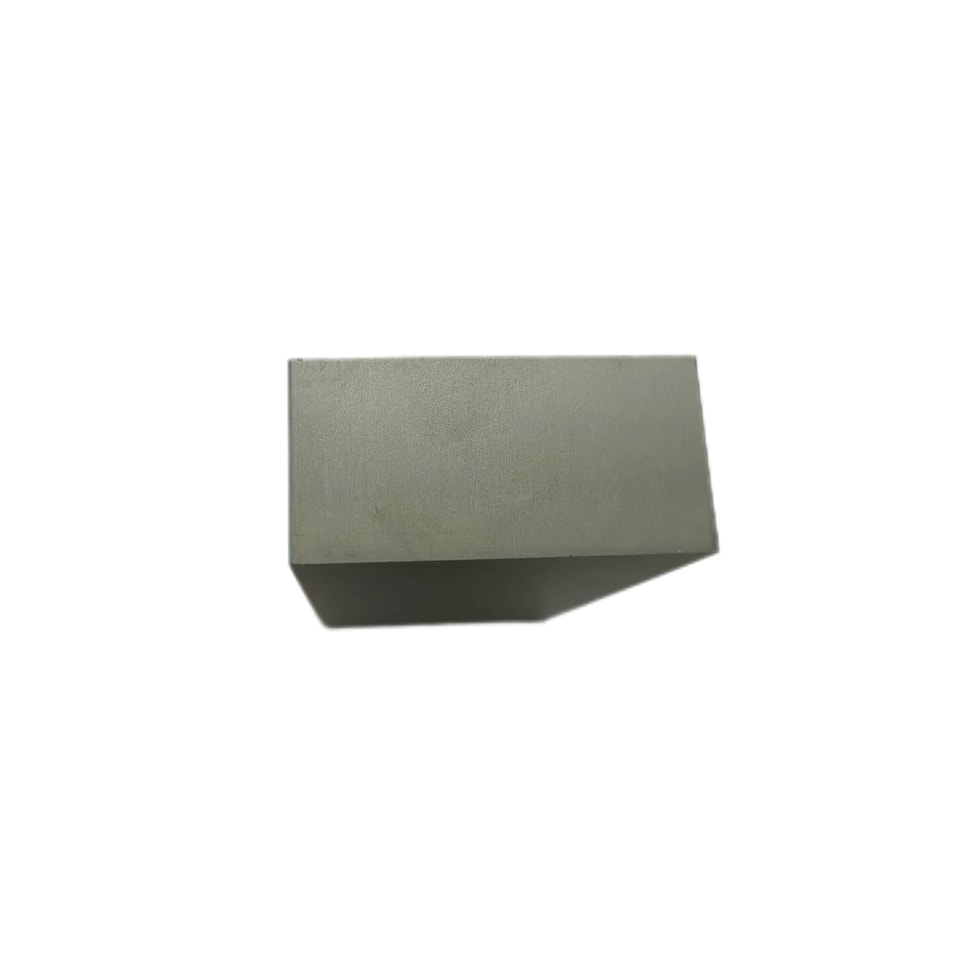

YZPST-101.6x50.8x25.4 ferrite bar

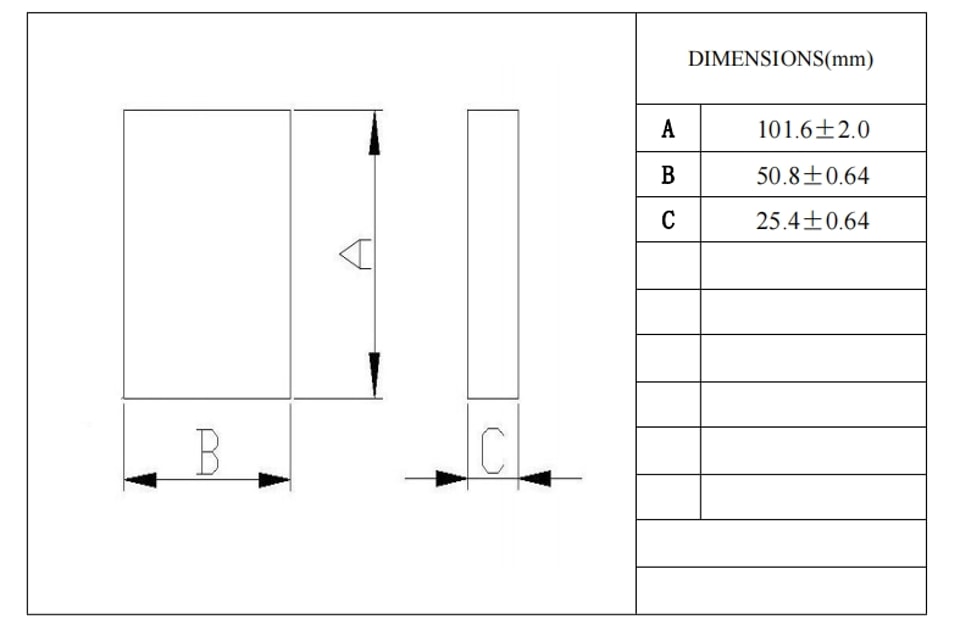

DIMENSIONS(mm)
PARAMETETS | |
Core Factor C1 | \ mm-1 |
Effective Length Le | \ mm |
Effective Cross Area Ae | \ mm2 |
Effective Volume Ve | \ mm3 |
Apporx .Weight | 645 g/set |
MATERIAL CHARACTERISTICS
| Characteristice | Symbol | Unit | PTS40 | |
| Initial permeability | ui | \ | 2300±25% | |
| mT | 25℃ | 510 | ||
| Saturation flux density | Bs | （1000A/m） | 100℃ | 390 |
| Remanence | Br | mT | 120 | |
| Coercivity | Hc | A/m | 13 | |
| 25℃ | \ | |||
| Power loss | Pc | KW/m3 | 60℃ | 550 |
| f=100kHz，B=200mT | 100℃ | 410 | ||
| Curie temperature | Tc | ℃ | >230 | |
| Resistivity | ρ | Ω*m | 6.5 | |
| Density | d | Kg/m3 ×103 | 4.8 | |
| Note ：The values were obtaioned with toroidal eores at room remperature unless otherwise shown | ||||

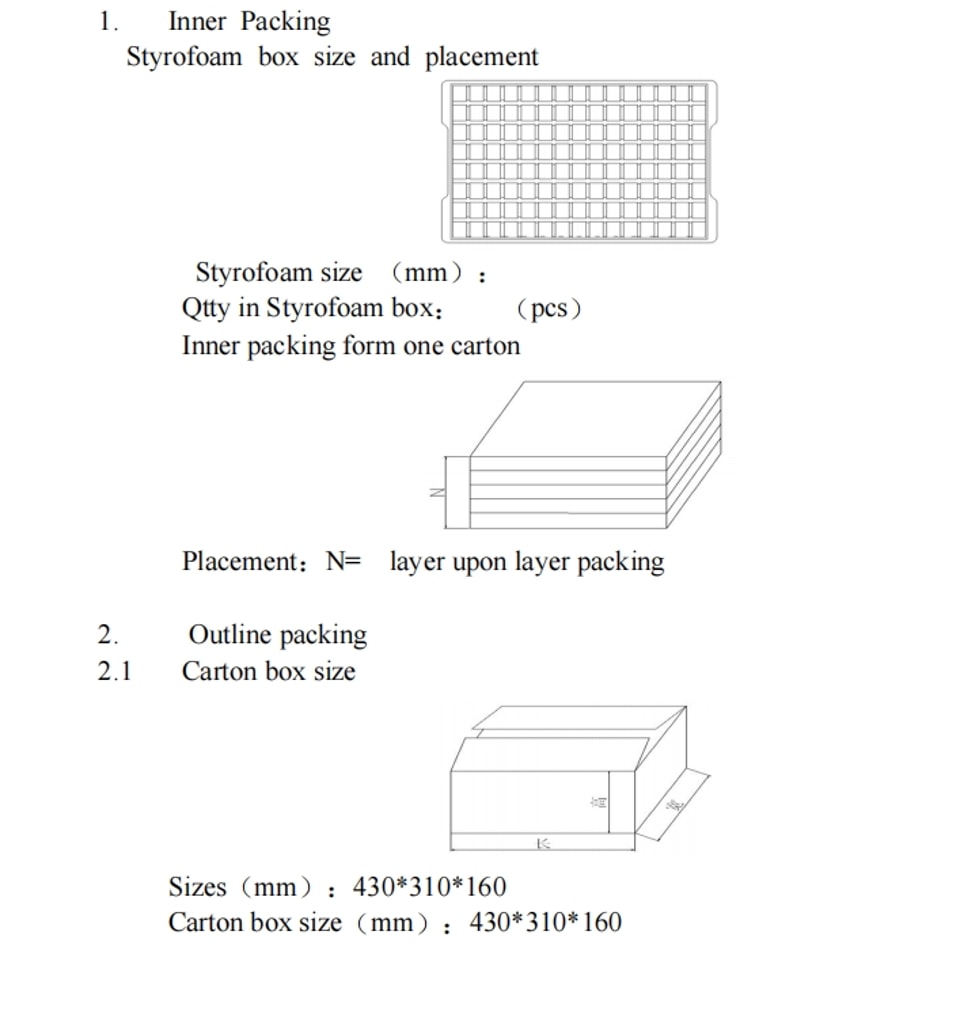

Maximum chip off：
- Thedepthof crack in the ground surface should be no more than 0.3mm,length is no more than 1/4, length of lengthen line. In the non-ground surface, the depth should be no more than 0.5mm length is no more than 1/3 length ot lengthen line.
