POWER COMPONENT

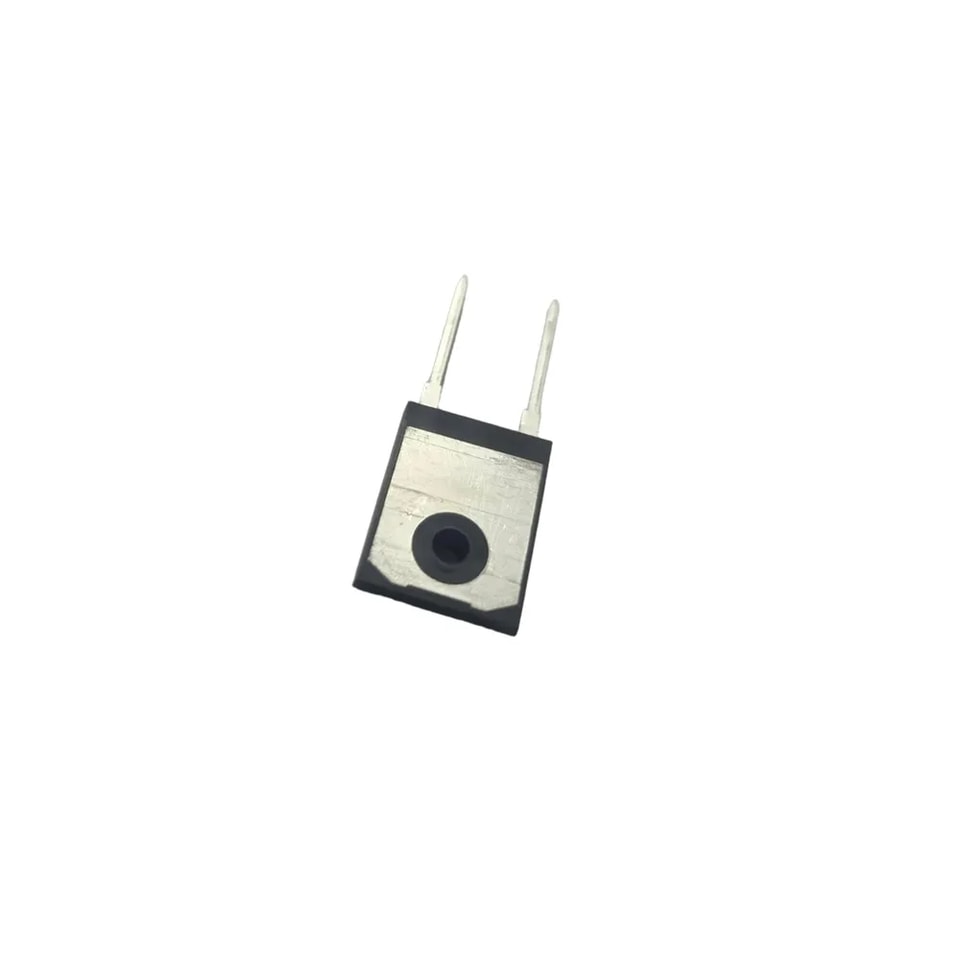

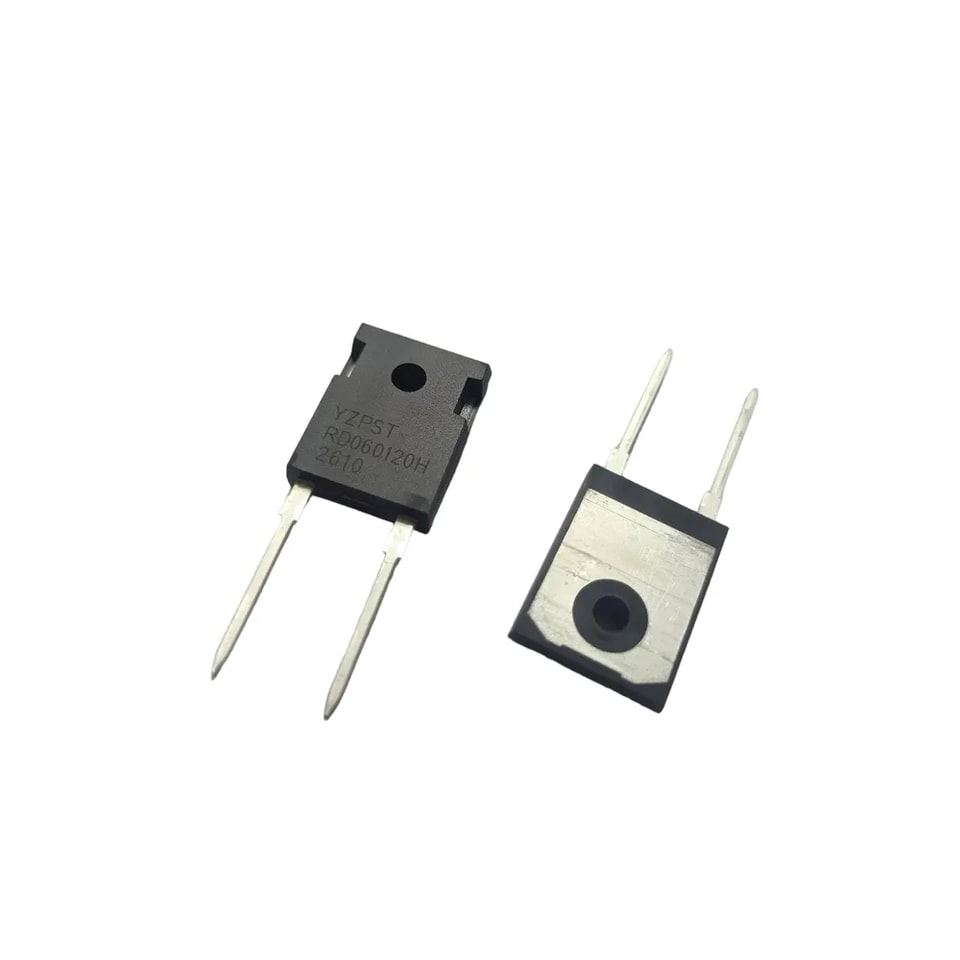

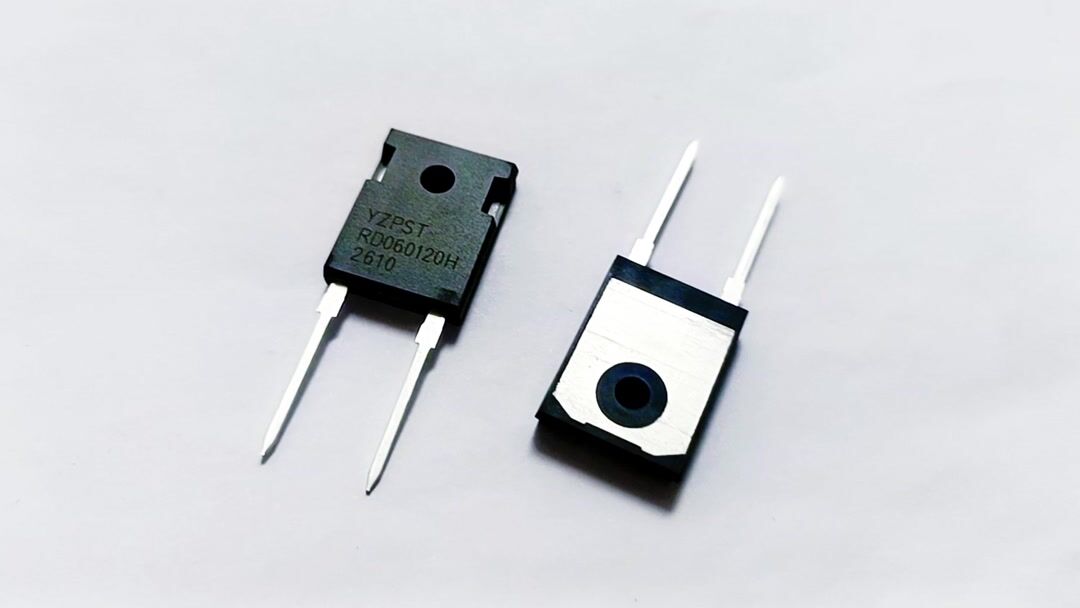

YZPST-RD060120H
✓Technical product information✓Application-focused selection support✓Catalog and requirement-based inquiry
EmailTechnical sales
PhoneContact team
Tip: include the part number, target voltage/current and application environment.
DOCUMENT CENTER
Downloads & technical files
1200V SiC Schottky Diode
YZPST-RD060120H
Features
Zero Forward Recovery Voltage
Zero Reverse Recovery Current
Excellent Surge Current Capability
Temperature Independent Switching
Positive Temperature Coefficient on VF
High Frequency Operation
Benefits
Replace Bipolar with Unipolar Rectifiers
Essentially No Switching Losses
High Efficiency
Reduction of Heat Sink Requirements
Parallel Devices Without Thermal Runaway
Application
Parallel Devices Without Thermal Runaway
Power Factor Correction
DC-AC Inverters
DC-DC Inverters
Parameter | Value | Unit |
VRRM | 1200 | V |
IF（TC =145℃) | 60 | A |
QC | 306 | nC |
Parameter | Symbol | Test Condition | Value | Unit |
Repetitive Peak Reverse Voltage | VRRM |
| 1200 | V |
Forward Current | IF | TC =25℃ TC =145℃ | 155 60 | A |
Non-Repetitive Forward Surge Current | IFSM | TC =25°C, tp =10ms, Half Sine Wave | 450 | A |
Power Dissipation | Ptot | TC =25℃, Tj =175℃ | 535 | W |
Operating and Storage Temperature | Tj, Tstg |
| -55 to +175 | ℃ |

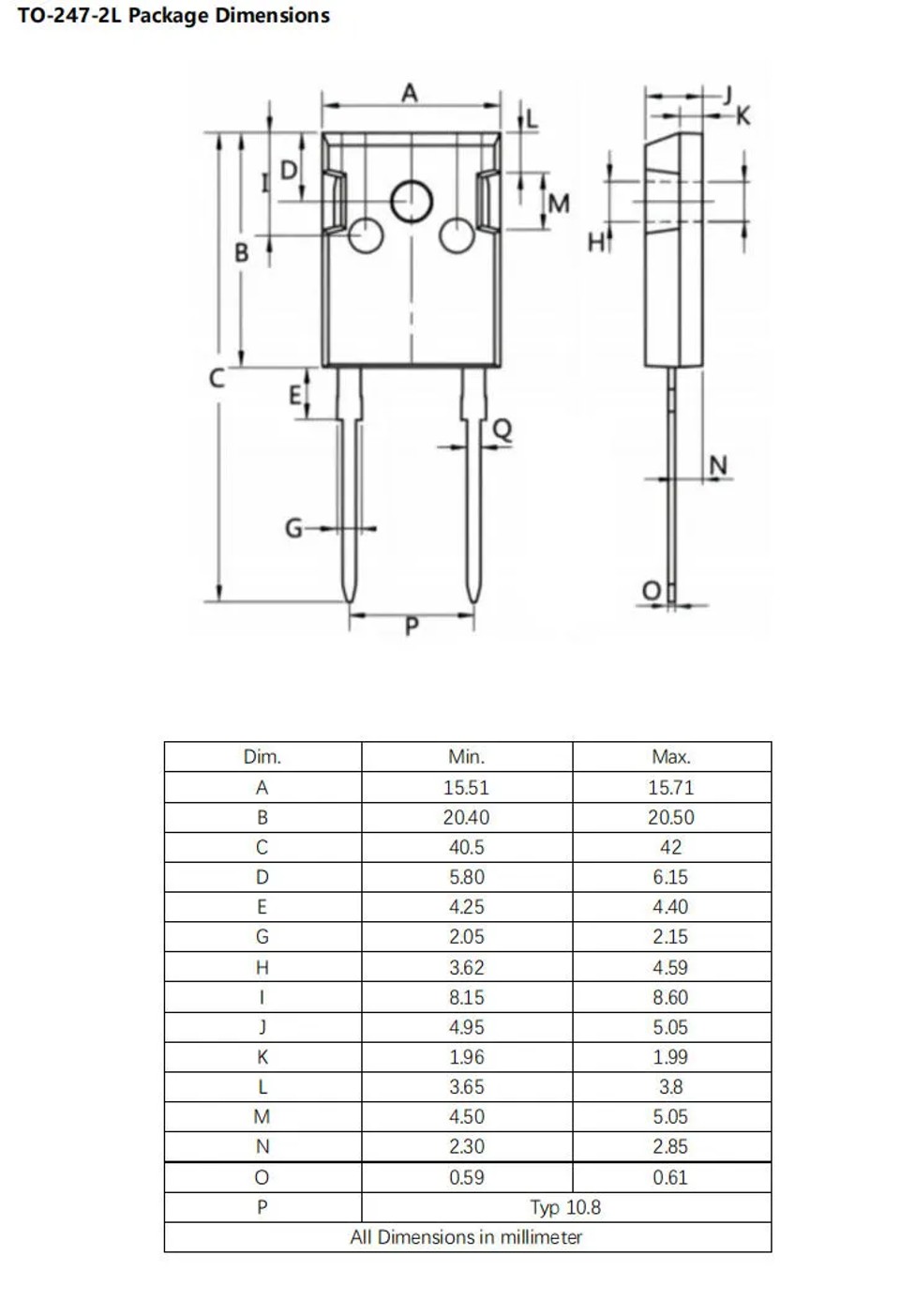

TO-247-2L Package Dimensions
No additional product content is available.
