YZPST-QL60A-1200V
YZPST-QL60A
Single Phase 60 AMPS.
Silicon Bridge Rectifiers
Features
Ideal for printed circuit board
Reliable low cost construction technique results in inexpensive product
High temperature soldering guaranteed: 260℃ / 10 seconds / 0.375” ( 9.5mm )
lead length at 5 lbs.,( 66642077, 2.3 kg ) tension
Mechanical Data
Case: Molded plastic
Lead: solder plated
Polarity: As marked
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product description

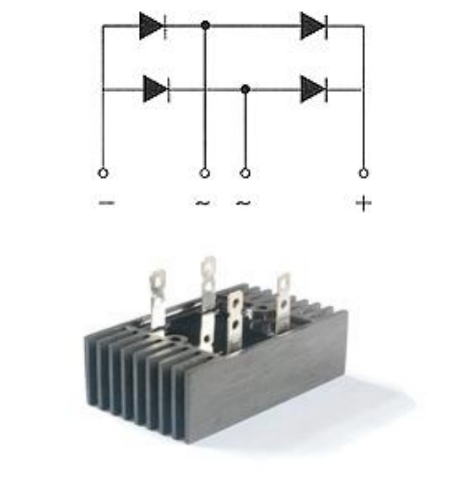

YZPST-QL60A
Single Phase 60 AMPS.
Silicon Bridge Rectifiers
Features
Ideal for printed circuit board
Reliable low cost construction technique results in inexpensive product
High temperature soldering guaranteed: 260℃ / 10 seconds / 0.375” ( 9.5mm )
lead length at 5 lbs.,( 66642077, 2.3 kg ) tension

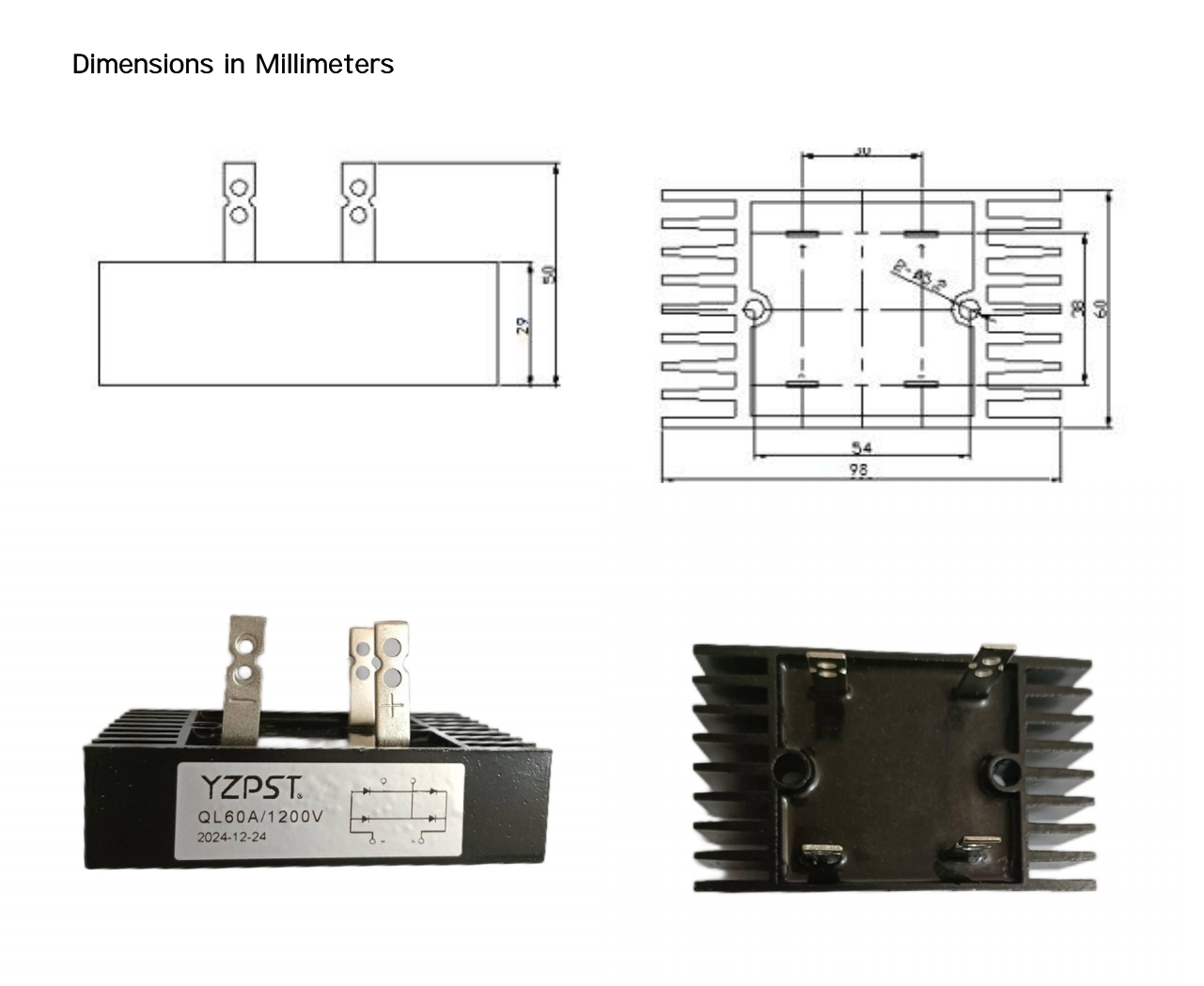

Mechanical Data
Case: Molded plastic
Lead: solder plated
Polarity: As marked
| DFR | QL | QL | QL | QL | QL | QL | QL | ||
| symbol | UNIT | ||||||||
| 60A-02 | 60A-04 | 60A-06 | 60A-08 | 60A-10 | 60A-12 | 60A-16 | |||
| Maximum reecurrent peak reverse voltage | VRRM | 200 | 400 | 600 | 800 | 1000 | 1200 | 1600 | V |
| Maximum rms lnput voltage | VRMS | 140 | 280 | 420 | 560 | 700 | 840 | 1120 | V |
| Maximum dc blocking voltage | VDC | 200 | 400 | 600 | 800 | 1000 | 1200 | 1600 | V |
| Tc=55℃ | ID | 60 | A | ||||||
| Maximum average forward output rectifled | |||||||||
| Peak forward surge current 8.3ms single half sine-wave | IFSM | 1000 | A | ||||||
| IF =30 A, | VF | 1.1 | V | ||||||
| Maximum forward voltage | |||||||||
| Maximum reverse voltage | IR | 10 | μA | ||||||
| IR(H) | 200 | μA | |||||||
| Thermal resistance junction to shell | RθJC | 0.45 | °C/W | ||||||
| Thermal resistance shell to environment | RθJA | 0.5 | °C | ||||||
| Operating temperature range | TJ | -40～+125 | °C | ||||||
| storage temperature range | TSTG | -40～+150 | °C | ||||||
