YZPST-GMZP2000A600V
Reverse Blocking
|
VRRM (1) |
VRSM (1) |
|
600 |
600 |
VRRM = Repetitive peak reverse voltage
VRSM = Non repetitive peak reverse voltage (2)
Reverse Blocking
|
VRRM (1) |
VRSM (1) |
|
600 |
600 |
VRRM = Repetitive peak reverse voltage
VRSM = Non repetitive peak reverse voltage (2)
|
Repetitive peak reverse leakage |
IRRM |
2 mA 20 mA |
Conducting - on state
|
Parameter |
Symbol |
Min |
Max. |
Typ |
Units |
Conditions |
|
Max. Average value of on-state current |
IF(AV)M |
|
2000 |
|
A |
Sinewave, 180oconduction,Tc=90oC |
|
RMS value of on-state current |
IF(RMS)M |
|
3140 |
|
A |
Nominal value |
|
Peak one cycle surge (non repetitive) current |
IFSM |
|
15 |
|
KA |
Tj=25°C, VR=0,8VRRM, tp= 10ms |
|
I square t |
I2t |
|
350 |
|
KA2s |
10 msec |
|
Peak on-state voltage |
VFM |
|
1.05 |
|
V |
IFM =2000 A; Tj = 25°C |
|
Threshold voltage |
VF0 |
|
- |
|
V |
Tj = Tj Max |
|
Slope resistance |
rf |
|
- |
|
mΩ |
Tj = Tj Max |
|
Reverse Recovery Current (4) |
IRM(REC) |
|
- |
|
A |
IFM = 1000 A; d IF/dt = 10 A/μs, Tj = 160 oC |
|
Reverse Recovery Charge (4) |
Qrr |
|
- |
|
μC |
|
|
Reverse Recovery Time (4) |
tRR |
|
- |
|
μs |

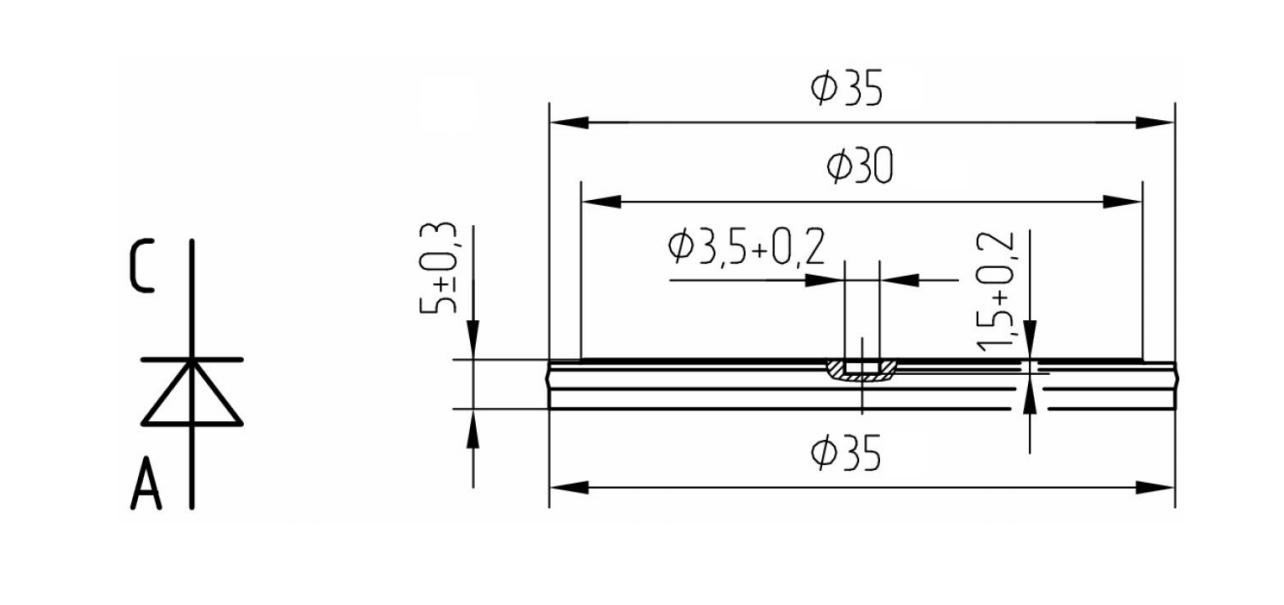

CASE OUTLINE AND DIMENSIONS
