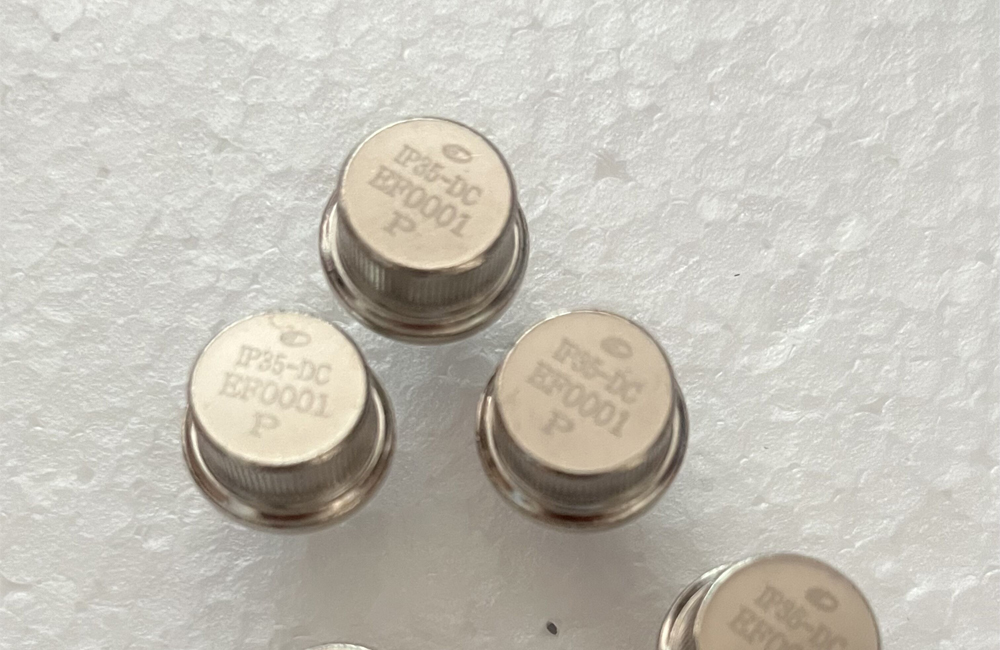

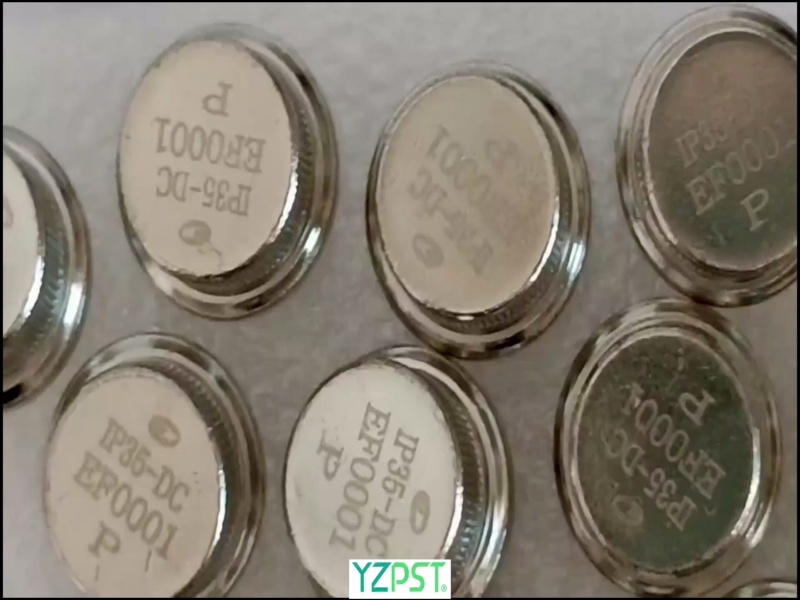

YZPST-IP35-DC
Product Name： Press Fit Diode
Product Number：IP35-DCP IP35-DCN
Product Specifications： 35A / ≥400V
Coating
•Base: Electroplated dark nickel
•Lead: Bare copper immersion tin
Requirements
• Press-in force: The recommended pressing force is 1.5-5KN
Rated value
| Type | Average forward current(If)A | Reverse repetitive peak voltage(Vrrm) | Maximum junction temperature(Tjm)℃ | Rated case temperature(Tc) | Forward non-repetitive surge current(IFSM) | Storage temperature(Tstg)℃ | |
| positive polarity | negative polarity | V | ℃ | A | |||
| IP35-DCP | IP35-DCN | 35 | 300 | 175 | -40—175 | 400 | -40—175 |
Electrical Characteristics Tc=25°C (unless otherwise specified)
| Type | Forward peak voltage (Vfm) V | Reverse repetitive peak current | Reverse repetitive peak current(1rrm2) uA | |
| (Ifm=100A) | (1rrmi)uA | (Vr=300V | ||
| positive polarity | negative polarity | (Vr=300V) | Tr=150°C) | |
| 1P35-DCP | IP35-DCN | ≤1.18 | 2 | 200 |
Thermal characteristics
| Parameter Name | Thermal resistance R(th)j-c |
| Unit | °c/w |
| Canonical Value | ≤0.8 |
| Test Conditions | If=35A ts=1000ms |
Factory inspection items
Thermal resistance
n=50 Ac=0
n=50 Ac=0
Forward peak voltage
Reverse leakage current
n=10 Ac=0
Total Height：29±1
Lead diameter：1.3±0.15
Pipe diameter: 12.80±0.03
Package
• Packing: 500 pcs/box, 10 boxes/carton
•Identification:
Inner box label:
The red word indicates a "positive"diode
Black words indicate "negative" diodes
Production batch
Product number
breakdown voltage
polarity
quantity
Outer box identification:
model
quantity
For more information about YZPST-IP35-DC please download the PDF file above named " YZPST-IP35-DC-Press-fit diode "
