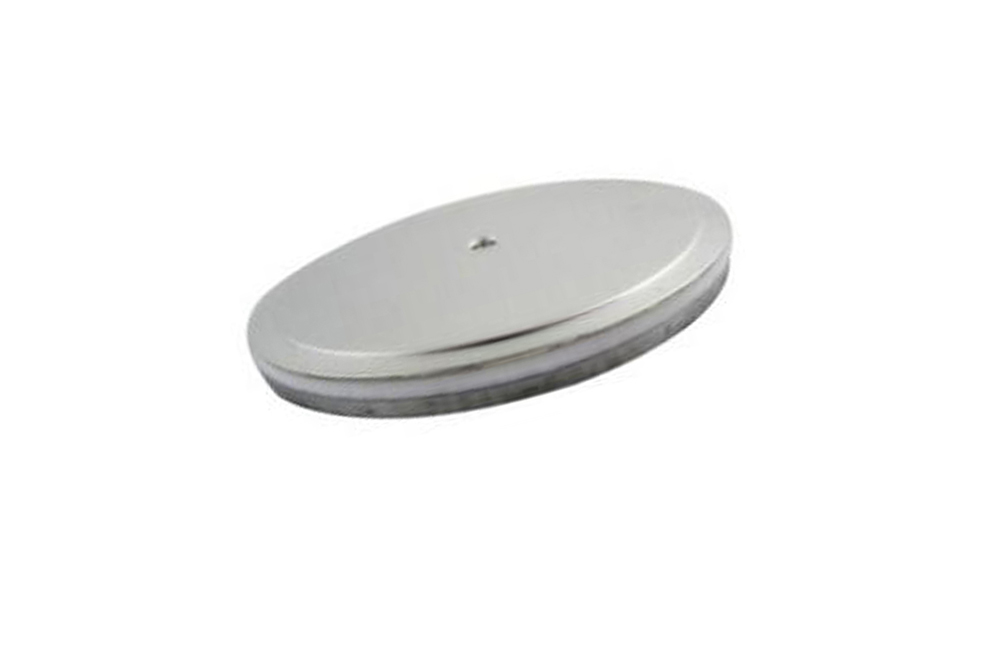

YZPST-ZP11000A200-400V
Features：
● High density current
● High surge current
● Both side cooling
Typical applications：
Welding machine
Electric chemistry
Datasheet ：
|
Sym. |
Condition |
Value |
Units |
|
VRRM |
VRSM= VRRM+50V |
200-400 |
V |
|
IRRM |
25℃, VRM=VRRM |
5(max) |
mA |
|
IRRM |
175℃, VRM=VRRM |
30(max) |
mA |
|
IF(AV) |
180°,half sine wave，50Hz |
11000 |
A |
|
VFM |
25℃, IFM=6000A,F=20kN |
1.12 |
V |
|
Tjm |
|
175 |
℃ |
|
Tstg |
|
-40～175 |
℃ |
|
F |
|
35-40 |
KN |

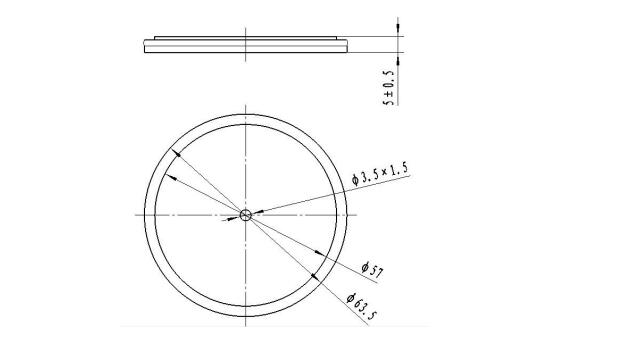

Outline：
YZPST can provide Following Equivalent List of Welding Diodes (Capsule Types)
| Type | IF(AV) @TC= 85°C | VRRM | IRRM (max )7 &Tj= | V(TO) Tjmax | RT Tjmax | Tjmax | Rthjc | F±10% |
| Tjmax | ||||||||
| A | V | mA | V | mQ | °C | K/W | KN | |
| 6000N40 | 7100 | 200-600 | 50 | 0.7 | 0.029 | 170 | 0.01 | 28 |
