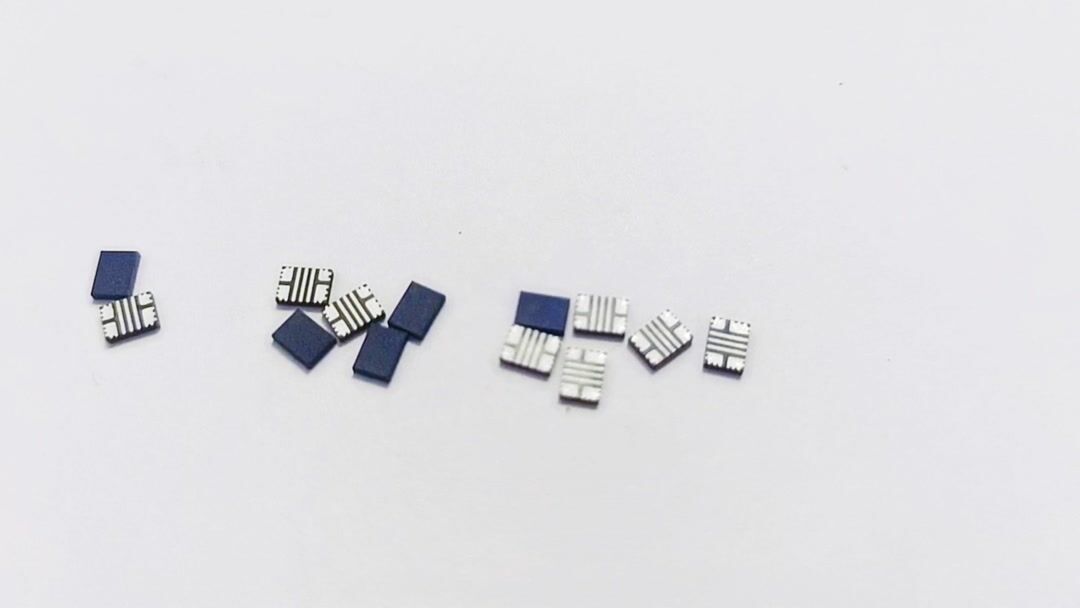

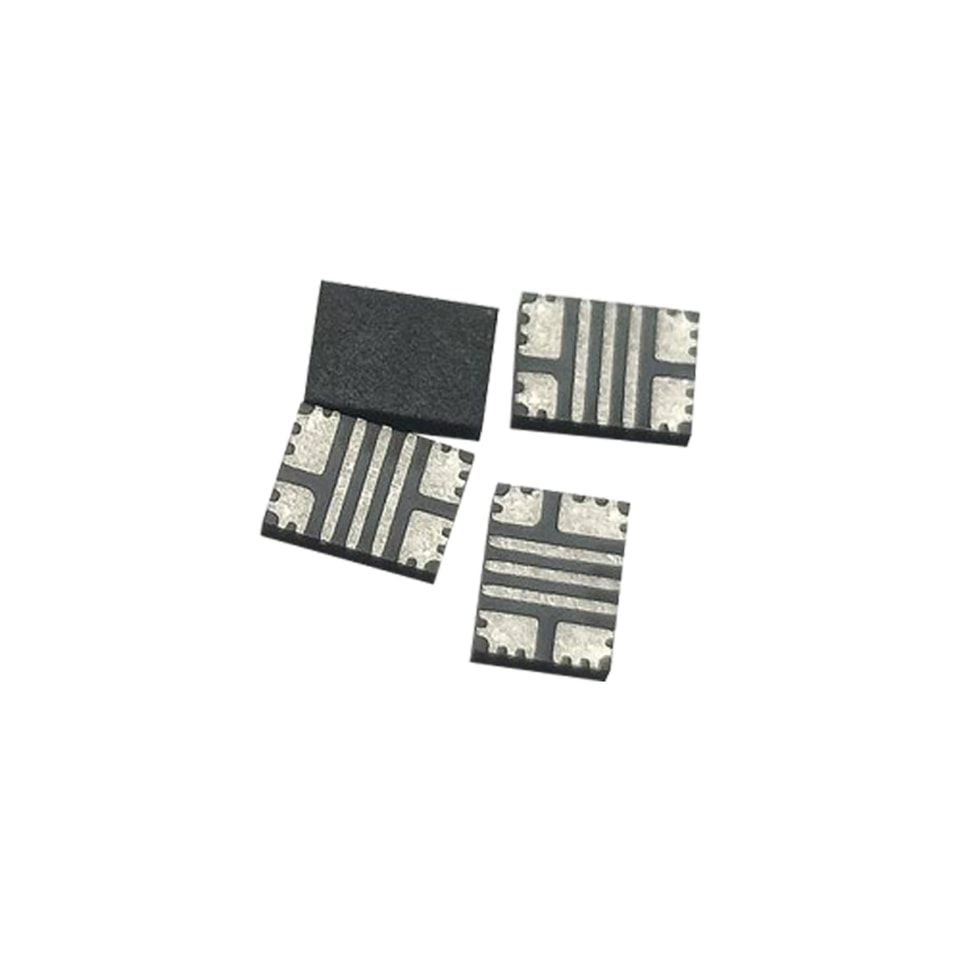

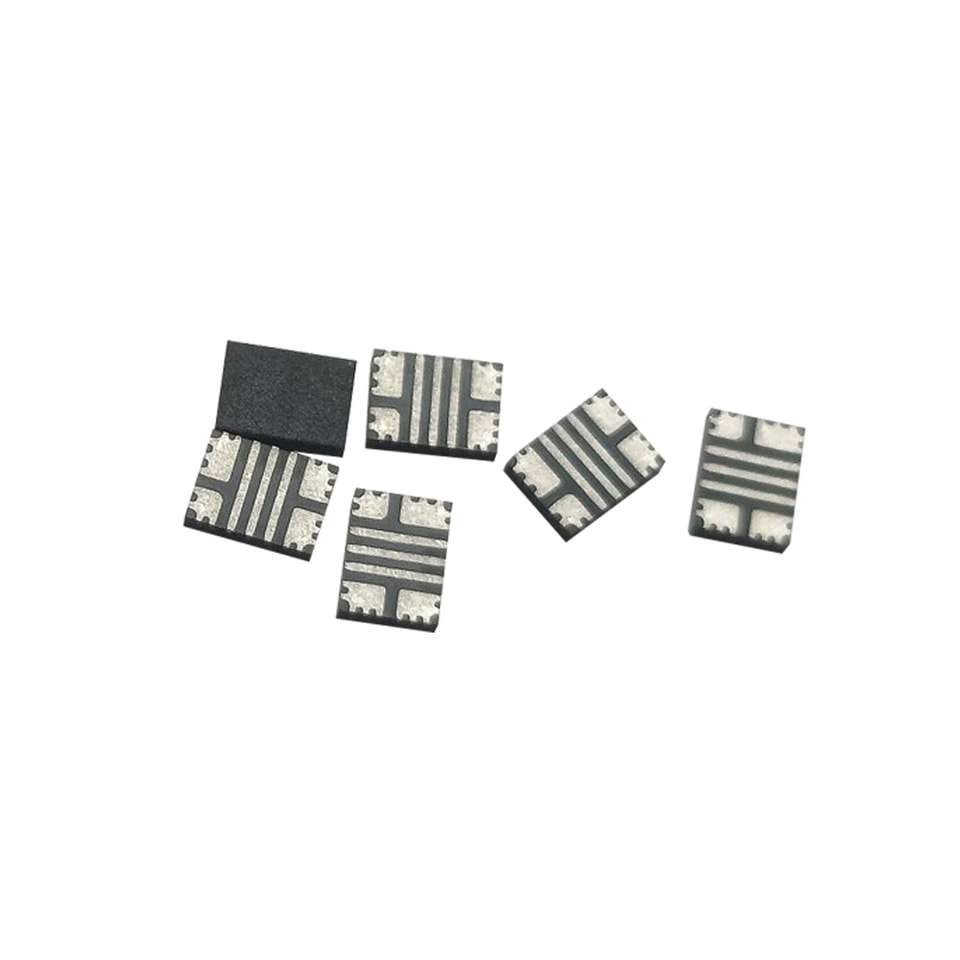

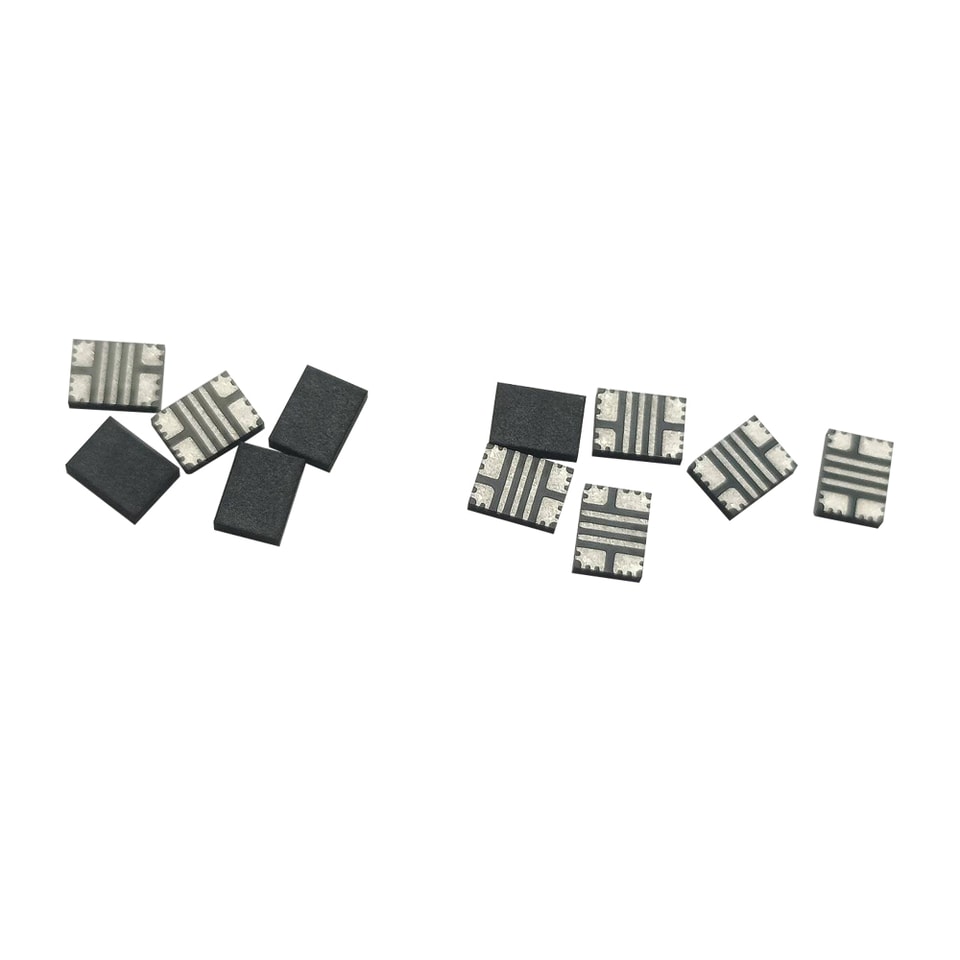

YZPST-RGN040C024
Product summary and primary technical information will be loaded from the product database.
Tip: include the part number, target voltage/current and application environment.
Downloads & technical files
.jpg)
Pin information
Pin | Pin description | Pin function |
1, 2, 24, 25 | Gate | Driver Gate |
3-7, 9, 11-20, 22 | Source | Source |
8, 10, 21, 23 | Drain | Power Drain |
Key performance parameters at TJ = 25 °C
Parameter | Value | Unit |
VDS,max | 40 | V |
RDS(on),max @ VGS = 5 V | 4.3 | mΩ |
QG,typ @ VDS = 20V | 6.2 | nC |
IDS,Pulse | 160 | A |
QOSS@ VDS = 20V | 14 | nC |
Maximum Ratings at TJ = 25 °C unless otherwise specified.
SYMBOL | PARAMETER | MAX | UNIT |
VDS | Drain-to-Source Voltage (Continuous) | 40 | V |
ID | Continuous current | 24 | A |
Pulsed (25˚C, TPulse = 300 µs) | 160 | A | |
VGS | Gate-to-Source Voltage | 6 | V |
Gate-to-Source Voltage | -4 | V | |
Ptot | Power dissipation (Tc, bottom = 25°C) | 43 | W |
TJ | Operating Temperature | -40 to 150 | ˚C |
TSTG | Storage Temperature | -40 to 150 | ˚C |
Thermal Characteristics
SYMBOL | PARAMETER | TYP | UNIT | Note/Test Condition |
RθJC_top | Thermal Resistance, Junction to Case (top) | 26.2 | ˚C/W |
|
RθJC_bot | Thermal Resistance, Junction to Case (bottom) | 2.9 | ˚C/W |
|
RθJA | Thermal Resistance, Junction to Ambient 1 | 45.9 | ˚C/W |
|
Tsold | Maximum reflow soldering temperature | 260 | °C | MSL3 |
Electric Characteristics at TJ = 25 °C, unless specified otherwise
SYMBOL | PARAMETER | MIN | TYP | MAX | UNIT | TEST CONDITIONS |
BVDSS | Drain-to-Source Voltage | 40 |
|
| V | VGS = 0 V, ID = 500 μA |
IDSS | Drain Source Leakage |
|
| 100 | µA | VGS = 0 V, VDS = 32 V |
IGSS | Gate-to-Source Forward Leakage |
| 3 | 80 | µA | VGS = 5 V |
Gate-to-Source Forward Leakage |
| 50 | 500 | µA | VGS = 5 V, Tj = 125 °C | |
Gate-to-Source Reverse Leakage |
| 1 | 20 | µA | VGS = -4 V | |
VGS(TH) | Gate Threshold Voltage | 0.7 |
| 2.4 | V | VDS = VGS , ID = 7 mA |
RDS(on) | Drain-Source On-state Resistance |
| 3 | 4.3 | mΩ | VGS = 5 V, ID = 15 A |
VSD | Source-Drain Forward Voltage |
| 1.9 |
| V | IS = 0.5 A, VGS = 0 V |
Dynamic characteristics
SYMBOL | PARAMETER | MIN | TYP | MAX | UNIT | TEST CONDITIONS |
Ciss | Input Capacitance |
| 805 |
|
pF |
VGS = 0 V, VDS = 20 V |
Coss | Output Capacitance |
| 428 |
| ||
Crss | Reverse Transfer Capacitance |
| 13 |
| ||
Coss(er) | Energy Related Coss |
| 600 |
| VGS = 5 V, VDS = 20 V, ID=15 A | |
Coss(tr) | Time Related Coss |
| 703 |
| ||
RG | Gate resistance |
| 1.7 |
| Ω | f = 1 MHz |
QG | Total Gate Charge |
| 6.2 | 8.5 |
nC | VGS = 5 V, VDS = 20 V, ID=15 A |
QGS | Gate to Source Charge |
| 1.4 |
|
VDS = 20 V, ID =15 A | |
QGD | Gate to Drain Charge |
| 0.8 |
| ||
QG(TH) | Gate Charge at Threshold |
| 0.9 |
| ||
QOSS | Output Charge |
| 14 |
| VGS = 0 V, VDS = 0 V to 20 V |

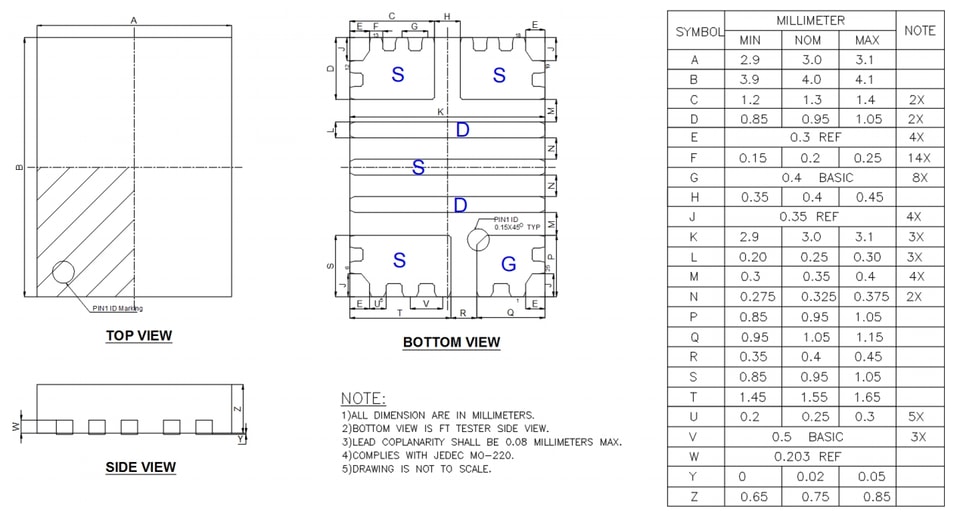

Package Outlines

From a part number to a complete power requirement.
Send us the part number, electrical target and application context.
